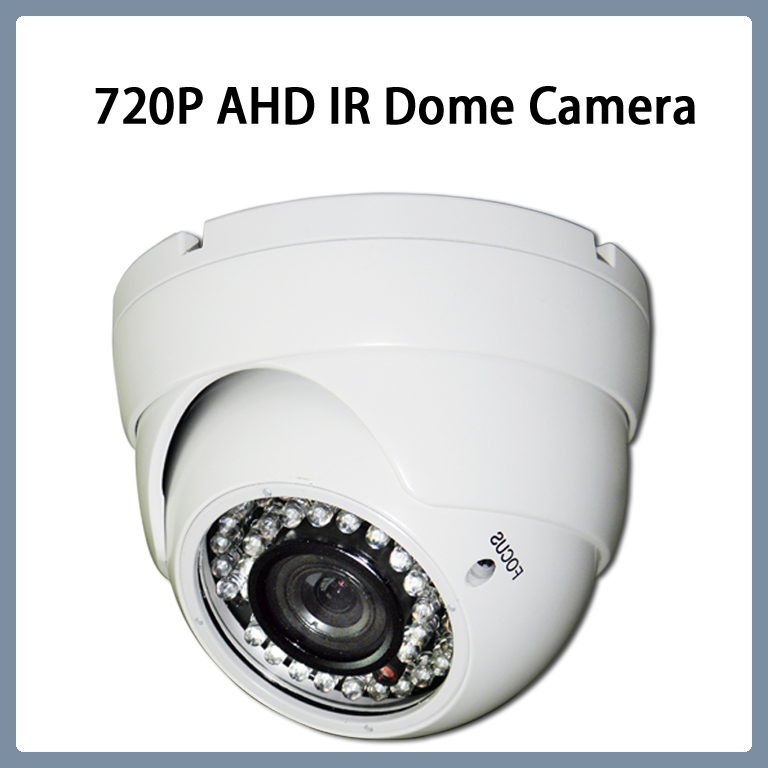

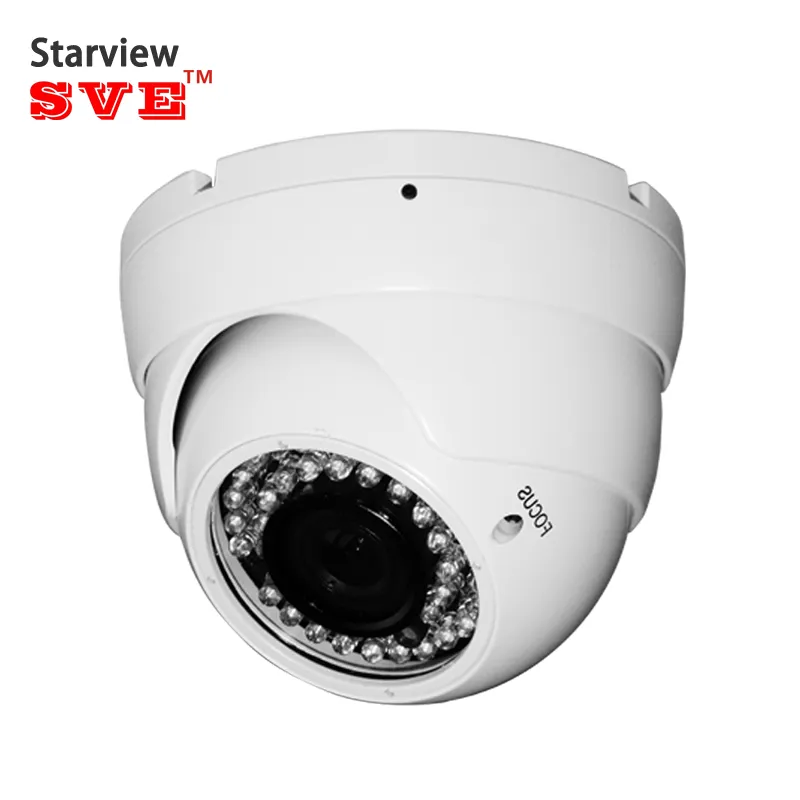

1/2.8" Sony CMOS 1.0MP 720p Ahd IR Dome CCTV Camera
Key Features1/2.8" Sony IMX238 CMOS sensorAHD 25fps/30fps@1280H(1280*720) video outputAHD BNC interface,Support Over 500m via 75-5 coaxial cable;High efficiency, long-distance, real-time transmissionOSD Menu ,3D noise reduction,D-WDR low illuminationIR cut function, Day@Night surveillance&O......
Send Inquiry
Product Description
Key Features
1/2.8" Sony IMX238 CMOS sensor
AHD 25fps/30fps@1280H(1280*720) video output
AHD BNC interface,Support Over 500m via 75-5 coaxial cable;
High efficiency, long-distance, real-time transmission
OSD Menu ,3D noise reduction,D-WDR low illumination
IR cut function, Day@Night surveillance

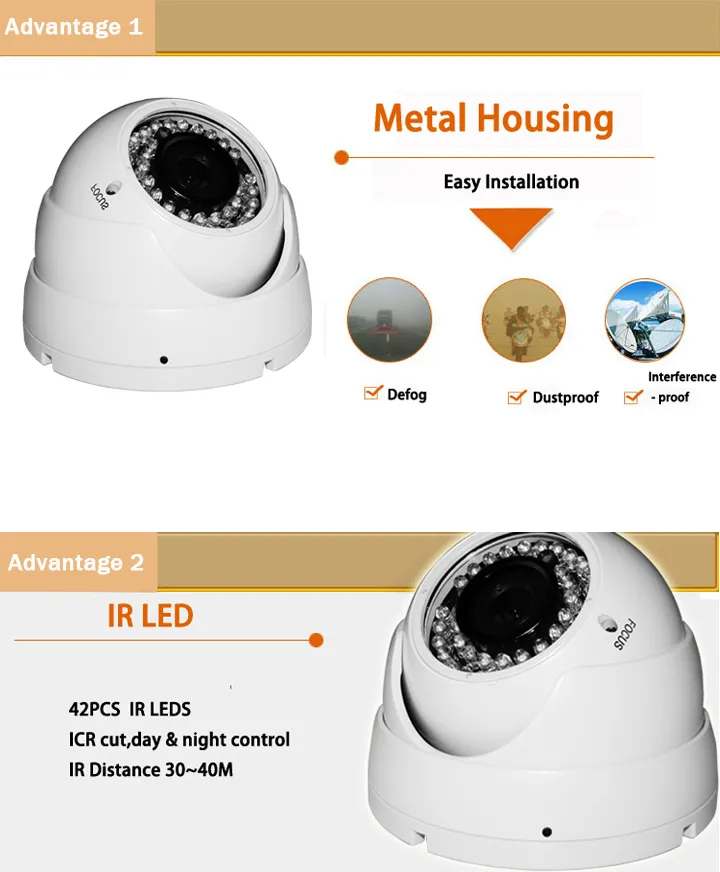

Ø5X42PCS IR LEDS, IR Distance: 30~40M
2.8mm~12mm vari-focal 2M Pixels Lens

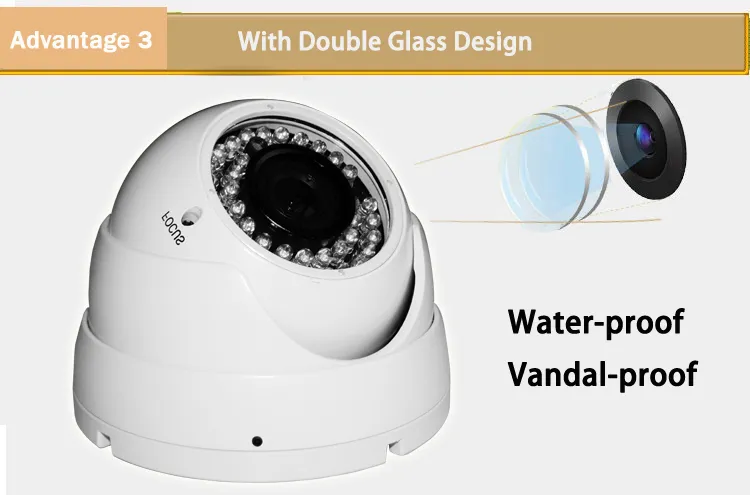

Dome housing,multiple angle adjustable
AHD CAMERA
Our Service:
(1) Prompt reply: Your inquiry related to our products or price will be replied within 24 hours.
(2) OEM Service: We offer customized options for our products, and customer's designed LOGO printing is available.
(3) Quality Control: All products we sold are 100% strictly selected and tested by our QC department.
(4) Warranty: We offer 1 year product warranty.
AHD Introduction:
*What is AHD?
Analog High Definition
*What if AHD's features?
Coaxial transmission, super long range, convenience for users
*What is our AHD DVR advantages?
1,Switch AHD,IP and Analog cameras in no time;
2,Coaxial line without modified;
3,Plug and play;
4,Strong compatibility;
5,Clear vision and lower price than CVI&SDI;
Payment Terms:
1. Ex-Works Shenzhen
2.Payment T/T in advance(Paypal or Western Union are welcomed)
3.Leaditime:3-15 Working days after receipt the payment depends on order quantity
4.Sample order can be delivered within 3 days
5.Delivery services are quoted under your requirements(EMS/DHL/UPS/FEDEX/by sea or by Air)
6.MOQ :10pcs, sample order is welcome.
Technical parameters
| Model | SV-D5S10AHD |
| VIDEO | |
| Imaging Device | 1/2.8" Sony IMX238 CMOS sensor |
| DSP | NVP2431H |
| Effective Pixels | 1280(H)*720(V) |
| Horizontal Resolution | 720P |
| Sync System | Internal Synchronization |
| Min.Illumination | 0.01Lux/Color,0Lux IR on |
| S/N(Y signal) | 50dB |
| Video Output | Compliant AHD Standard |
| AHD distance | Up to 500 meters lossless transmission with 75-5 coax |
| Day&Night | Auto ICR cut |
| Backlight Compensation | Auto |
| White Balance | Auto |
| Electronic Shutter | AUTO/ 1/50(1/60)-1/100,000sec |
| Lens | |
| Focal Length | 2.8mm~12mm vari-focal lens |
| Angular Field of View | H:94.4°(Wide)~28°(Tele) V:69.2(Wide)~21°(Tele) |
| Focus | Manual |
| ELECTRICAL | |
| Input Voltage | DC 12V10% |
| Power Consumption | DC12V/100Ma(IR ON 350ma) |
| Other | |
| IR LEDS | ¢5X42PCS IR LEDS |
| IR Distance | 30~40M |
| Operation Tem. | -10C~ +50C RH95% MAX |
| Storage Tem. | -20C~+60C RH95% MAX |
| weight | 0.5KG |
| Dimensions | 120(L)x98(W)mm |
