1.3 Mega Dual Lens USB CMOS Camera Module
1.3Mega Dual lens USB CMOS Camera Module:1. 1/3 inch AR0130 Cmos camera module2. Double lens 1.3Mega Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB camera module with 90 degree 5. 80*18*20mm mini micro USB board camera Specif......
Send Inquiry
Product Description
1.3Mega Dual lens USB CMOS Camera Module:

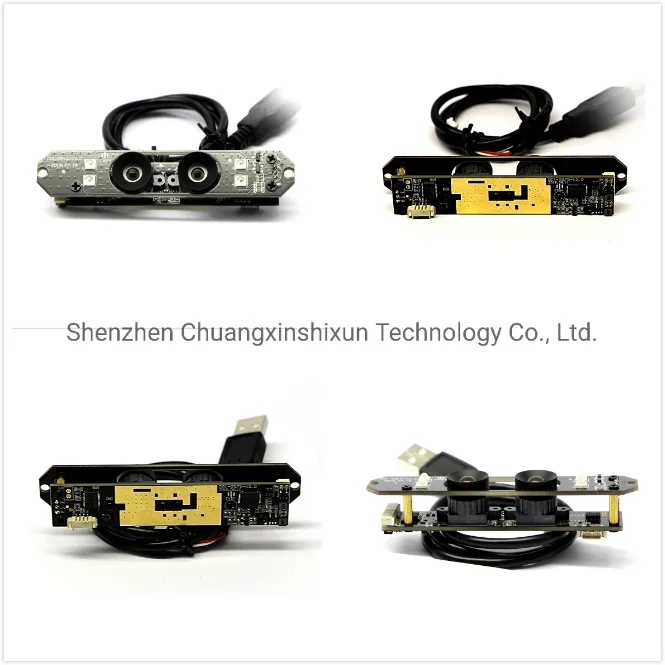

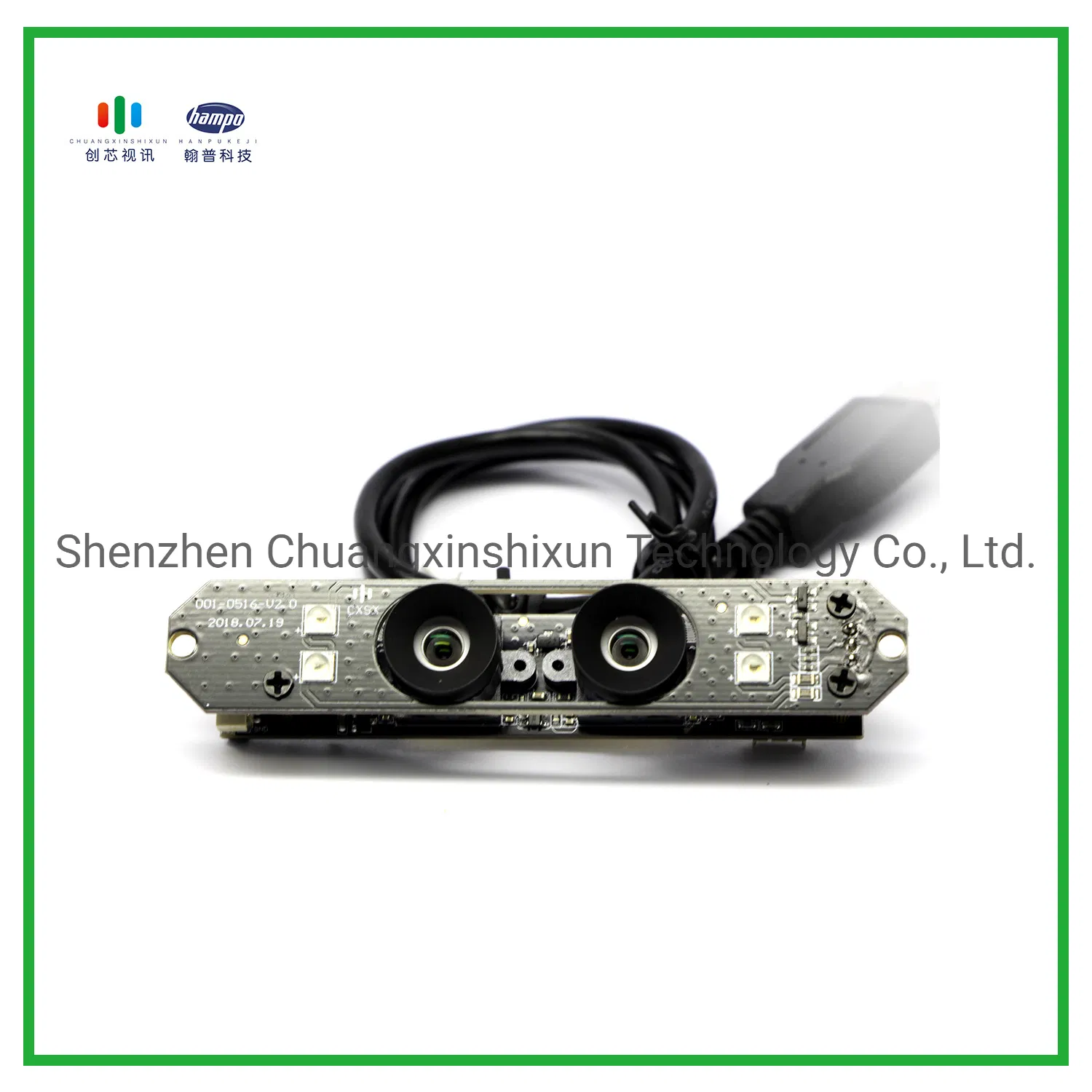

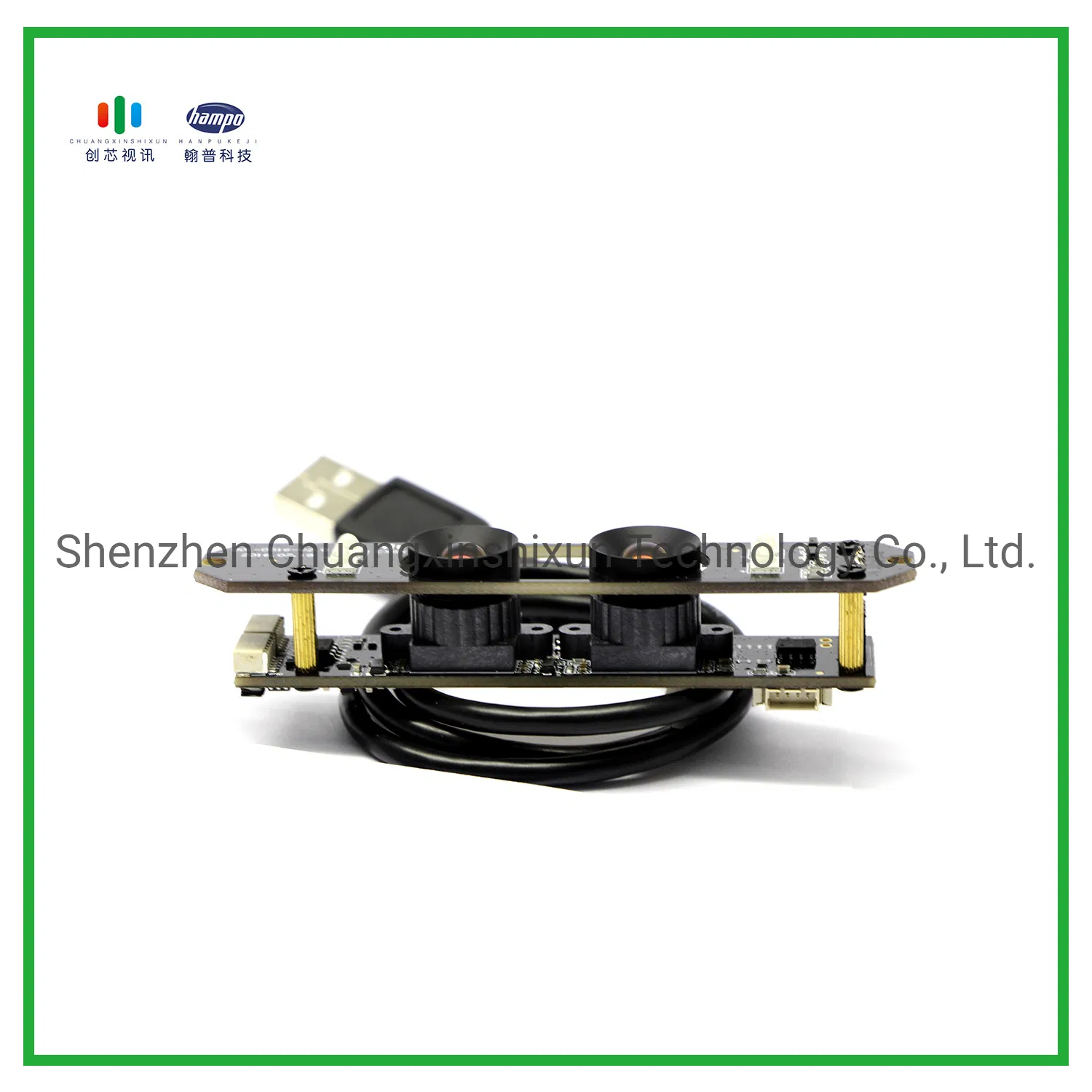

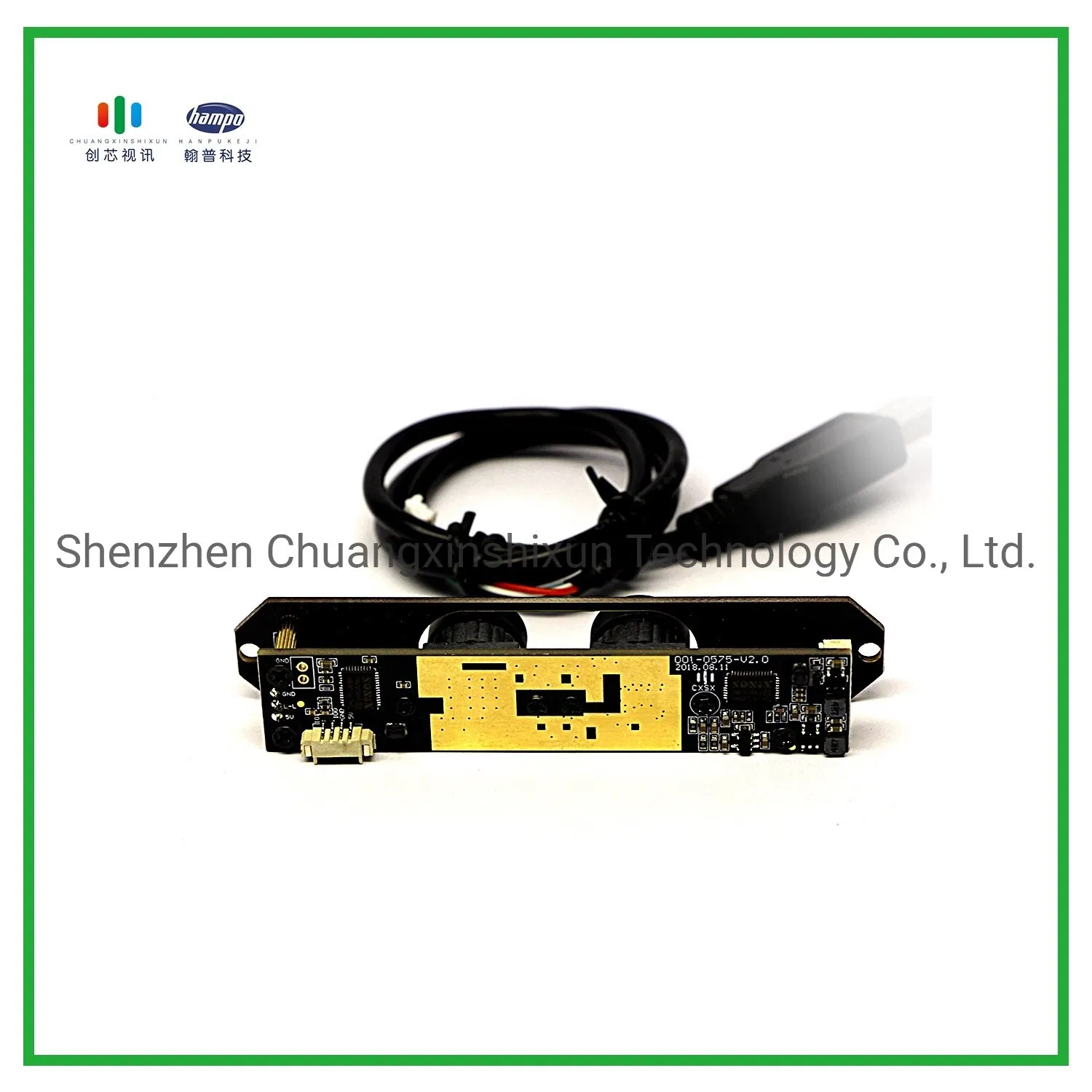

Pictures Display:

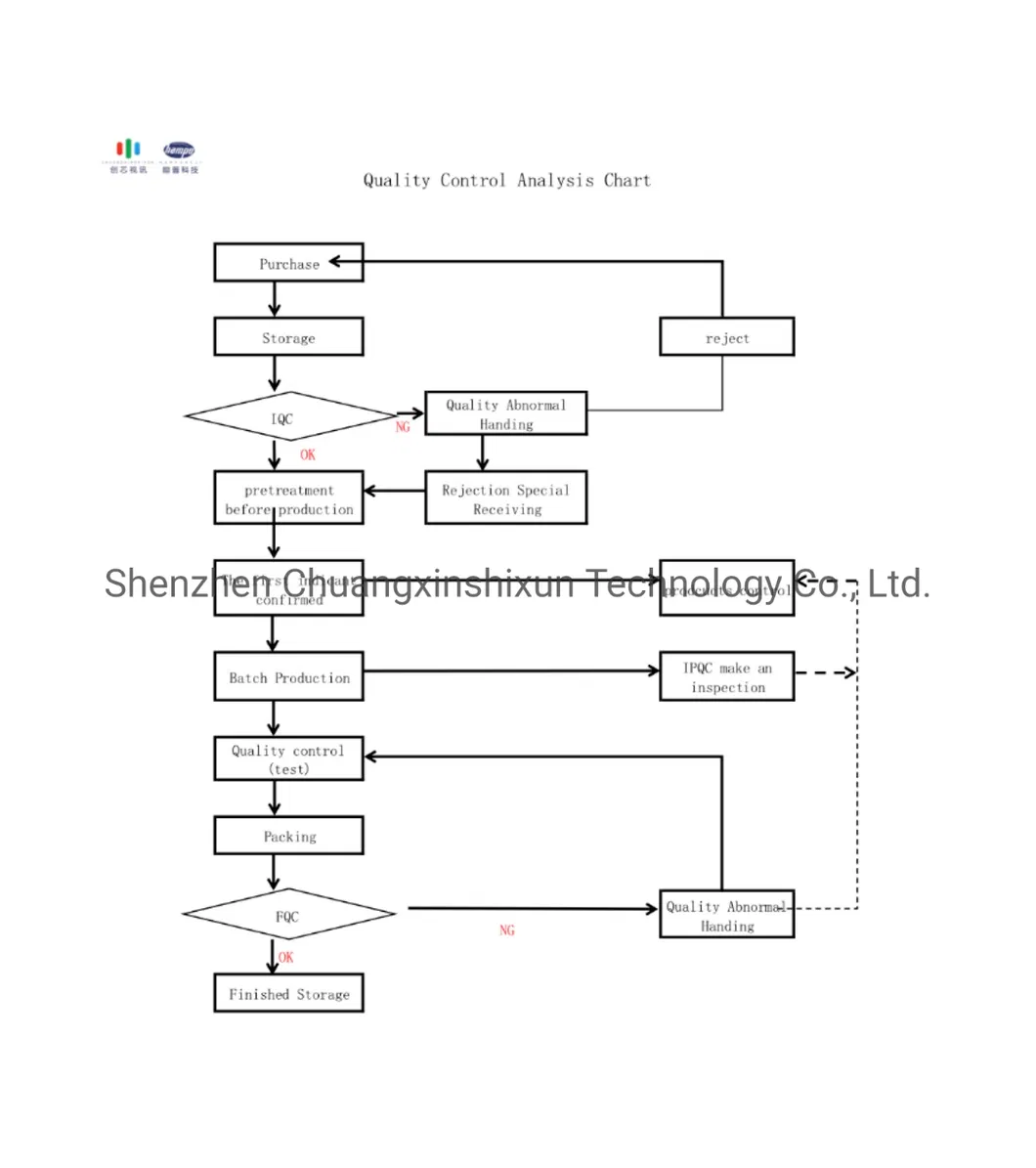

Quality Control:
Company Information:
1. 1/3 inch AR0130 Cmos camera module
2. Double lens 1.3Mega Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB camera module with 90 degree
5. 80*18*20mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | 1/3",1/3" |
| Lens Size | 1/2.5",1/2.5" |
| Most Effective Pixels | HD/1.3M & HD/1.3M |
| Data Format) | MJPG/YUY2 |
| Pixel Size | 1280*960,1280*720,800*600,640*480,640*360,320*240.160*120 |
| Dynamic Range | 82dB |
| Lens | FOV :90° |
| Optical Length :17.6MM | |
| Lens Construction:2P+3G+IR | |
| Mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation, Contrast, acutance, White balance, exposure |
| Audio | / |
| Voltage | DC 5V |
| Working Current | MAX 300 mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20°C to +70°C |
| Working Temperature | 0°C to +60°C |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Pictures Display:
Quality Control:
Company Information:
