1/4" Ov9732 CMOS USB Camera Dual Lens 720p 3D USB Camera Module for Face Recognition
1/4" OV9732 CMOS USB Camera Dual Lens 720p 3D USB Camera Module for Face recognition1. 1/4 inch OV9732 CMOS camera module2. 720P HD USB camera module with speed 30 fps3. 720P HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB camera module with 70 de......
Send Inquiry
Product Description
1/4" OV9732 CMOS USB Camera Dual Lens 720p 3D USB Camera Module for Face recognition
1. 1/4 inch OV9732 CMOS camera module

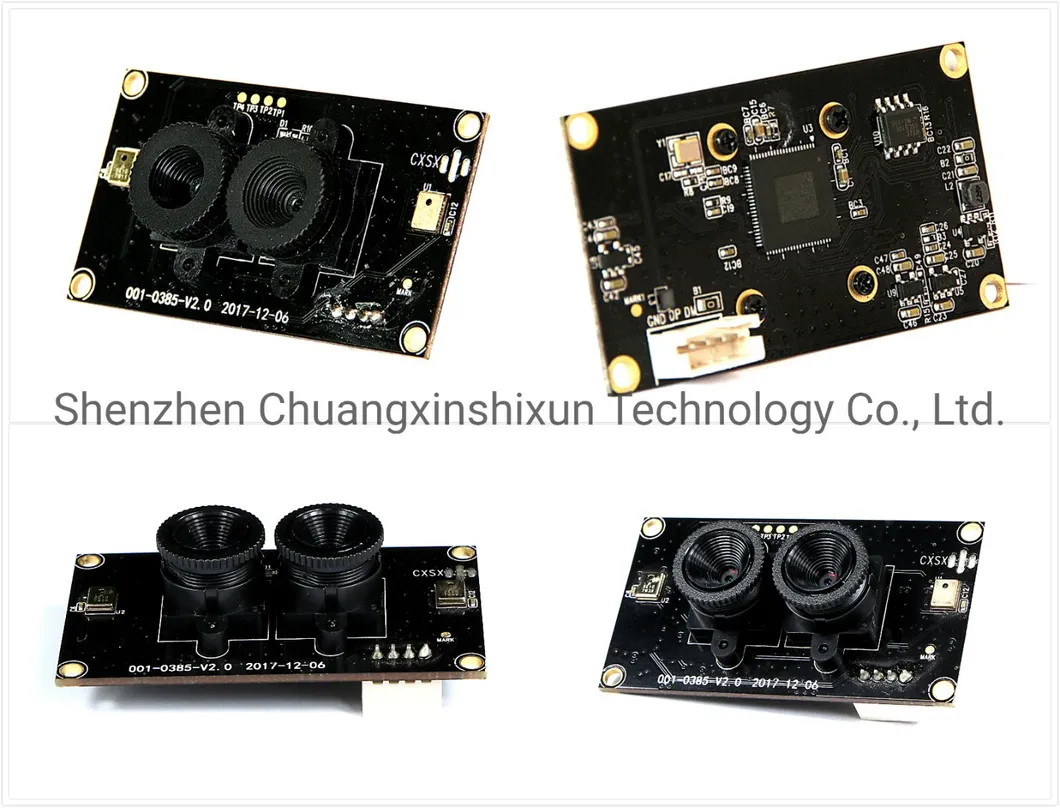

Pictures Display:

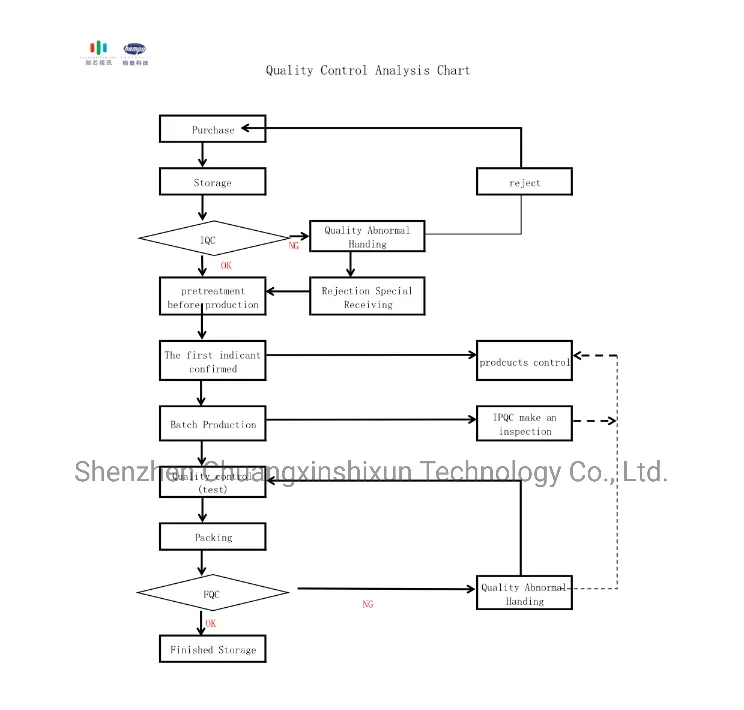

Quality Control:
Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
1. 1/4 inch OV9732 CMOS camera module
2. 720P HD USB camera module with speed 30 fps
3. 720P HD realtime usb webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB camera module with 70 degree
5. 60*38mm mini micro USB board camera
Specification:
| Items | Parameters | ||
| SENSOR | OV9732 | ||
| Maximum Effective Resolution | 1280x720 | ||
| Lens Size | 1/4" | ||
| Pixel Size | 3 µm x3 µm | ||
| Image Area | 3888 x2208 µm | ||
| Output Format | Data Format | Resolution | Frame Rate |
| MJPG/YUY2 | <=720P | 30fps | |
| Input Clock Frequency | 6-27MHZ | ||
| Focusing | Fixed focus | ||
| Max S/N ratio | TDB | ||
| Dynamic Range | TDB | ||
| Responsivity | TDB | ||
| USB Connector | USB2.0 | ||
| Auto Control | Saturation,Contrast, Color saturation, Acutance,Gamma, Gain, White balance,Exposure | ||
| Lens | Sensor Size: 1/4" | ||
| Optical length:8.4 MM | |||
| lens construction:5P | |||
| FOV :D= 70° | |||
| Manufactor: / | |||
| Model: / | |||
| Audio | Digital Microphone | ||
| Power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric Current | MAX 300mA | ||
| Main Chip | DSP/ SENSOR/ FLASH | ||
| PCBA Size | 30*54mm | ||
| Storage Temperature | -20ºC to +70ºC | ||
| Working Temperature | 0ºC to +55ºC | ||
| System Compatibility | Windows XP/ Win7/Win8/Win10/Linux/Android/0S X | ||

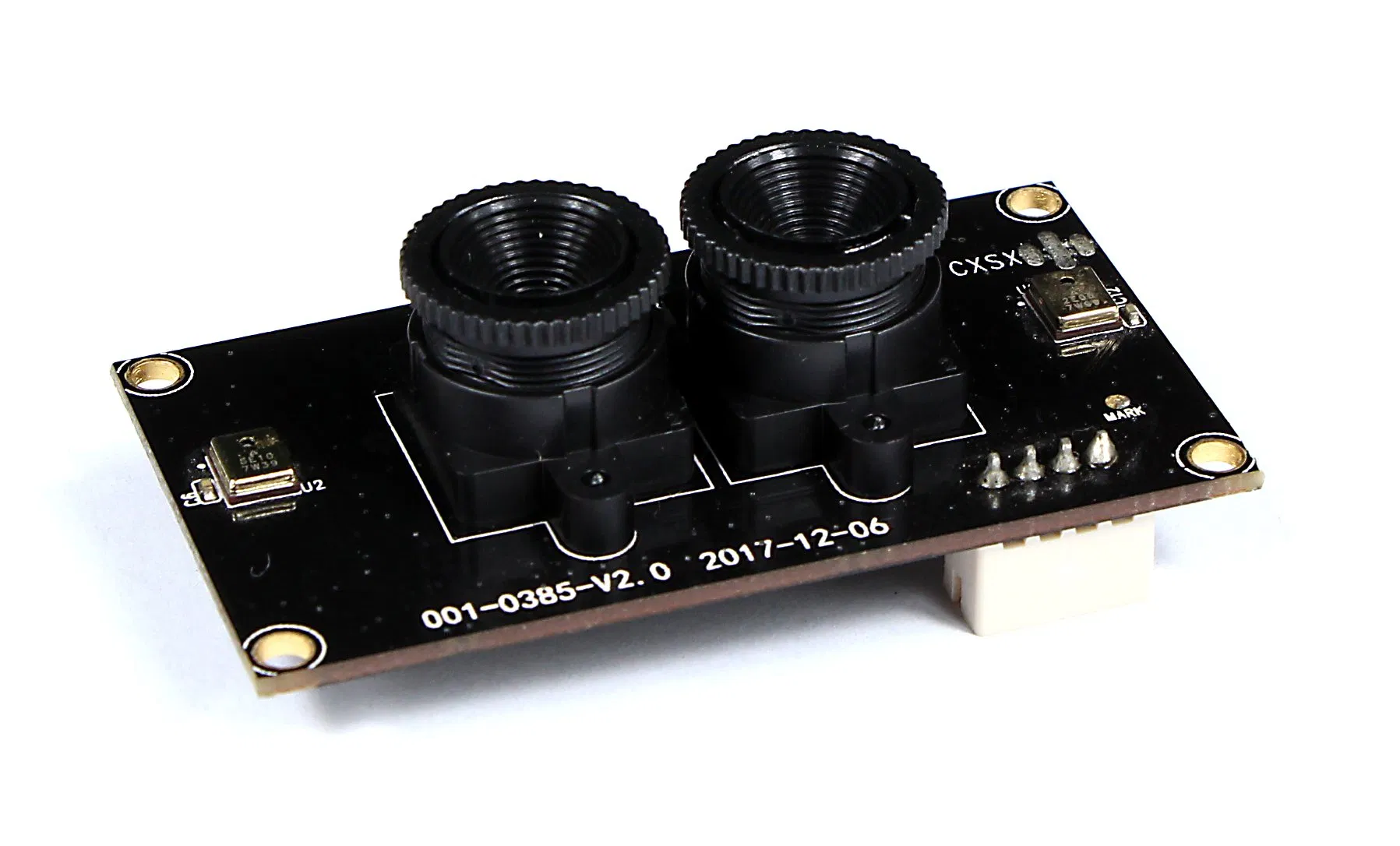

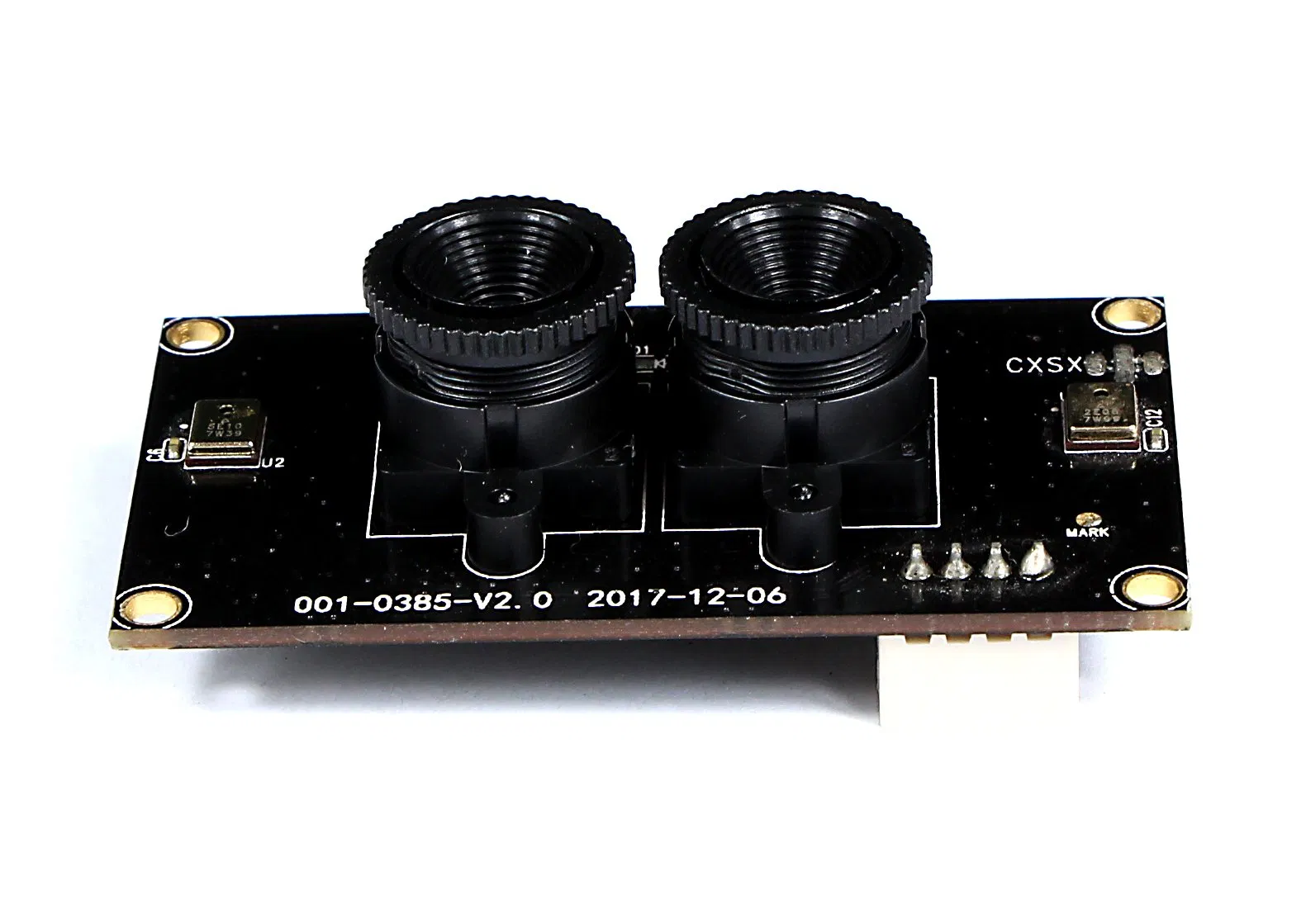

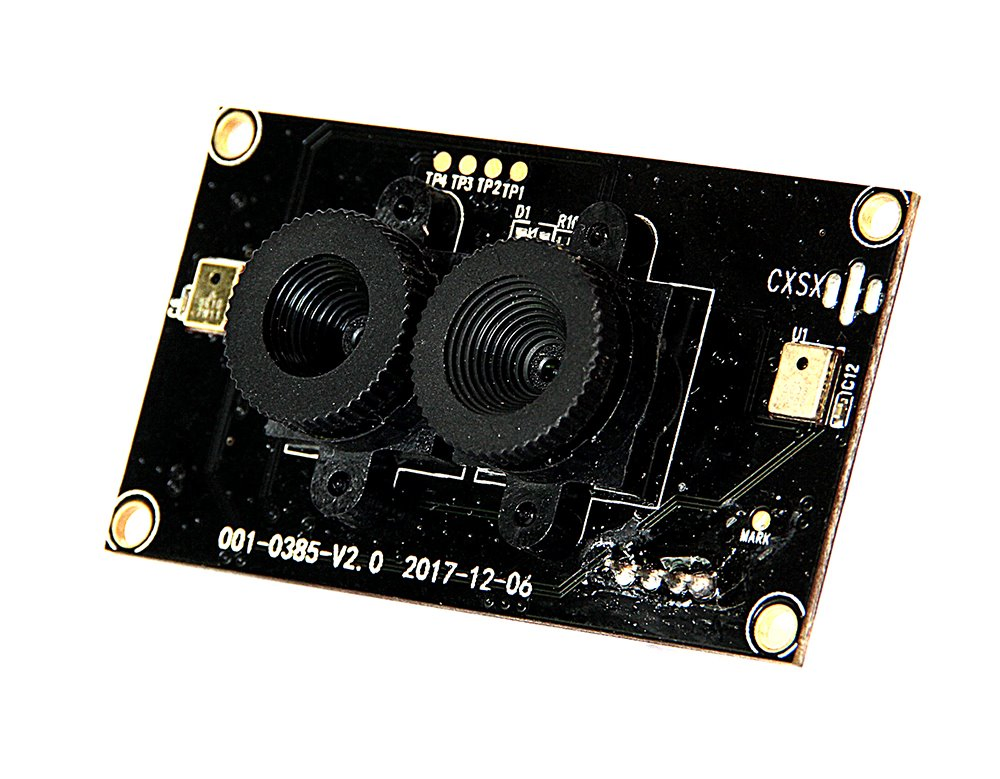

Pictures Display:

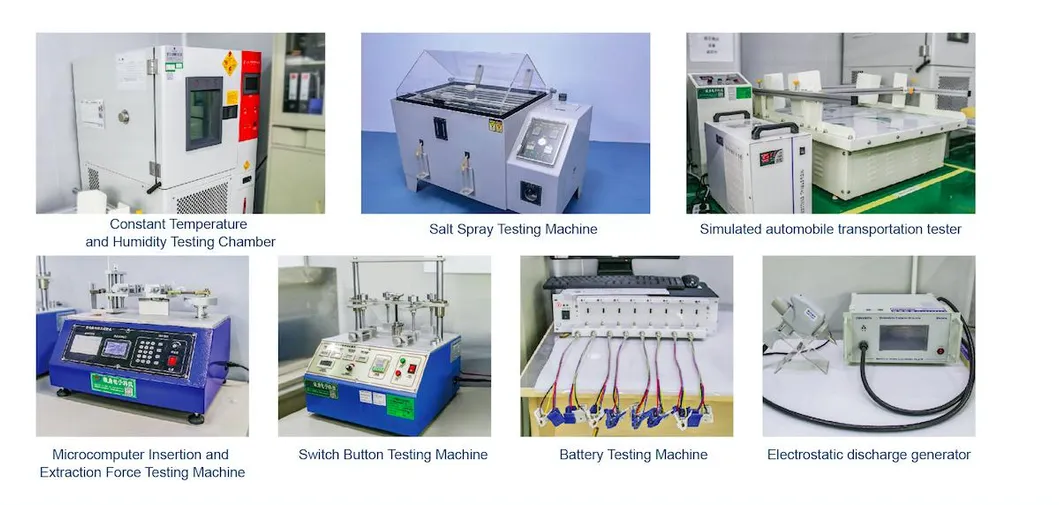

Quality Control:
Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
