1024X768 HD Resolution PTZ Security Surveillance Long Range Thermal Camera
Features1. 1024×768 HD Uncooled microbolometer infrared focal plane arrays2. 14µm pixel, image quality fine, observe small target more clearly, further detection distance3. High sensitivity, NETD can reach 60mk and frame at 30Hz4. 12x magnification continuous zoom, can expand th......
Send Inquiry
Product Description
Features
1. 1024×768 HD Uncooled microbolometer infrared focal plane arrays
2. 14µm pixel, image quality fine, observe small target more clearly, further detection distance
3. High sensitivity, NETD can reach 60mk and frame at 30Hz
4. 12x magnification continuous zoom, can expand the search scope, and also identify distant goals, do not lose the target
5. Advanced image noise reduction process, DDE(digital image details enhancement) function, outputting hot white/ hot black/ pseudo color image
6. Low power consumption, quick start, stable performance
7. Start network interface control, HD video signal output
8. Simple operation, easy to use and mainta
Our Service
(1) We accept OEM and customization
(2) Spot installation and remote technical support are available.
(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(4) We generally offer 14months warranty. Extended warranty is also available.
Specification
Effect Image
Package
Company tour
Welcome to Visit Us!
1. 1024×768 HD Uncooled microbolometer infrared focal plane arrays
2. 14µm pixel, image quality fine, observe small target more clearly, further detection distance
3. High sensitivity, NETD can reach 60mk and frame at 30Hz
4. 12x magnification continuous zoom, can expand the search scope, and also identify distant goals, do not lose the target
5. Advanced image noise reduction process, DDE(digital image details enhancement) function, outputting hot white/ hot black/ pseudo color image
6. Low power consumption, quick start, stable performance
7. Start network interface control, HD video signal output
8. Simple operation, easy to use and mainta
Our Service
(1) We accept OEM and customization
(2) Spot installation and remote technical support are available.
(3) Life-long technical support. Professional technical team and salesperson help you with troubleshooting procedures any time when needed.
(4) We generally offer 14months warranty. Extended warranty is also available.
Specification
| Monitoring distance | Object | People(1.8m×0.5m) | Vehicle(2.3m×2.3m) |
| Detection | 8000m | 12000m | |
| Recognition | 3000m | 8000m | |
| Identification | 1690m | 4000m | |
| Infrared lens | Focal length | 25~300mm, 12x optical zoom | |
| FOV | 2.7°×2.05°~32.86°×24.26° | ||
| Spatial resolution | 0.047~0.56mrad | ||
| Lens control | Electronic zoom/focus(auto focus is optional) | ||
| Detector | Detector type | Uncooled FPA detector(vox) | |
| Pixel | 1024×768 | ||
| Spectrum | 8~14μm | ||
| NETD | ≤[email protected], 300K | ||
| Frame | 30Hz | ||
| NUC | Auto/Manual/Background correction | ||
| Image process | DDE, pseudo color | ||
| Video output | PAL | ||
| Interface | Power supply interface | DC12V | |
| Other interface | VGA | ||
| Environmental indicators | Working temperature | -25ºC~+55ºC | |
| Storage temperature | -40ºC~+65ºC | ||
| Power supply | Power supply | DC12V±10% | |
| Power consumption | ≤10W | ||
| Physical feature | Weight | ≤25Kg | |
| Installation method | Fixed | ||

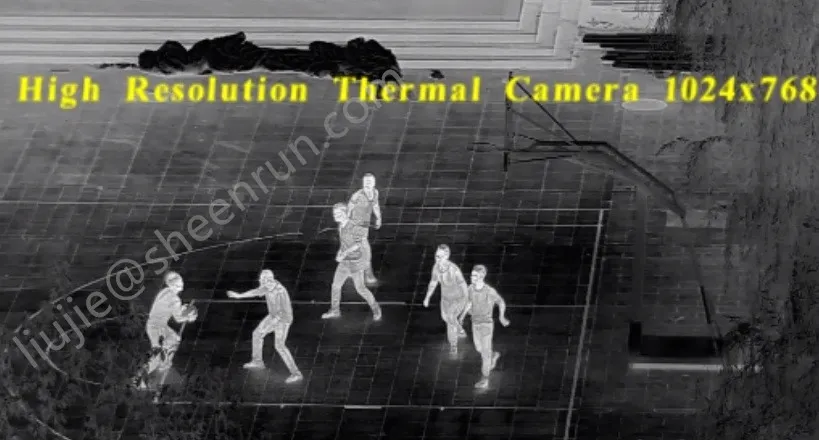

Effect Image
Package

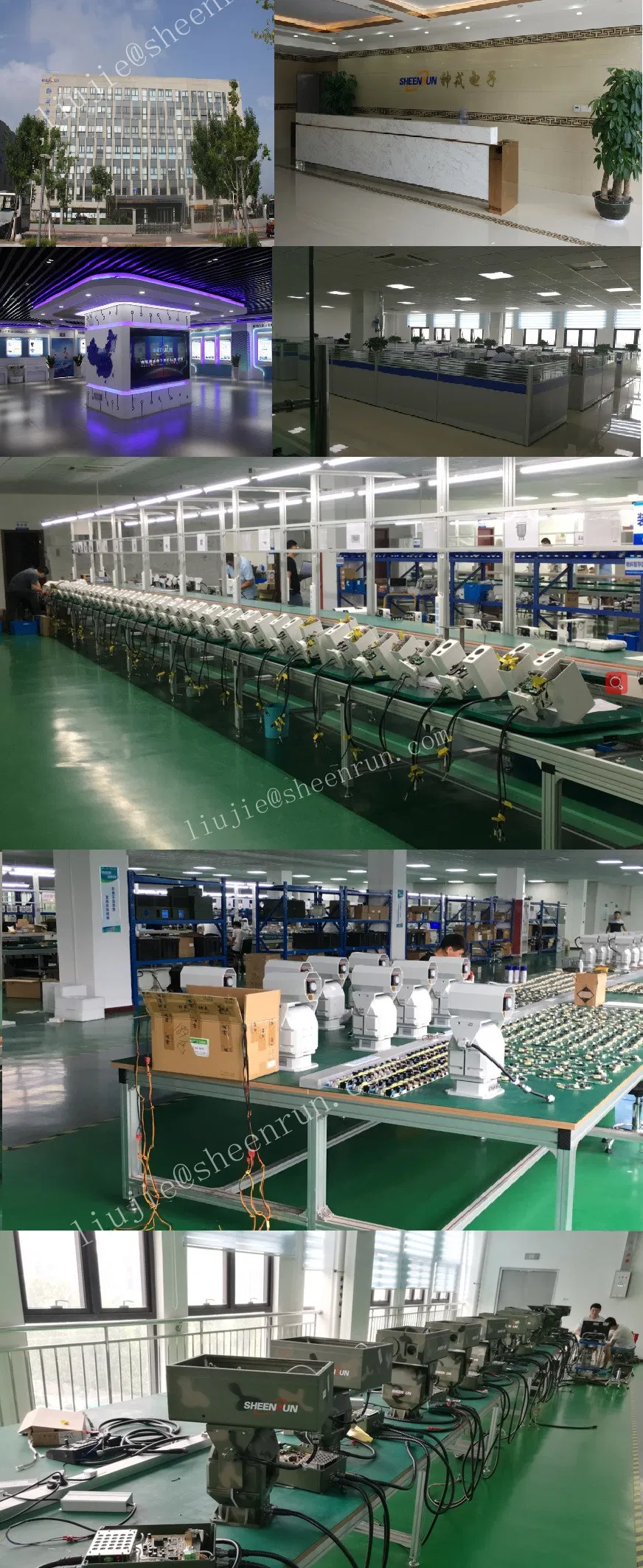

Company tour
