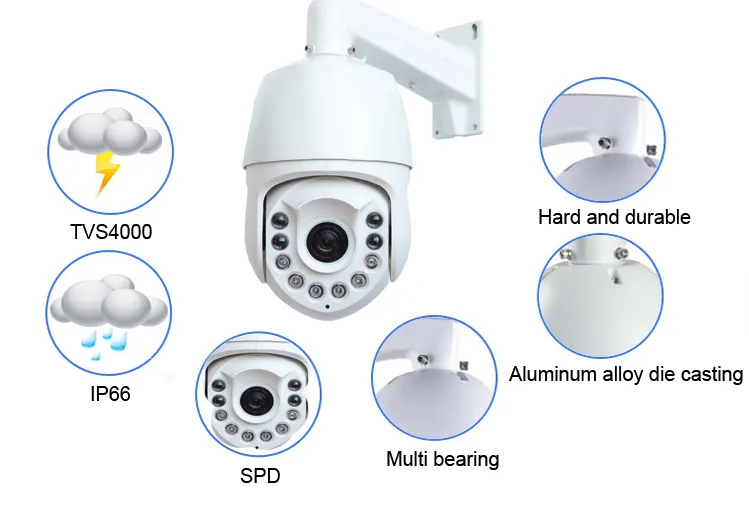

1080P 20X Full Color Night Vision PTZ Speed Dome IP Camera
Key Features2 MP progressive scanning image CMOS sensor20X Optical zoomFull color night vision,10 warm lamps(4 Near light +2 medium light +4 Far light)Automatic switching lightsSupport Auto Focus AWB BLC ,Low light (color / black and white) automatic/manual conversionMultiple network monitoring m......
Send Inquiry
Product Description
Key Features
- 2 MP progressive scanning image CMOS sensor
- 20X Optical zoom

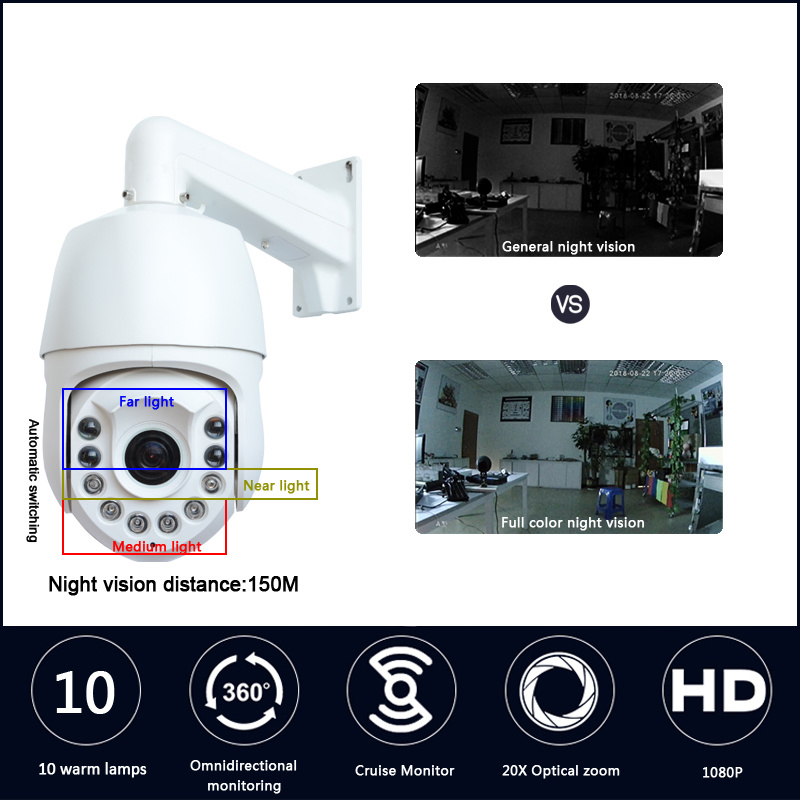

- Full color night vision,10 warm lamps(4 Near light +2 medium light +4 Far light)Automatic switching lights
- Support Auto Focus AWB BLC ,Low light (color / black and white) automatic/manual conversion
- Multiple network monitoring modes (mobile phone, WEB, client)
- Support ONVIF protocol, compatible with standard ONVIF protocol NVR or platform software.
- Built in surge protection and lightning protection device to effectively prevent 4000V instantaneous current.
| Model | TS703G-NH-BGZ8 |
| Camera Function | |
| Image Sensor | 1/2.8" Sony Ultralow illumination IMX307 Progressive Scan CMOS |
| Minimum Illumination | Color:0.[email protected],B/W:[email protected] |
| Pixel | 2.0MP /1080P (1920×1080) |
| Exposure mode | Auto exposure, Auto white balance, Auto AGC |
| Electronic shutter | Automatic / Manual (1/10~1/10000S) |
| Day & night mode | IRCUT |
| S/N Ratio | ≥50dB |
| Len | |
| Focal length | 4.7-94mm |
| Optical zoom | 20X |
| F-number | F1.6-F3.5 |
| Angle of field | 55.2°-3.2°(Wide angle, far focus) |
| IR Function | |
| Warm light control | Automatic / turn on / turn off lights |
| Night vision distance | 150M |
| PTZ Function | |
| Preset | 255 Presets |
| Pan Control | 360°Horizontal Continuous Rotation, 0.1°-80°/S |
| Tilt Control | -15°~90°Vertical, 0.1°-80°/S |
| Automatic mode | It supports 4 automatic cruises, 1 line sweeps, 1 track sweeps, 1 horizontal scans. |
| PTZ function | Support idle action, support power on, rotation speed can be adjusted automatically according to the lens magnification. |
| Video standards | H.265/H.264 |
| Stream | Main stream(1920*1080,1280*720),Sub stream(D1) |
| Network Protocols | HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF/P2P |
| Ethernet | 10/100M adaptive Ethernet interface, lightning protection design |
| user management | Support multi-level user rights management |
| Working Environment | |
| Power Supply | DC12V/4A (Contains infrared control circuit.), 20W |
| Working Temperature | -40ºC ~60ºC |
| Pan test speed | Yes |
| Working humidity | ≤90%, Non- condensing |
| Protection Level | IP66,4000V lightning protection, surge prevention and surge protection |
| Physical Feature | |
| Material quality | Cast Aluminium material |
| Installation | Wall/ Pendant |

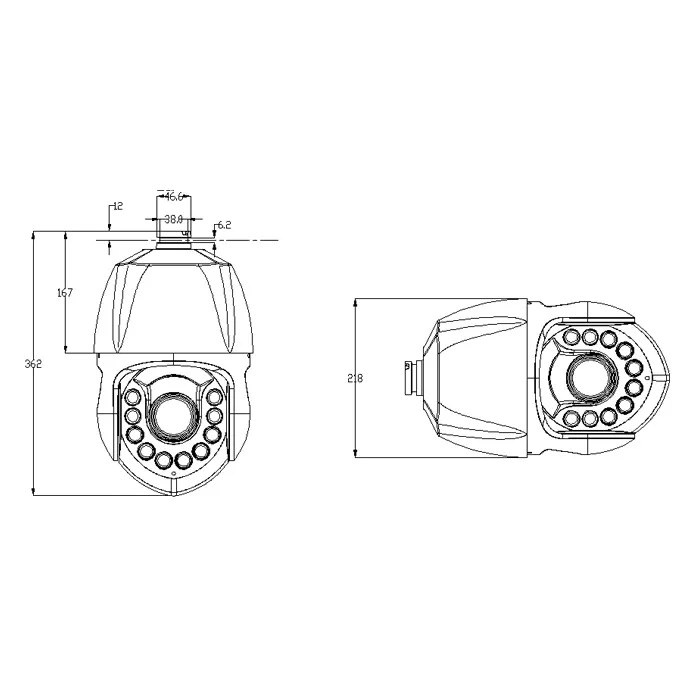

| Dimension | 218mm*362mm |
| Weight | About 6KG |
