1080P IP66 Waterproof Outdoor HD Solar PTZ Security System CCTV Camera
In order to better serve you (price quote), we need the following information:1. thermal lens: 384*266 or 640*5122. Detection distance3. Where you use it: like border defence, city surveillance, rive/lake monitoring4. or other information that important to youWhat we can do:1. Custom as you need2. 1......
Send Inquiry
Product Description
In order to better serve you (price quote), we need the following information:
1. thermal lens: 384*266 or 640*512
2. Detection distance
3. Where you use it: like border defence, city surveillance, rive/lake monitoring
4. or other information that important to you
What we can do:
1. Custom as you need
2. 1-3 year warranty period
3. Convenient export services
4. Competitive prices
5. Mini order: 1 set
1. thermal lens: 384*266 or 640*512
2. Detection distance
3. Where you use it: like border defence, city surveillance, rive/lake monitoring
4. or other information that important to you
What we can do:
1. Custom as you need
2. 1-3 year warranty period
3. Convenient export services
4. Competitive prices
5. Mini order: 1 set

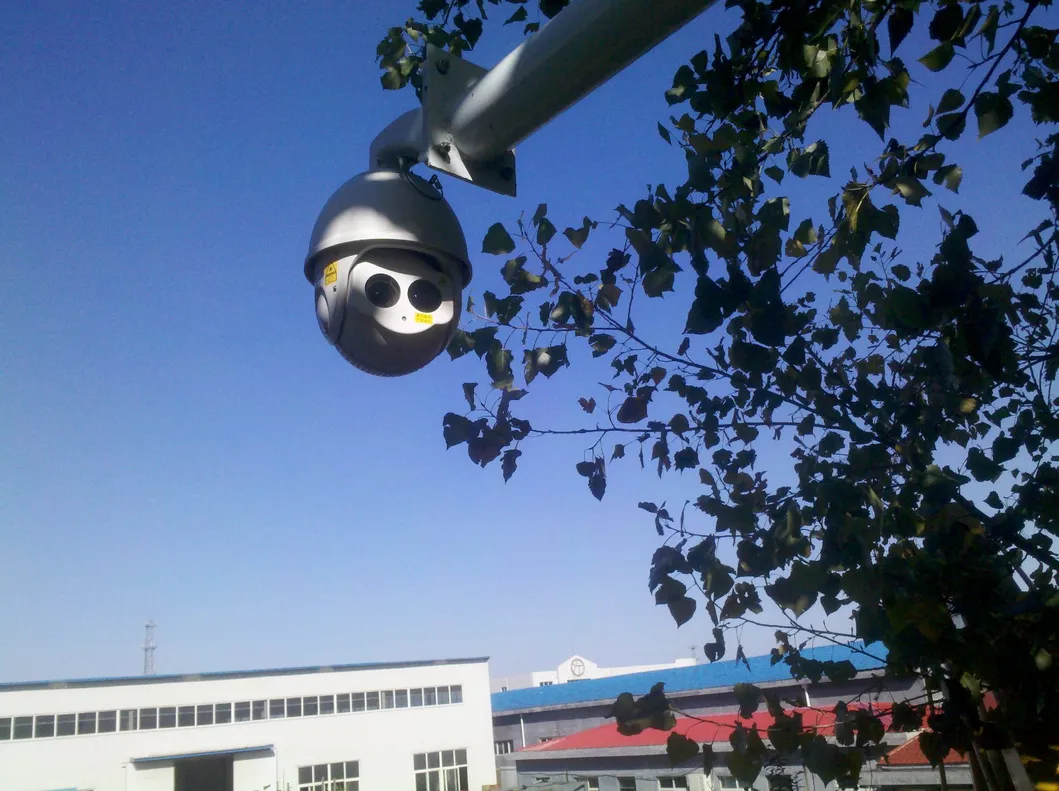

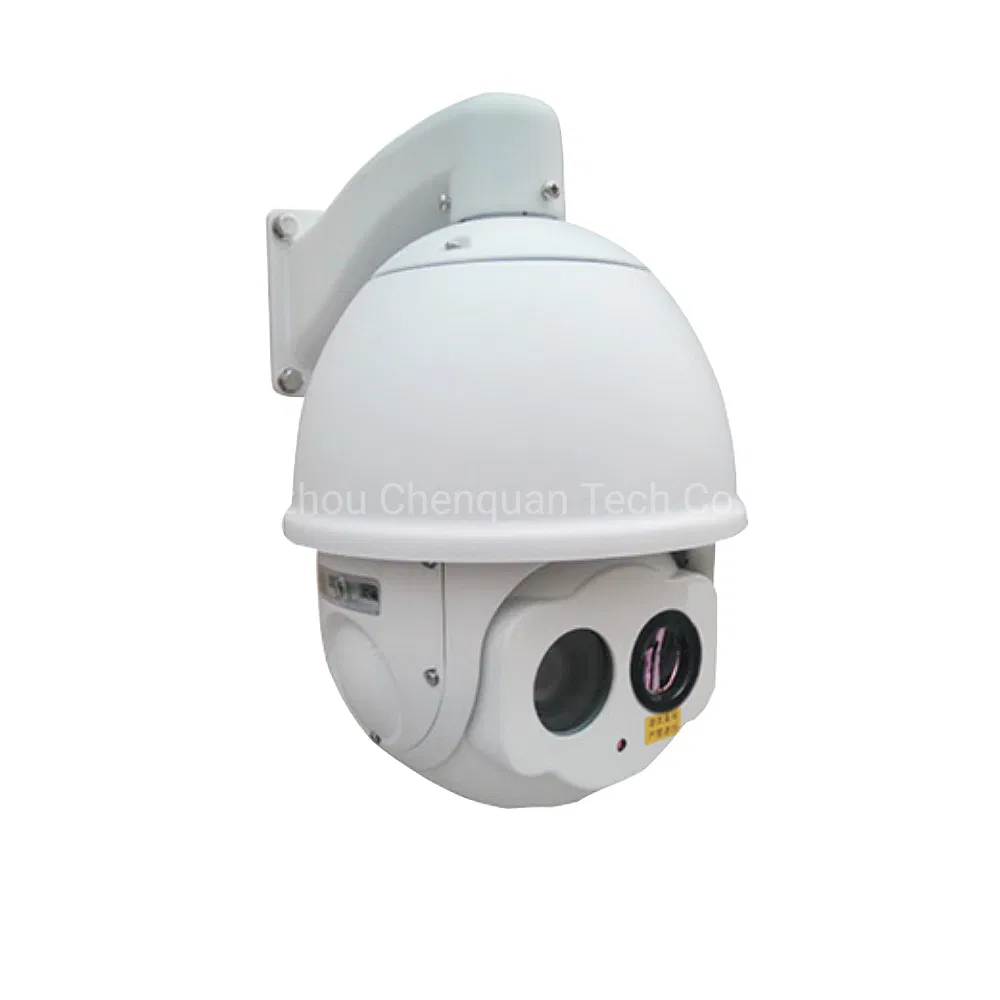

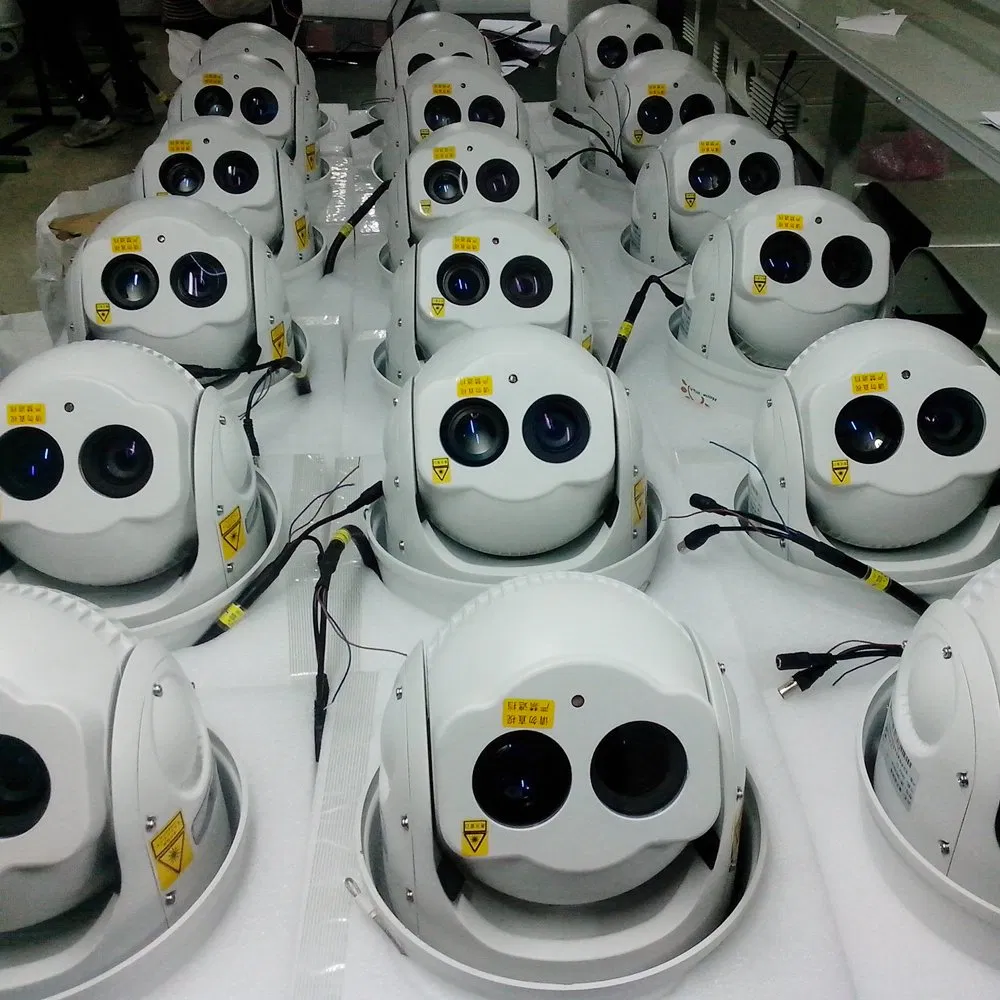

Speed Dome Thermal Camera is developed on the basis of the 5th generation uncooled infrared technology and infrared optical imging technology.
Wtith the application of high sensitive UFPA with 384*288 or 640*512 resolutions, state-of-the-art digital circuit and IPA, the camera is capable of providing users a premium image.
The camera adopts mini IR lens and an AIO for its daytime monitoring, which significantly reduces its weight and enables it to rotate quickly.
Its detection distance can reach as far as 1km-3km.
Featuring precise location, multiple presets, auto-focus, auto-patrol, the camera is surely your optimum choice.
Wtith the application of high sensitive UFPA with 384*288 or 640*512 resolutions, state-of-the-art digital circuit and IPA, the camera is capable of providing users a premium image.
The camera adopts mini IR lens and an AIO for its daytime monitoring, which significantly reduces its weight and enables it to rotate quickly.
Its detection distance can reach as far as 1km-3km.
Featuring precise location, multiple presets, auto-focus, auto-patrol, the camera is surely your optimum choice.
Application:

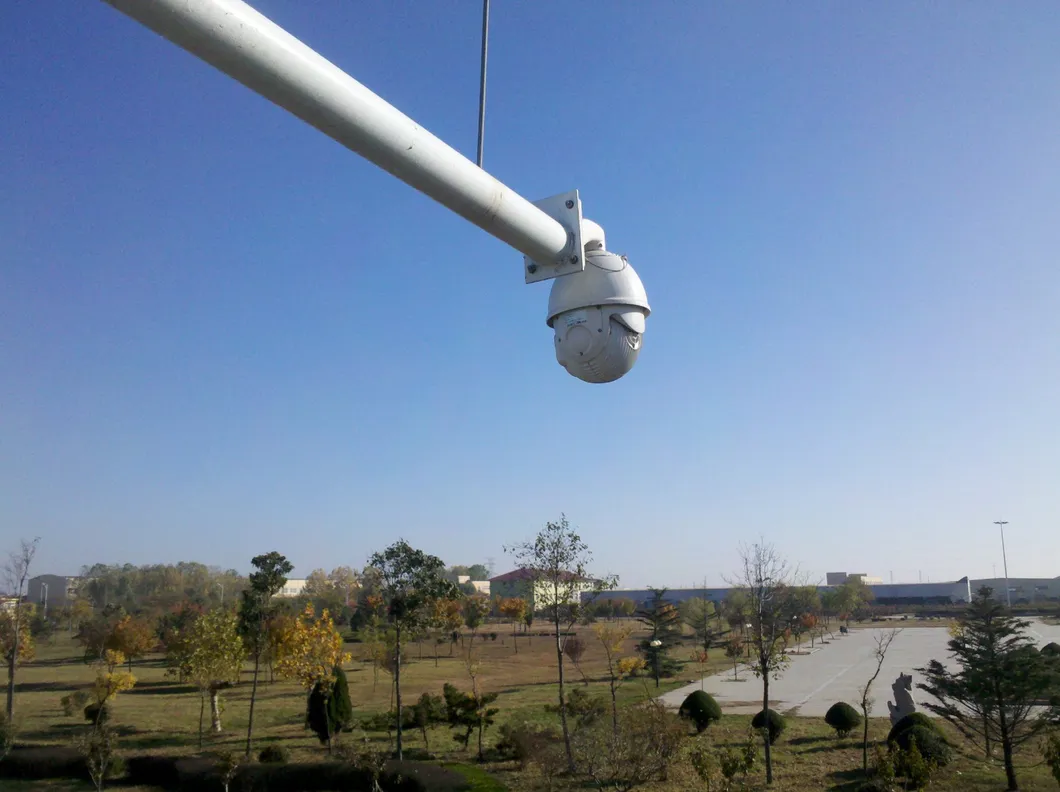

Expressway, railway, safe city, vehicle-mounted monitoring, harbor, airport, stadium, square, scenic spot etc.
| Model | CQ-DTVC41C02-0418 | ||
| Detection | Vehicle: 1700m Human: 720m | ||
| Identification | Vehicle: 420m Human: 180m | ||
| Sensor(thermal) | 336*256(640*512 optional) , the 5thgeneration UFPA, 50mk NETD, 7.5-14um response | ||
| Lens(thermal) | 20mm F1.0 | ||
| FOV | 15.5°*11.6° | ||
| Visible Camera | 440,000, 1/4" CCD, auto color to B/W at 0.01lux(optional: 1/2.8" CMOS, 2 megapixels, auto color to B/W) | ||
| Lens | 4.1mm-73.8mm, 18X, auto-focus(optical: 4.7-94mm focal length; 20X optical zoom, ICR optical filter) | ||
| PT | Pan: 360° continuous, Tilt: -90°-+5° tilt | ||
| Rotation speed | Pan: 0.01°-200°/s; Tilt: 0.01°-120°/s; Max speed forcalling preset position: 250°/s | ||
| Preset | 255, breakpoint memory | ||
| Auto mode | Preset/patrol/line scan/auto scanning/path/random scanning | ||
| Path | 4 path | ||
| Auto watch | Available homing time, preset, patrol, scanning, auto scanning, path and random scanning | ||
| Menu | Multi-language UI with vivid icons and operational instruction | ||
| Information Display | Time, direction, title, coordinaters, temperature etc. | ||
| Compass | Automatic calculation of orientation | ||
| Timing start | Available for homing time, preset, patrol, scanning, auto scanning, path and random scanning | ||
| Alarm | 4 alarm input, 2 alarm outputs(optional) | ||
| Protocol | Pelco-P/D and other mainstream protocols | ||
| Online update | Online updating through communication cable, low maintenance cost | ||
| Baud rate | 2400/4800/9600/19200bps | ||
| Ingress protection | IP66,TVS4000V anti-lighting and anti-surge | ||
| Working environment | -30~60ºC, <90%RH non-condensing | ||
| Power supply | DC12V/4A | ||
| Weight and dimension | Φ230(mm)×348(mm), 5kg | ||
| Note: The detection distance will be different depending on weather condition, operation, monitor and so on. | |||
 | |||
 |  |  |  |
