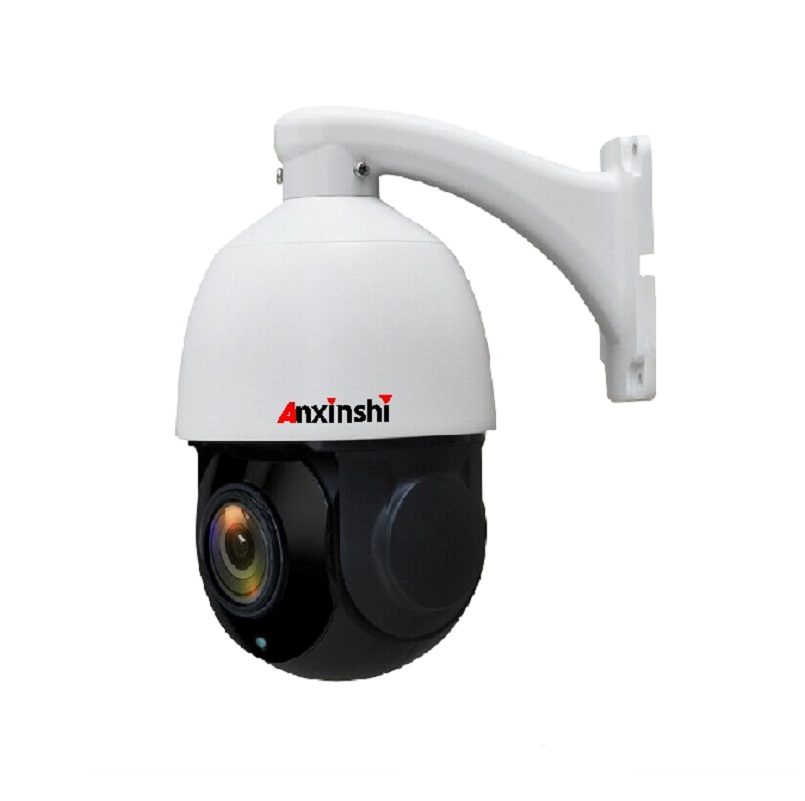

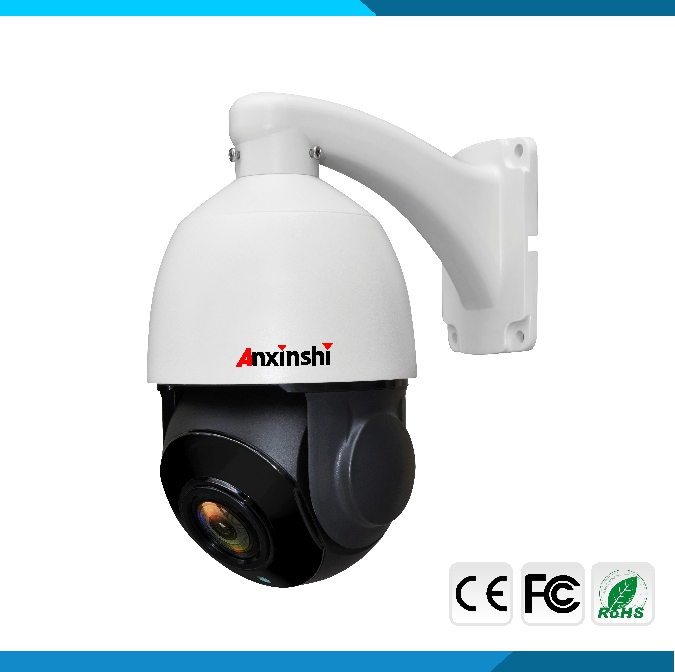

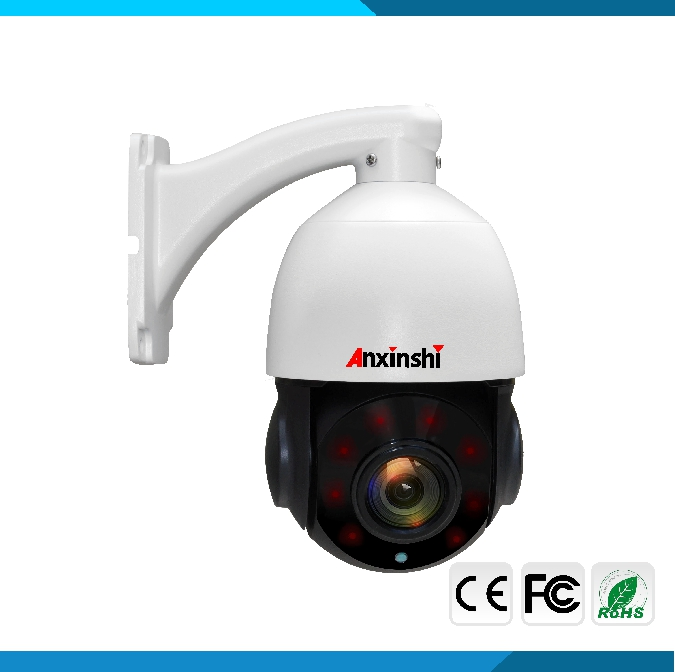

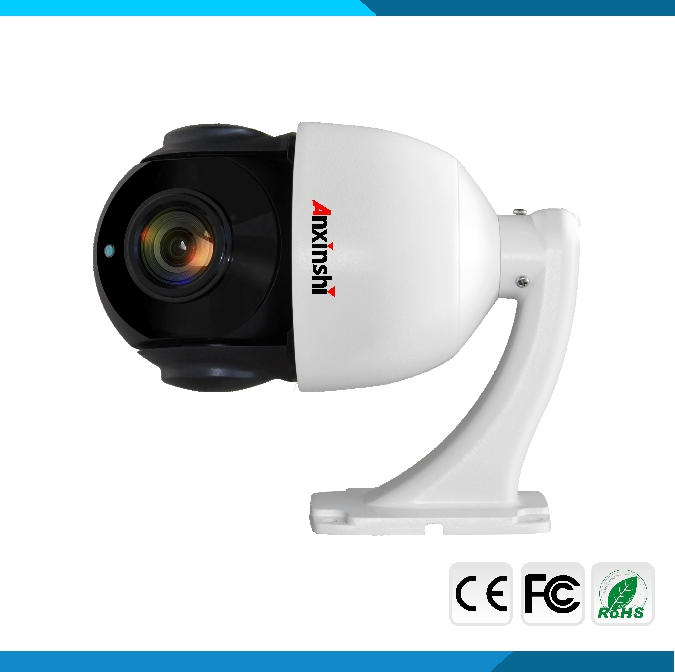

1080P Sony Imx291 Starlight IR 50m Auto Tracking PTZ Camera
1080P Sony Imx291 Starlight IR 50M Auto Tracking PTZ CameraCamera:HD 1080P 2.0Mpixes1/2.8" CMOS Sony Imx291 Starlight Sensor, 36X, f=4.6mm~152mm, D/N( ICR-Cut)DWDR , 0.1lux, B/W:0.01lux Dome Features:1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performanc......
Send Inquiry
Product Description
1080P Sony Imx291 Starlight IR 50M Auto Tracking PTZ Camera
Camera:
HD 1080P 2.0Mpixes
1/2.8" CMOS Sony Imx291 Starlight Sensor, 36X, f=4.6mm~152mm, D/N( ICR-Cut)
DWDR , 0.1lux, B/W:0.01lux
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 80M
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, manual pan speed 0~120°/S, manual tilt speed 0~60°/S, preset speed 200°/S.
6.1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output
7.8 tours, DC12V
Camera:
HD 1080P 2.0Mpixes
1/2.8" CMOS Sony Imx291 Starlight Sensor, 36X, f=4.6mm~152mm, D/N( ICR-Cut)
DWDR , 0.1lux, B/W:0.01lux
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 80M
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, manual pan speed 0~120°/S, manual tilt speed 0~60°/S, preset speed 200°/S.
6.1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output
7.8 tours, DC12V
| Form parameters | ||
| Mode | Name and Description | HD IR Starlight High Speed Dome Camera |
| ASHD492-036-22 | ||
| Camera | Camera Name | ASHD492-036-22 |
| Image Sensor | 1/2.8" CMOS Sony Imx291 Starlight Sensor | |
| Effective Pixels | 2.0 Mpixes | |
| Horizontal Resolution | 1080P | |
| Min. Illumination | 0.1Lux :Color/0.001 Lux:B/W | |
| Zoom | 36X, f=4.6mm~152mm, D/N( ICR-Cut) DWDR , 0.1lux, B/W:0.01lux | |
| Day/Night | Day / Night / External control(IR Cut Filter) | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Electronic shutter | 1/30s~1/10,000s | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Luminary | Array Φ20 6pcs | |
| Night vision distance | 80M | |
| Lamp control | Auto, Manual, by Zoom | |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0~120º/S | |
| Manual tilt speed | 0~60°/S | |
| Preset speed | 200°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 255 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Home position | Return to preset/scan/pattern/ if there is no command in the specified period. | |
| Operation recall | recall operation zone | |
| Tour | 8 | |
| Communication Protocol | Pelco D, Pelco P | |
| Intelligent Three dimensional Scan | Auto Pan & Tilt &Zoom /Manual | |
| Pattern group | 8Programmable(Pan/Tilt/Zoom ) | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory | automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation | support the operation of camera set up | |
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |
| General | Work temperature | External-35ºC~55ºC |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 5A | |
| Consumption | <50W | |
| Communication | RS-485 | |
| Video Output | 1080P AHD output /1080P TVI output , CVI 1080P output ,CVBS output | |
| Connection | BNC | |
