1080P USB Camera Ai Face Recognition Camera Module
1080P USB Camera AI Face Recognition Camera Module:Description:003-0394 is a 2MP WDR USB AI face recognition camera module, support H.264 high compression with 1/2.7" AR0230 sensor. Max frame rate 1920*1080p @30fps. It is a high temperature resistance camera, high requirement on wide dynamic ra......
Send Inquiry
Product Description
Description:
003-0394 is a 2MP WDR USB AI face recognition camera module, support H.264 high compression with 1/2.7" AR0230 sensor. Max frame rate 1920*1080p @30fps. It is a high temperature resistance camera, high requirement on wide dynamic range, have a clear image under backlight. Has a wide angle rage without distortion.
Specification:
| Items | Parameters |
| SENSOR | AR0230 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 mega |
| Maximum Effective Resolution | 1928(H)*1080(V) |
| Data Format | YUY2/MJPG/H.264 |
| Pixel Size | 3.0um*3.0um |
| Dynamic Range | 96DB |
| Lens | FOV :D= 100° |
| Optical length :22MM | |
| lens construction:6E=IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20-70ºC;Humidity: 90%RH |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Key Features:
1080P Full HD Resolution & Artificial Intelligent: 2MP camera module with artificial intelligent. High precision and high quality pictures! Web camera captures your clips in true 1080p, and 30 frames per second,high pixel technology for sharp image and accurate color reproduction.
WDR & H.264:
96db of wide dynamic range camera module with high quality digital microphone equip for audio. Webcam with advanced H.264 encoding compresses a digital video file so that it only occupies one-twentieth the space of MPEG to deliver the same quality video. Enjoy stunning HD video with impressive video performance and faster transmission speed.
Wide Angle Rage:
1080P USB camera module with a wide angle rage at FOV 95degree without distortion.
Plug and Play & UVC Compliant Usb Camera Module:
UVC - compliant, support Windows XP/7/8/10, Linux, Mac OS and Android device with UVC, just connect the camera to PC, laptop with the USB cable without extra drivers to be installed.
SPECS:
Camera
Sensor: AR0230
Sensor Size: 1/2.7"
Resolution: 1920*1080P
Output: MJPC/YUY2/H.264
Frame Rate: 30fps
Wide Dynamic Range: 96DB
Lens
FOV: D=95°
TTL: 19mm
Construction: 2G2P
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 500mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 32*32mm
Applications
Access Control
Face Recognition
LED Display
Data Monitoring etc.
0394 Lens Options
Model No. 3428-A1 6047 2181B6 6150-F1 7021-D1 6022-A1
Optical Format 1/2.5" 1/2.7" 1/2.7" 1/2.7" 1/2.7" 1/2.7
EFL 3.6 3.2 3.24 3.0 3.0 3.3
BEL 4.21 2.62 3.95 3.41 3.46 6.88
Construction 2G2P+IR 2G2P 4G2P+IR 2G2P+IR 2G2P 4G
F/No 2.8 1.9 2.7 2.4 2.5 2.2
FOV1/2.5" 96/80/65
FOV1/2.7" 140/115/63 90/82/53 D95 95/86/55 125/100/54
FOV1/3" 125/100/67 90/76/60 89/76/60 108/90/50
IR Filter 650 650 650 650 650 650
MOD M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5 M12*P0.5
NOTE1: The M12 Lens kit for the USB Camera module,6 lens are included.
NOTE2:For the sample order,please order the lens you need to replace separately and contact us in advance for customization if you would like to replace the lenses on the camera boa

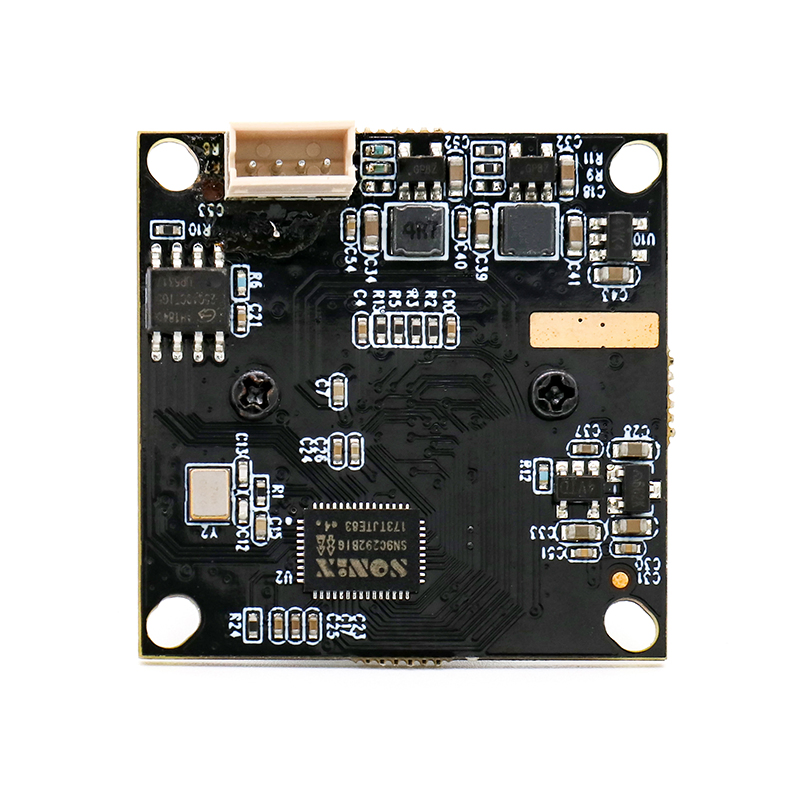

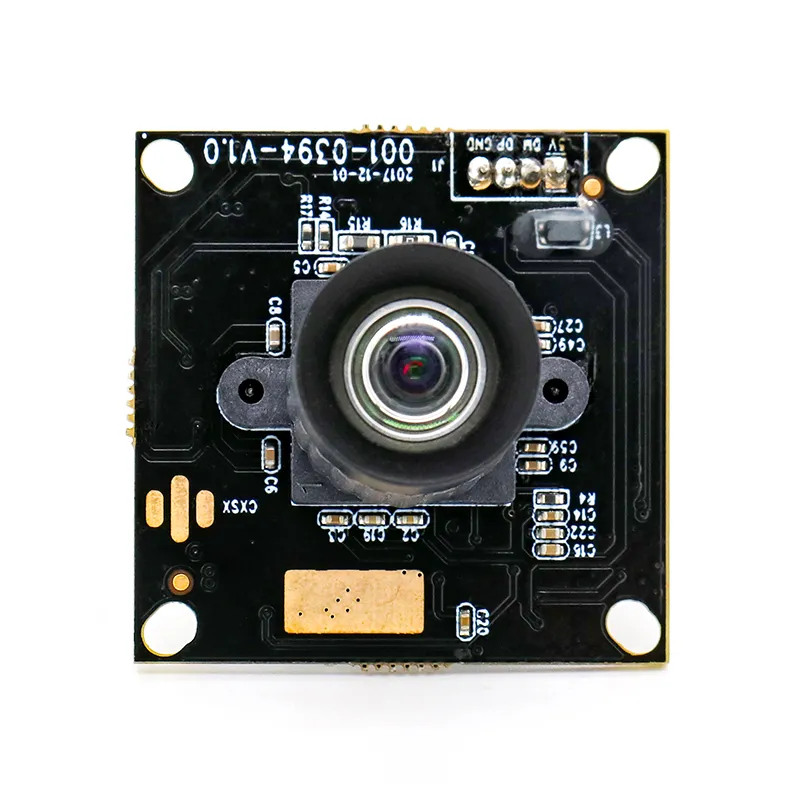

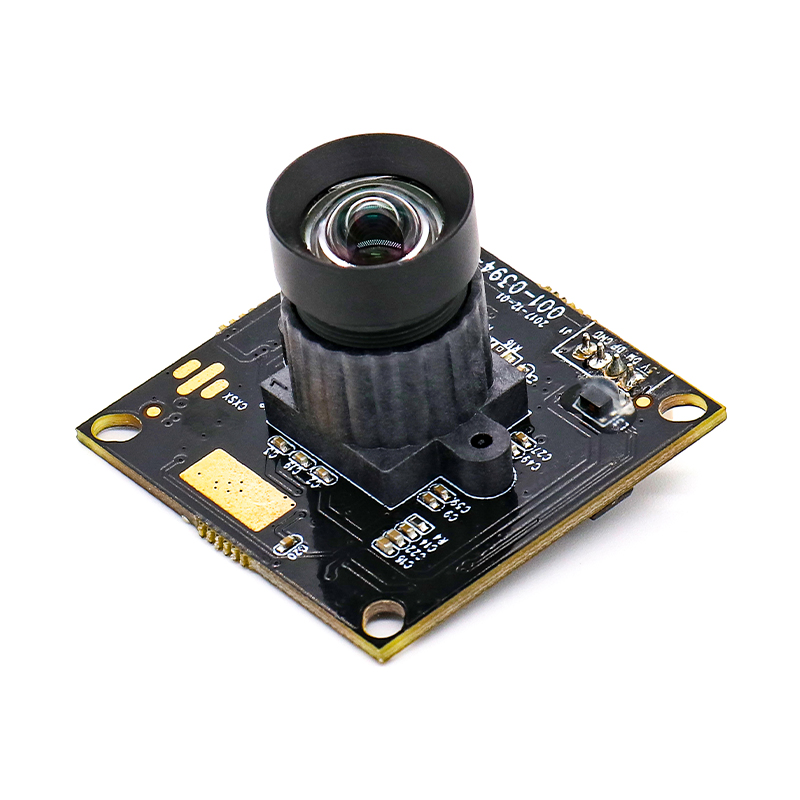

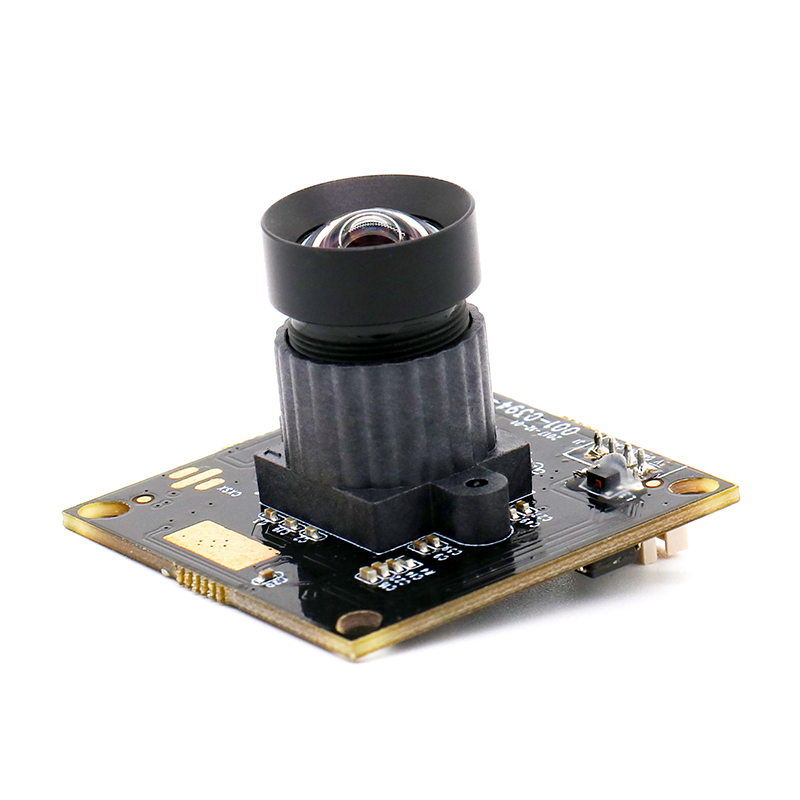

Pictures Display:
Company Information:
Shenzhen Chuangxinshixun(Dongguan Hampo) Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Main products: Camera modules such as USB camera modules,PEEPHOLE DOOR VIEWER camera module,MIPI camera modules and DVP camera modules; cameras such as PC CAMERA and VIDEO CONFERENCE camera; OID devices such as TALKING PEN and SMART PEN.
Cooperative Companies: Midea and A4 tech, Baidu, Alibaba Group, Huawei, Samsung, Sony,Haier,Orion, and many research institutes.
Technology

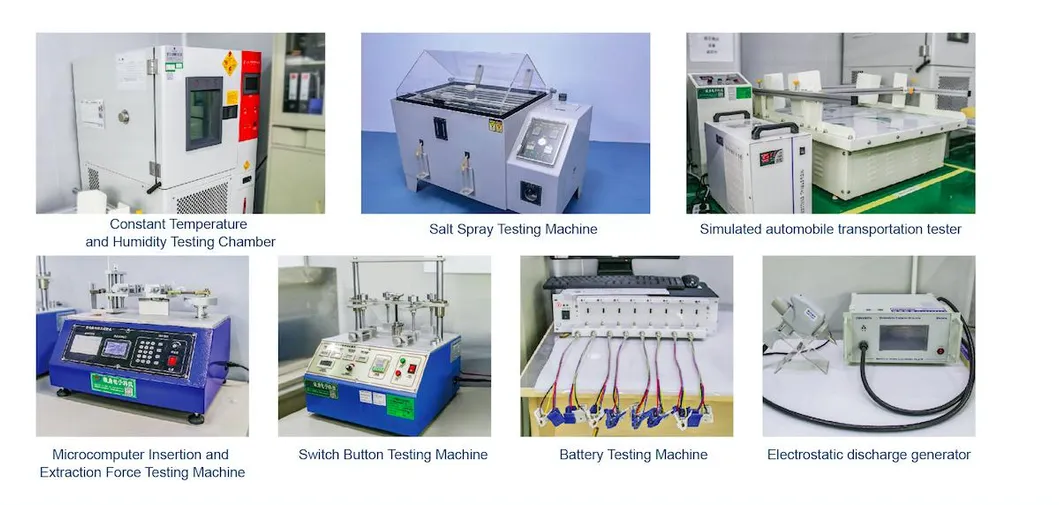

Bring in advance technology and machinery equipment, won the title of National High-Tech Enterprise. Having a prossional team on R&D and engineering.
Primary service
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly. From the PCBA ,lens assembly to the finished camera.We could provide a complete survice for you.
