13km PTZ IR Infrared Thermal Vox Camera
13KM PTZ IR infrared thermal vox camera13KM PTZ IR infrared thermal vox camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 336*256/640*512 resolution uncooled FPA sensor, advanced digital circuit and image proce......
Send Inquiry
Product Description

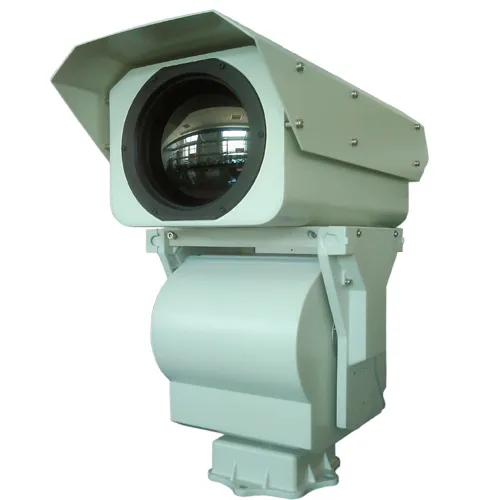

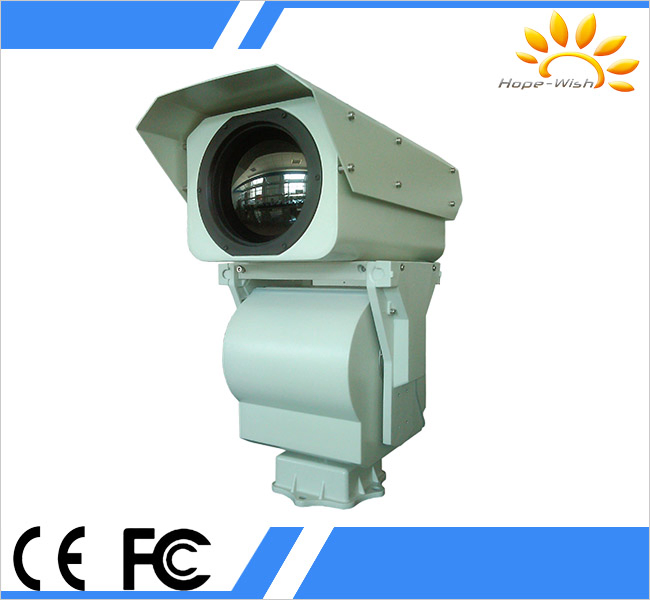

13KM PTZ IR infrared thermal vox camera
13KM PTZ IR infrared thermal vox camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 336*256/640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera works well outdoor.
TC45 series thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.
13KM PTZ IR infrared thermal vox camera is based on the latest uncooled IR sensitive technology and continuously IR optical zoom. User could get a best imaging details with 336*256/640*512 resolution uncooled FPA sensor, advanced digital circuit and image processing algorithm. Special design of 5X optical zooming lens have detection distance 16km, suit for both seeking and watching. One integral aluminum alloy housing make sure the camera works well outdoor.
TC45 series thermal camera integrate high sensitive FPA sensor, electronic and optical systems, could penetrate fog/dirt/rain/snow and image 24 hours.
| Model | TC4515- S |
| Detection | Vehicle: 13000m |
| Human: 4800m | |
| Recognition | Vehicle:3400m |
| Human:1300m | |
| Sensor | 5th generation uncooled FPA sensor |
| Resolution | 336×256 pixel, (640×512 option) |
| Spectral range | 7.5~14μm |
| NETD | 50mK(@25ºC F1.0) |
| Focal length | 31-155mm |
| F1.0~1.1 | |
| Field of view | 11.2°×8.5°~2.2°×1.7° |
| Lens control | Electric zoom and focus(option auto focus) |
| Image processing | 1. stable operational temperature without TEC, starting time less than 4 seconds |
| 2. SDE digital image processing | |
| 3. 10 pseudo color and B/W, B/W inverse | |
| 4. AGC | |
| 5. 2X digital amplification | |
| PTZ(optional) | 1. Duty 20kg |
| 2. Rotation, Pan: 0~355°, tilt: -60~+10° | |
| 3. Rotation speed, pan: 9°/S, tilt: 4°/S | |
| 4. Preset 32(Optional variable speed PTZ) | |
| Interface | 1. RS-485(PELCO D protocol, baud rate 2400bps), RS-232(option) |
| 2. Remote OSD setting | |
| 3. PAL/NTSC video output | |
| 4. AC24V( DC12V option) | |
| 5. Waterproof connector | |
| Environment indicator | 1. One integral aluminum alloy housing |
| 2. Operational temperature: -35°~55°(-45° option ) | |
| 3. Power consumption: common 8W, peak 36W(exclude PTZ consumption) |
