Product Description

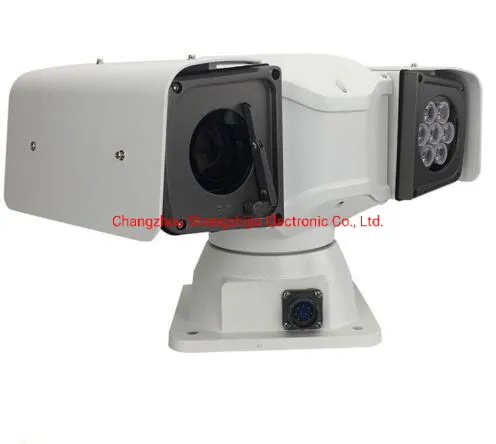

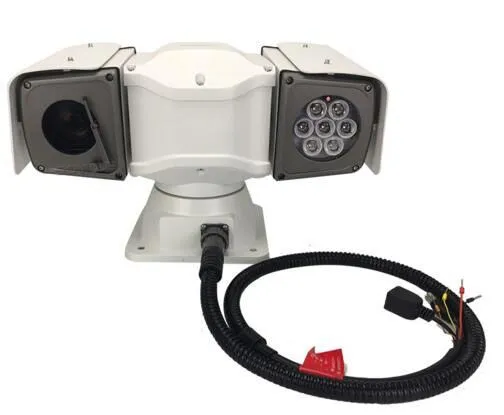

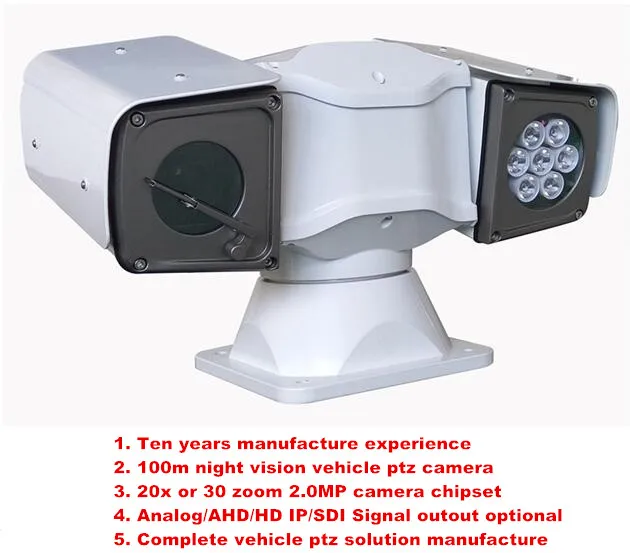

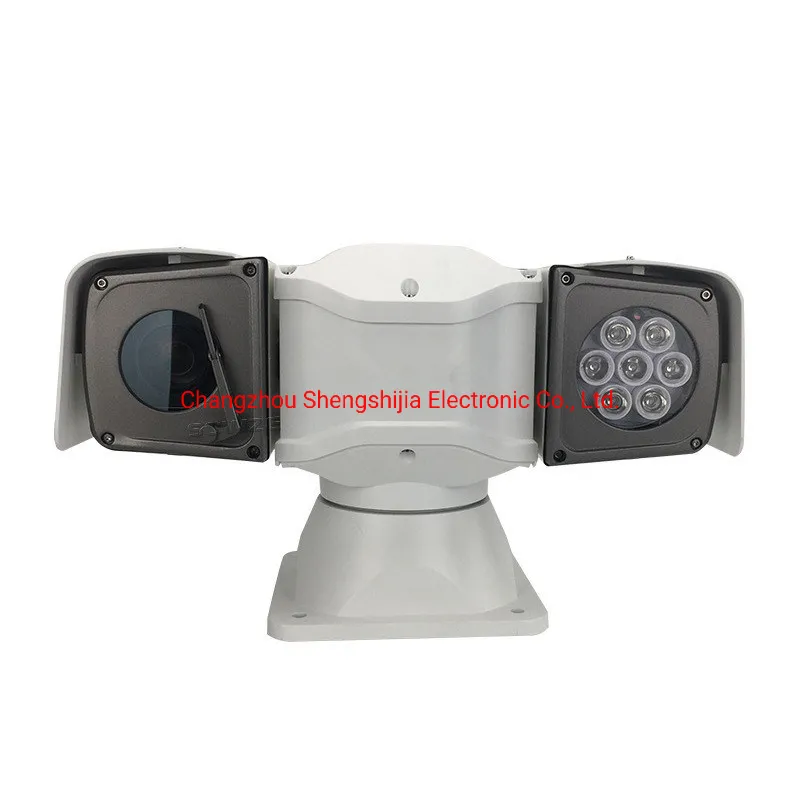

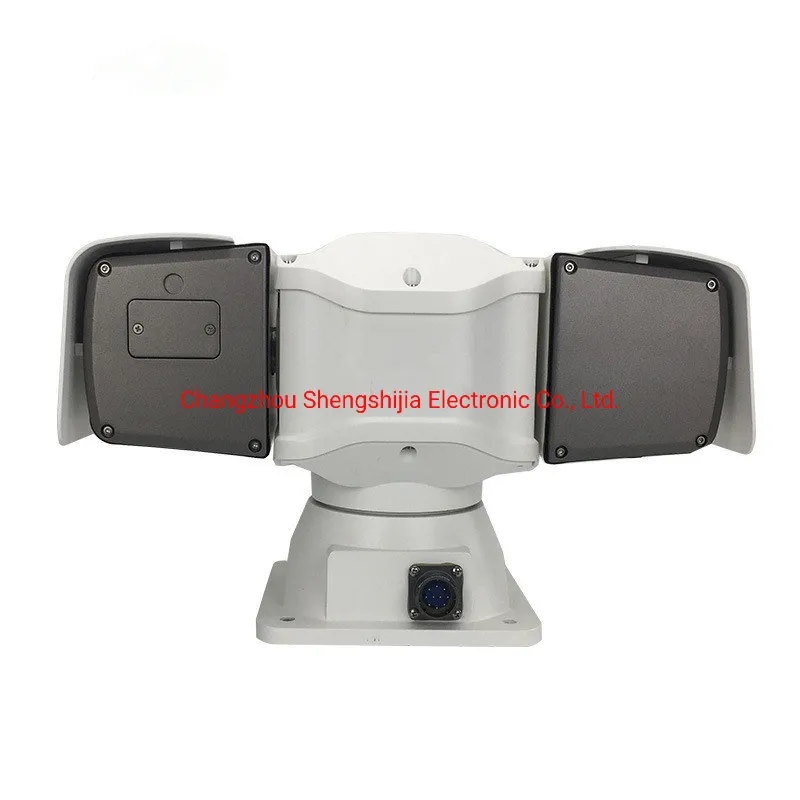

CCTV Video Surveillance IR infrared outdoor Security vehicle roof mounted PTZ camera
Features:
1. The first independent defogging defrosting module, solve the camera and lens fogging
2. High-quality heating parts are used in the camera housing, so that the whole housing can work together to form an effective antifogging and defogging
3. PTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.
4. PTZ standard with the original regulator module, filter the vehicle transient current instability, so that PTZ remains stable

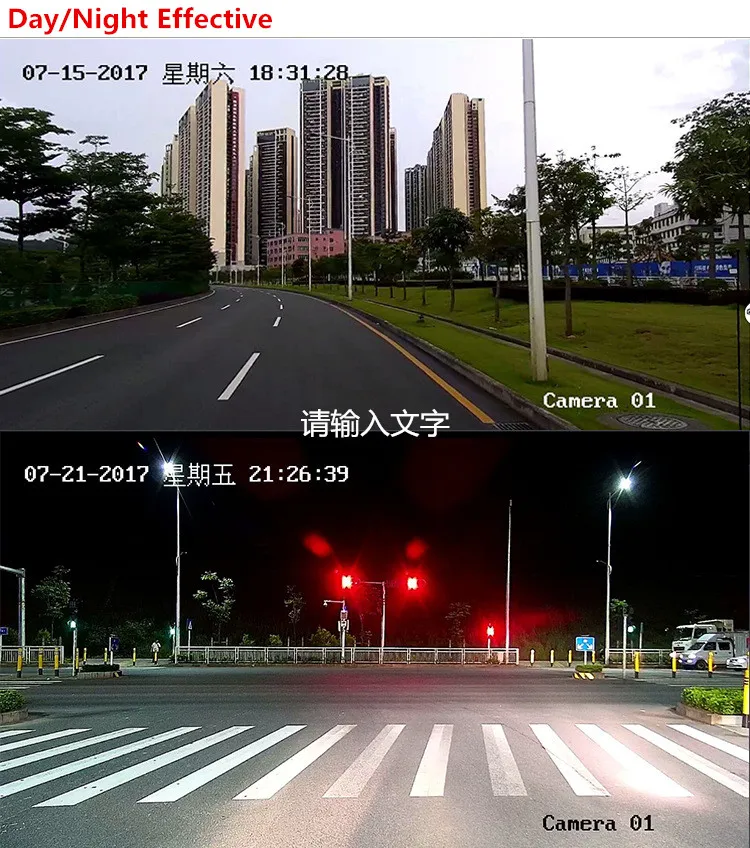

Night Vision Supplement: PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours, night vision is 100-120 meters
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD:PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD:PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission

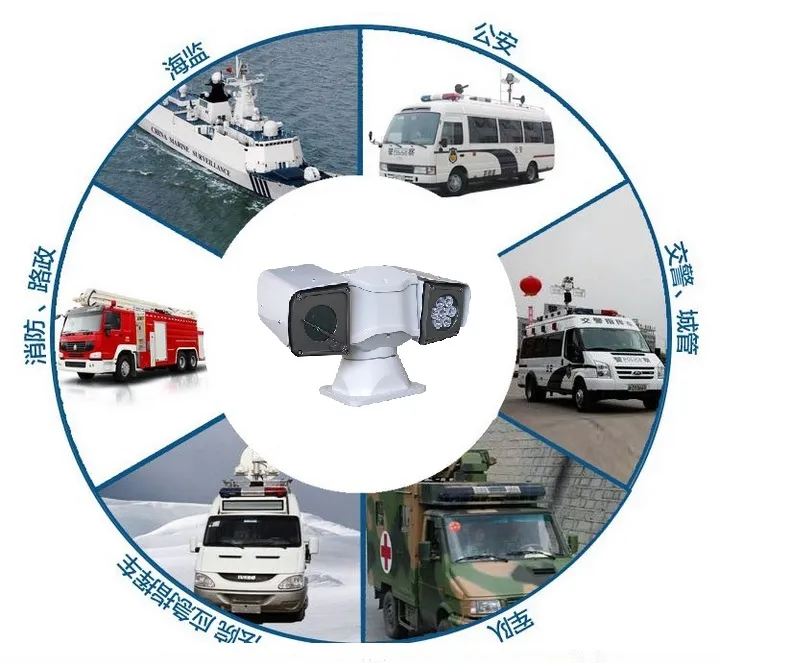

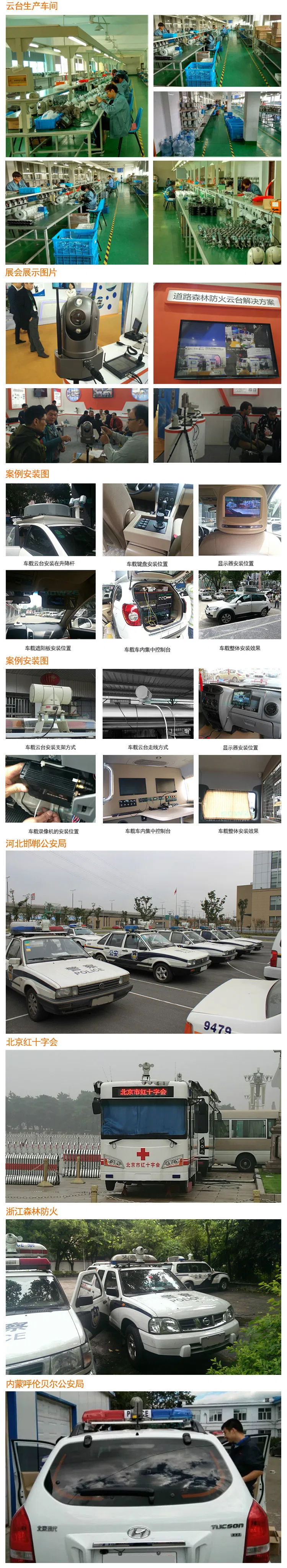

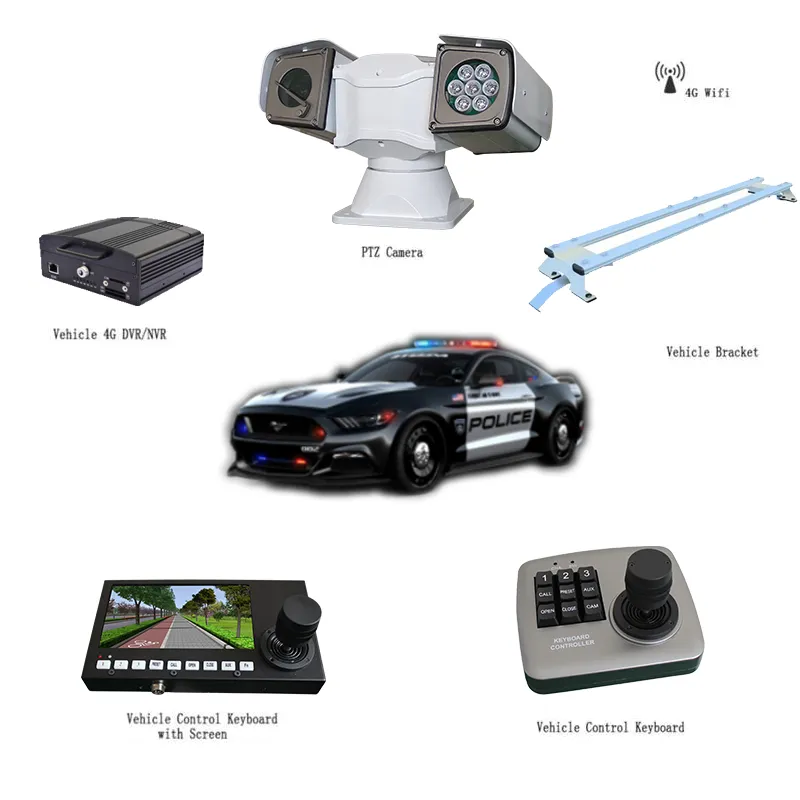

Application: 110 policecar mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection
Parameter:
Features:
1. The first independent defogging defrosting module, solve the camera and lens fogging
2. High-quality heating parts are used in the camera housing, so that the whole housing can work together to form an effective antifogging and defogging
3. PTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.
4. PTZ standard with the original regulator module, filter the vehicle transient current instability, so that PTZ remains stable
Night Vision Supplement: PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours, night vision is 100-120 meters
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD:PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD:PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission
Application: 110 policecar mobile law enforcement / fire emergency command / 120 emergency command system / road mobile patrol / urban management law enforcement / special vehicle mobile inspection
Parameter:
| PTZ Function | |
| Pan preset speed | 100°/s |
| Tilt preset speed | 60°/s |
| Pan control speed | 0°~60°/S |
| Tilt control speed | 0°~40°/S |
| Pan range | 360°endless rotation |
| Tilt range | +90° ~ -90° |
| Preset positions,Tracking | 256 positions 8 tracking |
| IR Distance | 2 groups lens, 100m night vision |

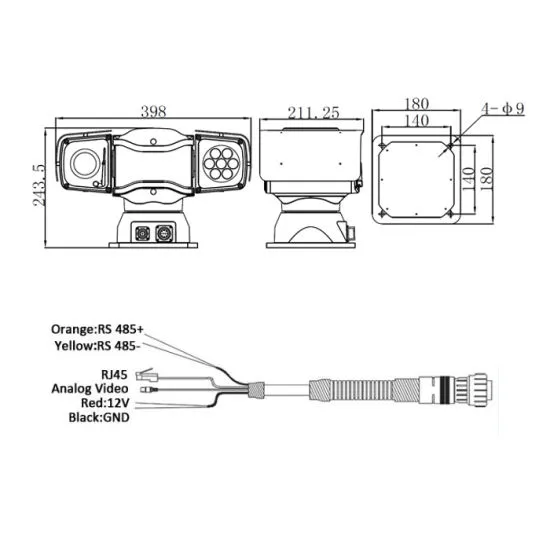

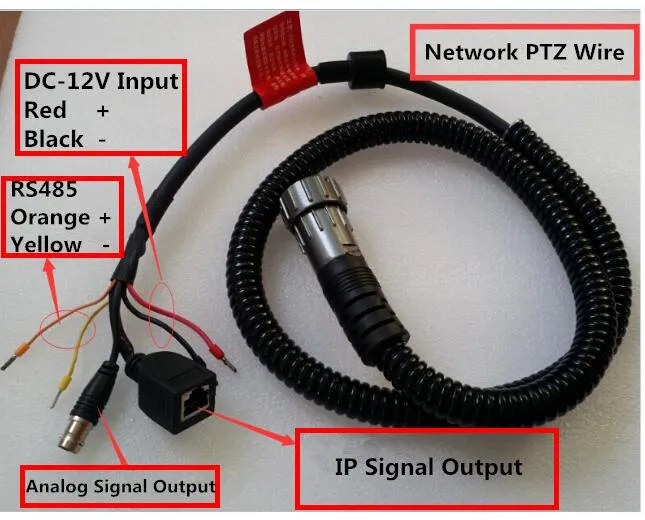

| Control Way | RS485, Built-in PELCO D/P 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
| Relative Humidity | Less than 90% |
| IP Grade | IP66 |
| Working Temperature | -35° ~ +55° |
| Impact resistance requirements | ≥4G |
| Wiper | Support |
| Installation | Variety of installation according to the environment |
| Weight | 7kg |
| Network parameters: | |
| Video Compression | H.264/H.265 |
| Audio Compression | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 |
| Compression output rate | 32Kbps-16Mbps |
| Support Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181 |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
| Communication Protocol | PelcoD-P Protocol |
| Storage Function | Support MicroSD storage |
| Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |
| While previewing video | Most 10 Channels |
| Dual-Stream | 960P+D1 |
| User Rights | At most 32 users,with three grades: Administrator, Operator, and ordinary users can only view |
| Safe Mode | Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering |
| ROI Code | Support 24pcs,Grade can be adjusted |
