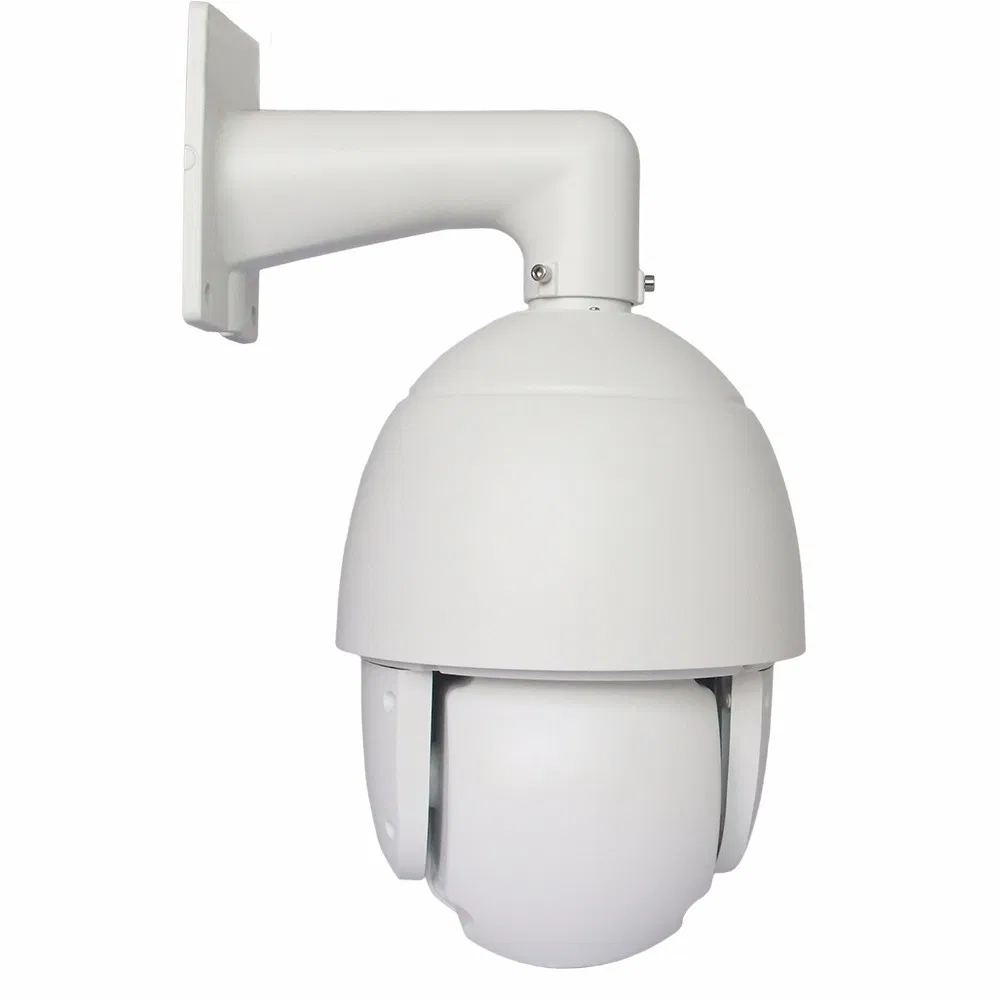

150m IR Night Vision Hikvision 30X 2.0MP CMOS HD IP High Speed Dome Camera
150m Nigiht Vision Intelligent IR High Speed hd Dome Camera Product Name: Intelligent ir high speed hd dome cameraModel: SHJ-BL-NL(Analog) SHJ-HD-BL-NL(HD IP) SHJ-SDI-BL-NL(SDI HD) SHJ-AHD(CVI/TVI)-BL-NL(Coaxial HD)Features:. With wiper function, combined with camera lens ac......
Send Inquiry
Product Description
150m Nigiht Vision Intelligent IR High Speed hd Dome Camera
Product Name: Intelligent ir high speed hd dome camera
Model: SHJ-BL-NL(Analog)
SHJ-HD-BL-NL(HD IP)
SHJ-SDI-BL-NL(SDI HD)
SHJ-AHD(CVI/TVI)-BL-NL(Coaxial HD)
Features:
. With wiper function, combined with camera lens active defrost function, can achieve internal and external echo, real-time image clarity
.Telephoto speed limiting function, can identify a variety of cameras
.OSD menu display function, the compass direction can be set to the north, user-friendly design
.With the return to the guard function, can be attributed to the track, line scan, preset position, pattern scan
.Power-off memory function, power automatically back to the power before the PTZ and lens status
.High-precision stepper motor, preset precision, smooth operation, the image without jitter
.Built-in voltage regulator module, filter unstable current, to prevent image interference
Night Vision Supplement: PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours, night vision is 100-120 meters
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD:PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD:PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission
Application: Intelligent Community / Large Industrial Park / Large Commercial Area / Urban Road Monitoring / Airport Monitoring / Intelligent Safe City
Product Technical Data:
Product Name: Intelligent ir high speed hd dome camera
Model: SHJ-BL-NL(Analog)
SHJ-HD-BL-NL(HD IP)
SHJ-SDI-BL-NL(SDI HD)
SHJ-AHD(CVI/TVI)-BL-NL(Coaxial HD)
Features:
. With wiper function, combined with camera lens active defrost function, can achieve internal and external echo, real-time image clarity
.Telephoto speed limiting function, can identify a variety of cameras
.OSD menu display function, the compass direction can be set to the north, user-friendly design
.With the return to the guard function, can be attributed to the track, line scan, preset position, pattern scan
.Power-off memory function, power automatically back to the power before the PTZ and lens status
.High-precision stepper motor, preset precision, smooth operation, the image without jitter
.Built-in voltage regulator module, filter unstable current, to prevent image interference
Night Vision Supplement: PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours, night vision is 100-120 meters
HD IP: PTZ support mainstream megapixel digital high-definition movement and HD SENSOR HD picture capture, compatible with mainstream HD platform and seamless docking, the maximum support 1080P output, support for dual-stream and high-definition capture, support IE browser
SDI HD:PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
Coaxial HD:PTZ support common AHD / CVI / TVI coaxial HD movement, and support coaxial HD DVR output, the image without any coding compression, full real-time high-definition picture coaxial transmission
Application: Intelligent Community / Large Industrial Park / Large Commercial Area / Urban Road Monitoring / Airport Monitoring / Intelligent Safe City
Product Technical Data:
| PTZ Function | |
| Pan preset speed | 350°/s |
| Tilt preset speed | 120°/s |
| Pan control speed | 0.1°~260°/S |
| Tilt control speed | 0.1°~90°/S |
| Pan range | 360°endless rotation |
| Tilt range | +90° ~ -10° |
| Preset positions,Tracking | 256 positions 8 tracking |
| Pattern scanning | 4 tracking 160 second |
| Home positionning | Preset point / track / horizontal line sweep / pattern scan |
| Azimuth coordinate display | Support |
| Temperature display | Support |
| Compass | Support, North can be set |
| Menu | Chinese/English |
| Humidity display | Support |
| Control Way | RS485, Built-in 16 protocol, Baud Rate from 2400Bps to 19200Bps optional |
| Relative Humidity | Less than 90% |
| IP Grade | IP66 |
| Working Temperature | -35° ~ +55° |
| Power consumption | AC24V/2.5A,DC12V/3A 30W(IR) |
| Wiper | Support |
| Installation | Variety of installation according to the environment |
| Weight | 5kg |
| Network parameters: | |
| Video Compression | H.264/H.265 |
| Audio Compression | G.722.1,G.711-alaw,G.711-ulaw,MP2L2,G.726 |
| Compression output rate | 32Kbps-16Mbps |
| Support Protocol | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP SNMP,FTP,802.1x,QoS,HTTPS,IPv6 (SIP,SRTP optional),GB28181 |
| Interface Protocol | ONVIF/PSIA/CGI/ISAPI |
| Communication Protocol | PelcoD-P Protocol |
| Storage Function | Support MicroSD storage |
| Intelligent Arlarm | Motion detection, mask alarm, full memory, memory mistake |
| While previewing video | Most 10 Channels |
| Dual-Stream | 960P+D1 |
| User Rights | At most 32 users,with three grades: Administrator, Operator, and ordinary users can only view |
| Safe Mode | Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control, IP address filtering |
| ROI Code | Support 24pcs,Grade can be adjusted |
