15km Recognize Vehicle Long Range PTZ Camera with Built-in Tracker
Long Range PTZ Optical Camera with Built-in TrackerMODEL: SHJ-LPTZ30201. Product Features 1)Day&night low illuminance 2-megapixel color to black camera, day&night continuous monitoring2)Supporting fog penetration, back-light compensation, multistage wide dynamic range3)Opti......
Send Inquiry
Product Description

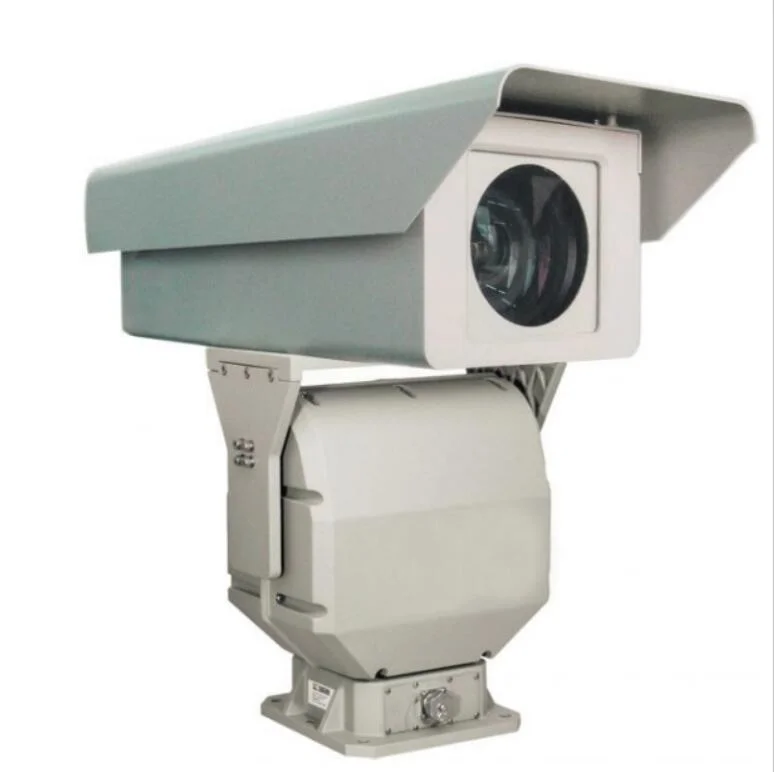

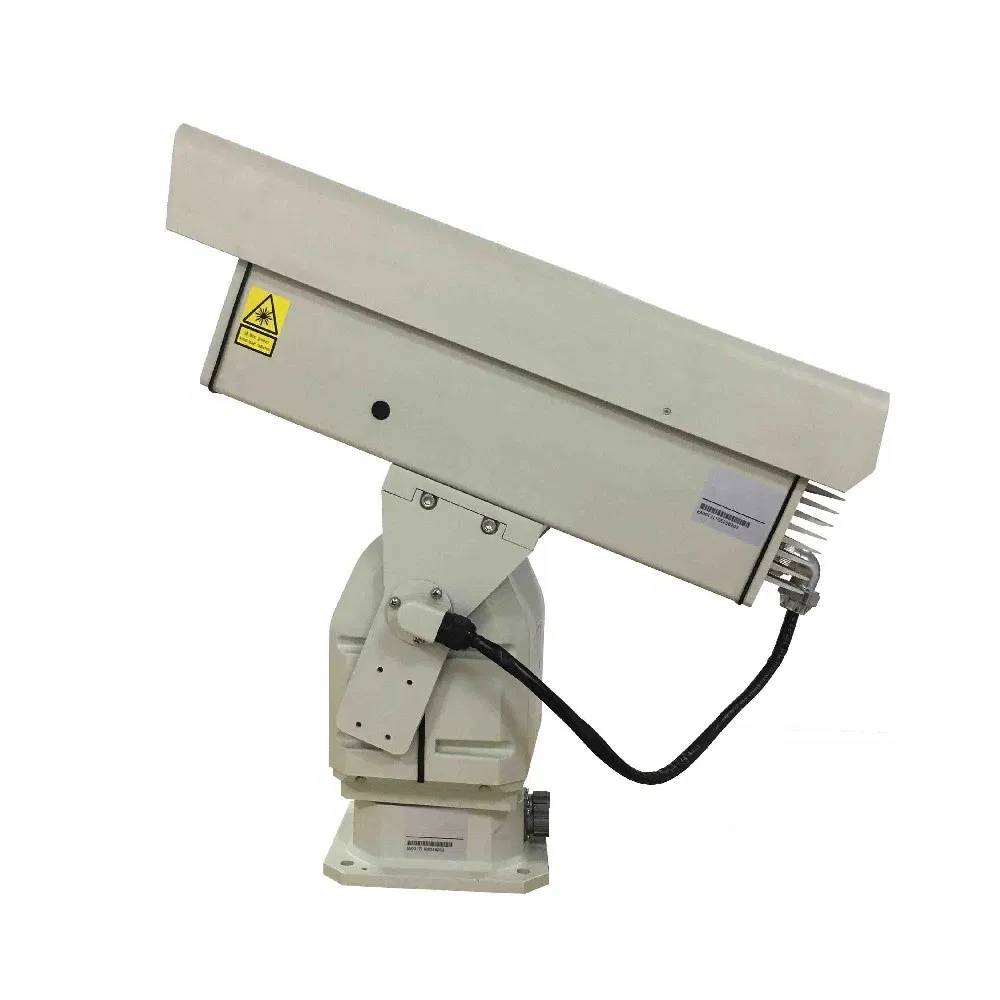

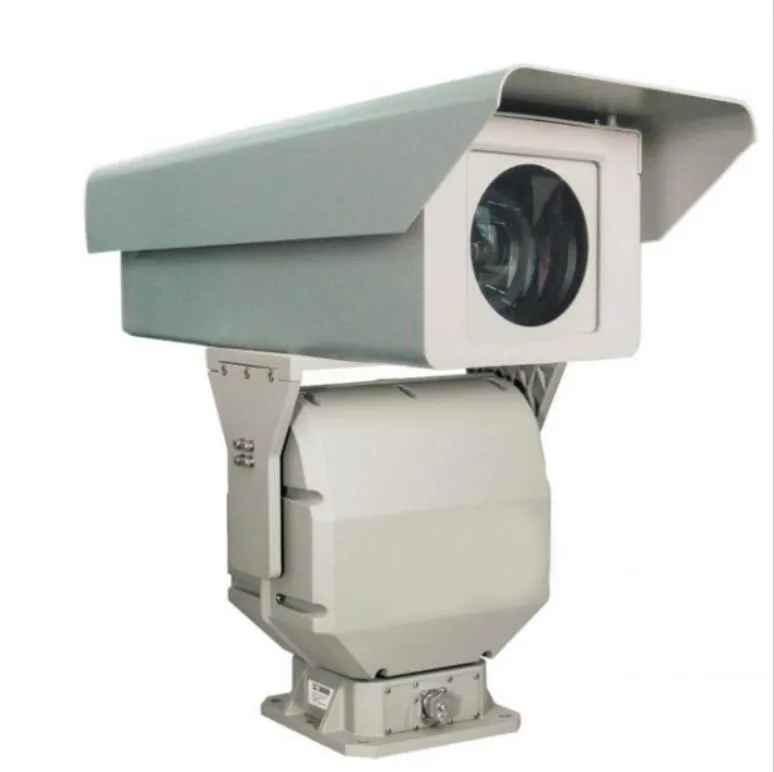

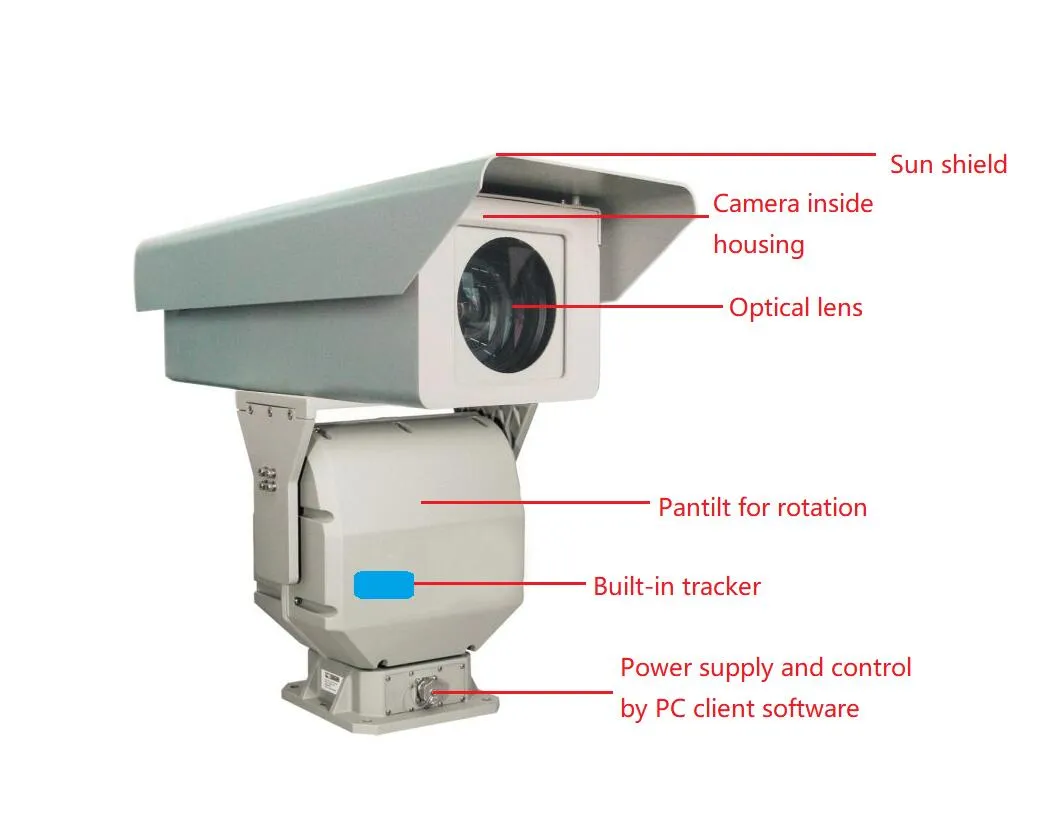

Long Range PTZ Optical Camera with Built-in Tracker
MODEL: SHJ-LPTZ3020
1. Product Features
1)Day&night low illuminance 2-megapixel color to black camera, day&night continuous monitoring
2)Supporting fog penetration, back-light compensation, multistage wide dynamic range
3)Optional auto focusing function, realizing multiple focusing mode and triggering mode
4)Supporting camera back focus fine adjustment technology and camera remote debugging
5)Supporting long focus speed limit and 3D locating function
6)Built-in tracker, can lock and track the target smoothly
7)Professionally designed housing, artistic, light, firm, anti-high temperature, anti-corrosion, water-proof
2. Technical Specifications
MODEL: SHJ-LPTZ3020
1. Product Features
1)Day&night low illuminance 2-megapixel color to black camera, day&night continuous monitoring
2)Supporting fog penetration, back-light compensation, multistage wide dynamic range
3)Optional auto focusing function, realizing multiple focusing mode and triggering mode
4)Supporting camera back focus fine adjustment technology and camera remote debugging
5)Supporting long focus speed limit and 3D locating function
6)Built-in tracker, can lock and track the target smoothly
7)Professionally designed housing, artistic, light, firm, anti-high temperature, anti-corrosion, water-proof
2. Technical Specifications
| Monitoring distance | Day vision | 6km to recognize human, 15km to recognize vehicle |
| Imaging lens | Focal length | 12.5~750mm |
| FOV | 0.5°~17.8° | |
| Auto focusing | support | |
| Fog penetration | Optional | |
| Camera | Sensor type | 1/1.8" Progressive Scan CMOS |
| Coding mode | H.264/MPEG4/MJPEG | |
| Video resolution | 1080P, CIF, supporting three stream | |
| Video bit rate | 32Kbps~16Mbps | |
| Video frame rate | 1~25F/S(50Hz), 1~30F/S(60Hz) | |
| Pan-tilt | Loading capacity | 22kg(top mounted) |

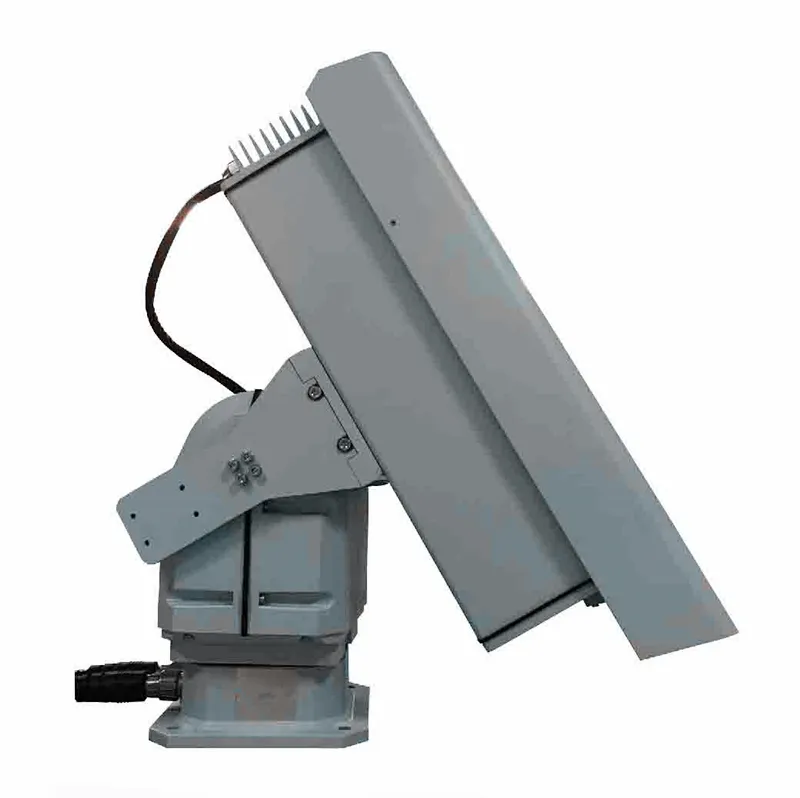

| Angle | Pan: 360°continuous rotation; Tilt: -45°~ +45° | |
| Speed | Pan: 0.01°~12°/s; Tilt: 0.01°~8°/s | |
| Presets | 255, supporting lens zooming and focusing memory | |
| Auto cruising | 8 paths, 10 presets each path | |
| Anti-lightning | 2000V | |
| Built-in Tracker | Update rate | 25Hz |
| Output lag | <40ms | |
| Min target contrast | 10% | |
| Tracking velocity | 4 pixels/frame | |

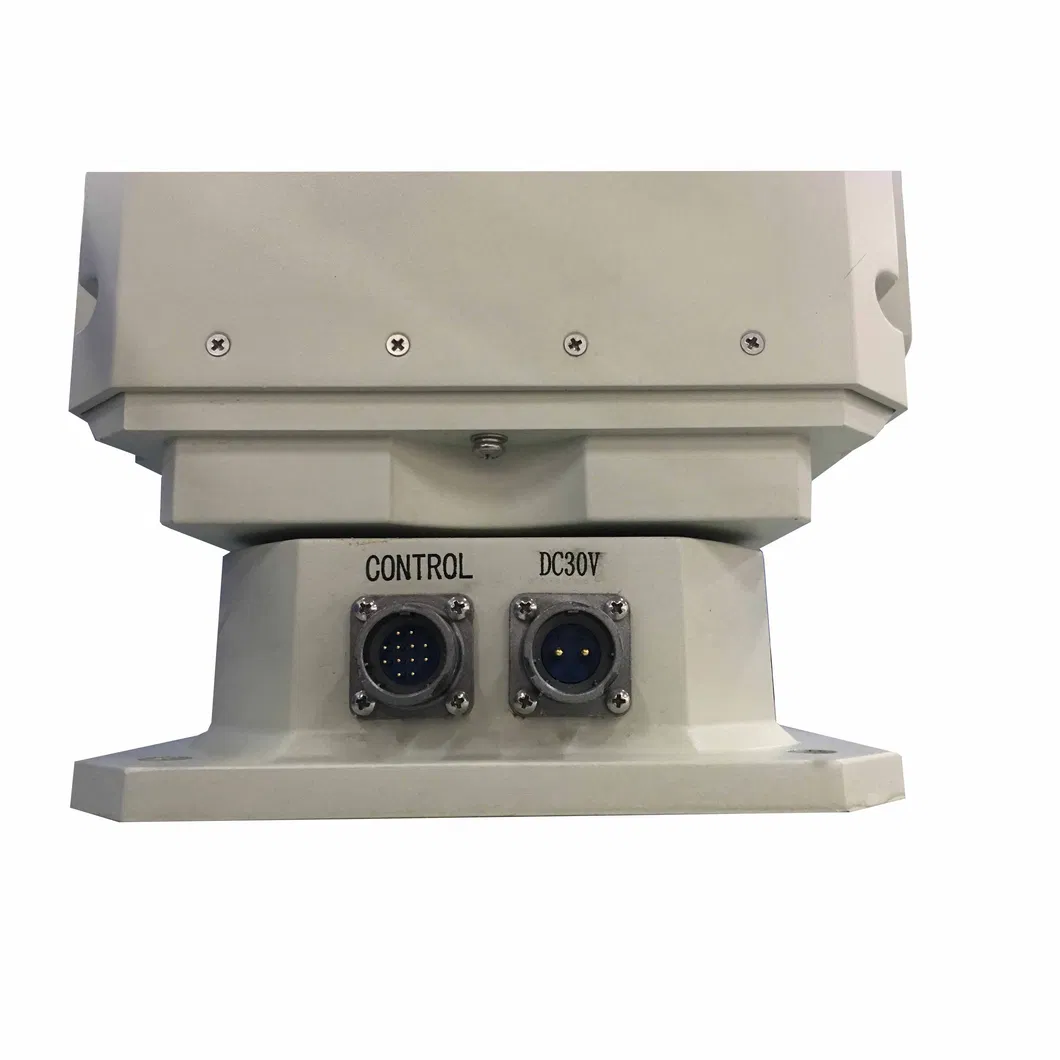

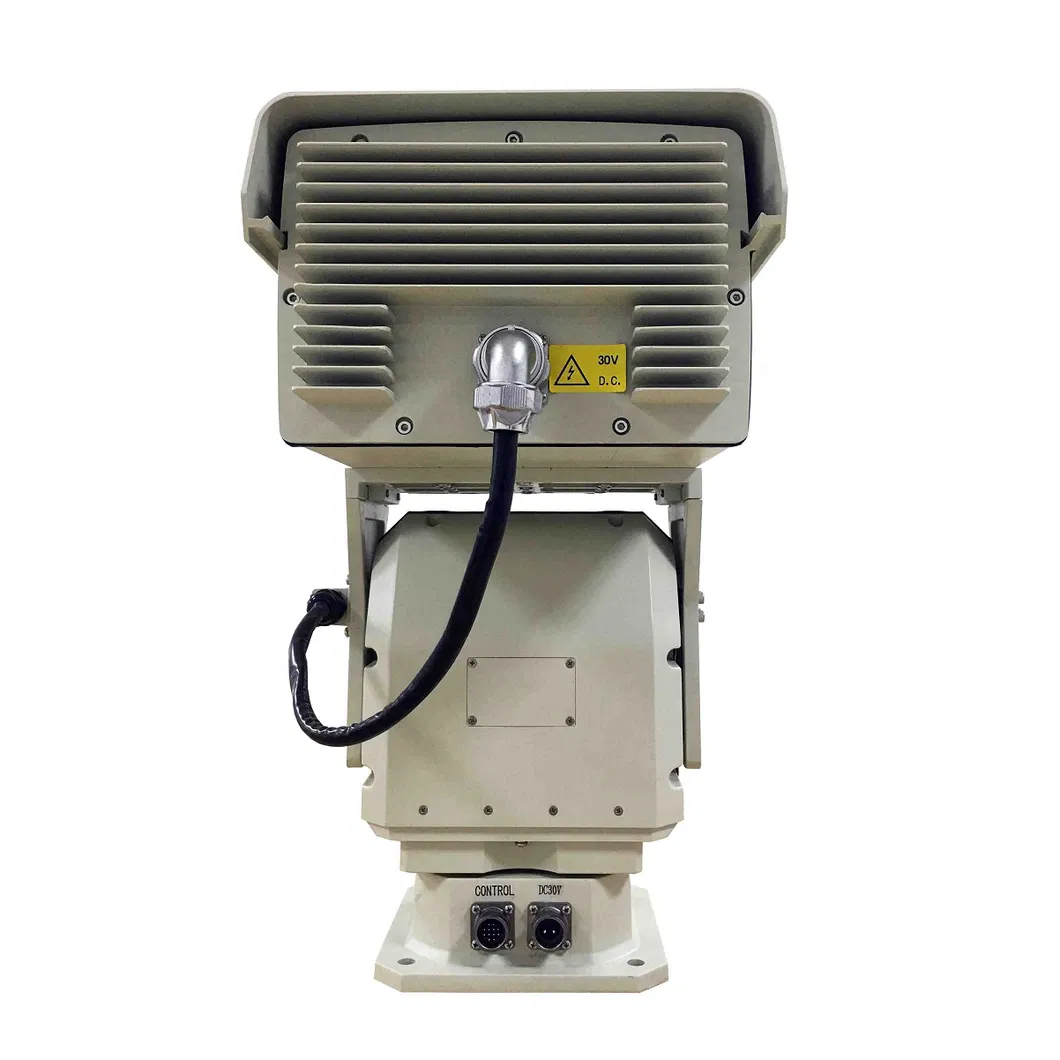

| Interface | Power supply interface | DC30V |
| Network interface | RJ45 | |
| Environment indicators | Working temp | -25ºC~ +55ºC |
| Storage temp | -40ºC~ +65ºC | |
| Protection grade | IP66 | |
| Overall unit power | Power supply | DC30V±10%, with AC220V~DC30V/8A power adapter water-proof power adapter |
| Power consumption | ≤120W | |
| Physical features | Size | 590×200×490mm |
| Whole weight | 40kg | |

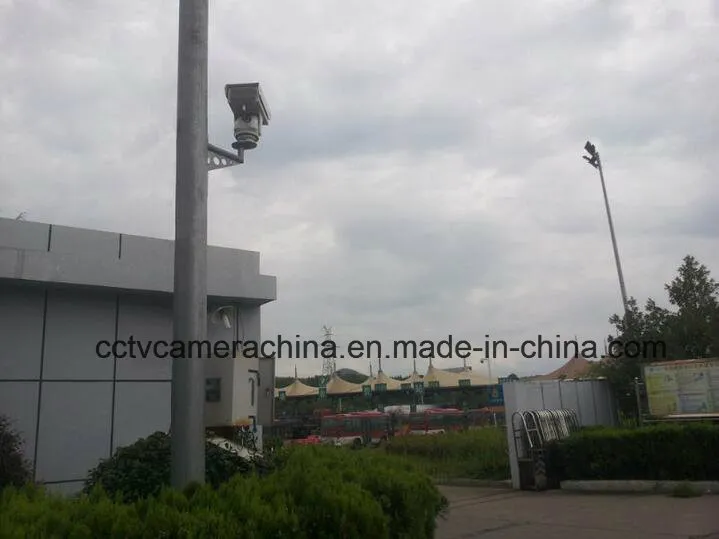

| Installation method | Outdoor pedestal mounting |
