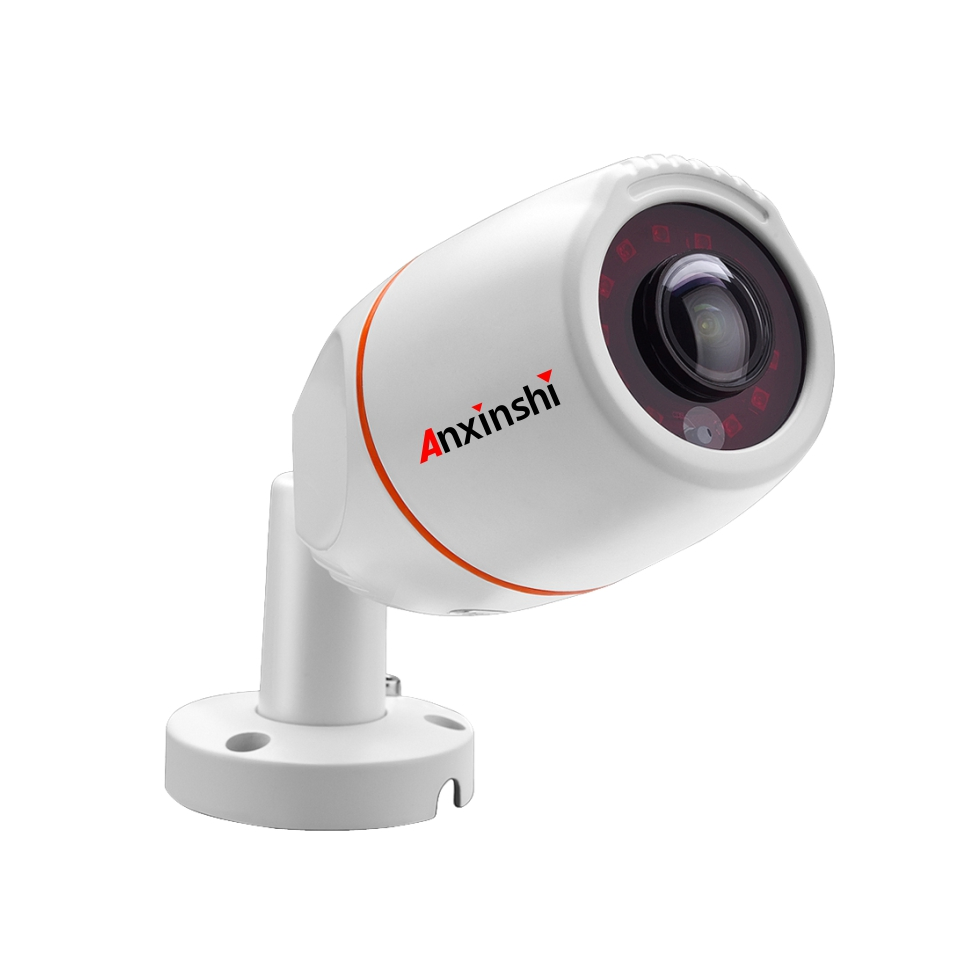

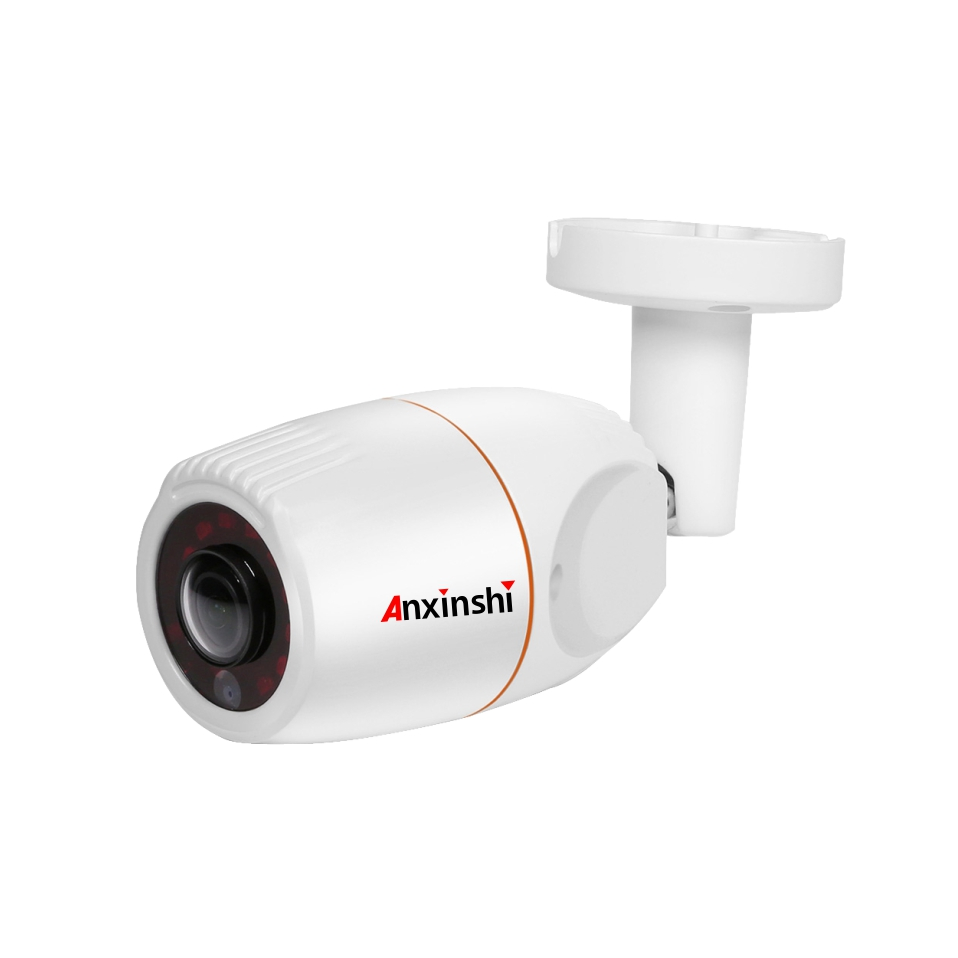

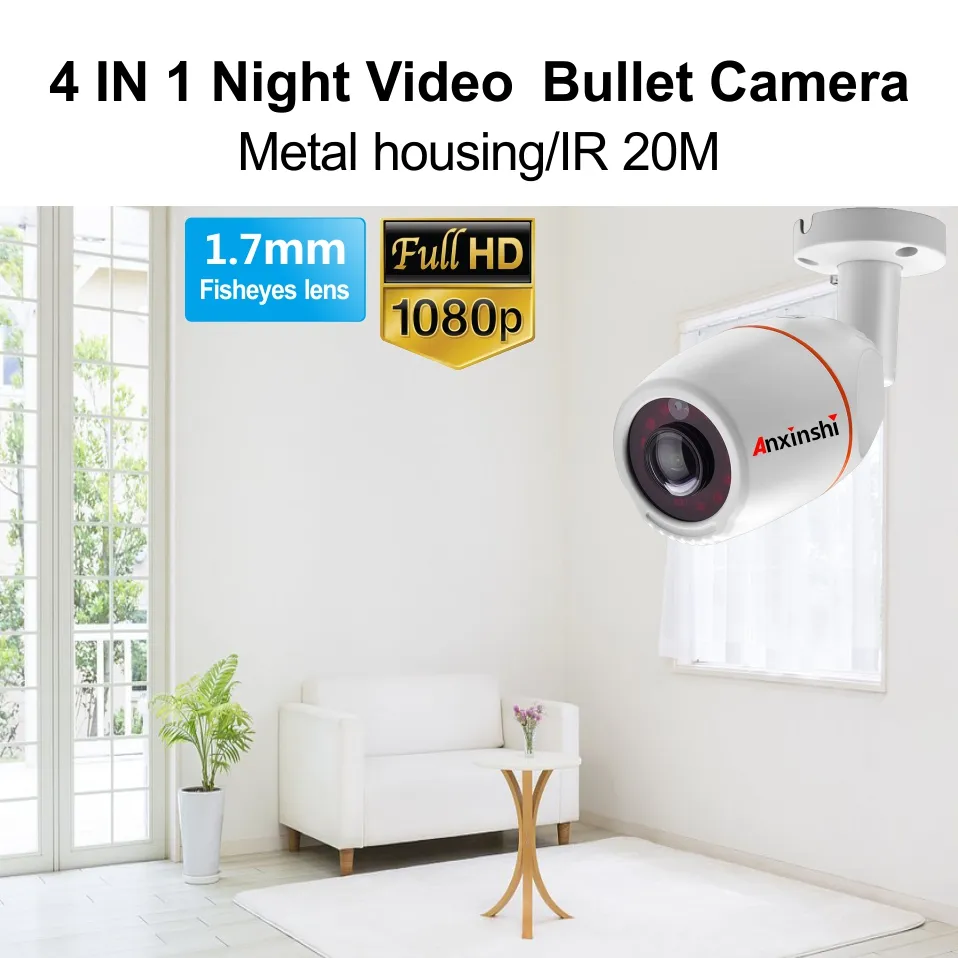

2.0MP 4 in 1 High Definition IR Bullet Fisheye Camera
2MP Panoramic 180 degree fisheye AHD CameraKey Features:1.Adopt Analog HD technology2. Support 4 output modes , Full HD 1080P TVI/AHD/CVI video output or CVBS output3.1/2.7" 2.0MP Progressive Scan CMOS4.Min illumination color 0.01 Lux, 0 Lux with IR5.Day/Night(ICR)& DNR&AWB&AGC&......
Send Inquiry
Product Description

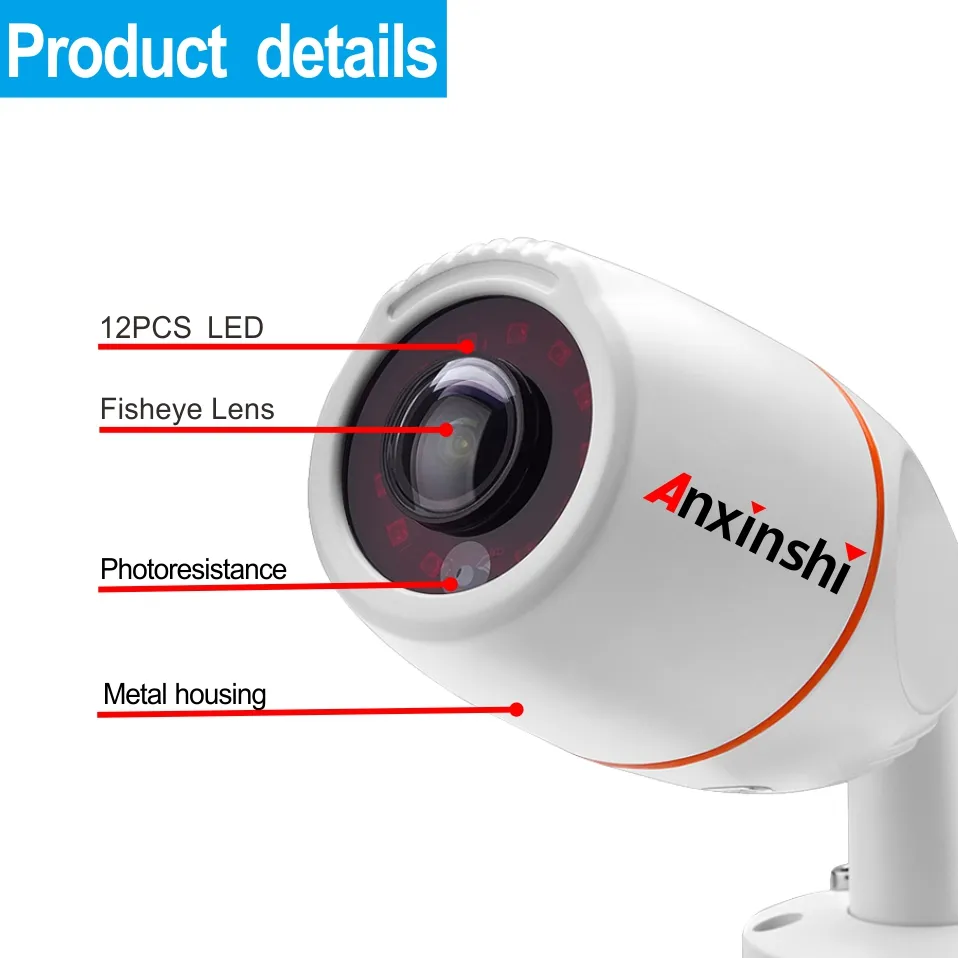

Key Features:
1.Adopt Analog HD technology
2. Support 4 output modes , Full HD 1080P TVI/AHD/CVI video output or CVBS output
3.1/2.7" 2.0MP Progressive Scan CMOS
4.Min illumination color 0.01 Lux, 0 Lux with IR
5.Day/Night(ICR)& DNR&AWB&AGC&BLC

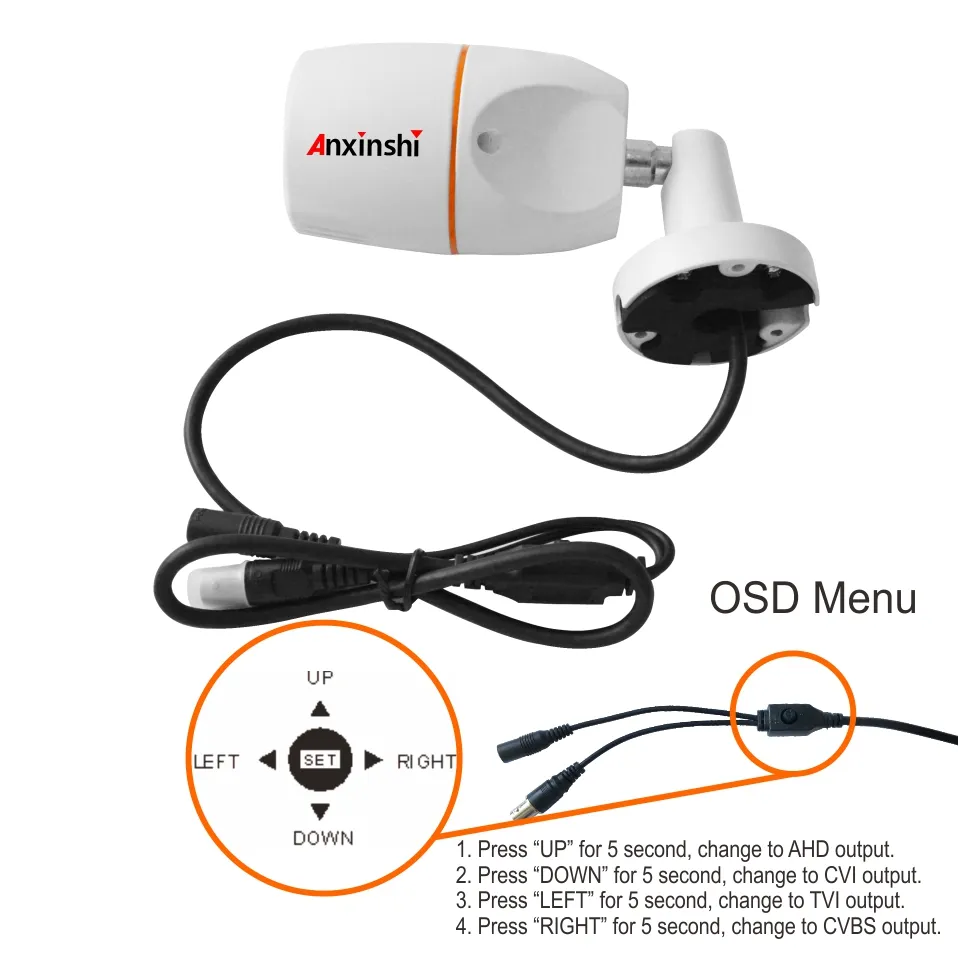

6.Support the OSD menu control, support UTC function
7.1.7mm Fisheye Lens
8.12pcs IR LEDs, up to 20m IR distance
9.metal housing
10.IP66 rating
| Product Name | 2.0MegaPixel 180Degree Fisheye HD AHD Camera |
| Model No. | ASHD20-B22-6422 |
| System | High performance Nextchip2441 ISP processor |
| Sensor | 1/2.8'' CMOS, 2.0 Megapixel Low Lux, Nextchip2441 ISP +Sony Imx 323 |
| Output resolution | 1920(H)x 1080(V) |
| D/N Mode | Auto/External/Color/B&W |
| Minimum Illumination | 0.01LUX/F1.2(Led on) |
| Effective Pixel | PAL : 1920(H)x 1080(V)@25fps |
| NTSC : 1920(H)x 1080(V)@30fps | |
| Signal System | PAL/NTSC |
| Video Standard | AHD and CVBS Standard |
| Video Output | 1CH AHD HD/CVBS Standard Singal Output(Switchable) |
| Max Transmission Distance | Common 75-5 cables can be up to 500m |
| Lens | 1.78mm HD 2.0 megapixel fisheye lens |
| IR distance | 20M (12pcs IR LEDs) |
| Shutter Speed | 1/25s-1/50,000s |
| White Balance | Auto/manual/switch/indoor/outdoor |
| Backlight compensation | Auto |
| Operation Temperature | -10°C~55°C |
| Power Supply | DC12V |
| Dimension | 170*55*58mm |
| Weight | 500g |

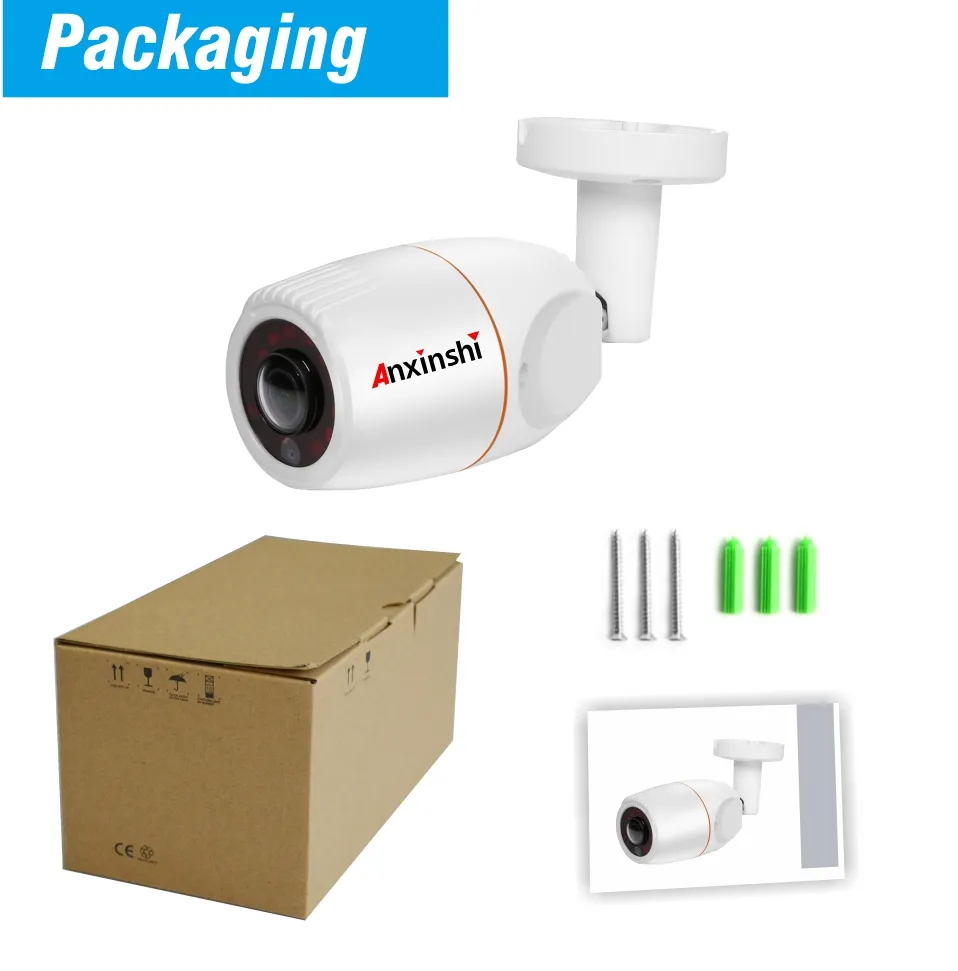

Packing and shipping:
Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean
Company information:
Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
FQA
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
