Product Description

2.0MP HD 3km Laser and 150mm Lens Thermal Imaging PTZ Camera

Product Features:

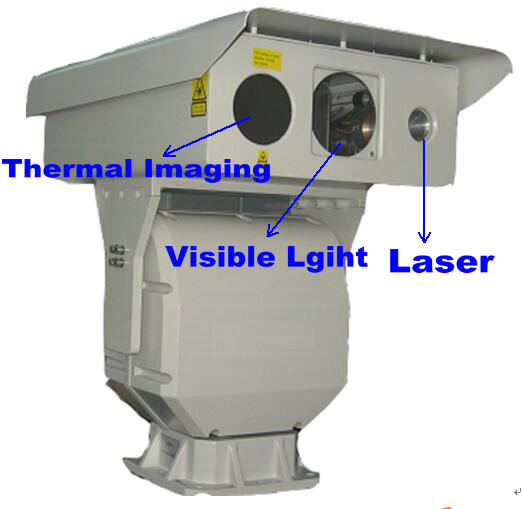

1. Three spectral imaging design, with advantage of visible light imaging clearly, thermal imaging camera detecting far and laser night vision range large

2. Adopting continuous zooming thermal imaging technology, imaging clearly, can search in large area and recognize objectives in long distance

3. Infrared detector with high temp sensitivity, with min temp resolution of 50mK

4. Synchronous zooming laser illuminating system, long illuminating distance, large illuminating range, realizing monitoring in 0Lux complete black

5. Day and night low illuminance 2 megapixels color to black camera, day and night continuous monitoring

6. MCIC multi-tube core fusion mixed mode light homogenization technology, no speckle and dark ring, high edge definition

7. Supporting fog penetration, backlight compensation, multistage wide dynamic

8. Optional auto focusing function, realizing multiple focusing mode and triggering mode

9. Optional thermal imaging camera presetting function, remembering FOV of each preset bit, enhancing working efficiency

10. 3D locating function, can realize frame selection magnifying function and clicking to center function, reducing operating difficulty, enhancing device usability

11. External MMA fine adjustment mechanism, no need to disassemble to complete laser alignment adjustment

12. Professionally designed shell, artistic, light, firm, anti-high temp, anti-corrosion, water proof, anti-acid rain

Technical Data:

Operating distance	Visible light	Night vision	3000m
		Day vision	5000m
	Thermal imaging	object	human(1.8m×0.5m)	Vehicle(2.3m×2.3m)
		Detection distance	4320m	11880m
		Recognition distance	1080m	2970m
		Identification distance	540m	1440m
High definition lens	Focal lens	12.5~750mm
	FOV	0.5°~28.7°
	Double lens	supporting(optional)
	Auto focusing	supporting(optional)
	Fog penetration	supporting(optional)
Camera	Sensor type	1/1.8"Progressive Scan CMOS
	Coding mode	H.264/MJPEG/MPEG4
	Video resolution	1080P,CIF,supporting three stream
	Video bit rate	32Kbps~16Mbps
	Video frame rate	1~25f/s(50Hz),1~30f/s(60Hz)
Illuminator	Illuminating lens	60* zooming laser telephoto lens
	Power	20W
	Wave length	810nm
	Illuminating angle	0.3°~18°continuous change
	Light homogenization	MCIC multi-tube core fusion mixed mode light homogenization technology
Infrared lens	Focal length	36~180mm
	FOV	2.5°×2.0°~12.7°×10.2°
	F value	F1.0~F1.2
	Lens control	electric zooming, electric focusing(auto focusing optional)
Detector	Detector type	uncooled microbolometer focal plane array(VOx)
	Effective pixels	324×256
	Spectral range	8~14μm
	Temp sensitivity	≤[email protected],300K
	Frame rate	25Hz
	Image processing	DDE, pseudo color
Pan-tilt	Carrying capacity	50kg(top load)
	Angle	Horizontal 360°continuous rotation,pitching: -60°~+20°
	speed	Horizontal 0.01°~12°/s,pitching 0.01°~8°/s
	Preset bits	255
	Cruising	8 paths,10 bits each path
	Anti-lightning	2000V
interface	Power supply interface	AC24V
	Network interface	1×10Base-T/100Base-TX,RJ45
	Other interfaces	RS422 communication,BNC video output
Environment indicators	Working temp	-25ºC~+55ºC
	Storage temp	-40ºC~+65ºC
	Protection grade	IP66
Power supply	Whole machine power supply	AC24V±10%,appendant AC220V~AC24V/8A water proof power supply
	Whole machine power consumption	≤170W
Physical features	Whole machine weight	45kg
	Installation method	Outdoor pedestal mounting
