Product Description

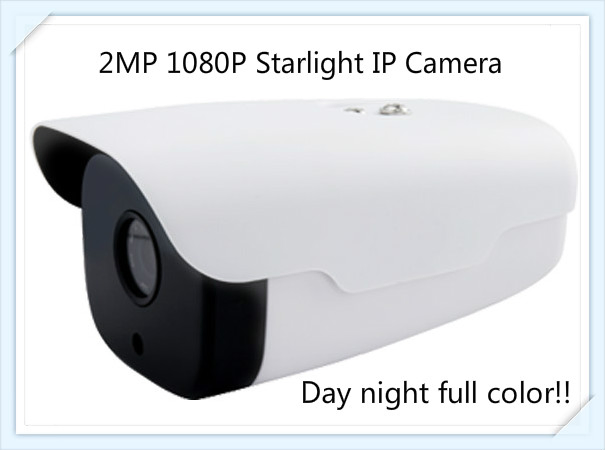

2.0MP HD Waterproof Starlight CCTV IP Camera with IR 50M Full Color Day and Night
ES-SV200-U5-03-WH

Features:
* Embedded Linux system, (Haisi 3518EV200)
* Highest resolution up to 1920 * 1080 @ 25fps
* Ultra-low bit stream algorithm, the same picture quality, high compression ratio, more convenient network transmission, can save 1/2 hard disk storage space
* Stream smooth settings, to adapt to different scenes on the image quality, fluency of the different requirements
* Support OSD overlay name, time, stream and so on
* High efficiency infrared light, long service life
* IR-cut a variety of modes to choose from, can automatically or manually switch day and night mode
* Support audio intercom, support for mobile detection
* Support WDR, electronic shutter, support noise reduction mode
* Support dual stream, support mobile app remote monitoring
* Support image level, vertical flip and so on
* Support TE client platform access
* Support user web login, password settings
* IP66 dustproof and waterproof design, high reliability

2.0MP HD Waterproof Starlight CCTV IP Camera with IR 50m Full Color Day and Night

Scene Application:
Suitable for roads, warehouses, underground parking, bars, pipelines, parks and other places where the light is dark or no light and requires high-definition quality.

Technical datas:

Parameters	ES-SV200-U5-03-WH
Parameters	2.0Megapixel progressive scan CMOS waterproof network camera
Camera
Sensor	2.0megapixel 1/2.8 "Ultra Low Illumination CMOS SENSOR (AR0130)
Shutter	Adjustable
Lens	4mm,6mm,8mm,12mm optional
Day & night mode	ICR infrared filter type
DNR(Digital noise reduction)	Adjustable
Compression standard
Video Compression standard	H.264
H.264 Encoding type	BaseLine Profile
Video compression bit rate	50Kbps~4Mbps
Max picture size	1920*1080
Frame rate	19201080@16fps,1280960@20fps
Graphic settings	Brightness, contrast, saturation, etc. through the client or IE browser adjustable
Network
Storage	NAS,NVR,IPSAN
Intelligent alarm	Motion detection, video loss
Protocal supported	TCP/IP,HTTP,FTP,DHCP,DNS,DDNS,RTSP,NTP,SMTP,P2P,28181
Interface protocal	ONVIF
Common features	Dual stream, flip mirror, password protection, video cover, OSD
Interface
USB/WIFI	Support(optional)
TF Card	Support
RS485	Support
DC interface	1*DC power interface
Communication Interface	1*RJ45 10M/100M Adaptive Ethernet port
General specification
Operating temperature and humidity	-20 ºC -- 60 ºC,
Operating temperature and humidity	≤90% RH
IR Range	40M
Protect class	IP66
Dimension(mm)	20710396
Weight	Net weight 750g, Gross weight 790g
Power	DC12V/2A

Application:
This economical IP camera can be used in following indoor monitor environment:
School, Family, Shop, Office, Building, Chain enterprise, Large factory machine room, Remote elder children nurse, Public buildings, Nobody dangerous environment monitor, Financial institution branch monitor and etc.

How to order from us?
1.Please confirm the model numbers and quantities that you would like to purchase to our sales person, online contact or email to us.
2. We will send you a Proforma Invoice to total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip, we will put your order down to production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.

MOQ:
1.For the sample order, we have no limit for the quantity.
2. From the second order, the MOQ is 50pcs.
3.OEM MOQ is 300pcs/model, Special cases can be negotiated.

Payment Terms:
T/T, Western Union, PayPal, Money Gram
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. More than 10, 000USD, 50% prepaid deposit, payment balance before shipment, we are also acceptable.

Lead Time:
1.Sample order can be delivered from our company in 3-4 working days.
2. General order can be delivered from our factory in 5 - 7working days.
3. Big order can be delivered from our factory in 15-20 working days at most.

Shipping:
FEDEX, DHL, TNT, UPS, EMS, HongKong Post, Aramex, Air Freight, Ocean Shipping.

OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your enquiries!

Warranty Policy:
We provide 1 years warranty for DVRs after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault.we will repair or replace it by free of charge.

Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their brands. OEM Logo service provided free of charge if quantity reached 300pcs. Any your idea on camera we can help you to design and put it into products.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help save the purchasing cost.
4) Customer-based management policy: will turn the overpaid or underpaid shipping cost & intermediary bank charge into next new order.
5) Technical support. In before sale and after sale
6) Package: Standard Carton, well to protect the cameras during the shipping, good package well to help you selling the products.
