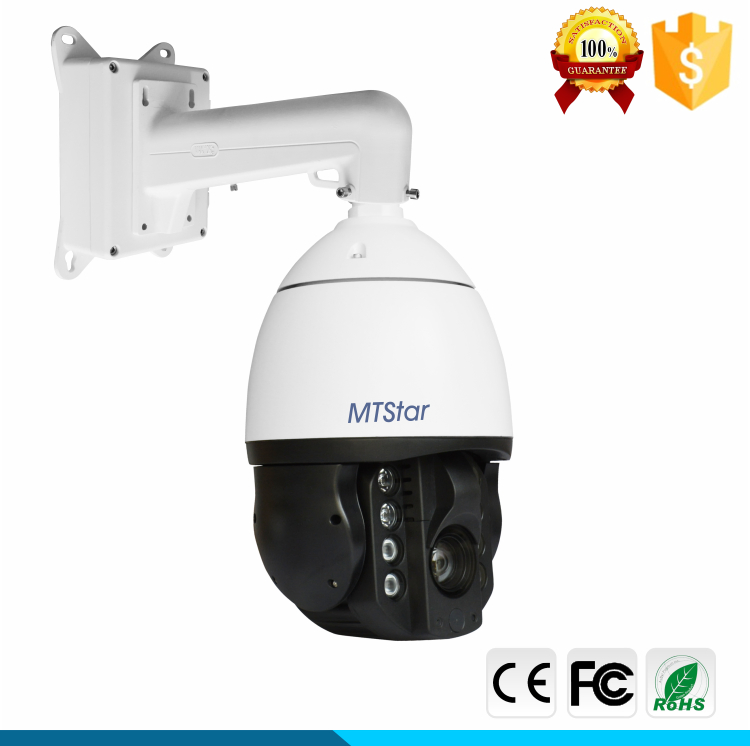

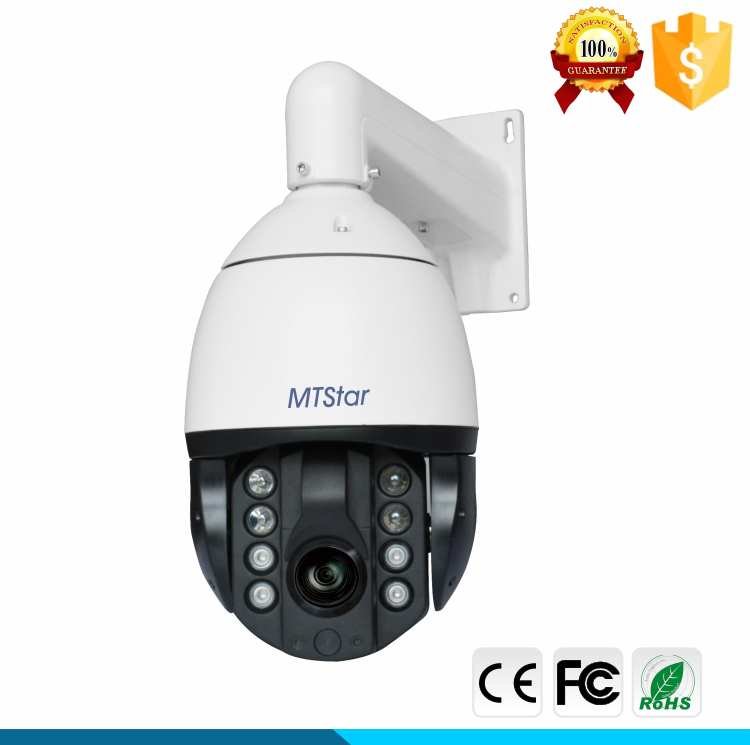

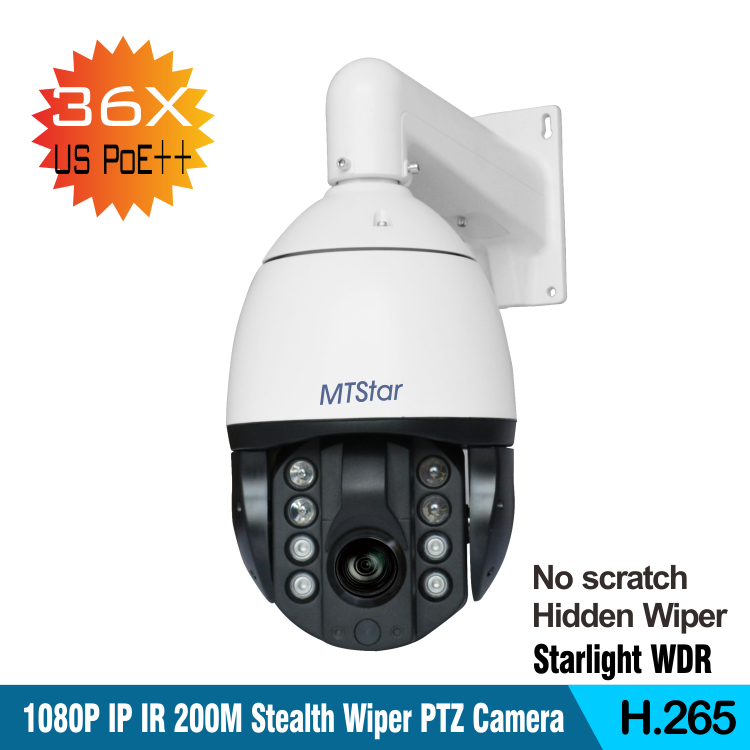

2.0MP Starlight 36X IP Camera Hidden Wiper Smart High Speed PTZ Camera IR 200m

Product Description

H.265 2.0MP 36X HD Starlight low illumination Super WDR IR Smart air energy system PTZ Camera
Technical
Camera: 1.1/3" PanasonicHI3516D + IMX327 2.36X optical zoom, auto focus 3.2.0MP available 4.True Day/Night, 3D DNR, Digital WDR 5.Backlight compensation, and auto gain control (AGC) Network Features: 1.Main Stream: (1920*1080)30fps 2. Support remote update software 3.Support ONVIF,PSIA,CGI,ISAPI 4.H.264 main profile & M-JPEG Dual-stream Encoding ,Three Simultaneous video streams 5.Support a variety of network protocol such as TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6(SIP,SRTP),GB28181,E-HOME Dome Features: 1. New Design No scratch& Hidden Wiper PTZ 2. Smart air energy system IR PTZ 3. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption 4. Imported array IR LED, auto adjust zoom according to different distance 5. IR range 200M 6. Highest ESD protection against lightning and power surges. 7. 360 degree continued rotation, manual pan speed 0.1~180°/S, manual tilt speed 0.1~180°/S, preset speed 240°/S.
Form parameters
Mode	Name and Description	H.265 2.0MP HD Starlight low illumination Super WDR IR Smart air energy system PTZ Camera
Mode	Name and Description	ASRIH632-036-27
Camera	Image Sensor	1/3" 2.0Megapixels Panasonic HI3516D + IMX327
	Effective Pixels	2.0 Mpixes
	Min. Illumination	Color:0.05Lux@(F1.6, AGC ON) B/W: 0.01Lux@(F1.6, AGC ON)
	Zoom	36X , f=4.6mm~167mm, D/N( ICR-Cut) ,F1.6~F4.8
	Day/Night	Day / Night / External control(IR Cut Filter)
	SNR	≥50dB(AGC OFF)
	WDR	Digital WDR,≥80dB
	AGC	Auto / Manual
	White balance	Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
	Digital noise Reduction	DNR,3DNR
	Shutter speed	1/2 - 1/20,000s
Network	Video Compression	H.265 Main Profile/H.264 Main Profile/M-JPEG
	Streams	Dual streams
	Frame Rate	Main stream:
		19201080, 1-25(30)fps; 1280720, 1-25(30)fps
		Sub-stream:
		480640, 1-25(30)fps; 480 360 1-25(30fps 352288, 1-25(30)fps; 176144, 1-25(30)fps
		MJPEG:
		19201080, 1280720, Close
	Bitrate	32Kbps ~ 12Mbps
	Output	1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC (S/N ratio≥ 55dB)
	Network Interface	Ethernet 10/100Base-T (RJ-45)
	Network Protocol	TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,SNMP,FTP,802.1x,QoS,HTTPS,IPv6(SIP,SRTP),GB28181,E-HOME
	Interface Protocol	ONVIF,PSIA,CGI,ISAPI
	Algorithm	G.722.1,G.711-a law,G.711-u law,MP2L2,G.726,AAC,PCM
	Input	1 x Line-In (Mini-stereo, Single Mono)
	Output	1 x Line-Out (Mini-stereo, Single Mono)
	Mini SD Card	Up to 64GB(Optional)
IR	Luminary	Array Φ20 8pcs
	Night vision distance	200M
	Lamp control	Auto, Manual, by Zoom
Dome Features	Range	Pan : 360°(Endless)/ Tilt: -10~90°
	Pan/Tilt Speed	Preset Max.:240°/sec
		Manual : 0.1° ~ 180°/sec (Zoom Proportional)
		Patrol : 1.4°~150° /sec
	Preset	254 Presets
	Pattern	3 Patterns
	Patrol Scan	Yes
	Other Functions	Auto Flip, Auto Parking, Power-up Action & etc
	Alarm Trigger	Intrusion detection,Region entrance,Region exiting,Audio exception detection,Motion detection,Storage exception,Storage error,Tampering alarm.
	Alarm Action	Preset,Patrol,Pattern,Relay output,Notification on client,Send Email,Upload to FTP,Trigger Channel.
	Alarm Input	1(ON/OFF signal)
	Alarm Output	1(ON/OFF signal)
General	IP protection	With IP66
	Operating Temperature	-30ºC~50ºC
	Humidity	0%~98% (Non condensing)
	Heater in operation	≤6ºC on ≥ 10ºC off
	Power Source	DC12V±10%; 5A/PoE++(hight power 60w) optional
	Power Consumption	AC24V:8W-45W DC12V:8W-36W
