2 Inch Mini Metal Vandalproof Dwdr OSD Utc BNC White 3D-Nr Noise Reduction IR 15m Range Waterproof NTSC / PAL Ahd/Tvi/Cvi Dome Camera
Features:2'' Mini Metal IR Dome CameraWater Resistance: IP66IR LED: ¢5X12pcs, IR Range: 15M100PCS Per CartonSize: 60mm x 50mmWeight: 300gSpecifications Model IDSV-WIMB20FHDSV-WIMB20ZHDSV-WIMB20THDSV-WIMB40KHDSV-WIMB40VHDSV-WIMB50KHDSV-WIMB50SHDDescription2'' Mini Metal IR Dome C......
Send Inquiry
Product Description
Features:

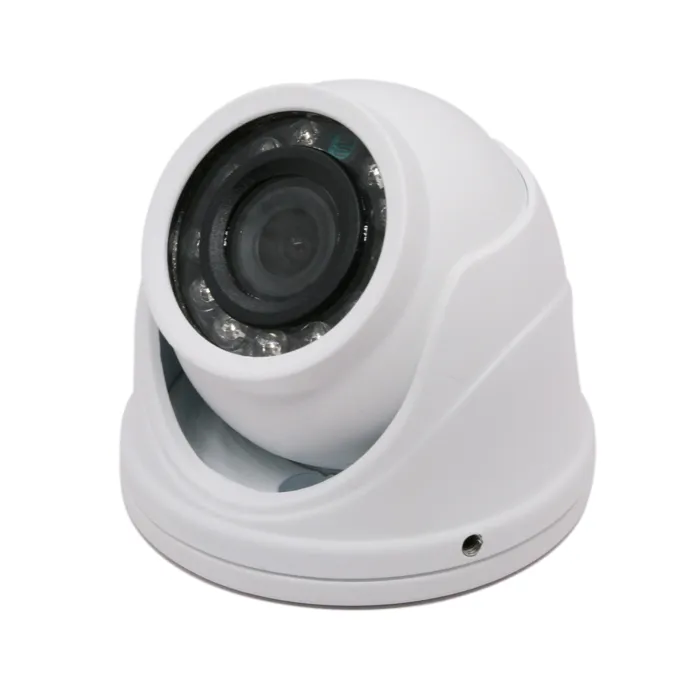

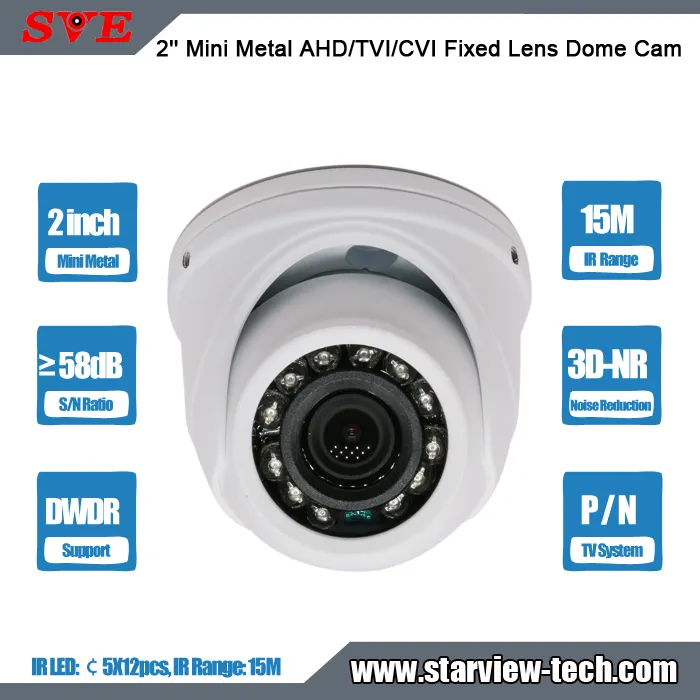

2'' Mini Metal IR Dome Camera
Water Resistance: IP66
IR LED: ¢5X12pcs, IR Range: 15M
100PCS Per Carton
Size: 60mm x 50mm
Weight: 300g
Specifications
2'' Mini Metal IR Dome Camera
Water Resistance: IP66
IR LED: ¢5X12pcs, IR Range: 15M
100PCS Per Carton
Size: 60mm x 50mm
Weight: 300g
Specifications
| Model ID | SV-WIMB20FHD | SV-WIMB20ZHD | SV-WIMB20THD | SV-WIMB40KHD | SV-WIMB40VHD | SV-WIMB50KHD | SV-WIMB50SHD |
| Description | 2'' Mini Metal IR Dome Camera, IR LED: ¢5X12pcs, IR Range: 15M | ||||||
| TV System | NTSC / PAL | ||||||
| Video Out | BNC 3 in 1 (AHD, TVI, CVI) | BNC 4 in 1(AHD, TVI, CVI, CVBS Switch by OSD) | |||||
| Chipset Solution | 1/2.7" 1080P 2MP CMOS Sensor Low illum SC2235 + XM330 | 1/2.7" 1080P 2MP CMOS Sensor Low illum F33 + FH8536E | 1/2.8" 1080P(2.13MP) STARVIS CMOS Sensor, Low illum, SONY IMX307 + NVP2441H | 1/2.7" 4MP CMOS Sensor Low illum Silicon K02 + FH8538M | 1/3" 4MP CMOS Sensor Low illum OV4689 + FH8538M | 1/2.7" 5MP CMOS Sensor, Low illum Silicon K03 + FH8538M | 1/2.9" 5MP CMOS Sensor Low illum, SONY IMX335 + FH8558M |
| Resolution | 1080P@ 25fps(PAL), 30fps(NTSC) | 1080P @ 25fps(PAL), 30fps(NTSC) | 1080P @ 25fps(PAL), 30fps(NTSC) | 4MP @ 25fps(PAL), 30fps(NTSC) | 4MP @ 25fps(PAL), 30fps(NTSC) | 5MP @ 25fps(PAL), 30fps(NTSC) | 5MP @ 25fps(PAL), 30fps(NTSC) |
| Effective Pixels | 1920(H)×1080(V) | 1920(H)×1080(V) | 1920(H)×1080(V) | 2560(H)×1440(V) | 2560(H)×1440(V) | 2592(H)×1944(V) | 2592(H)×1944(V) |
| Minimum Illumination | 0.001Lux | ||||||
| Lens | 3.6mm Board Lens,2.8/6/8mm (Optional) | ||||||
| Sync,System | Internal Synchronization | ||||||
| Scanning System | 2:1 Interface | ||||||
| Shutter Speed | 1/60~1/100,000sec (N), 1/50~1/100,000sec (P) | ||||||
| S/N Ratio | ≥ 58dB | ||||||
| DWDR | YES | ||||||
| OSD | NO | YES | |||||
| UTC | YES | ||||||
| Noise Reduction | 3D-NR | ||||||
| Power Source | DC12V ±10% | ||||||
| Consumption | <5W | ||||||
| Operating Enviroment | -20ºC~60ºC / 10% ~ 95%RH | ||||||
| Working Humidity | ≤90% | ||||||
| Size(mm) | 60mm x 50mm | ||||||
| Weight(kg) | 0.3 kg | ||||||
