2 Mega OEM Camera Module USB2.0 1080P Web Camera Mini Board USB Camera Moudle with CMOS GB0806 Sensor
2 Mega OEM Camera Module USB2.0 1080P Web Camera Mini Board USB Camera Moudle with CMOS GB0806 Sensor :1. 1/2.7 inch BG0806 Cmos Camera Module2. 2Mega OEM Cmos USB Camera Module3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with Custom......
Send Inquiry
Product Description
2 Mega OEM Camera Module USB2.0 1080P Web Camera Mini Board USB Camera Moudle with CMOS GB0806 Sensor :

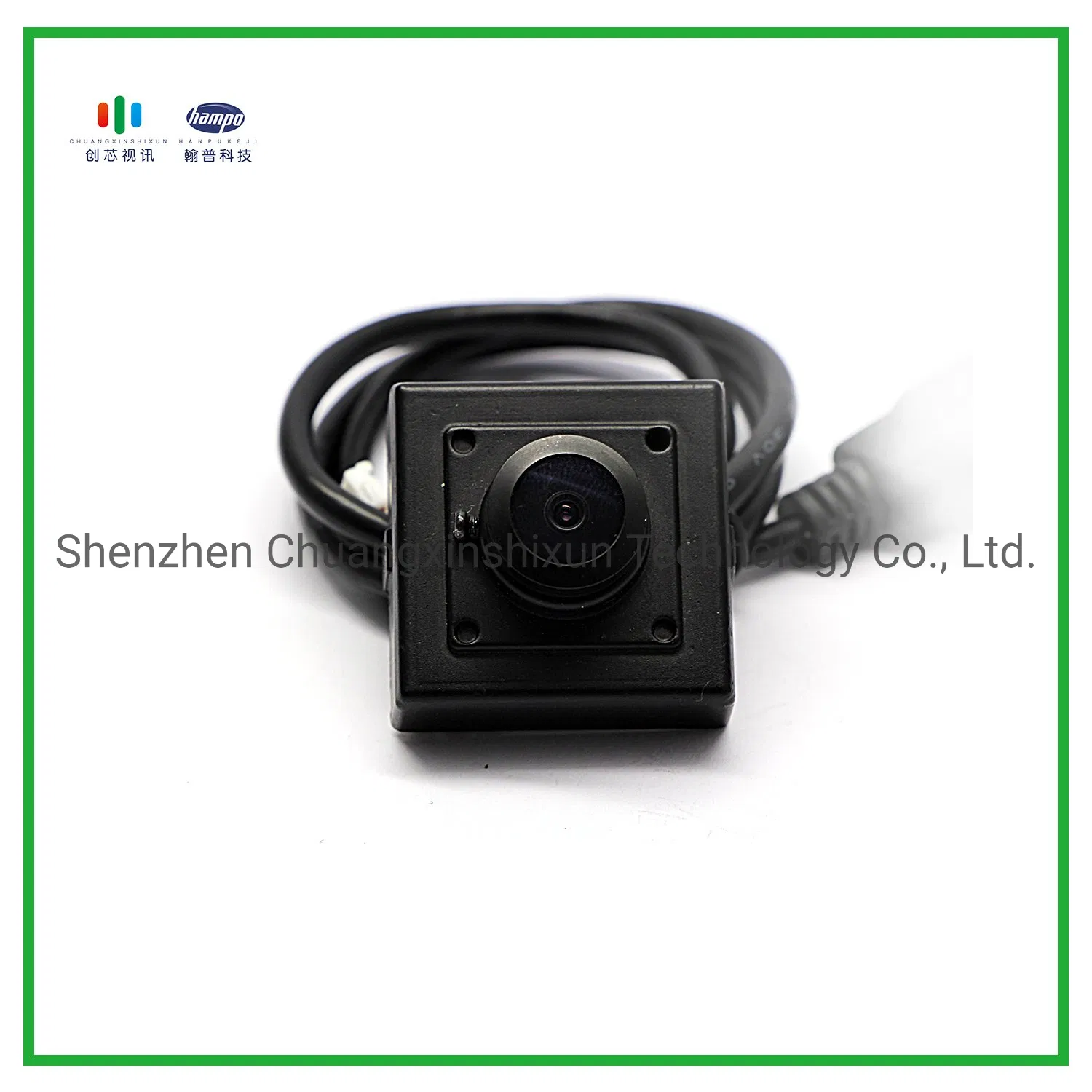

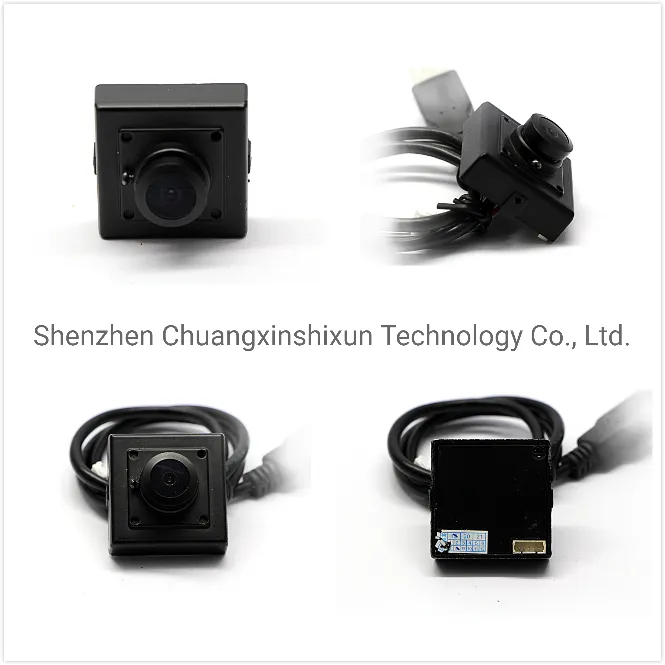

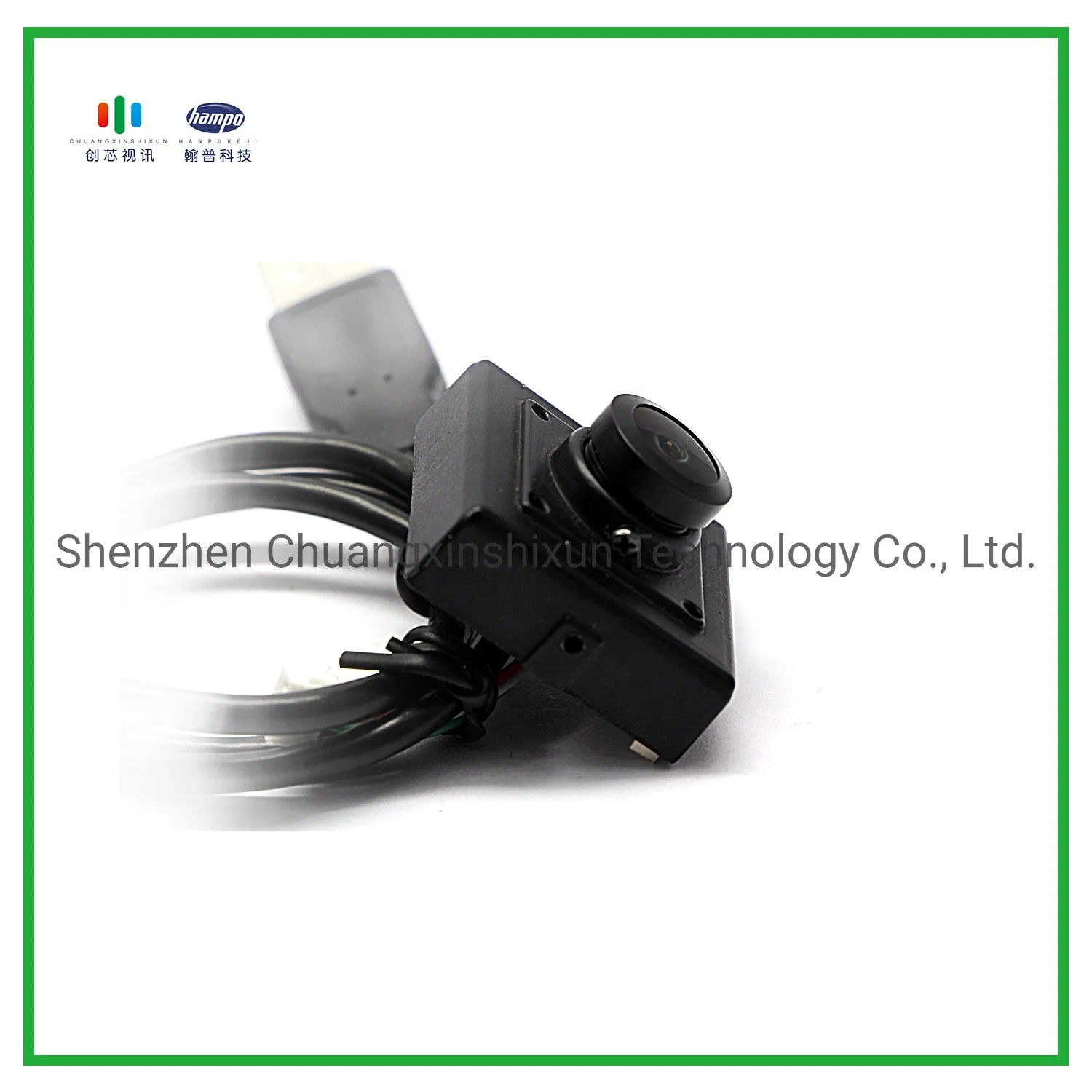

Pictures Display:

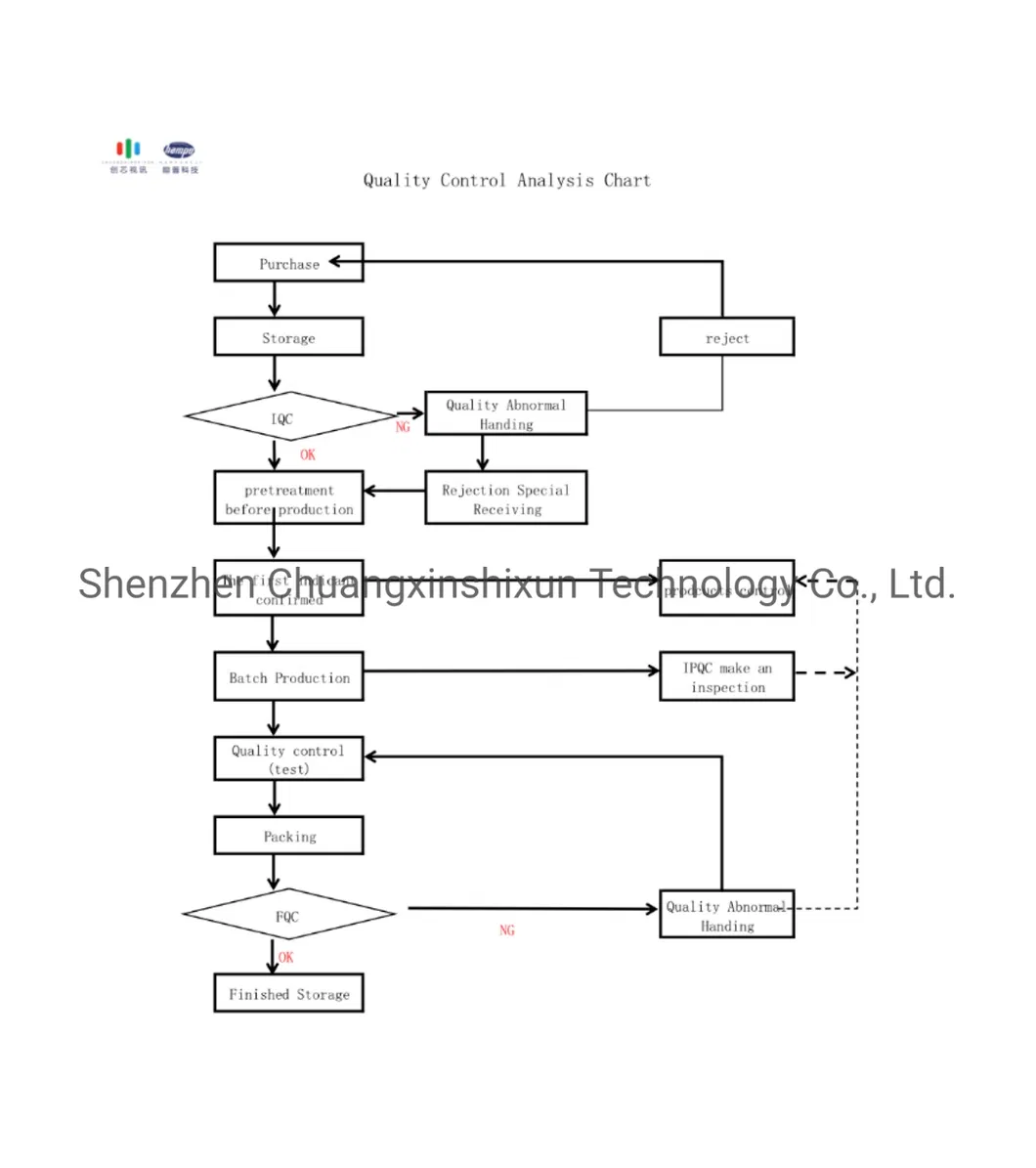

Quality Control:
Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed ompanies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc
1. 1/2.7 inch BG0806 Cmos Camera Module
2. 2Mega OEM Cmos USB Camera Module
3. USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with Customizable lens
5. 32*32mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | BG0806 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 millions |
| Maximum Effective Resolution | 1928*1088 |
| Data Format | MJPG/YUY2 |
| Pixel Size | 3.0*3.0μm |
| Dynamic Range | 70DB |
| Lens(customizable) | FOV :D= |
| Optical length : | |
| lens construction: | |
| mount : | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Quality Control:
Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed ompanies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc
