20X 4G Wireless Network 5MP 500m IP66 Outdoor Security Vehicle PTZ Camera
20X 4G Wireless Network 5MP 500m IP66 Outdoor Security Vehicle PTZ CameraKey FeaturesIntelligent bit rate adjustment, greatly reducing the transmission traffic and storage space H.265,backward compatible H.2644G all Netcom communications, remote real-time monitoring, optional dual 4G Built in storag......
Send Inquiry
Product Description
20X 4G Wireless Network 5MP 500m IP66 Outdoor Security Vehicle PTZ Camera
Key Features
Intelligent bit rate adjustment, greatly reducing the transmission traffic and storage space H.265,backward compatible H.264
4G all Netcom communications, remote real-time monitoring, optional dual 4G
Built in storage card,max 128G,with intelligent bit rate adjustment algorithm,can save much storage space
Support GPS/Beidou module,accurate locating
Video overlay 4G signal strength information,local remote real-time read signal quality
Support two-way voice intercom
Support shock absorption structure, improve equipment stability
Laser light distance:500m
Application:

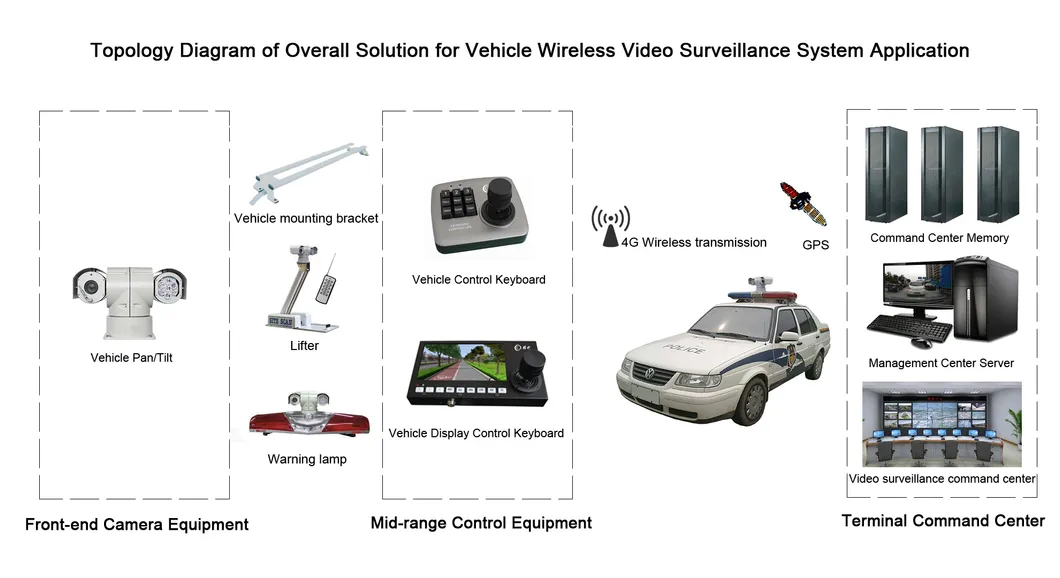

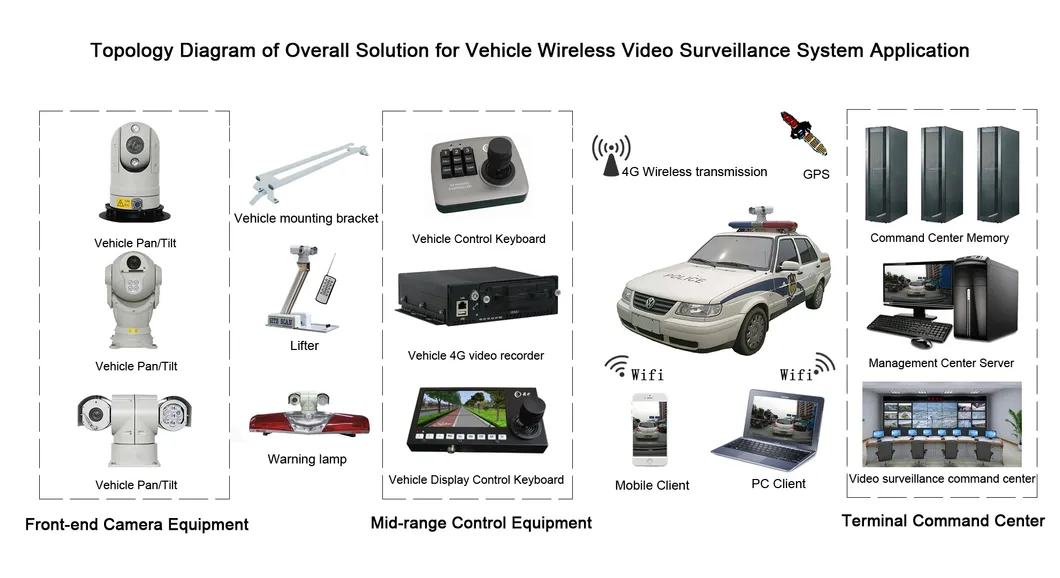

Used in a wide range of fixed point monitoring, vehicle video surveillance, field video surveillance and other places need high-definition monitoring, such as: construction sites, public security vehicles, land resources, sea ports, electricity, ships and so on.
Technical parameters
Key Features
Intelligent bit rate adjustment, greatly reducing the transmission traffic and storage space H.265,backward compatible H.264
4G all Netcom communications, remote real-time monitoring, optional dual 4G
Built in storage card,max 128G,with intelligent bit rate adjustment algorithm,can save much storage space
Support GPS/Beidou module,accurate locating
Video overlay 4G signal strength information,local remote real-time read signal quality
Support two-way voice intercom
Support shock absorption structure, improve equipment stability
Laser light distance:500m
Application:
Used in a wide range of fixed point monitoring, vehicle video surveillance, field video surveillance and other places need high-definition monitoring, such as: construction sites, public security vehicles, land resources, sea ports, electricity, ships and so on.
Technical parameters
| Product name | 4G Network Vehicle HD PTZ Camera |
| 4G | MDM9607/MDM9207 |
| Working frequency band | GSM/GPRS/EDGE 900M/1800M |
| CDMA/EVDO BC0 800M | |
| TD_SDCMA B34,B39 | |
| UMTS/WCDMA B1 B5 B8 | |
| LTE-FDD B1 B3 B5 B7 B8 B20 | |
| LTE-TDD B38 B39 B40 B41 | |
| Wireless rate | GPRS:Max 85.6Kpbs(DL)/Max 85.6Kpbs(UL) |
| CDMA/EVDO:Max 3.1Mpbs(DL)/Max 1.8Mpbs(UL) | |
| WCDMA/DC-HSPA+:Max 42Mbps(DL)/Max 5.76Mbps(UL) | |
| TD-SCDMA:Max 4.2Mbps(DL)/Max 2.2bps(UL) | |
| LTE-FDD:non-CA cat4 Max 150Mbps(DL)/Max 50Mbps(UL) | |
| LTE-TDD:non-CA cat4 Max 130Mbps(DL)/Max 35Mbps(UL) | |
| Wifi | 802.11b/g/n |
| WiFi frequency band | 2412MHz----2472MHz |
| Sensor | 1/2.9" Pixel CMOS 3516E+SONY335 |
| Video Compression | H.265 Main Profile / H.264 High profile / M-JPEG |
| Effective pixels | 2592x1944 |
| Total pixels | 5.0 Megapixels |
| Output Pixel | 2304x1296@30fps, 2592x1520@22fps, 2592x1944@15fps |
| Lens | 20Xoptical zoom f=4.7~ 94mm |
| Iris | F1.6-3.0 |
| FOV | 3.8° -72° |
| Min. illumination | Color: 0.01 Lux,B/W: 0 Lux |
| D/N | IR-CUT |
| BLC | Auto |
| WB | Auto |
| S/N Ratio | ≥50dB(AGC OFF) |
| TF Card | Support |
| Audio frequency | Optional |
| Audio compression | G711, PCM |
| Communications Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P |
| Compatibility | IE, CMS, HCMS,HIKVISION,UC ONVIF |

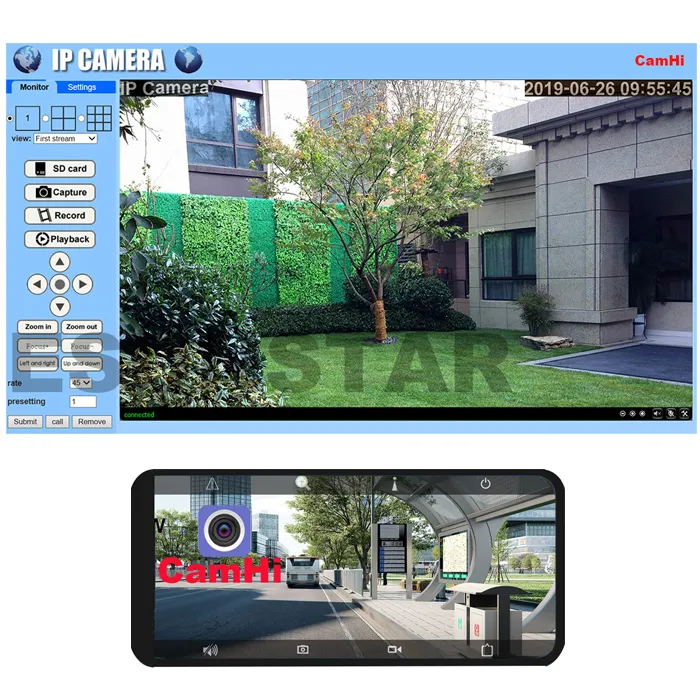

| Mobile View(optional) | Support Windows, Symbian, iPhone platform smartphone |
| P2P | Camhi(Anfroid IOS) |
| Laser light Night vision | |
| Laser light distance | 500m |
| PTZ | |
| Pan speed | 0.6°- 220°/S |
| Tilt speed | 0.8°- 75°/S |
| Tilt range | 0°- 90°,Automatic flip 180° |
| Pan range | 360° contiously rotation |
| Proportional zoom | Support,change the speed with zoom changed |
| Preset position | 220pcs |
| Network | |
| Network | 4G |
| Wire network | 1CH RJ45 |
| Storage | Local storage TF card 128G (class10) |
| Smart Function | Motion Detection, Area Intrusion, Line Crossing, Distortion Correction, Power Off memory, Network off Recovery |
| Smart Detection | Video Mask, Audio Abnormal, Off-line, IP conflict, HDD Full, HDD Error |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS, (IPv6 optional) |
| Compatibility | ONVIF2.4, FV private protocol, CGI, Support HIK/DAHUA protocol |
| Audio Compression | G.711, AAC |
| Video Compression | H.265/H.264 |
| General | Heartbeat, Password Protection,Black/White list |
| Positioning | |
| support | GPS,BDS dual module |
| Intercom | |
| Support | Support cluster intercom (optional) |
| Others | |
| Power supply | DC12V±10% |
| Consumption | Day max 15W night max 50W(with heater) |
| Working temperature and humidity | -20ºC~+60ºC 10%~95%(No condensation) |
| Protect grade | TVS3000V Lightning protection, anti-surge, anti-surge |
| Full integration size(mm) | 490*307*237 |
| Weight | 10Kg(including package) |
| Protect grade | IP66 |
