2304*1296pixels Board Camera Module USB2.0 for Windows, Linux and Mac
2304*1296Pixels Board Camera Module USB2.0 for Windows, Linux and Mac1. 1/3 inch AR0330 CMOS camera module2. Full HD 2304*1296 USB camera module with speed 30 fps3. Full HD realtime usb webcam with UVC, support windows, Linux, Mac with UVC and Android system.4. USB camera module with 85 degr......
Send Inquiry
Product Description
2304*1296Pixels Board Camera Module USB2.0 for Windows, Linux and Mac
1. 1/3 inch AR0330 CMOS camera module

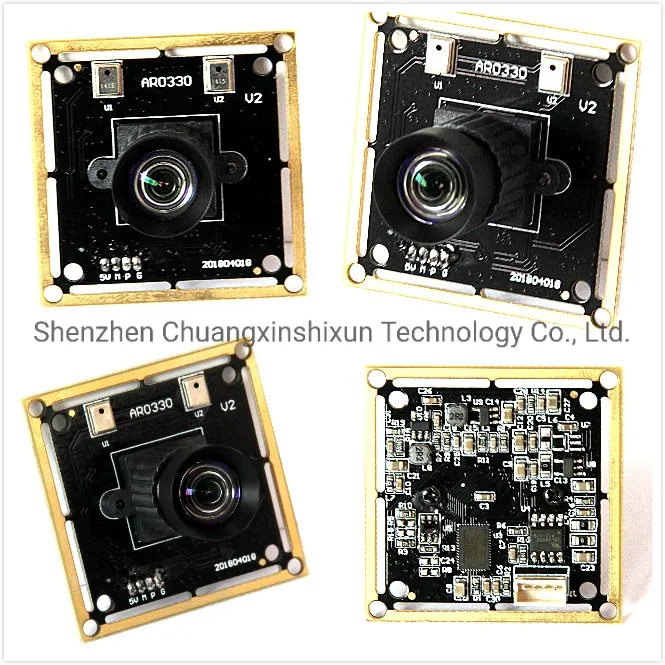

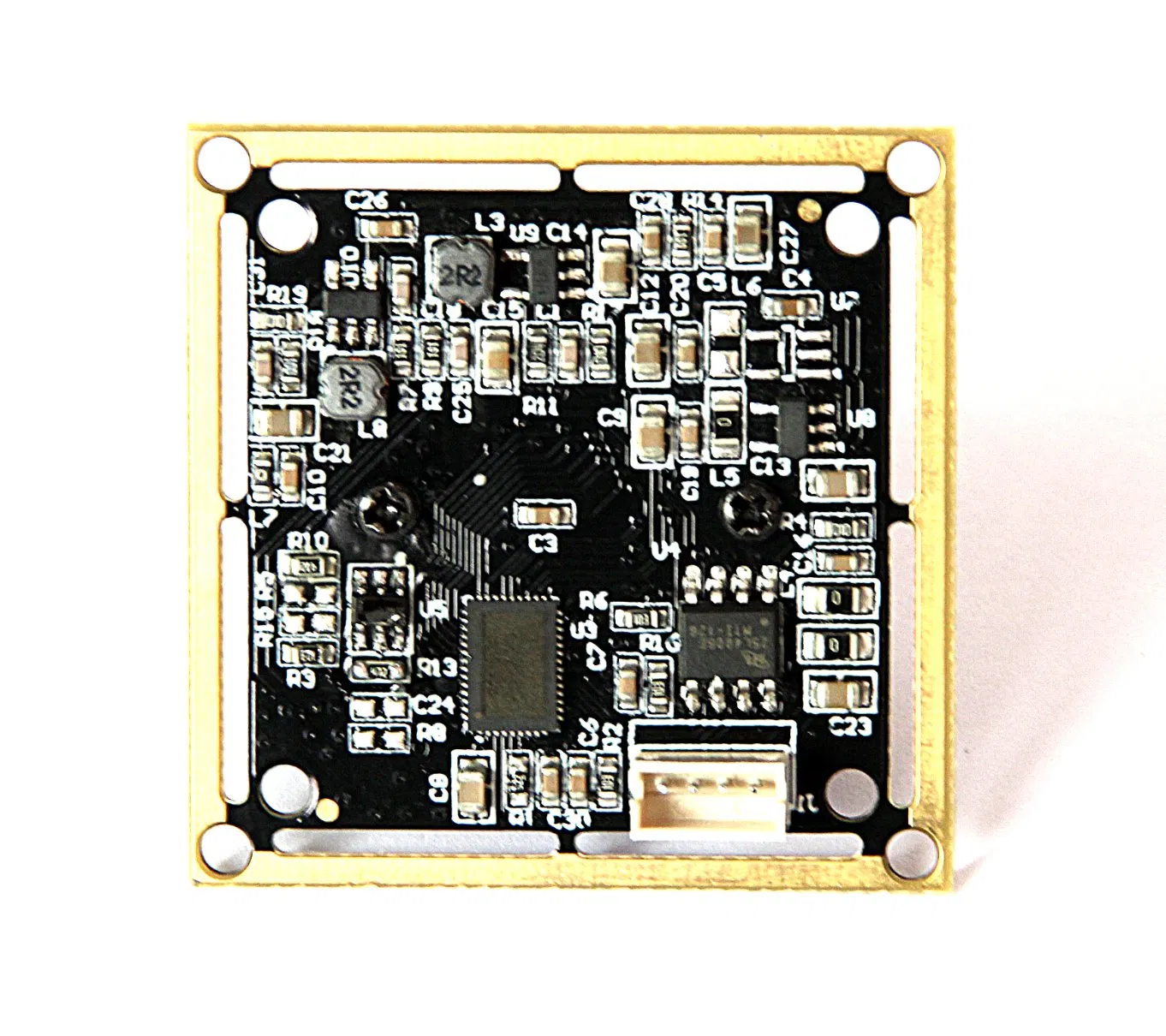

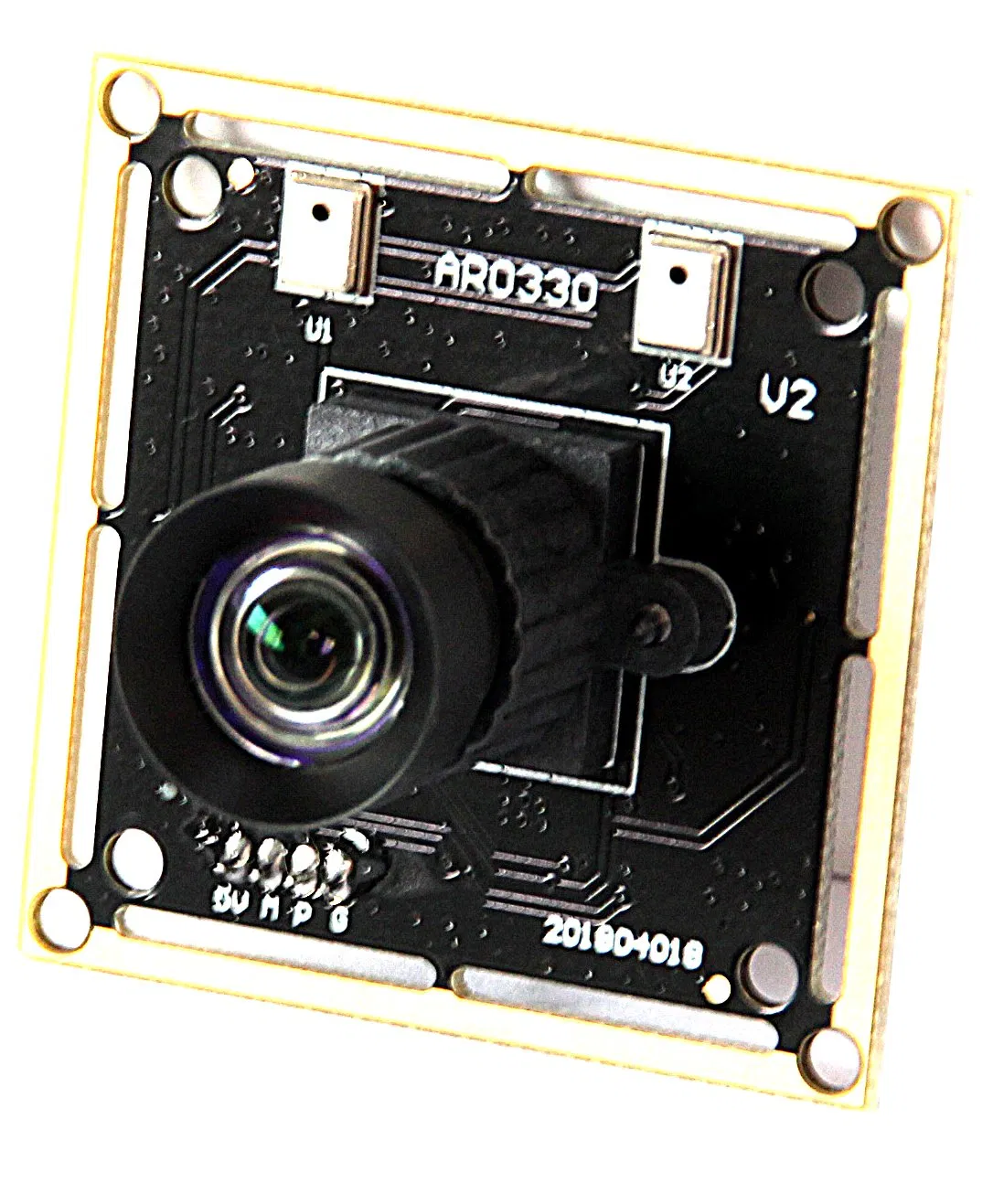

Pictures Display:

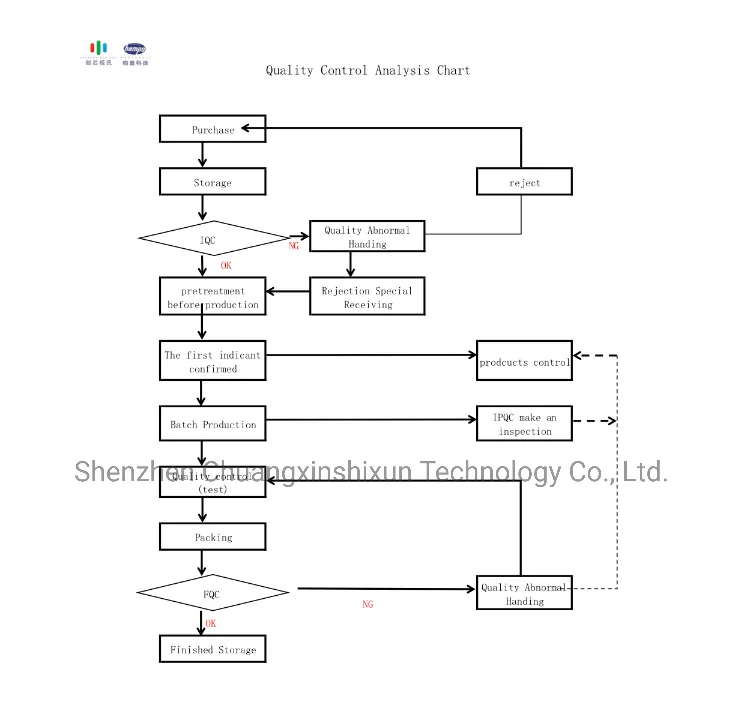

Quality Control:
Company Information:
1. 1/3 inch AR0330 CMOS camera module
2. Full HD 2304*1296 USB camera module with speed 30 fps
3. Full HD realtime usb webcam with UVC, support windows, Linux, Mac with UVC and Android system.
4. USB camera module with 85 degree
5. 38*38/32*32mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | AR0330 |
| Lens Size | 1/3" |
| Most Effective Pixels | 2304(H) x 1296(V) |
| Data Format | YUY2/MJPG/ |
| Pixel Size | 2.2um x 2.2um |
| Dynamic Range | 72.4 dB |
| Lens | FOV :D= 85° |
| Optical length :19MM | |
| lens construction:2G2P+IR | |
| mount :M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast,Acutance,White balance,Exposure |
| Audio | High quality digital MIC, single or dual channel is optional |
| Voltage | DC 5V |
| Working Current | MAX 300mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70ºC |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
