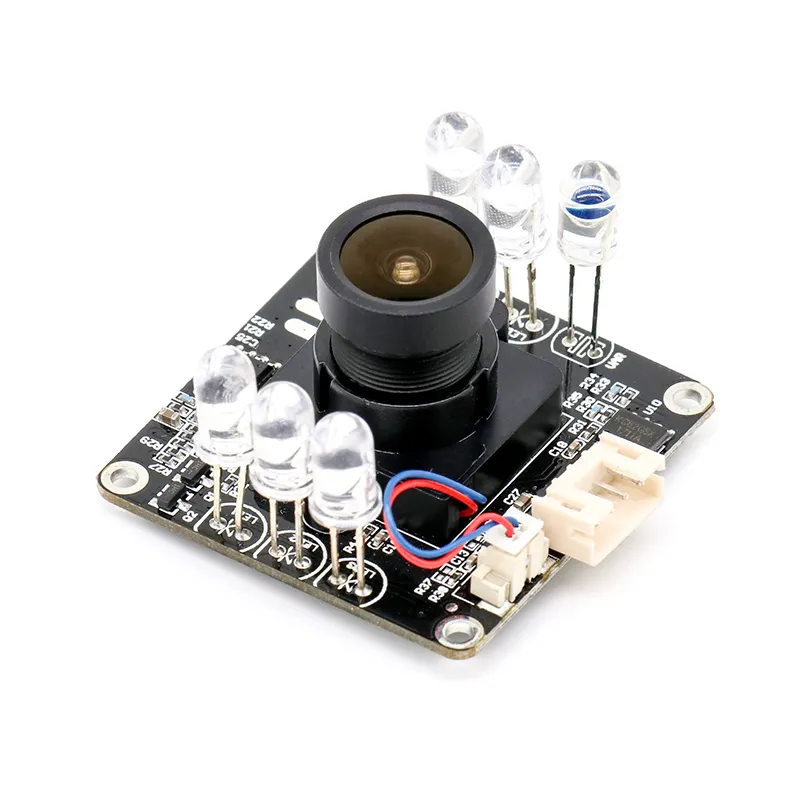

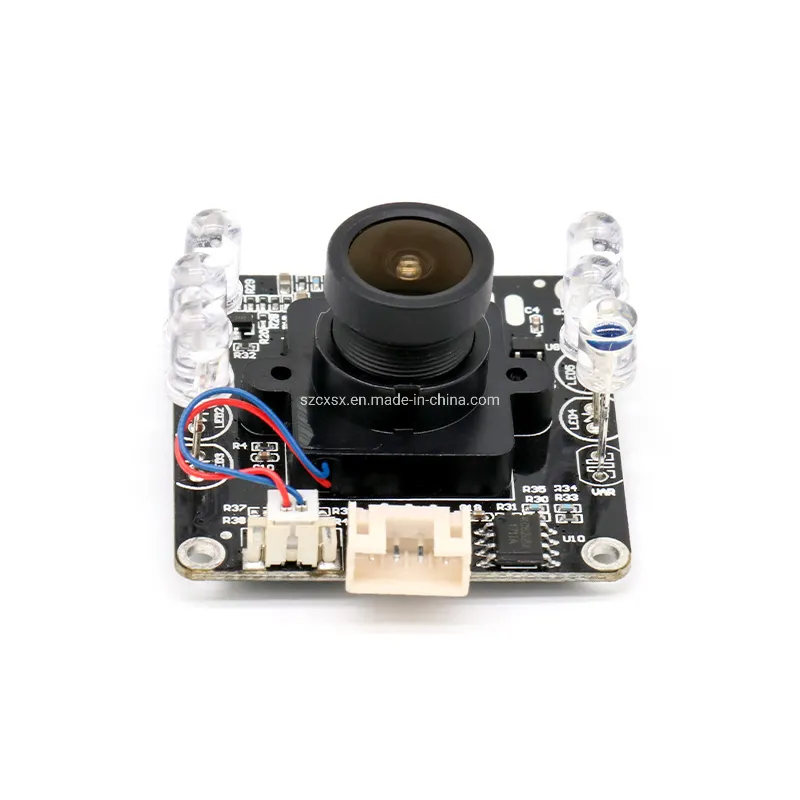

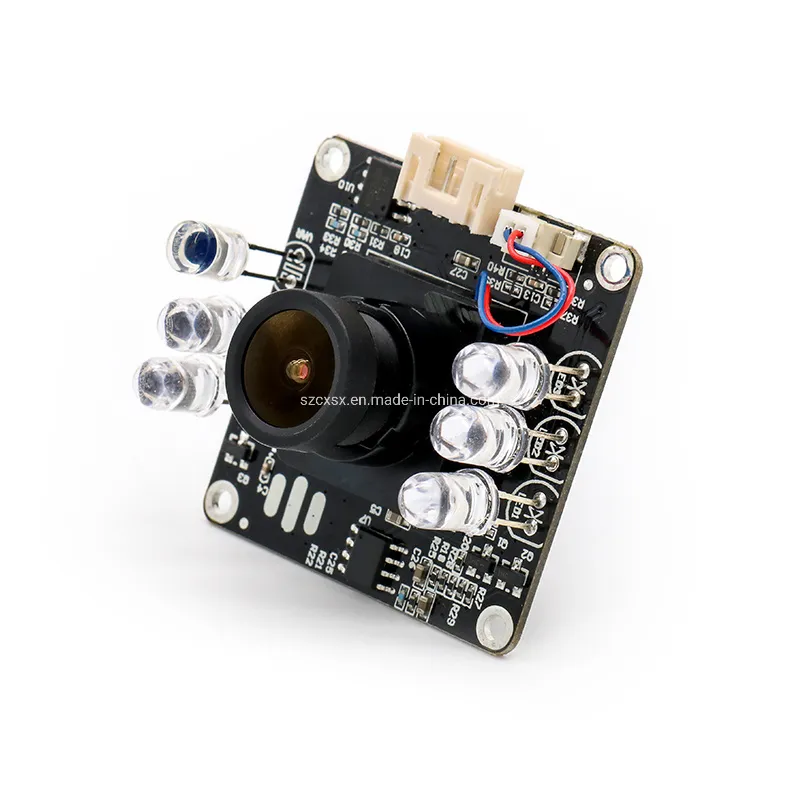

2mega USB Camera Module with IR-Cut WDR/Hdr Camera
2Mega USB Camera Module with IR-CUT WDR/HDR Camera:Key Features:Day/Night Vision: IR-CUT filter is a mechanical and motor drive component inside of camera. Camera built-in IR-CUT filter can provide true day/night video surveillance. It can provide day mode and night mode switching automatically. In ......
Send Inquiry
Product Description
Key Features:
Day/Night Vision: IR-CUT filter is a mechanical and motor drive component inside of camera. Camera built-in IR-CUT filter can provide true day/night video surveillance. It can provide day mode and night mode switching automatically. In night mode, the inside filter will remove, hence allowing unnatural lights (ie.,Infrared) enter into image sensor to enhance low illumination performance. In day mode, the inside filter will be inserted between lens and image sensor to filter unnatural lights enter into image sensor, therefore to provide true color reproduction crisp images.
High Frame Rates: 1920*1080P @30fps, perfect for face recognition etc. application.
WDR: The wide dynamic range is applied for viewing the image smoothly under the condition of severe light contrast, the WDR for this camera module up to 96DB.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device with the USB cable without extra drivers to be installed. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
Specification:
| Items | Parameters |
| SENSOR | AR0230 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 millions |
| Maximum Effective Resolution | 1928(H)*1088(V) |
| Data Format | YUY2/MJPG/ |
| Pixel Size | 3.0um*3.0um |
| Dynamic Range | 96db |
| Lens | FOV :D= 96° |
| Optical length :14.78MM | |
| lens construction: 2G2P | |
| mount : M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| IR | Five 850nm IR LEDs |
| Voltage | DC 5V |
| Working Current | MAX 500mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70°C |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Applications:
- Security monitoring
- Home video surveillance system
- Day&night vision security camera system
- Underground parking
- Face recognition
- Access control system etc
Company Information:
Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2015, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.

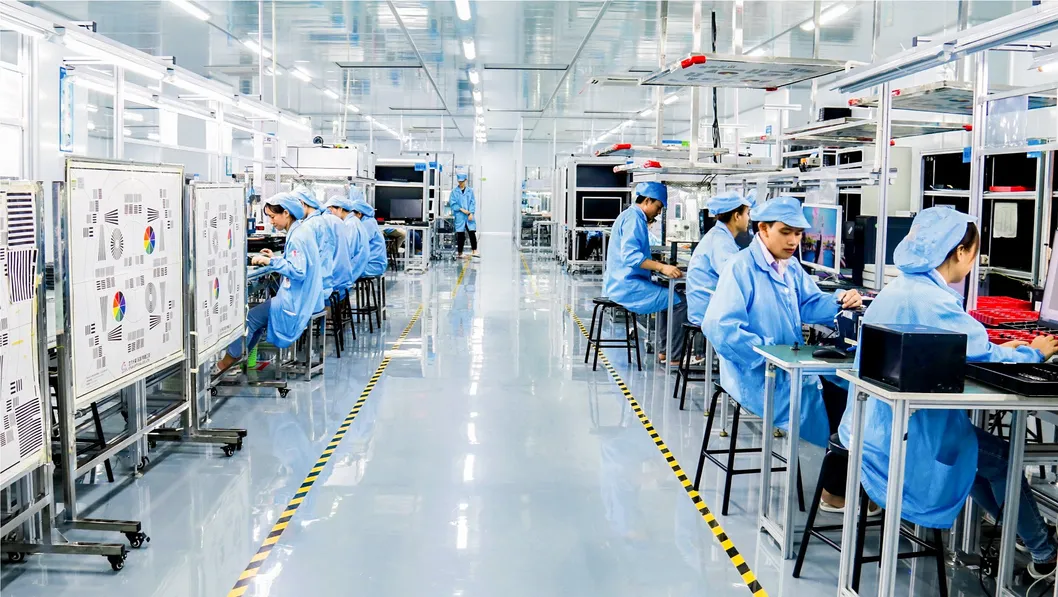

We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
