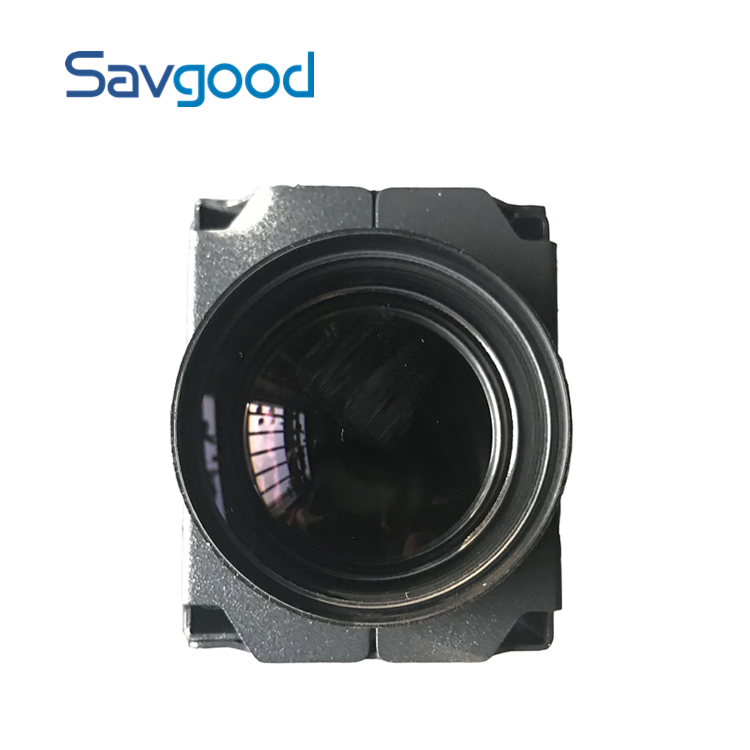

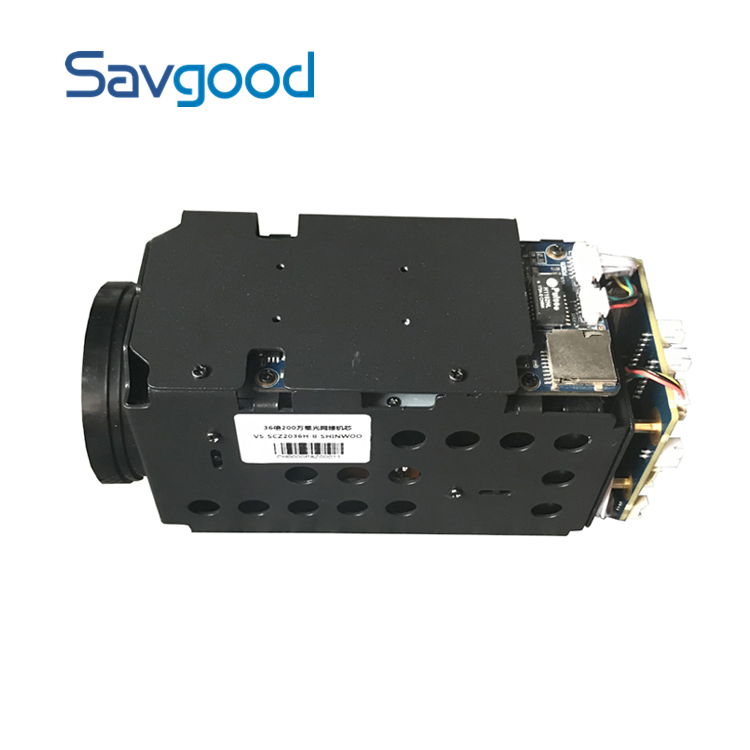

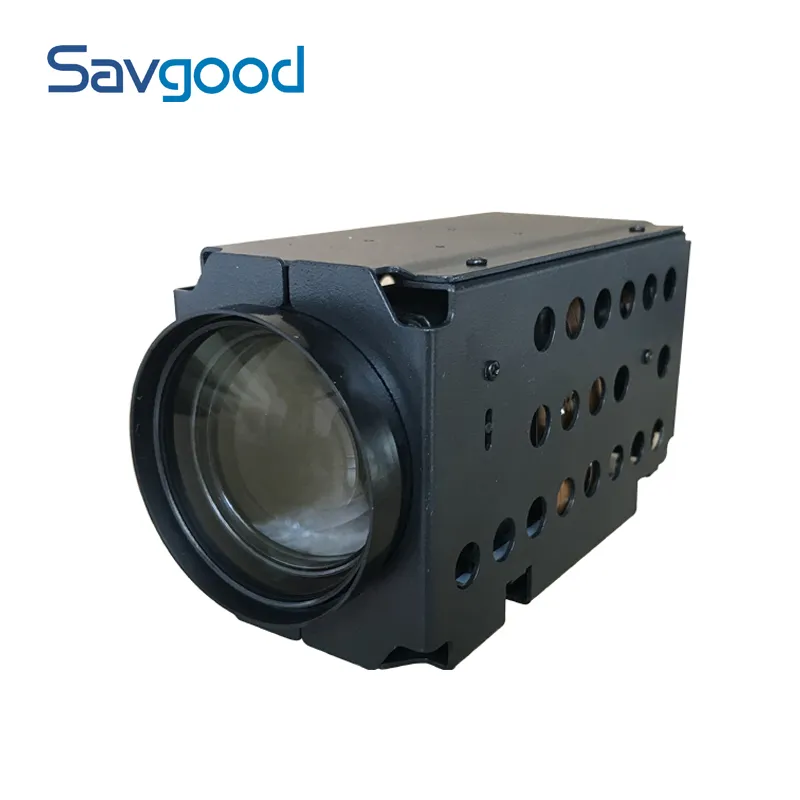

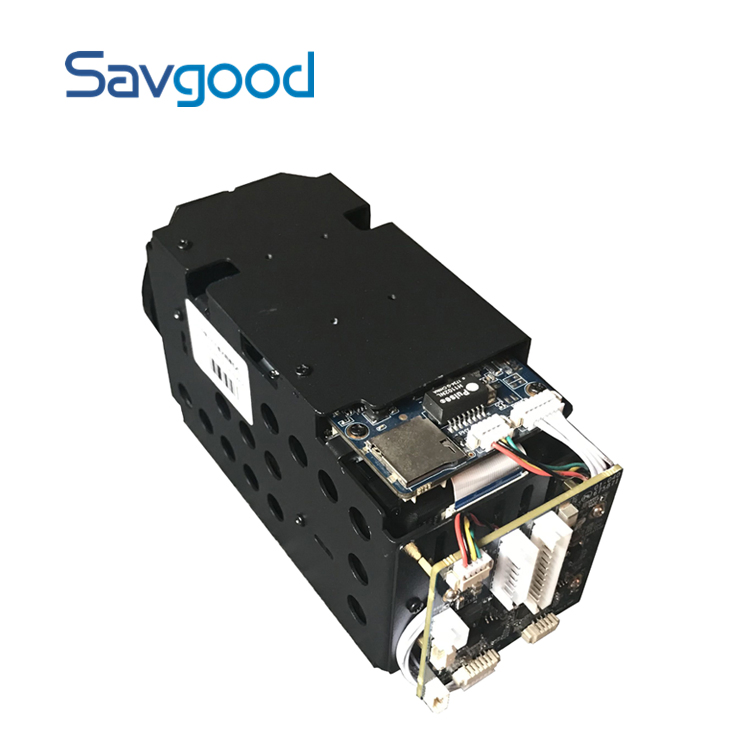

2MP 35X Imx385 Zoom Low Light CCTV Camera Module (SG-ZCM2035N)
1. Features:> 1/1.9" Sony Exmor CMOS Sensor.> Powerful 35x optical zoom (6~210mm).> Max. 2Mp(1920x1080) Resolution> Support various IVS functions> Support Electronic Defog and Optical Defog(Optional) 2. Specification:ModelSG-ZCM2035N(-O)SensorImage Sensor1/1.9" Sony Exmor CM......
Send Inquiry
Product Description
1. Features:
> 1/1.9" Sony Exmor CMOS Sensor.
> Powerful 35x optical zoom (6~210mm).
> Max. 2Mp(1920x1080) Resolution
> Support various IVS functions
> Support Electronic Defog and Optical Defog(Optional)
2. Specification:
| Model | SG-ZCM2035N(-O) | |
| Sensor | Image Sensor | 1/1.9" Sony Exmor CMOS |
| Effective Pixels | Approx. 2.13 Megapixel | |
| Max. Resolution | 1945(H)x1225(V) | |
| Lens | Focal Length | 6mm~210mm, 35x Optical Zoom |
| Aperture | F1.5~F4.8 | |
| Close Focus Distance | 0.1m~1.5m (Wide~Tale) | |
| Angle of View | 61°~2.0° | |
| Video Network | Compression | H.265/H.264/H.264H/MJPEG |
| Storage Capabilities | TF card, up to 128G | |
| Network Protocol | Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
| Smart Alarm | Motion Detection, Cover Alarm, Storage Full Alarm | |
| Resolution | 50Hz: 25fps@2Mp(1920×1080) 60Hz: 30fps@2Mp(1920×1080) | |

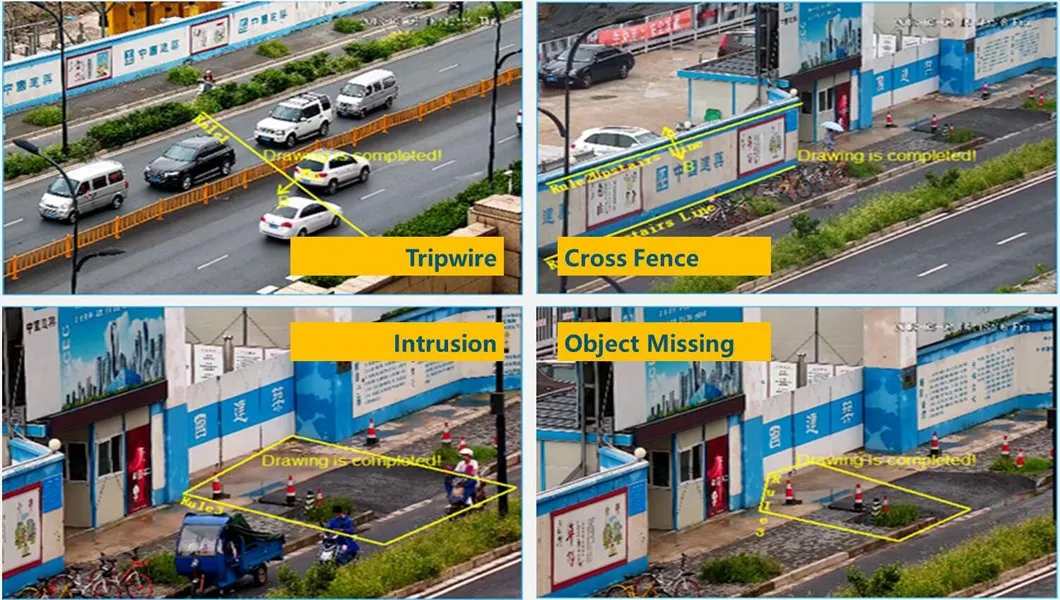

| IVS | Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | |
| S/N Ratio | ≥55dB (AGC Off, Weight ON) | |
| Minimum Illumination | Color: 0.001Lux/F1.5; B/W: 0.0001Lux/F1.5 | |
| EIS | Electronic Image Stabilization (ON/OFF) | |
| Exposure Compensation | ON/OFF | |
| Strong Light Suppression | ON/OFF | |
| Day/Night | Auto/Manual | |

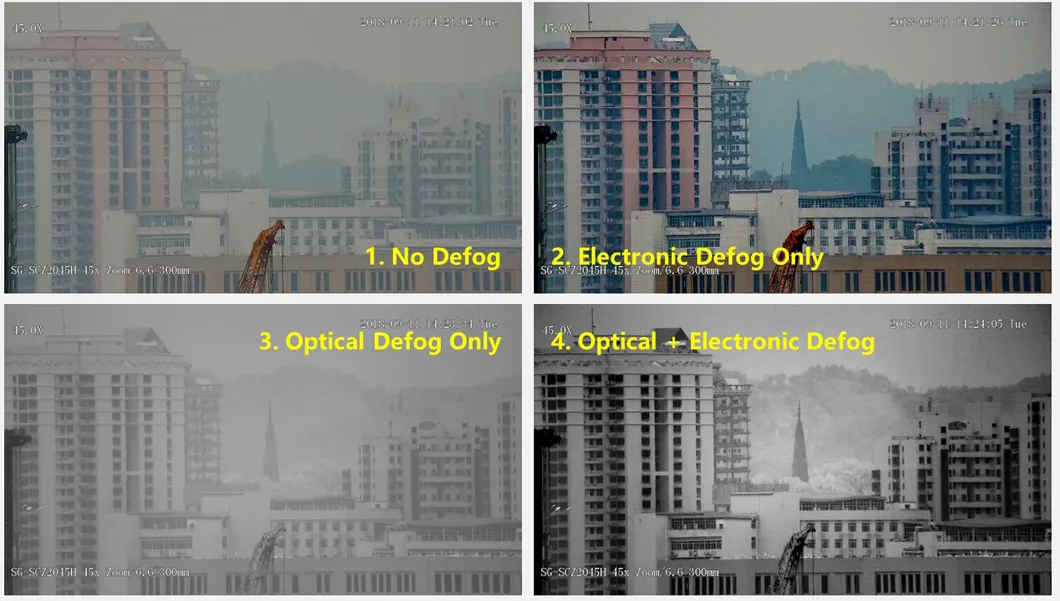

| Electronic Defog | ON/OFF | |
| Optical Defog(Optional) | Night Mode, 750nm~1100nm channel is Optical Defog | |
| Zoom Speed | Approx 4.5s(Optical Wide-Tele) | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp | |
| Electronic Shutter Speed | Auto Shutter (1/3s~1/30000s)Manual Shutter (1/3s~1/30000s) | |
| Exposure | Auto/Manual | |
| 2D Noise Reduction | Support | |
| 3D Noise Reduction | Support | |
| Flip | Support | |
| External Control | RS232 | |
| Communication Interface | Compatible with the SONY VISCA Protocol | |
| Focus Mode | Auto/Manual/Semi-automatic | |
| Digital Zoom | 4x | |
| Operating Conditions | (-30°C~+60°C/20% to 80%RH) | |
| Storage Conditions | (-40°C~+70°C/20% to 95%RH) | |
| Power Supply | DC 12V±15% (Recommend: 12V) | |
| Power Consumption | Static power: 4.5W, Sports power: 5.5W | |
| Dimensions(L*W*H) | Approx. 126mm*54mm*68mm | |
| Weight | Approx. 410 | |
3. Hightlight Features:
4. Packing:

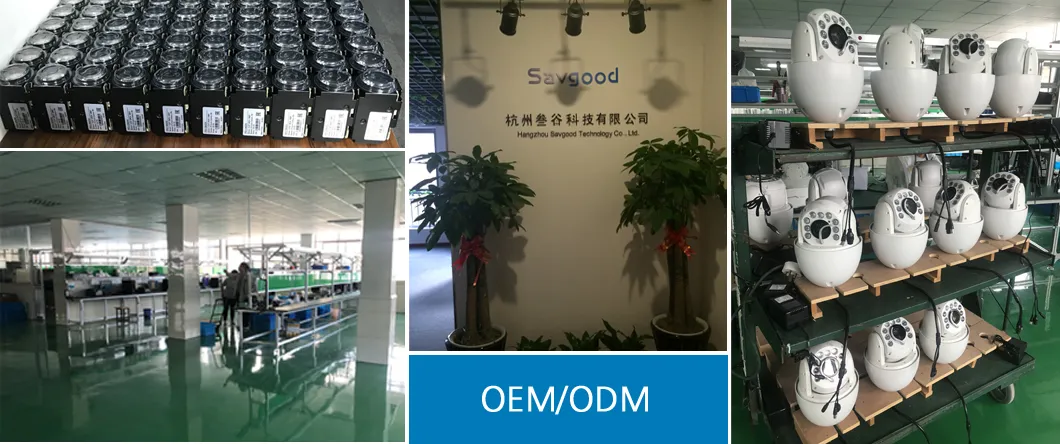

5. OEM and ODM:
6. Why Choose Us:
7. Application:
8. Contact:
