2MP IR-Cut Face Recognition Camera Module Night Vision USB Web Camera
2MP IR-Cut Face Recognition Camera Module Night Vision USB Web Camera:Description:003-0606 is another type of day&night USB camera module support IR-Cut, for face recognition. Based on 1/2.7"AR0230 sensor, it's a 2MP, UVC compliant, 4pins USB 2.0 connetor web camera . The motorized (swi......
Send Inquiry
Product Description
Description:

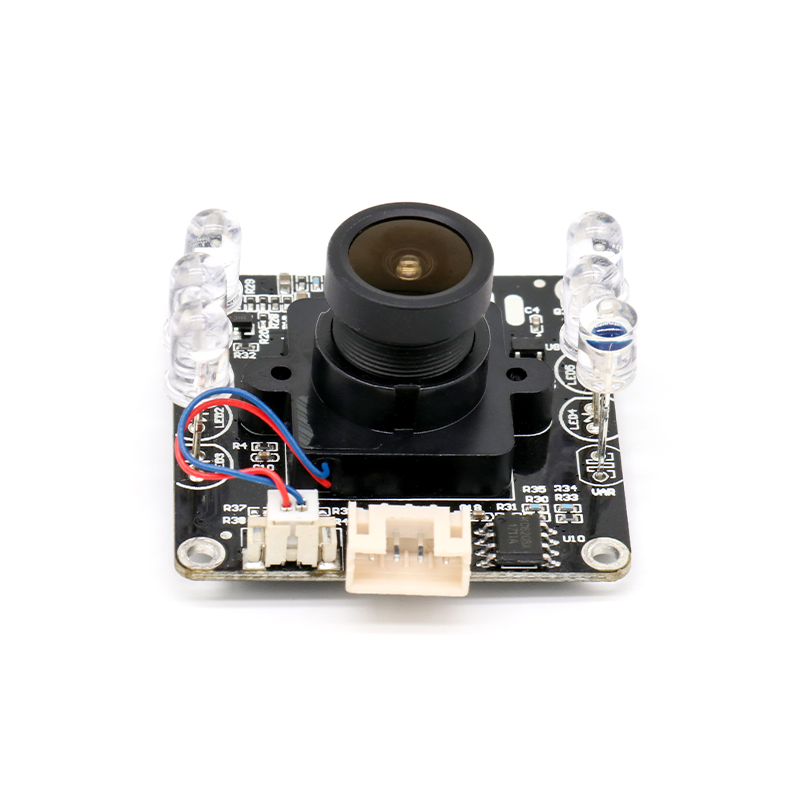

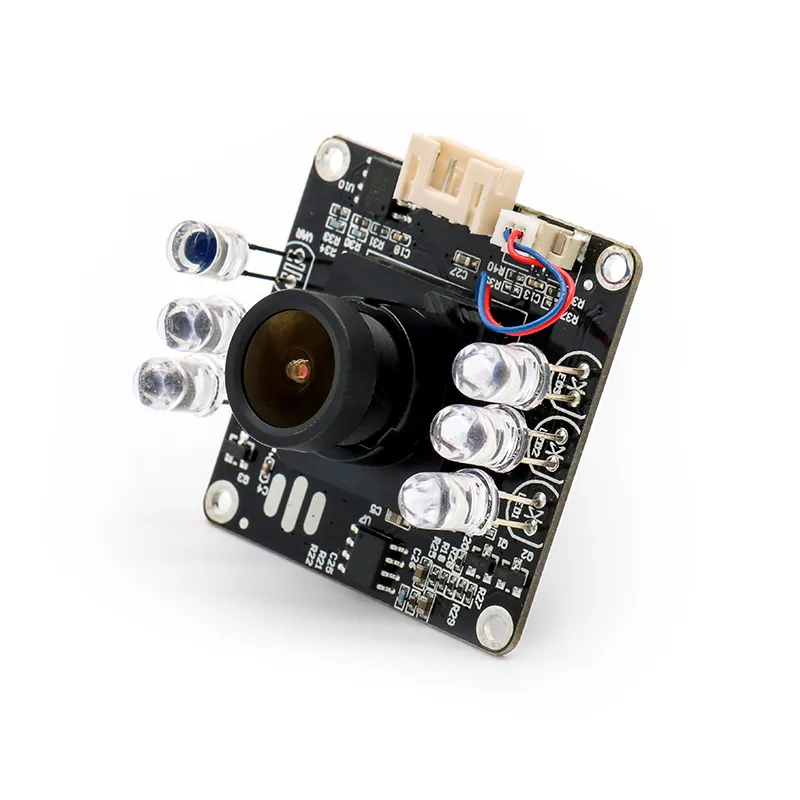

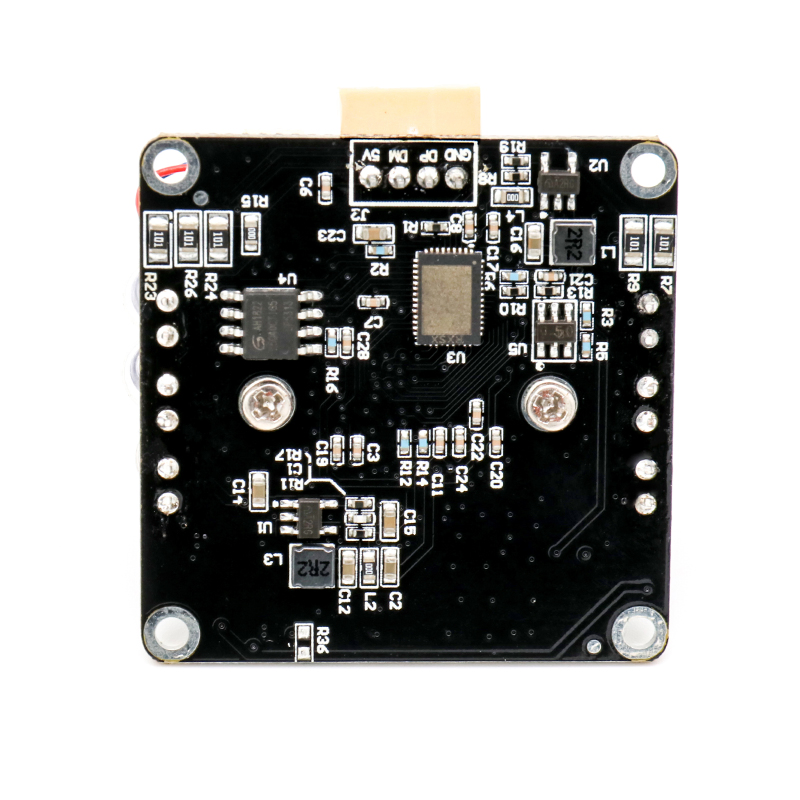

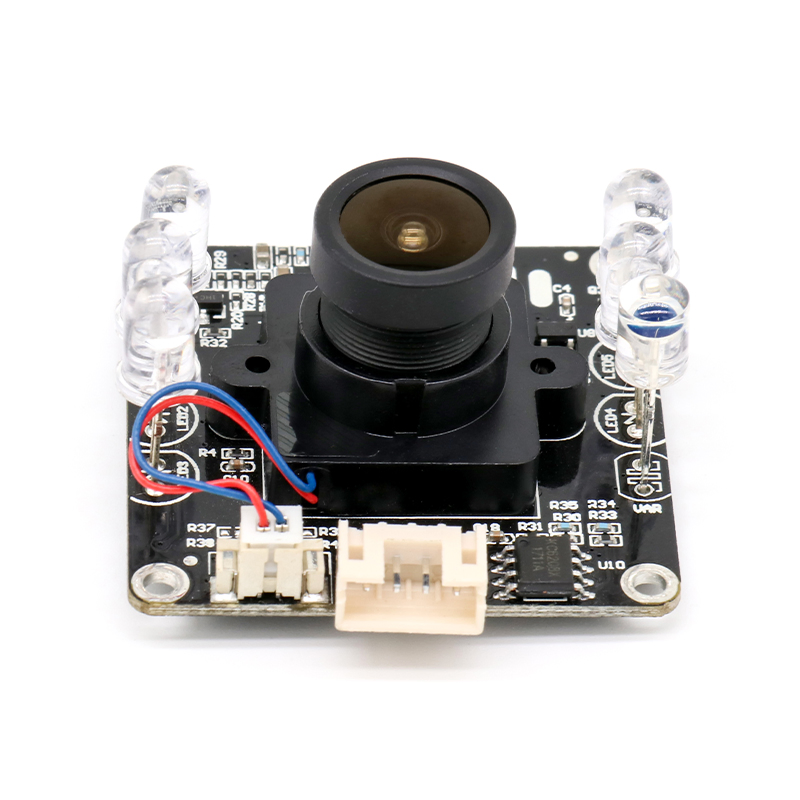

003-0606 is another type of day&night USB camera module support IR-Cut, for face recognition. Based on 1/2.7"AR0230 sensor, it's a 2MP, UVC compliant, 4pins USB 2.0 connetor web camera . The motorized (switchable) IR-CUT filter and infrared LED can be triggered by the photo resistor according to the light environment to be ON/OFF to block or pass the infrared light
Specification:
| Items | Parameters |
| SENSOR | AR0230 |
| Lens Size | 1/2.7" |
| Maximum Pixels | 2 millions |
| Maximum Effective Resolution | 1928(H)*1088(V) |
| Data Format | YUY2/MJPG/ |
| Pixel Size | 3.0um*3.0um |
| Dynamic Range | 96db |
| Lens | FOV :D= 96° |
| Optical length :14.78MM | |
| lens construction: 2G2P | |
| mount : M12*P0.5mm | |
| Focusing | Fixed focus |
| Frame Rate | 30fps |
| Auto Control | Saturation,Contrast, Acutance,White balance,Exposure |
| IR | Five 850nm IR LEDs |
| Voltage | DC 5V |
| Working Current | MAX 500mA |
| USB Connector | USB2.0 |
| Storage Temperature | -20ºC to +70°C |
| Working Temperature | Change with environmental temperature |
| System Compatibility | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
Key Features
Day/Night Vision: IR-CUT filter is a mechanical and motor drive component inside of camera. Camera built-in IR-CUT filter can provide true day/night video surveillance. It can provide day mode and night mode switching automatically. In night mode, the inside filter will remove, hence allowing unnatural lights (ie.,Infrared) enter into image sensor to enhance low illumination performance. In day mode, the inside filter will be inserted between lens and image sensor to filter unnatural lights enter into image sensor, therefore to provide true color reproduction crisp images.
High Frame Rates: 1920*1080P @30fps, perfect for face recognition etc. application.
WDR: The wide dynamic range is applied for viewing the image smoothly under the condition of severe light contrast, the WDR for this camera module up to 96DB.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device with the USB cable without extra drivers to be installed. No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.
SPECS
Camera
- Sensor: 1/2.7" large AR0230 sensor
- Resolution: 2MP 1920 x 1080
- Data Format: MJPG/YUY2
- WDR: 96DB
- Frame Rate: MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 480.
Lens
- Field of View (FOV):D=96°
- Lens Mount: M12
- Focusing Range: 3.3ft (1M) to infinity
- TTL: 14.78mm
- IR Sensitivity: Integral IR filter, switch automatically based on light condition (only visible light during the daylight and IR sensitivity during the night)
Functionality and Compatibility
- Adjustable parameter: Brightness, contrast, saturation, hue, sharpness, gamma, gain, white balance, exposure.
- System Compatibility: Windows, Linux, Mac, and Android with UVC.
Power
- Power Supply: USB powered 5V
- Working Current: MAX 500mA
Physical
- Operating Temp.: -4°F~158°F (-20°C~+70°C).
- Dimension: 40mmx40mm
Applications:
- Security monitoring
- Home video surveillance system
- Day&night vision security camera system
- Underground parking
- Face recognition
- Access control system etc.
Company Information:
Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.

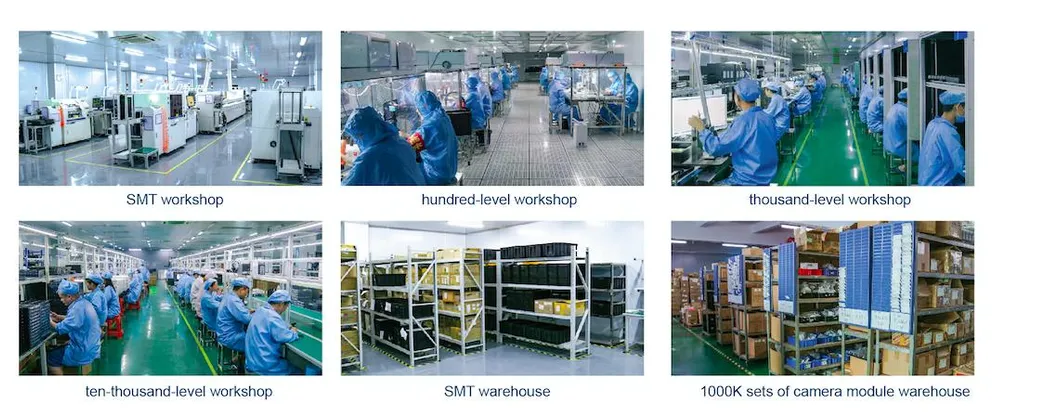

We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
