3.0MP WDR Poe IP Water-Proof 2.8~12mm Lens IR Bullet Camera
Key FeaturesKey Function:1/3" 4MP Progressive Scan OV CMOS SensorAmbarella SOCH.264 main profile level 3Dual-stream encoding,Video Bit :32 Kbps~16Mbps2304*1296 @20FPS;1920*1080 @25/30FPS;704*576 @25/30FPSColor :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4WDR Level adjustable(up to 128db)D......
Send Inquiry
Product Description
Key Function:
1/3" 4MP Progressive Scan OV CMOS Sensor
Ambarella SOC
H.264 main profile level 3
Dual-stream encoding,Video Bit :32 Kbps~16Mbps
2304*1296 @20FPS;1920*1080 @25/30FPS;704*576 @25/30FPS
Color :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4

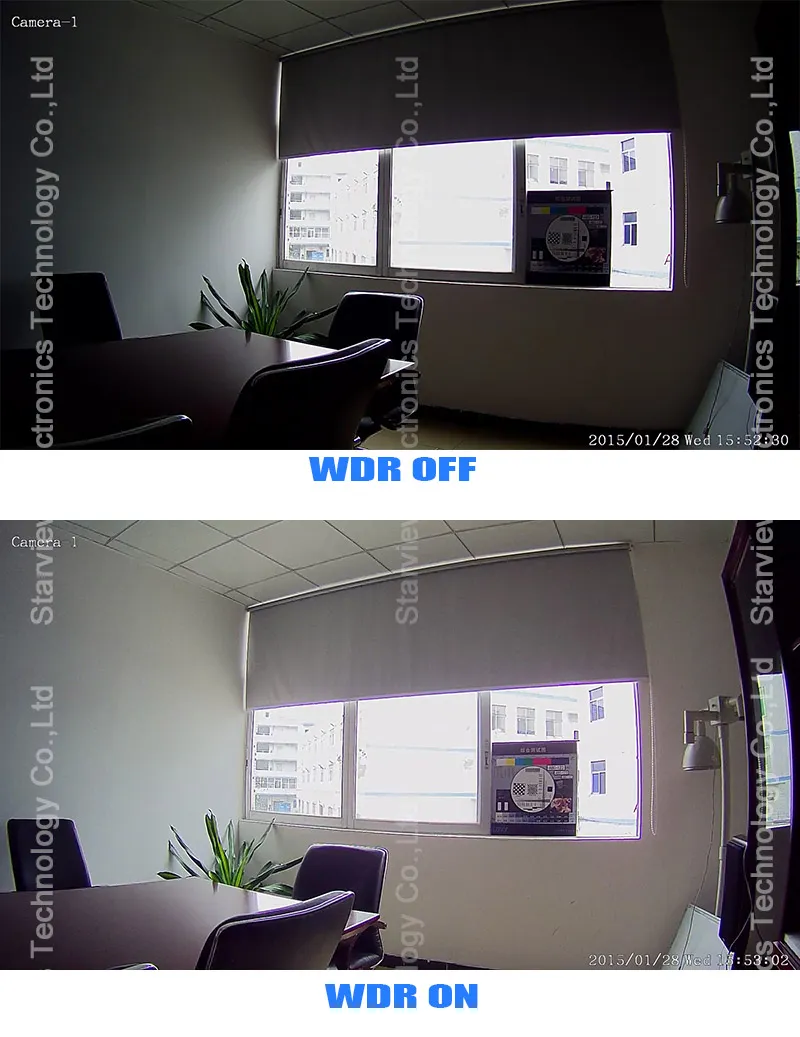

WDR Level adjustable(up to 128db)
Day/Night IR-CUT Auto Switch
Multiple network monitoring: Web viewer,CMS,Smart phone
Onvif support(ver2.4)
Support POE (Power Over Ethernet)
42PCS,Ø5 LEDS,30m Night vision distance
2.8-12mm 3mp varifocal lens
Two-way audio,1ch audio in,1ch audio out
support 1ch alarm input, 1BNC analog video output
3-axis adjustable bracket
Water-proof IP66
Model | SVN-WA13300 |
VIDEO | |
Sensor | 1/3" 4MP Progressive Scan OV CMOS Sensor |
DSP | Ambarella SOC |
Pixels | Maximum: 2304*1296 |
Video Standard | H.264,dual streams supported(main stream and Sub - stream) |
Stream | 32 Kbps~16Mbps adjustable |
Video format | H.264 main profile level 3 |
System | 60 / 50 Hz |
Resolution | 2304*1296@20FPS;1920*1080@25/30FPS;704*576@25/30FPS |
Day & Night | Auto with mechanical ICR |
Min. Illumination | Color : 0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4 |
IMAGING | |
Image Settings | Brightness, saturation, sharpness, multi-level configurable |
White Balance | Auto |
Electronic Shutter | 1/10000s to 1/25s |
BLC | AUTO |
DNR | 3D - MCTF DNR |
WDR | Level adjustable(up to 128DB) |
AUDIO | |
Compression Format | G.711 / AAC / MP2 |
Audio compression rate | G.711(64Kbps) / MP2(16kHz 16bit 32kbps) |
Audio Input / Output | 1 x in, 1 x out |
Alarm | |
Sensor In / Alarm Out | 1 x in |
Triggering Event | Video motion detection (multiple zones and sensitivity levels), schedule, I/O |
Triggering Reaction | Snapshot, e-mail, FTP, alarm out |
NETWORK | |
Protocols | TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, DynDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4 |
Ethernet | 10/100 Base-T, auto sensing, RJ-45 |
Wireless | No |
User Group | Password protection, multi-user permissions control |
POE | POE IEEE802.3af |
Compatible protocol | Onvif 2.4 |
LOCAL STORAGE | |
Storage | Built Micro SD slot, up to 64GB(Optional) |
Format | JPEG, file name format configurable |
Control | Playback by event types |
REMOTE SURVEILLANCE | |
Mobile Surveillance | Android, iPhone; exclusive iPhone/Android app |
Web Surveillance | Internet Explorer |
CMS | Free CMS ,Support max. 128 channels |
GENERAL | |
Unit Configuration | Reboot, factory default, date/time synchronization |
Firmware | HTTP mode, remote update |
Language | English |
SDK | Available |
Power supply | DC12V / POE IEEE802.3af |
MECHANICAL | |
Lens | 2.8-12mm 3MP vari-focal lens |
Casing | Indoor/Outdoor |
IR-CUT | Yes |
IR LED | 42PCS,Ø5 LEDS |
Night vision distance | 30Meters |
Protect grades | Water-proof IP66 |
ENVIRONMENTAL | |
Operating Tem. | -20°C~60°C |
Humidity | Less than 95% RH non-condensing |
