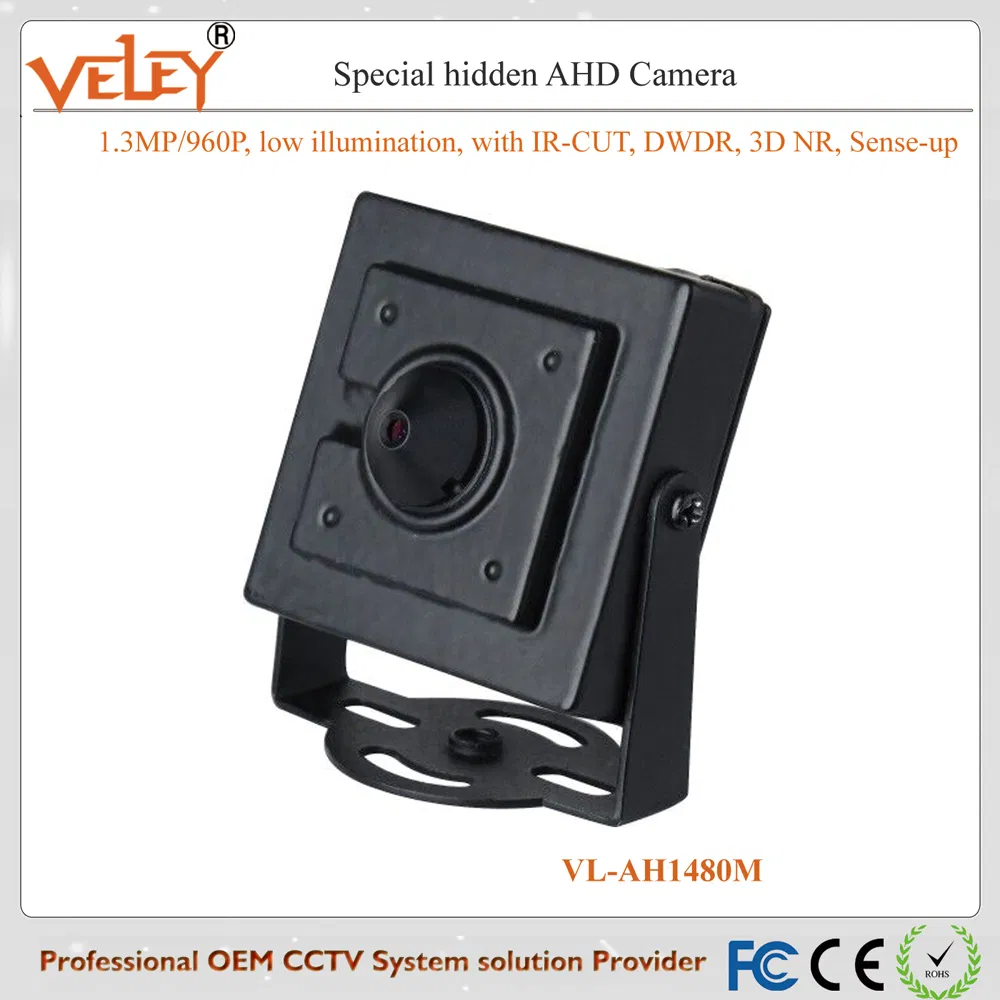

3.7mm Lens Pinhole Mini Metal Security Camera Mini Camera CCTV
Features:H.264 Video Compression; Support HD IR CUTMetal IR bullet Camera waterprrof IP 67 WDR 3D-DNR Technology Using coaxial transmission mode which lower costsExtremely long distance, which use the Normal wires also can get 500m distance Low frequency point to point transmission mode, which avo......
Send Inquiry
Product Description
Features:
H.264 Video Compression;
Support HD IR CUT
Metal IR bullet Camera waterprrof IP 67 WDR 3D-DNR Technology
Using coaxial transmission mode which lower costs
Extremely long distance, which use the Normal wires also can get 500m distance Low frequency point to point transmission mode, which avoid CVBS chromaticity crosstalk phenomenon, reflects the strong anti interference ability
Real time preview, without delay, trailing and lossing image
Easy and simple to debug & install, which instead of the Old Analog Security system without rewiring.
1.Pinhole Mini metal cctv camera
2.Full HP Fixed 3.7mm Lens
3.20-25 Meter illumination
4.Metal case
AHD/ CVBS/ CHD and THD mode switch method:
Left-click the OSD 5s, CVBS output
Right-click the OSD 5s, AHD output
Up-click the OSD 5s,CHD output
Down-click the OSD 5s, THD output
H.264 Video Compression;
Support HD IR CUT
Metal IR bullet Camera waterprrof IP 67 WDR 3D-DNR Technology
Using coaxial transmission mode which lower costs
Extremely long distance, which use the Normal wires also can get 500m distance Low frequency point to point transmission mode, which avoid CVBS chromaticity crosstalk phenomenon, reflects the strong anti interference ability
Real time preview, without delay, trailing and lossing image
Easy and simple to debug & install, which instead of the Old Analog Security system without rewiring.
1.Pinhole Mini metal cctv camera
2.Full HP Fixed 3.7mm Lens
3.20-25 Meter illumination
4.Metal case
| VL-AH1480M | |
| CAMERA | |
| Sensor | 2431+0130, 1.3MP/960P support AHD/CVI/TVI/CVBS |
| Effective pixels | 1280(H) × 720(V) |
| Video output | 1280*720@25/30fps |
| Min. Illumination | 0 Lux (IR ON) |
| Sync System | Internal |
| Lens | 3.7mm M12 Lens , standard ICR module |
| Electronic Shutter | Auto/ Manual (1/25~1/50000) / FLK |
| S/N Rate | ≥35db(AGC OFF) |
| Video output | 1.0Vp-p complex video output, 75Ω |
| Output model | PAL/NTSC adjustable |
| OSD menu | |
| White balance | ATW/AWC-SET/INDOOR/OUTDOOR/MANUAL |
| NR | 2DNR, OFF |
| Image adjustable | Brightness, sharpness, AGC |
| DWDR | AUTO/ON/ OFF |
| BLC | BLC/ HLC/ OFF |
| AGC | 0~15 |
| Day&night switch | Auto, EXT, B/W, Color |
| Mirror | Horizontal/ vertical/ rotation |
| Lens shading compensation | OFF/ON |
| DPC | Auto/ Manual/B/W |
| OSD menu | Chinese, English and so on 13 languages |
| multiple output | AHD/THD/CHD/CVBS |
| GENERAL | |
| Transmission distance | 75-3/300m,75-5/500m |
| IR distance | 20-25m (24pcs IR LEDs ) |
| Protection grade | IP66 |
| Power supply | DC12V± 10% |
| Power consumption | <5W |
| Operating temperature | -20°C ~ 55°C/ 0%-90% |
| Dimensions(mm) | Φ93×83 |
| Weight/PCS(g) | About 359g |
AHD/ CVBS/ CHD and THD mode switch method:
Left-click the OSD 5s, CVBS output
Right-click the OSD 5s, AHD output
Up-click the OSD 5s,CHD output
Down-click the OSD 5s, THD output
