              3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA
              • 3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA
              • 3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA
              • 3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA
              • 3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA

              3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA

              3'' TFT HD 720P Video Borescope with 1m camera probe coiled inside the case for storagePatented Product Utility model patent certificate NO.:ZL20191036613.5Design Patent Certificate NO.: ZL201930354563.4Portable&Compact DesignSimple OperationHigh PerformanceSmall Size Light WeightSaving ......

              Send Inquiry

              Product Description

              3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA3.9mm Ultra Small Endoscope Inspection Camera with 3inch Screen and Flashlight Use 4AA
              3'' TFT HD 720P Video Borescope with 1m camera probe coiled inside the case for storage

              Patented Product
              Utility model patent certificate NO.:ZL20191036613.5
              Design Patent Certificate NO.: ZL201930354563.4
              Portable&Compact Design

              Simple Operation
              High Performance
              Small Size
              Light Weight
              Saving Space & Freight


              FEATURES

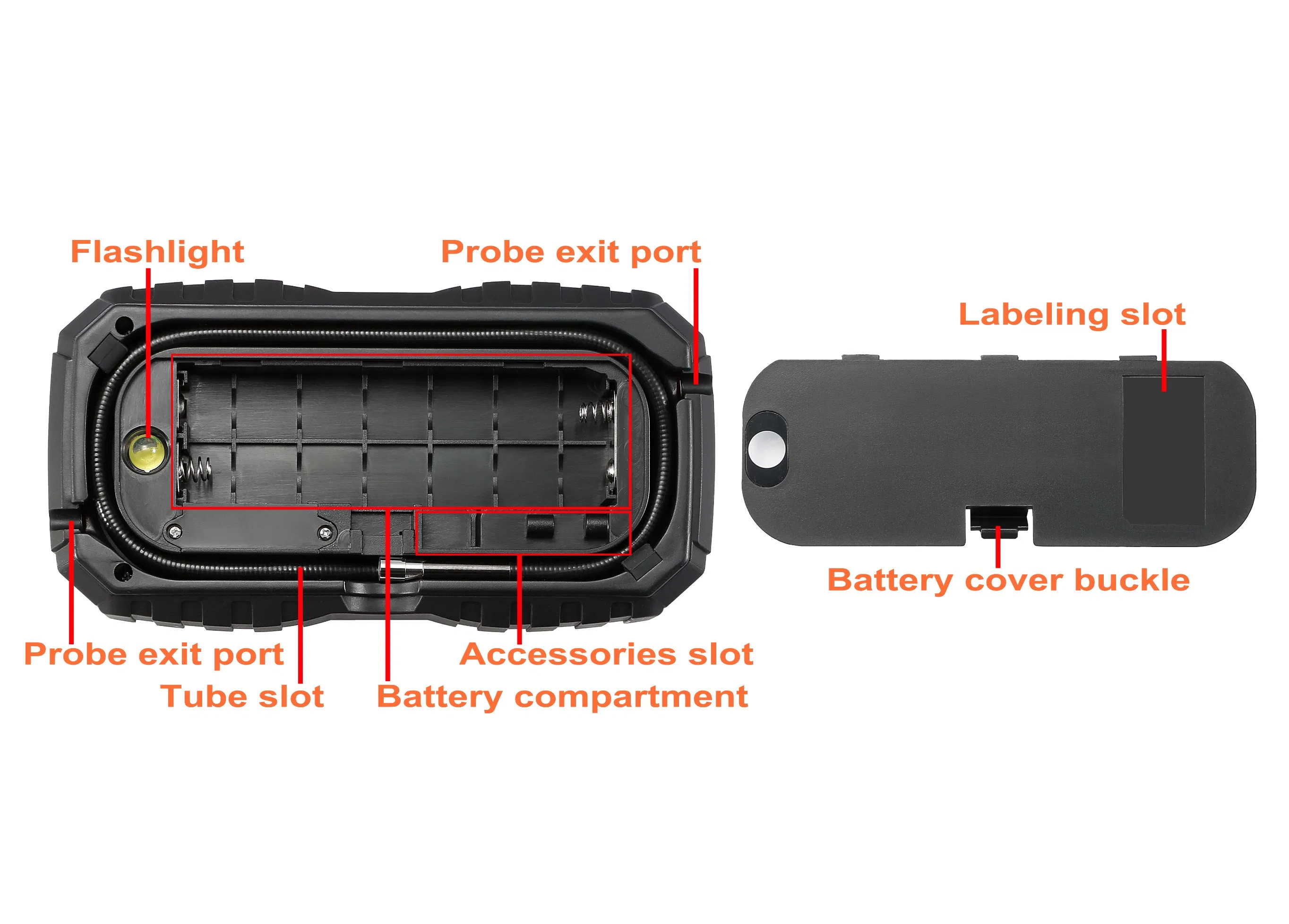

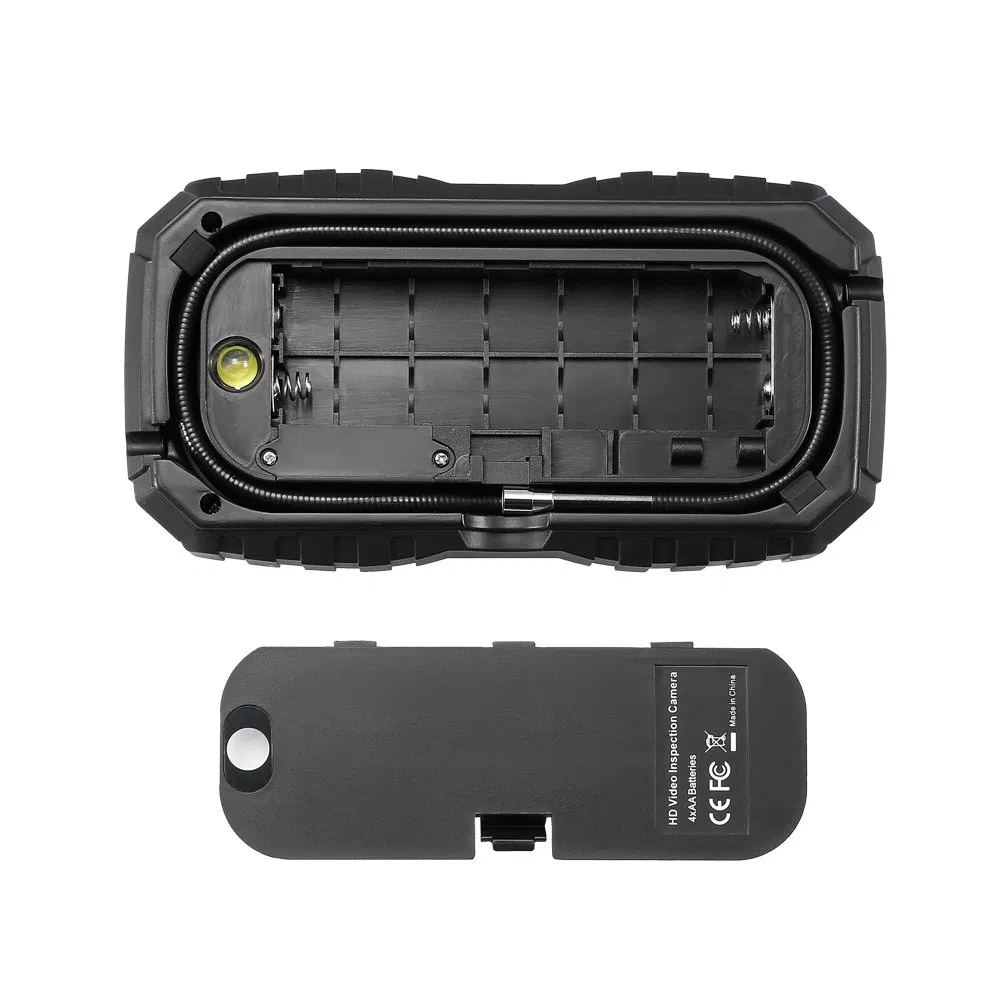

              *1M IP67 waterproof snake camera probe is coiled inside the case for storage
              *The camera tip accessories are stored in a small holder inside the case for convenient collection
              *3 inch high contrast color LCD
              *5.5MM HD ultra small camera lens with flexible snake tube
              *6 light-adjustable LEDs mounted on lens
              *7 navigation buttons for functional partition
              *Photo and video function when the memory card is placed
              *Support Micro SD card MAX. 32GB( optional, excluding SD card)
              *Flashlight function
              *Powered by four "AA" batteries (not included)
              *Compact rugged structure design makes small size, portable and convenient to carry
              *Small package makes less space, lower freight cost and warehouse fee
              SPECIFICATIONS

              ItemsProduct StandardSpecifications
              Snake Tube CameraCamera LensSCMOS
              Resolution1280*720
              Viewing Angle65°
               Focal Distance3.5CM
              Depth of Field(DOF)0.7CM-30CM
              Light Source6LED
              LED Light Irradiation Distance30CM
              Camera Outer Diameter5.5MM
              Length of Metal Camera Part2.4CM
              Video Output/
              Temperature detection range0-80°
              Working Current95MA
              Working Voltage3.5V-5V
              Working Temperature45°
              Working Humidity5%-95%
              TFT DisplaySize(Active area)3inch
              Resolution640*480
              Luminance for LCM400
              Image Zoom1-4times
              Image flip180°flip
              Brightness Control/
              VideoVideo input/Output1280*720
              Image/Video Resolution1280*720
              Signal FormatDigital
              Image FormatJPG
              Video FormatAVI
              Internal memoryTF card
              Power SupplyWorking Voltage6V
              Working Current380MA
              Internal Dry Battery4AA
              Work TimeContinuous working time2hours
              Product DimensionL*W*H(mm)160mm x 85mm x 35mm
              Product WeightUnit(g)0.6kg
              Package DimensionL*W*H(mm)180mm x 120mm x 42mm
              Package WeightUnit(g)0.8kg

              APPLICATIONS

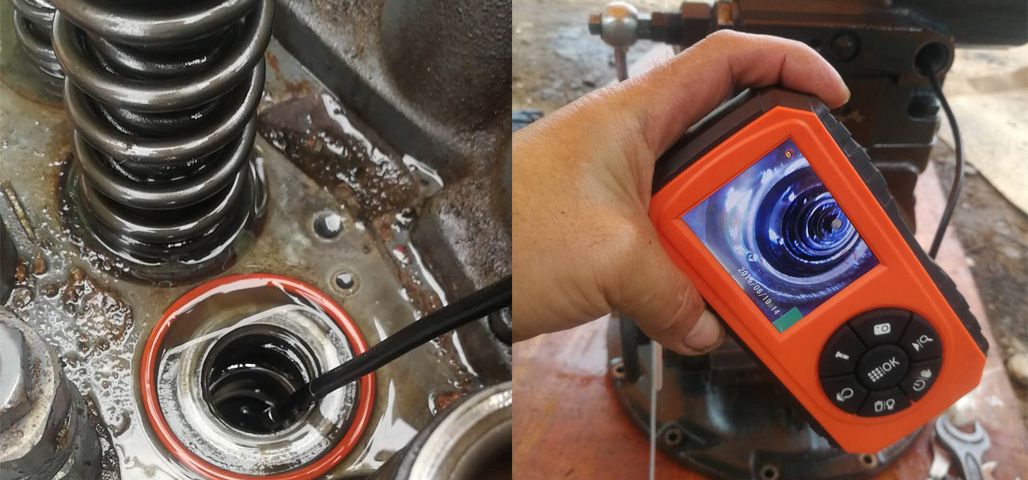

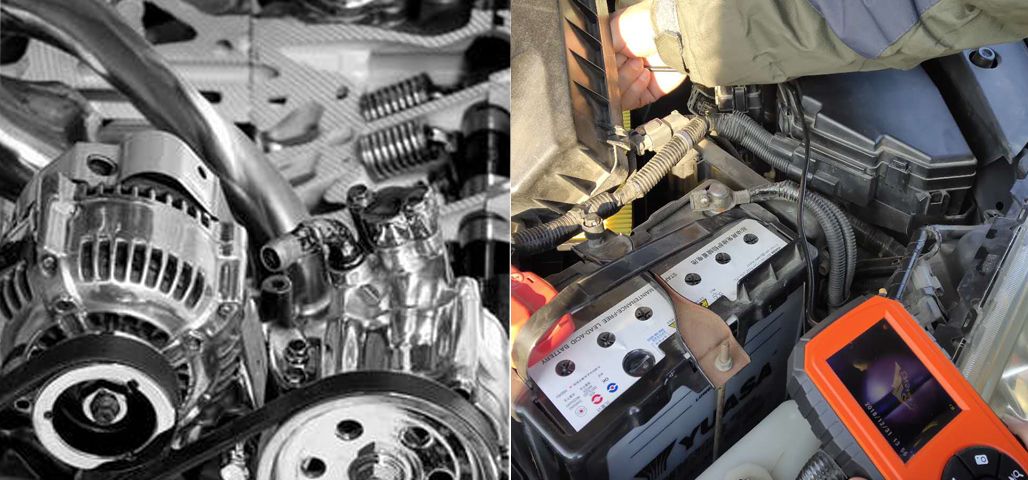

              Automobile service, Aviation maintenance, Archaeological expedition, Lab observation, Search and rescue, Oil&Gas industry inspection, Equipment or Furnishing installation, etc.
