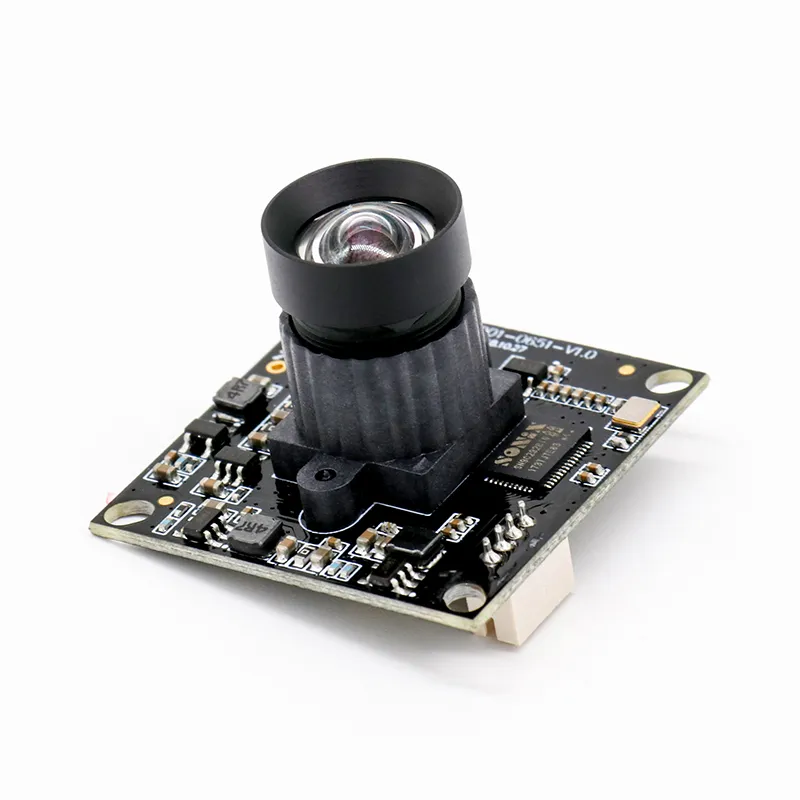

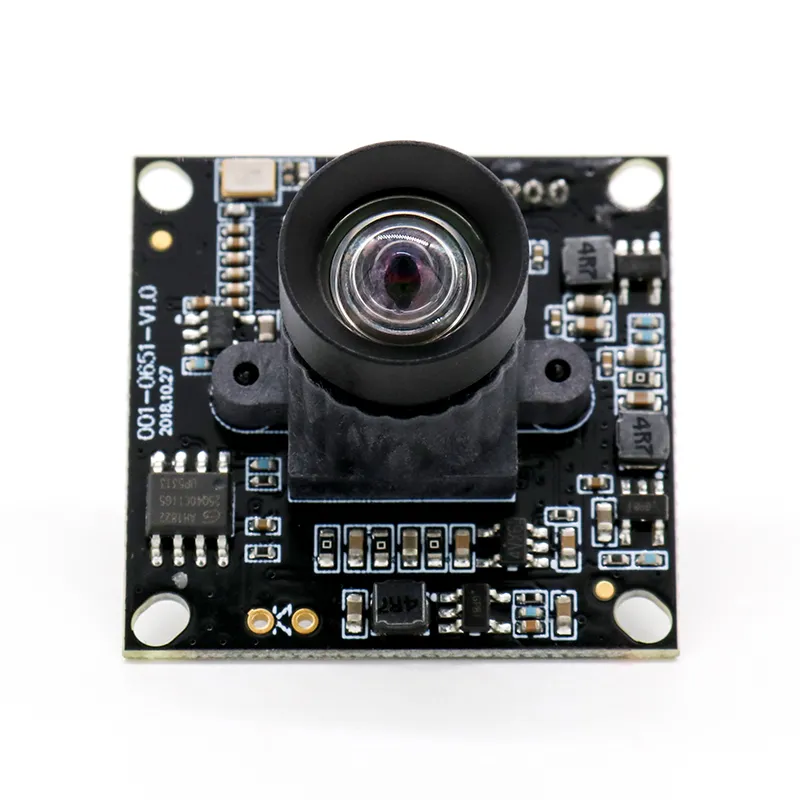

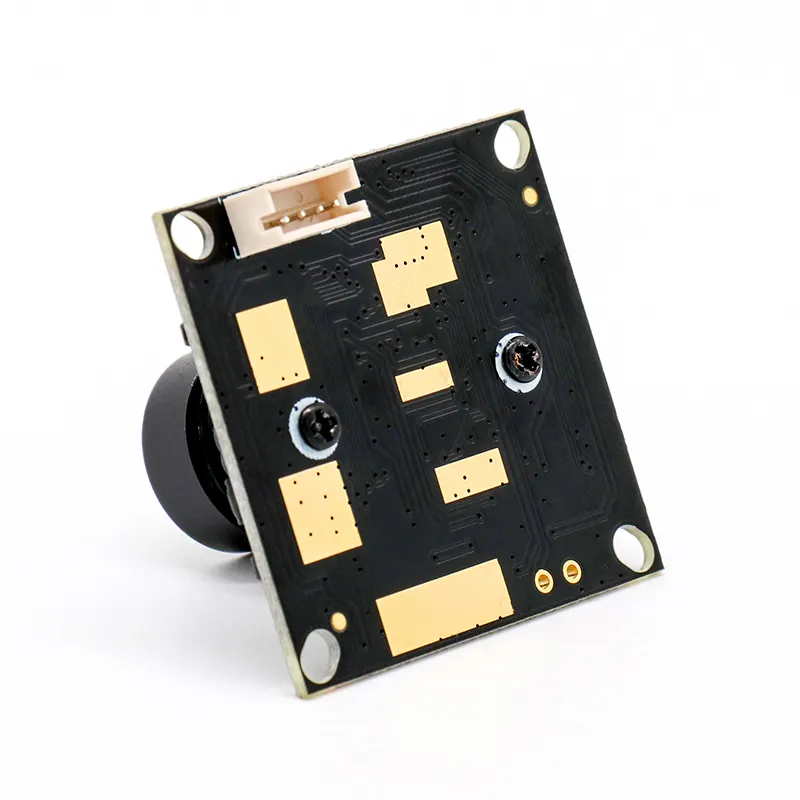

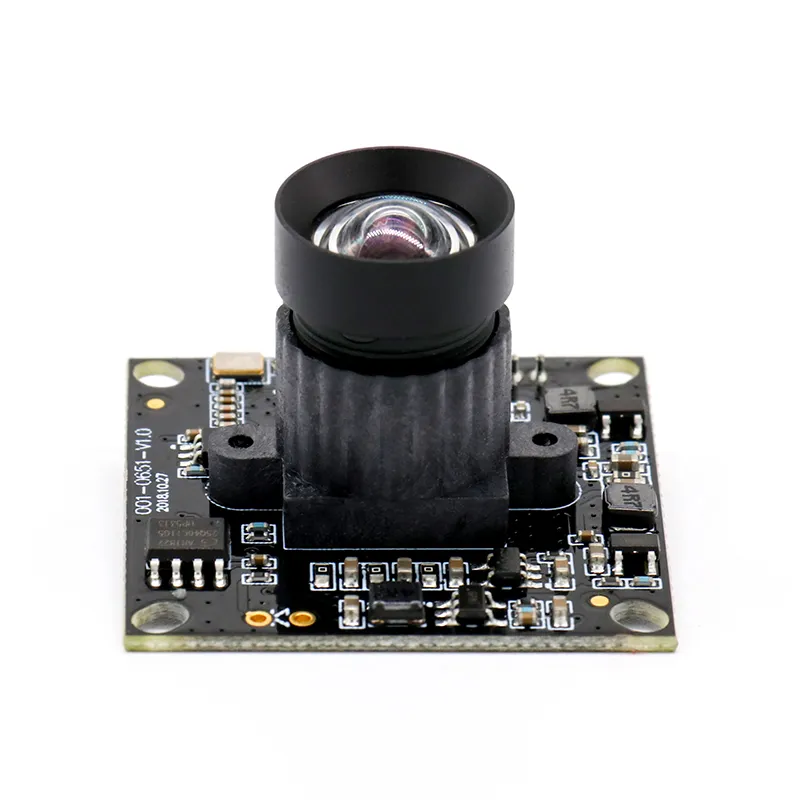

3 Mega USB Camera Module
3 Mega USB Camera Module1. 1/3 inch AR0330 Cmos Camera Module2. Full HD 1080P USB Camera Module with speed 30 fps3. Full HD realtime usb webcam with UVC, support windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 95 degree5. 38*38mm mini micro USB board camera Specification:It......
Send Inquiry
Product Description
3 Mega USB Camera Module
1. 1/3 inch AR0330 Cmos Camera Module
Pictures Display:
Company Information:

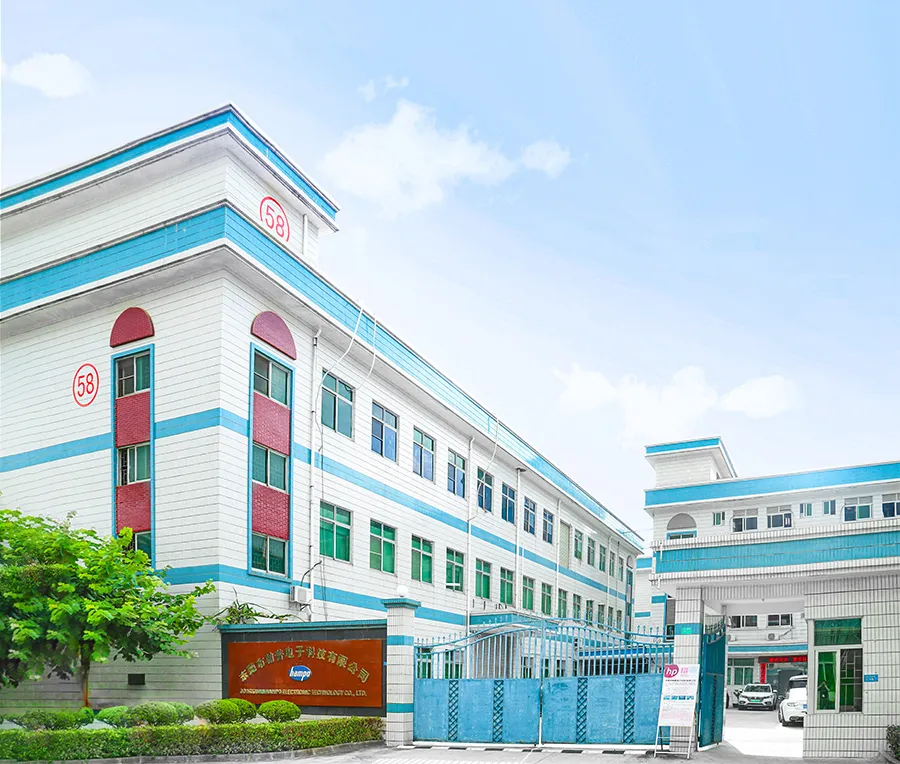

Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.

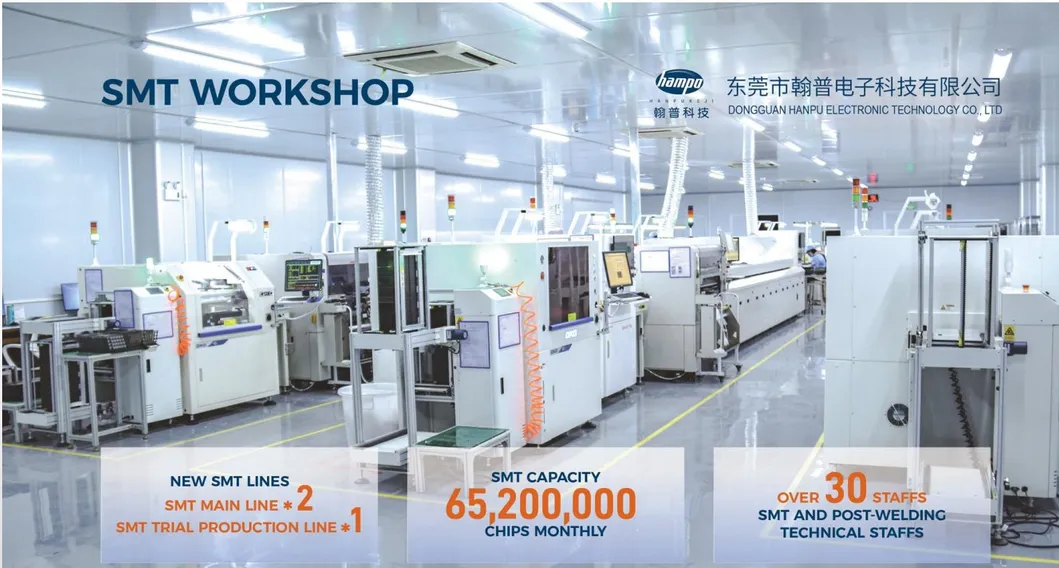

We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
1. 1/3 inch AR0330 Cmos Camera Module
2. Full HD 1080P USB Camera Module with speed 30 fps
3. Full HD realtime usb webcam with UVC, support windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 95 degree
5. 38*38mm mini micro USB board camera
Specification:
| Items | Parameters | ||
| SENSOR | -AR0330- 6.28*6.65mm CSP | ||
| Most effective pixels | 2304(H) x 1296(V) | ||
| Lens Size | 1/3 | ||
| Pixel Size | 2.2um x 2.2um | ||
| Image Area | 3852μm*2174μm | ||
Output Parameters | Data Format | Resolution | Frame Rate |
| YUY2/MJPG/H.264 | <=1080P | 30FPS | |
| Input Clock Frequency | 6 - 64 MHz | ||
| Focusing | Fixed Focus | ||
| Max S/N ratio | 39 dB | ||
| Dynamic Range | 72.4 dB | ||
| Responsivity | 2.0 V/lux-sec | ||
| Interface Type | USB2.0 | ||
| Adjustable Parameter | Saturation,Contrast,Acutance,Tone, Definition, Gama, Gain, White balance,Exposure | ||
| FOV :D= 95° | |||
| Optical length :15.29MM | |||
| lens construction:2G2P | |||
| mount :M12*P0.5mm | |||
| Manufactor:/ | |||
| model:/ | |||
| Audio Frequency | High quality digital MIC, single or dual channel is optional. | ||
| Power | USB BUS POWER | ||
| Voltage | DC 5V | ||
| Electric current | 300mA | ||
| Main chip | DSP/SENSOR/FLASH | ||
| AEC | Support | ||
| AEB | Support | ||
| AGC | Support | ||
| PCBA Size | 32*32mm | ||
| Storage Temperature | -20°C to 70°C | ||
| Working Temperature | 0°C to 55°C | ||
| Wire rod | Optional | ||
| System Support | WINXP/XIN7/WIN8/WIN10/Linux/Android/0S X | ||
Company Information:
Dongguan Hampo Electronic Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo has buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.
We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed companies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
