Product Description
300m Night Vision 33x Zoom 2.0MP Infrared laser integration high speed PTZ CCTV Camera Complete System

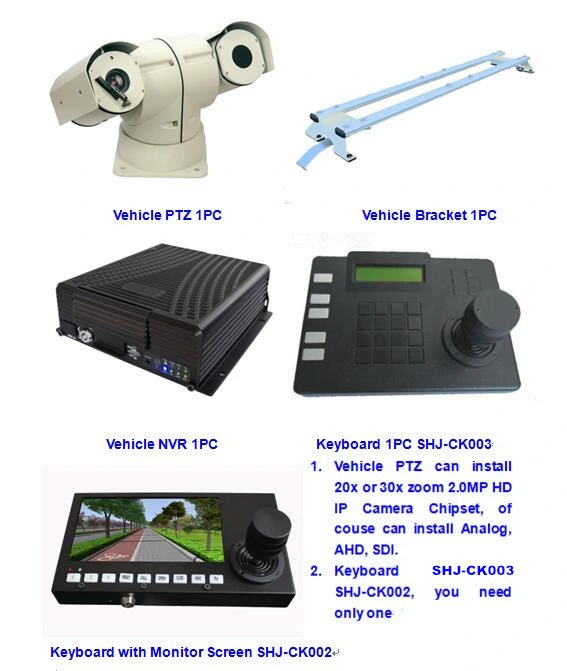

Product List:
1. 1pc Vehicle PTZ Camera
2. 1pc Vehicle PTZ Bracket
3. 1pc MDNVR
4. 1pcs Control Keyboard SHJ-CK003
TOTAL AMOUNT: 2000.00 USD/Unit

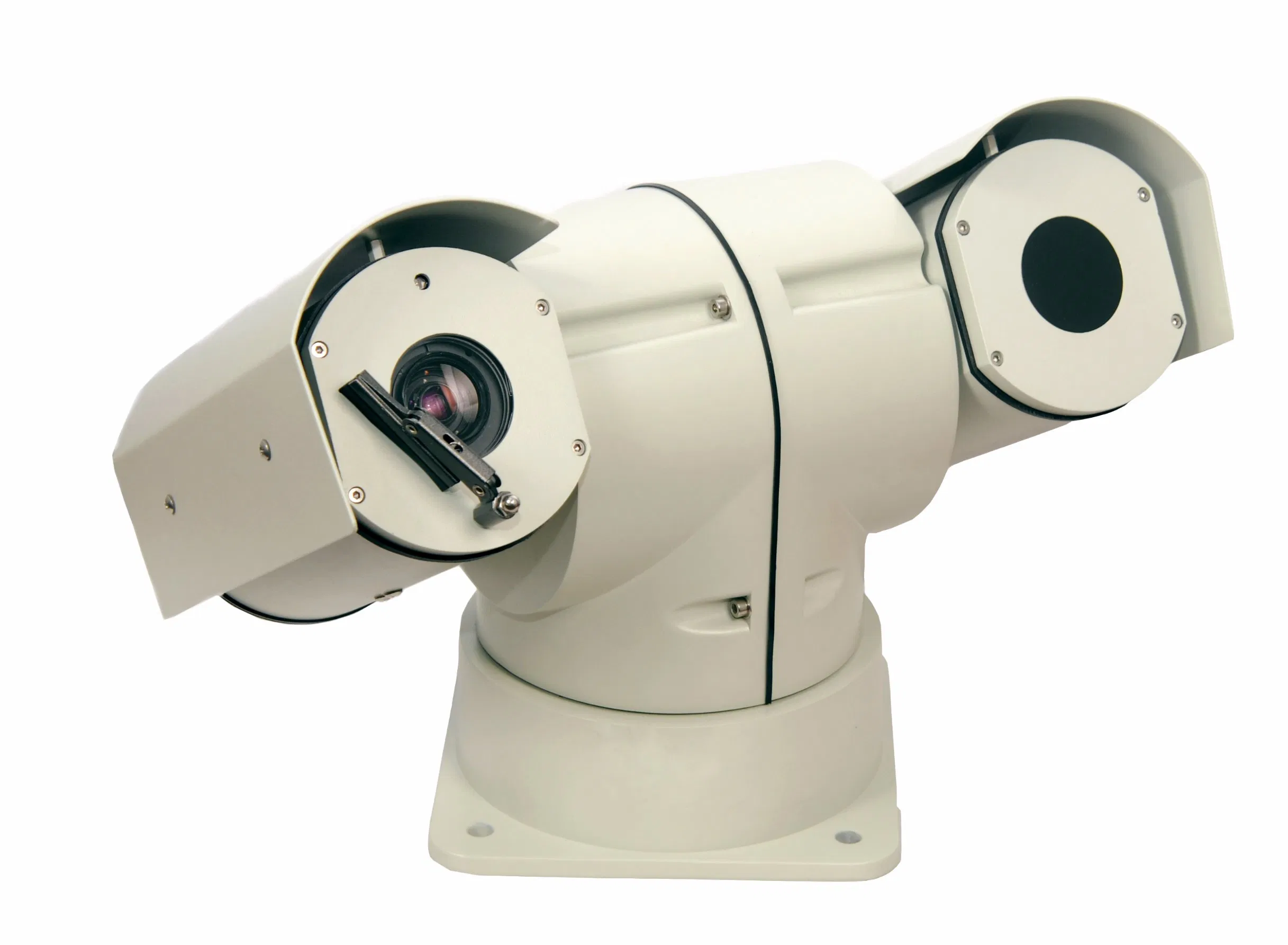

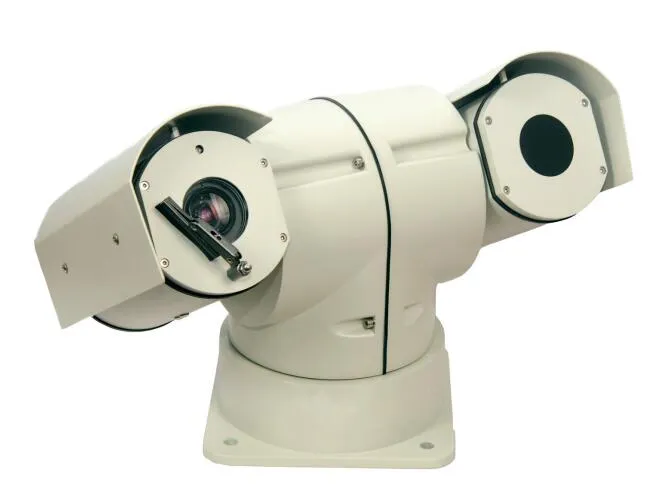

1. 500m Laser 33x Zoom 2.0MP HD IP PTZ
Features:
1. Weatherproof design, high die-case aluminum casting. Protection grade IP 66
2. Dust-proof, antifogging, frost protection function.
3. Built-in laser, Litter power consumption, and endurable for using, with the farthest radicalization distance, night vision range more than 500m.
4. Support OSD Menu function, and with self studying function
5. 360° continuously rotation, Max. pan speed is up to 100°/s
6. Coordinate displayed function.
7. 4 self studying tracks, 60s/track, and total are 240s.
8. Provide 128 preset positions; the preset address could be displayed.
9. 4 programmable tracks, 2 scanning tracks, 12 private zones cover.
10. Auto start tracking function
11. Built-in surge and lightning strike protective equipment.
11. Built-in surge and lightning strike protective equipment.
12. Alarm linkage function, 4-alarm input, 1-alarm output
Specification:| Type | PTZ Specification |
| Pan speed | 0.1°~100°/s |
| Tilt speed | 0.1°~60°/s |
| Pan range | 360° Continuously |
| Tilt range | -90°~+90° |
| Preset | 128(max) |
| Communication | Multi-protocol, RS485 |
| Relative humidity | 90% |
| Work temperature | -30°C~55°C |
| Power consumption | 50VA |
| Power Supply | DC12V/AC24V |
HD IP Camera Module
| IP Camera Moudle | 33x zoom 2.0mp | ||
| Camera | Image Sensor | 1/3" Progressive CMOS | |
| Effective Pixels | 1920x1080 | ||
| Optical Zoom | 33x, 4.6-152mm | ||
| Aperature | F1.6-F4.8 | ||
| Angle of View | Horizontal: 60.08-2.08° (Wide-Tele), Vertical: 35.32°-1.18° | ||
| Day / Night | IR-CUT, Auto, Color, B/W | ||
| MOD | 10mm~1500mm (Wide~Tele) | ||
| Zoom Speed | 3 Sec. (Optical, Wide~Tele) | ||
| Parameter | Definition | Main Bitstream: 50HZ:25fps(1920x1080, 1280x720) 60HZ:30fps(1920x1080, 1280x720) Sub-bitstream: 50HZ:25fps(720x576, 352x288) 60HZ:30fps(720x480, 352x288) | |
| Mini. Illumination | Color: 0.01Lux @(F1.6,AGC ON), B/W: 0.005Lux @(F1.6,AGC ON) | ||
| Video Out | RJ45 | ||
| Setting | Brightness, Contrast, Saturation, Sharpness, Chroma | ||
| Function | Area Mask, WDR, Anti-flicker, Defogging, Mirroring, Aisle Mode, Rotation, BLC, HLC, Exposure Compensation, Defective Pixel Compensation, Power Loss Recovery, Distortion Correct, DIS, 3D Position | ||
| ROI | 4 Areas | ||
| Focus | Auto/Manual/One-time Focusing | ||
| Exposure | Auto/Aperature/Shutter/Manual/Low Illuminance/High Illuminance | ||
| Electronic Shutter | 1/25~1/100000 | ||
| DNR | 2D / 3D | ||
| WB | Auto/ Manual/ Sunshine/ Cloudy/ Dusk/ Sodium Lamp/ Fluorescent Lamp/ One-time Tracking/ Auto-tracking/ Locked | ||
| WDR | Super WDR, Digital WDR, 0~100 | ||
| Lens Inicialization | Built-in | ||
| Electronic Zoom | 16x | ||
| Signal System | PAL/NSTC | ||
| Network | Storage | Support MicroSD 128G (Suggest class 10) | |
| Smart Alarm | Motion Detection, Camera Shaded, Network Disconnected, IP Conflict, HDD Error, HDD Full | ||
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, FTP, 802.1x, QoS, HTTPS (IPv6 Optional) | ||
| System Compatibility | ONVIF2.4, FV Private, Active Registration, CGI, Dahua, Hikvision | ||
| Dual Bit Rate | 1080P/720P(Main), D1/CIF(Sub) | ||
| Video Compression | H.265/H.264 | ||
| Audio Compression | G.711A, G.711U, G.726, AAC | ||
| Function | Password Protection, Heartbeat, Multiple User Access Control | ||
| Interface | Interface | 26pin FFC (Network Interface, RS485, RS233, CVBS, Alarm In/Out, Audio In/Out, USB, Power) | |
| Communication | RS232 (VISCA), RS485 (Pelco, FV) | ||
| General | Temperature / Humidity |
| |
| Power Supply | DC12V±10% | ||
| Power Consumption | Static: 2.5W, Dynamic: 4.5W | ||
| Dimension | 50 x 100 x 60 mm | ||

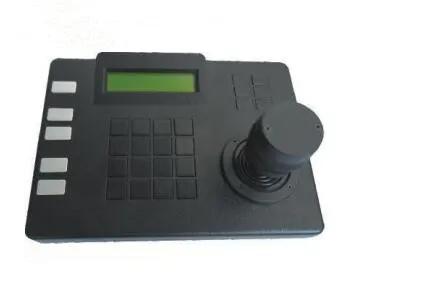

2. Intelligent Control Keyboard
MODEL: SHJ-CK003
Specifications
1.) Intelligent Keyboard
2.) DC12V input
3.) 16x1 LCD screen
4.) Multi-protocol
5.) 3D joystick
Features
1.) 3-D joystick for controlling Pan/Tilt/Zoom and operate the OSD menu
2.) 16×1 LCD screen
3.) OSD menu
4.) Multi-protocol ,baud rate:2400bps/4800bps/9600bps/19200bps
5.) Rs485 output, it can control many front equipments, including speed dome camera, decoder, processor etc
6.) Power supply: DC12V

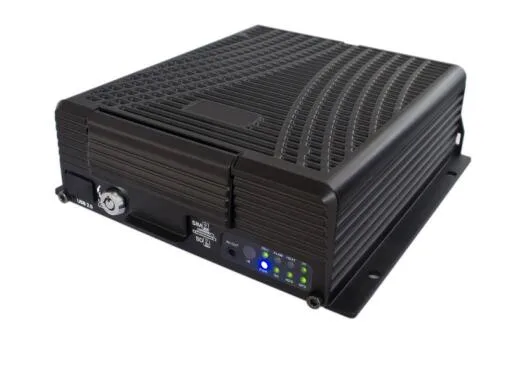

3. Mobile Network Video Recorder(MNVR)
Model : SHJ-MNVR9808
2. Built-in 2.5 inch HDD, supports max 1TB, Professional hard disk damping technology.
3. 3G network , such as HSUPA/HSDPA/WCDMA/EVDO is selectable.
4. Built-in GPS module.
5. Built-in G-sensor
6. External WIFI special interface.
7. Built-in 1 SD card for backup recording when HDD errors.
8. 2 high speed USB2.0 interfaces, the front is used to export record file. The back is use to mirror recording for waterproof and fireproof.
9. 8 digital alarm inputs, 2 digital level output.
10. Three RS485 interfaces, one RS232 interface.
11. Built-in hard disk heating technology. It can be worked in -40ºC - +85ºC.
12. Power supply: 8V-36V

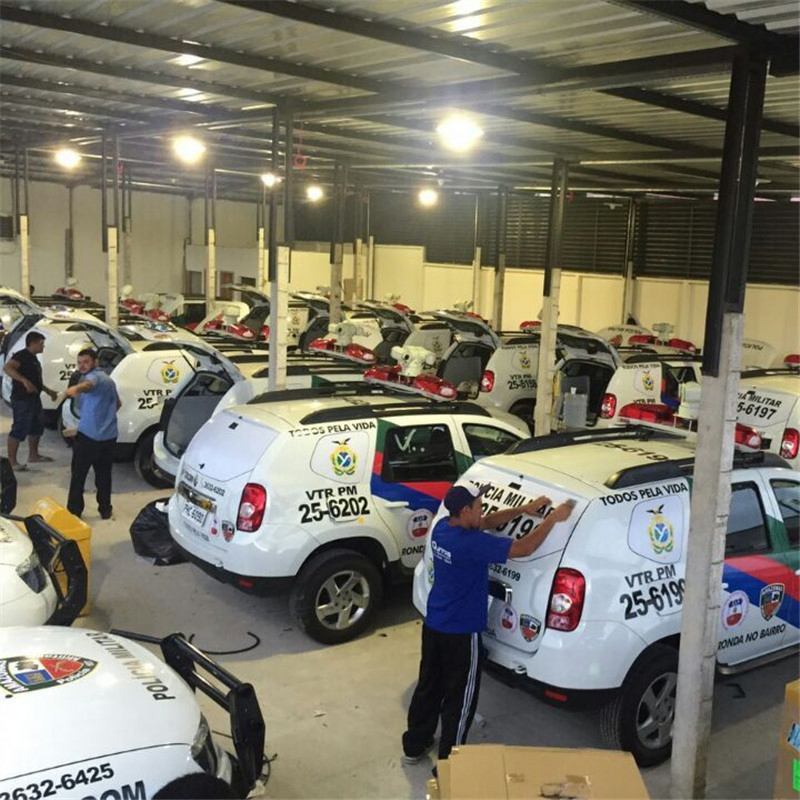

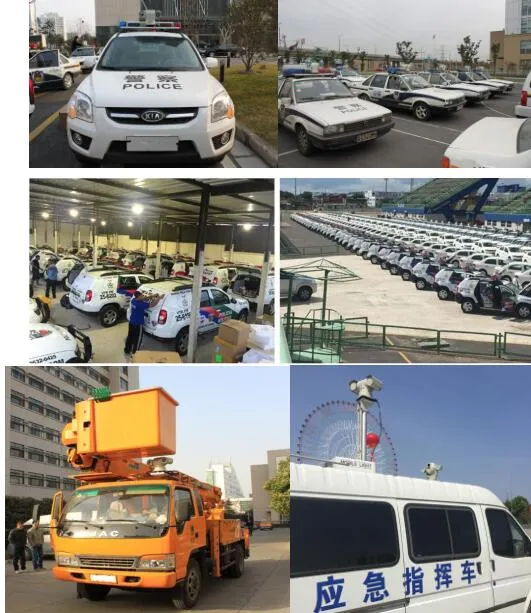

Project Cases:
MODEL: SHJ-CK003
Specifications
1.) Intelligent Keyboard
2.) DC12V input
3.) 16x1 LCD screen
4.) Multi-protocol
5.) 3D joystick
Features
1.) 3-D joystick for controlling Pan/Tilt/Zoom and operate the OSD menu
2.) 16×1 LCD screen
3.) OSD menu
4.) Multi-protocol ,baud rate:2400bps/4800bps/9600bps/19200bps
5.) Rs485 output, it can control many front equipments, including speed dome camera, decoder, processor etc
6.) Power supply: DC12V
3. Mobile Network Video Recorder(MNVR)
Model : SHJ-MNVR9808
1.1 Product Overview
Hard Disk Mobile DVR (Automotive) is a cost-effective, multi-functional device designed for video surveillance and remote monitoring of your mobile assets. It uses a high-speed processor, an embedded Linux platform, and the most advanced technology in the IT field, such as H.264 Video Compression/Decompression, 3G network transmission technology and GPS positioning technologies. MDVR can realize four/eight channel video recording. Each channel supports CIF, HD1 and D1 image solution. Drivers' driving information, GPS data and alarm data are recorded in hard disk which is used as the storage medium. The MNVR may look simple in its exterior design, provides powerful auto black box features, installation flexibility and high reliability.1.2 Key Features
1. 4 channel 720P or 2CH 1080P as optional2. Built-in 2.5 inch HDD, supports max 1TB, Professional hard disk damping technology.
3. 3G network , such as HSUPA/HSDPA/WCDMA/EVDO is selectable.
4. Built-in GPS module.
5. Built-in G-sensor
6. External WIFI special interface.
7. Built-in 1 SD card for backup recording when HDD errors.
8. 2 high speed USB2.0 interfaces, the front is used to export record file. The back is use to mirror recording for waterproof and fireproof.
9. 8 digital alarm inputs, 2 digital level output.
10. Three RS485 interfaces, one RS232 interface.
11. Built-in hard disk heating technology. It can be worked in -40ºC - +85ºC.
12. Power supply: 8V-36V
1.3 MDVR detail specifications to see Table 1
Table 1 : MDVR Specifications| Items | Parameters | Specifications |
System | Language | English |
| Operation Menu | Graphical User interface(OSD menu) | |
| Password | Users Password/ Administrator Password | |
Video | Video input | 4-CH720P video input 1.0Vp-p,75Ω |
| Video output | 1-CH composite video output 1.0Vp-p,75Ω 1 VGA output | |
| Video Display | 1 channel or synchronous 8channels | |
| Video Singal | PAL,NTSC | |
| Video Compression | H.264 Main profile PAL:100fps at D1, NTSC: 120fps at D1 | |
| Audio | Audio input | 4-ch Audio input |
| Audio output | 1-ch Audio output | |
| Recording mode | Audio & Video sync Recording | |
| Image Processing & Storage | Image Resolution | 4 D1 , 4 HD1, 4 CIF options |
| Video Compression | H.264 Main profile | |
| Video bit rate | CIF: 1536Kbps ~ 128Kbps,8 levels optional. Highest: 0 level Lowest: 8 level HD1: 2048Kbps ~ 512Kbps,4 levels optional. Highest: 0 level Lowest: 8 level D1: 4Mbps ~ 1Mbps, 4 levels optional. Highest: 0 level Lowest: 8 level | |
| Audio Compression | ADPCM, G.726, G.711 Options | |
| Audio Bit rate | 8KB/s | |
| Storage | Support One HDD Max 1TB Support One SD Card Backup when HDD is error. Support Mirror Recording with a expand HDD | |
| Alarm | Alarm input | 8 digital level inputs,below 4V is low level alarm,above 4V are high level alarm |
| Alarm output | 2 digital level outputs,output voltage level:12V | |
| Communication Interface | RS485 Interface | Support 2-RS485 interface |
| RS232 Interface | Support 1-RS232 interface | |
| WIFI Interface | Support 802.11b/g/n | |
| Extended interface | Support connecting LCD control panel via extended interface | |
| Audio amplifier interface | Support Stereo Audio output, it can contact 20W speaker directly | |
| 3G | HSUPA/HSDPA/WCDMA/EVDO Optional | |
| GPS | Built-in GPS module, Geographic coordinates , speed can be recorded in hard disk and also can be transmitted to CMS. | |
| Acceleration Sensor | Embedded acceleration sensor | |
| Software | Playback | Playback Software is used to playback video file, GPS track, G-sensor, and alarm information. |
| CMS | Center vehicle management software platform, it can manage 20000 devices at same time, if need to manager more units, add more servers to realize it. | |
| Software Upgrade | Support Flash disk to upgrade the firmware | |
1.4 MNVR electric Specifications to see Table 2
Table 2: MNVR Electric Specifications| Items | Parameters | Specifications |
| Power input | +8-+36V | +8V~+36V, When long-term under 8V, or long-term over 36V, Auto power off, enter protected mode. |
| Power output | 12V | 12V(+/-0.2V),Max:3A. |
| ACC Detection | ≤4V | Power OFF. |
| ≥5V | Power ON. | |
| Video input Impedance | 75Ω | 75Ω for each video input impedance |
| Video output Volt | 2Vp-p | Output 2Vp-p CVBS analog signal, displayer device input need 75Ω impedance to fit it. |
| I/O interface | 0-4V | Low level alarm |
| >4V | High level alarm | |
| Operating Temp | -40ºC-75ºC | Under well-ventilated environment. |

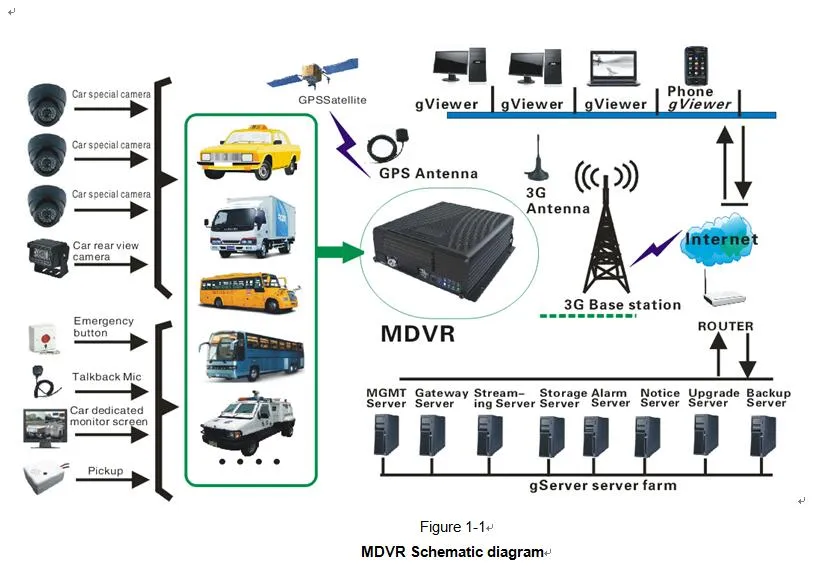

1.5Product Applications
Please refer to figure 1-1This product can be used for video surveillance or remote monitoring which applies in common or special vehicles such as buses, logistic vehicles, trucks, long-distance coaches, taxis, tankers,cars, school buses, police cars, patrol cars. In front-end it mainly collects video signal by dedicated automotive camera , then transmits to the MDVR host via a special video cable to do the video compression and image processing, which is locally storage in SD card. It can also be remote monitored or remote video recorded and downloaded by the remote client if with 3G models. It can real-time locate the vehicle position; Figure 1-1 schematic diagram is a common mode of application, each function during actual use will vary with the presence of module.Project Cases:
