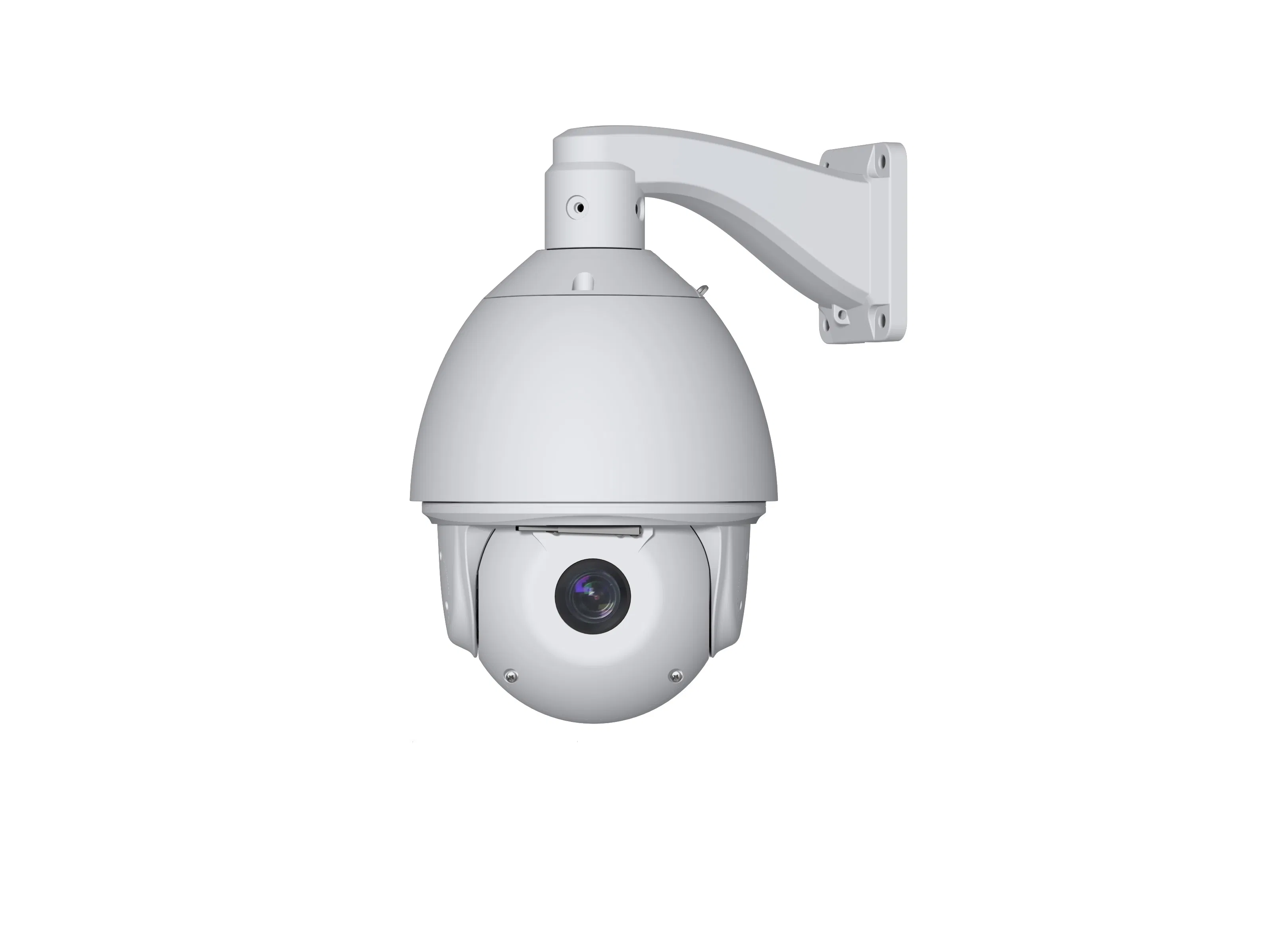

30X Hikvision 2.0MP CMOS HD IP High Speed Dome CCTV Camera (SHJ-HD-BL)
Hikvision 30x Optical Zoom 2.0MP CMOS HD IP High Speed Dome CCTV CameraFunctions:1. This dome camera integrated with different kinds of HD camera module and HD sensor, achieving HD image capturing.2. It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compress......
Send Inquiry
Product Description
Hikvision 30x Optical Zoom 2.0MP CMOS HD IP High Speed Dome CCTV Camera
Functions:
1. This dome camera integrated with different kinds of HD camera module and HD sensor, achieving HD image capturing.
2. It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
3. It applies full digital control, flexible programming, driveline compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.
4. The maximum resolution to support 1080P@30fps
5. Supporting 4 stream HD capture
6. Supporting variety of HD Platform connection
Features:
1.360ºcontinuously rotation, manual pan speed at 0.1°/s~260°/s adjusting;Tilt range -10 º~90º, manual tilt speed at 90°/s, Pan preset speed max at 350°/s,tilt preset speed at 120°/s.
2.With wiper, it could solve the disadvantage side of cleaning camera lens
3.4 Alarm input,2 alarm output
4.Telephoto limit speed function, it could recognize many kinds of cameras.
5.It could setup 8 cruising tracks,8 scanning commands,4 patterns function.
6. Bracket for optional, walling bracket or ceiling bracket.
Network Parameter:
Dome Parameter:
Functions:
1. This dome camera integrated with different kinds of HD camera module and HD sensor, achieving HD image capturing.
2. It uses latest H.264 video compression algorithm and DSP processing chip and platform, high compression ratio, with high quality image, and it integrates digital decoder inside.
3. It applies full digital control, flexible programming, driveline compact and simple design, could take rapid positioning and continuous tracking scan, really achieving full range monitoring without blind spot.
4. The maximum resolution to support 1080P@30fps
5. Supporting 4 stream HD capture
6. Supporting variety of HD Platform connection
Features:
1.360ºcontinuously rotation, manual pan speed at 0.1°/s~260°/s adjusting;Tilt range -10 º~90º, manual tilt speed at 90°/s, Pan preset speed max at 350°/s,tilt preset speed at 120°/s.
2.With wiper, it could solve the disadvantage side of cleaning camera lens
3.4 Alarm input,2 alarm output
4.Telephoto limit speed function, it could recognize many kinds of cameras.
5.It could setup 8 cruising tracks,8 scanning commands,4 patterns function.
6. Bracket for optional, walling bracket or ceiling bracket.
Network Parameter:
| Video function: | |
| Integrated HD camera | FCB-EH6300,FCB-EH6500,DI-SC110,JA-720P18B,JH-1080P20B |
| Integrated HD SENSOR | Panasonic MN34041,Sony IMX036,AR0331,9M034 |
| Video input | BT.1120 connector |
| Video output | 1 Channel CVBS analog output |
| Video compression standard | H.264 main profile |
| Compression resolution | 1080P@ 30fps |
| Resolution | 1080P/720P/D1 |
| Multi-stream | Supporting 4 stream |
| Capture | 1080p@5fps |
| System function: | |
| OSD display/Setup | Support(Chinese/English) |
| Wired network | Support |
| Video privacy | Support |
| Motion detection | Support |
| Network protocol | TCP,UDP,IP,HTTP,DHCP,PPPoE,RTSP,FTP,SMTP,DNS,DDNS,NTP |
| Alarm linkage | Recording, Alarm output(E-mail sending, FTP transmitting of video,PTZ linkage |
| anti-aliasing | Support |
| File storage | Support |
| Download function | Support |
| Watchdog function | Support |
| Remote firmware update | Support |
| Network interface | 10M/100M adaptive RJ45 interface |
| USB interface | External USB storage device (optional) |
| SD card interface | support the maximum capacity of the SD / SDHC 32GB (optional) |
| IE access | Embedded Web Server,support 10 users online access to the system simultaneously |
| Operate system | Embedded Linux system |
| Management center software | Dedicated video surveillance management software and third-party software (optional) |
| Integrated development support | Support SDK |
Dome Parameter:
| Model | SHJ-HD-BL |
| Pan range | 360°continuously rotation |
| Pan preset speed | 350°/s |
| Tilt preset speed | 120°/s |
| Pan control speed | 0.1°-260°/s |
| Tilt control speed | 0.1°-90°/s |
| Tilt range | -10°- 90° |
| Preset positions | 256 |
| Temperature and humidity | -30°C-65°C,humidity less than90% |
| Power supply | AC24V/2.5A |
| Wiper | With |
| Alarm function | 4 Alarm input,2 Alarm output |
| Patterns function | Support |
| Self-studying function | Support |
| Cruising function | Support |
| Memory after power off | Support |
| Telephoto speed limit | Support |
| Home position | Support |
| Communications | RS485 |
| IP grade | IP66(Outdoor)TVS 4000V lightning,anti-surge protection |
| Installing ways | Different installing ways accordingly |
| Weight | 5KG |
