Product Description

Key Features

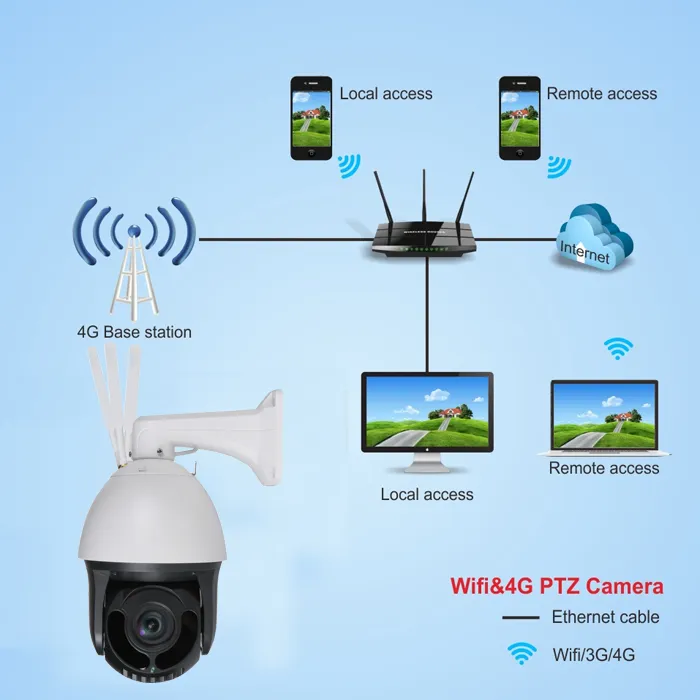

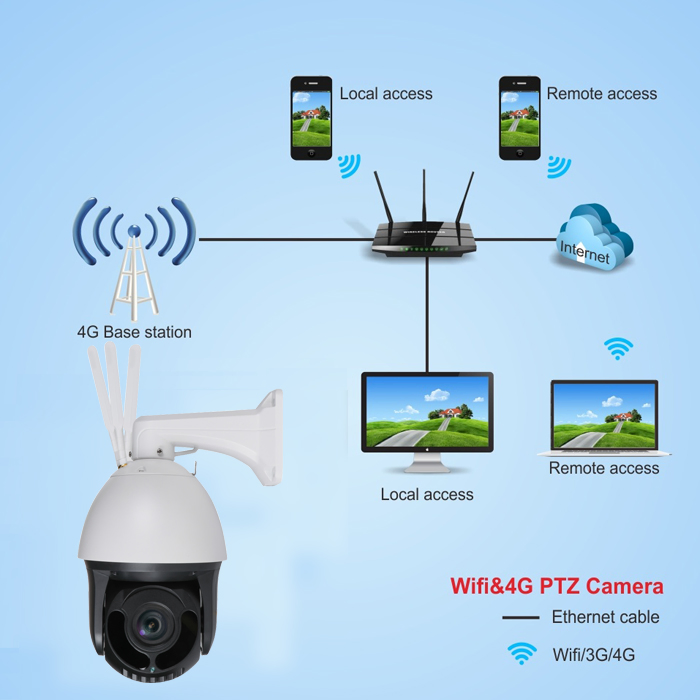

Support 4G / 3G / 2G + Wi Fi wireless access

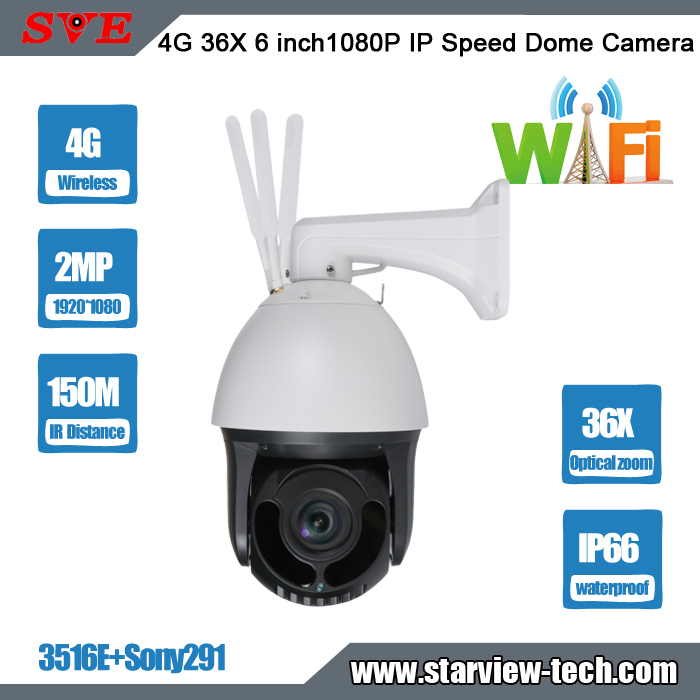

6 inch Middle Speed Dome camera
1/2.9" CMOS, 2.0 Megapixels, 36X optical zoom
HD-IP digital interface output, 1080P high definition image
DNR (Digital Noise Reduction : 2D + 3D)
Intelligent Motion Detection
ONVIF V2.4 Conformance Suppor
Compatible With HIKVISION NVR And IVMS-4200(V2.02.03.03) Softwar
PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
Total Metal body construction, IP66 rate protection
IR distance 150M

Technical parameters

MODLE	SVN-4G-180AR-200S-36X
4G	MDM9607/MDM9207
Working frequency band	GSM/GPRS/EDGE 900M/1800M
	CDMA/EVDO BC0 800M
	TD_SDCMA B34,B39
	UMTS/WCDMA B1 B5 B8
	LTE-FDD B1 B3 B5 B7 B8 B20
	LTE-TDD B38 B39 B40 B41
Wireless rate	GPRS:Max 85.6Kpbs(DL)/Max 85.6Kpbs(UL)
	CDMA/EVDO:Max 3.1Mpbs(DL)/Max 1.8Mpbs(UL)
	WCDMA/DC-HSPA+:Max 42Mbps(DL)/Max 5.76Mbps(UL)
	TD-SCDMA:Max 4.2Mbps(DL)/Max 2.2bps(UL)
	LTE-FDD:non-CA cat4 Max 150Mbps(DL)/Max 50Mbps(UL)
	LTE-TDD:non-CA cat4 Max 130Mbps(DL)/Max 35Mbps(UL)
Wifi	802.11b/g/n
WiFi frequency band	2412MHz----2472MHz
Sensor	1/2.9" progressive 3516CV+S0NY291
Video Compression	H.265 Main Profile / H.264 High profile / M-JPEG
Effective pixels	1080P(1080X1920)
Total pixels	2.0 Megapixels
Output Pixel	19201080@30fps19201080@25fps1280720@60fps1280720@50fps
Lens	36Xoptical zoom f=4.6~ 167mm
Iris	F1.6 ~F4.8
FOV	2.3° -61.2°
Min. illumination	Color: 0.01 Lux,B/W: 0 Lux
D/N	IR-CUT
BLC	Auto
WB	Auto
S/N Ratio	≥50dB(AGC OFF)
TF Card	Support
Audio frequency	Optional
Audio compression	G711, PCM
Communications Protocol	TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P
Compatibility	IE, CMS, HCMS,HIKVISION,UC ONVIF
Mobile View(optional)	Support Windows, Symbian, iPhone platform smartphone
P2P	Anfroid IOS
Preset Points	128
Pattern Scan	1 groups
Guard Tours	8 groups
Guard Points	Max.16 points, dwell time user selectable
Tilt Range	0~90°(Auto Flip)
Pan Range	360° continued rotation
Horizontal speed	Level keying speed:0.1 ° ~ 45 ° / s,
Vertical Speed	Vertical keying speed: 0.1 ° ~ 45° / s,
Pan and Tilt position display	Support
Auto Control IR LED	PWM
Support ambient light detection	IR illumination on 1-15 grades selectable;

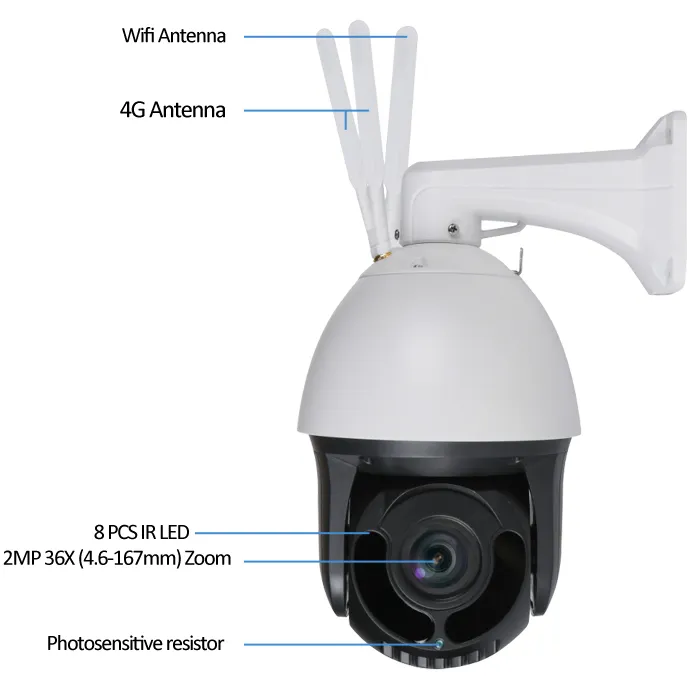

LED	Φ42 8pcs
IR distance	up to 150 meters
Humidity	≤95% Non Condensing
Power	DC12V ≤4A
Consumption	< 20W
Operating temperature	Indoor: 0°~ +40° Outdoor: -40°~ +60°
Lightning Protection	Transient voltage 6000V
Interface	1 channel network interface, power input
Size/Weight	4.5KG
Related validation	IP66,CE,FCC,RoHs
