China 3km 36X Zoom 2.0MP Heavy Duty 15W Laser PTZ Camera

Product Description

3km Integration Heavy Duty 15W Laser PTZ With 2.0MP 10-360mm Lens 36X Zoom

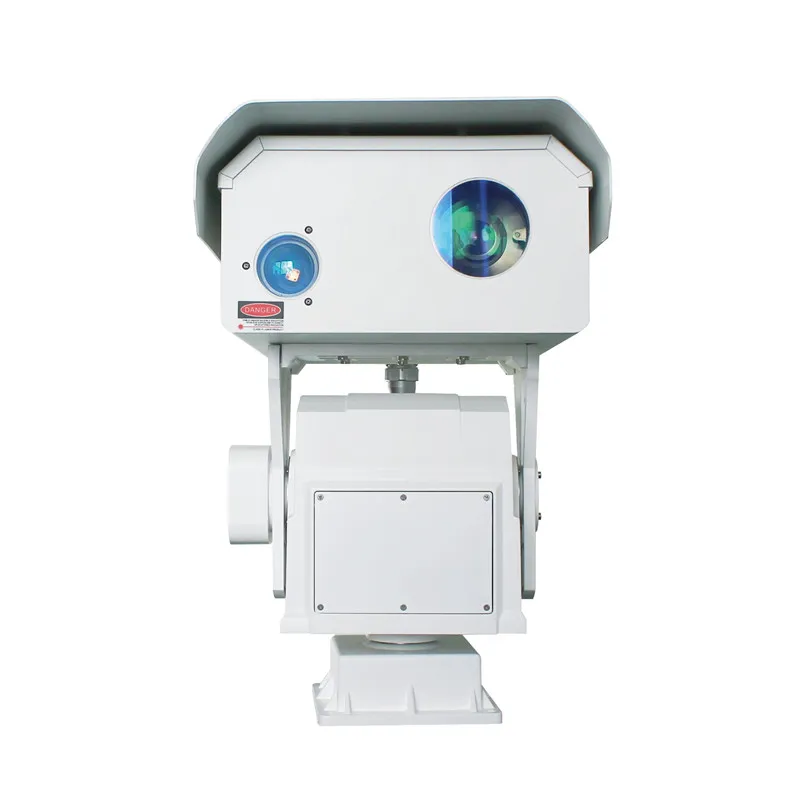

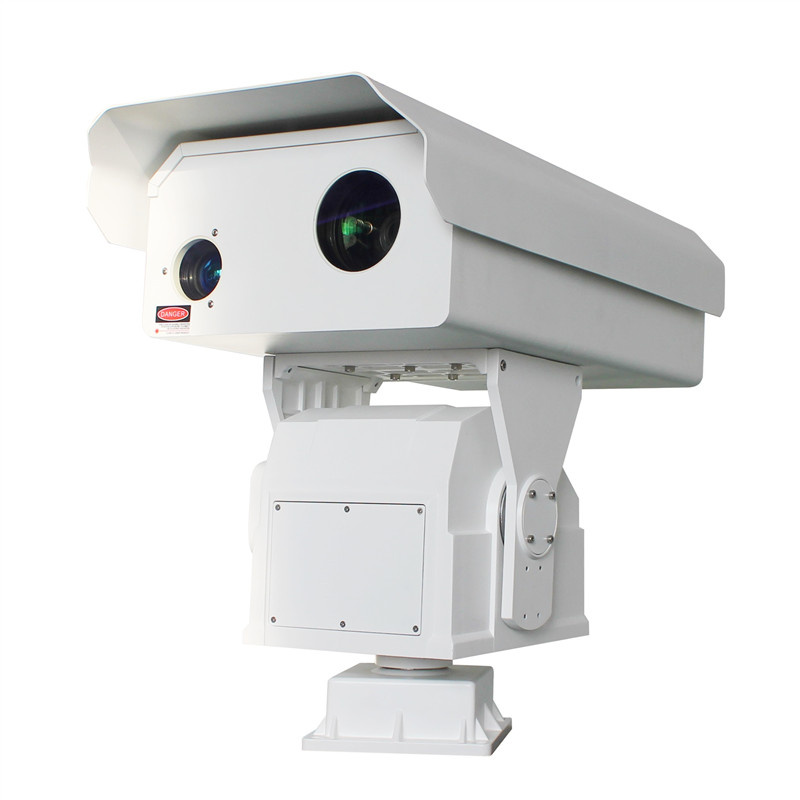

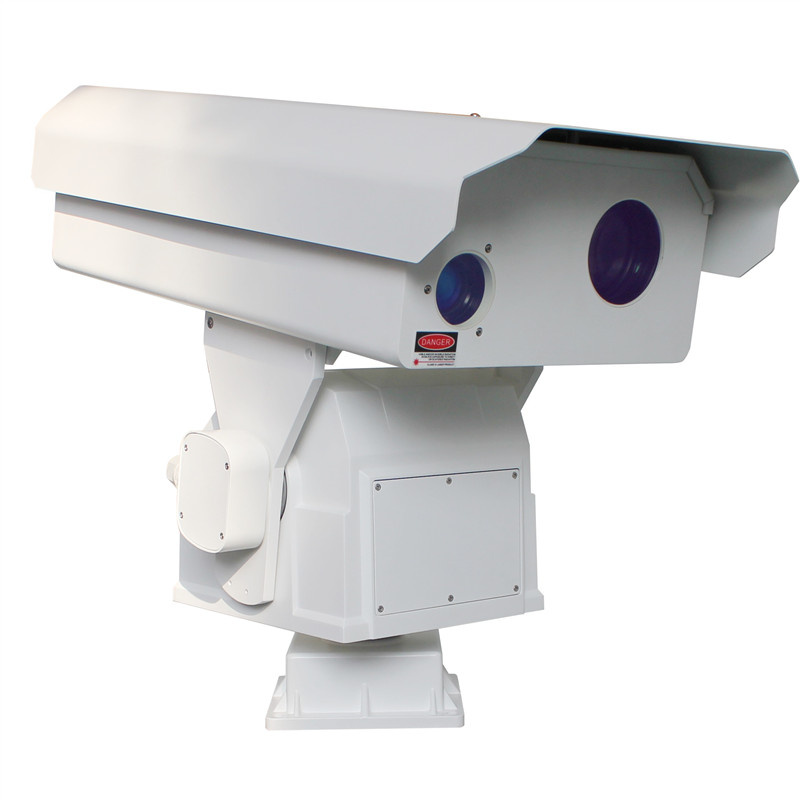

3km 36X Zoom 2.0MP Heavy Duty 15W Laser PTZ Camera

Features:

2.0mp 1 / 1.8 "F1.6 CMOS ICR star day and night HD network camera
Large diameter high-definition fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset
Using single-chip semiconductor laser light, photoelectric conversion rate, high light energy utilization, synchronous zoom, lighting angle continuously adjustable, higher reliability
PTZ adopts the design of large transmission ratio of turbine worm, metal structure, copper gear wheel, large torque, strong carrying capacity, high power self-locking ability after power failure
PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance, strong earthquake resistance, high stability, ultra low speed operation
PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather.
Advanced electromagnetic compatibility test, using triple lightning protection technology

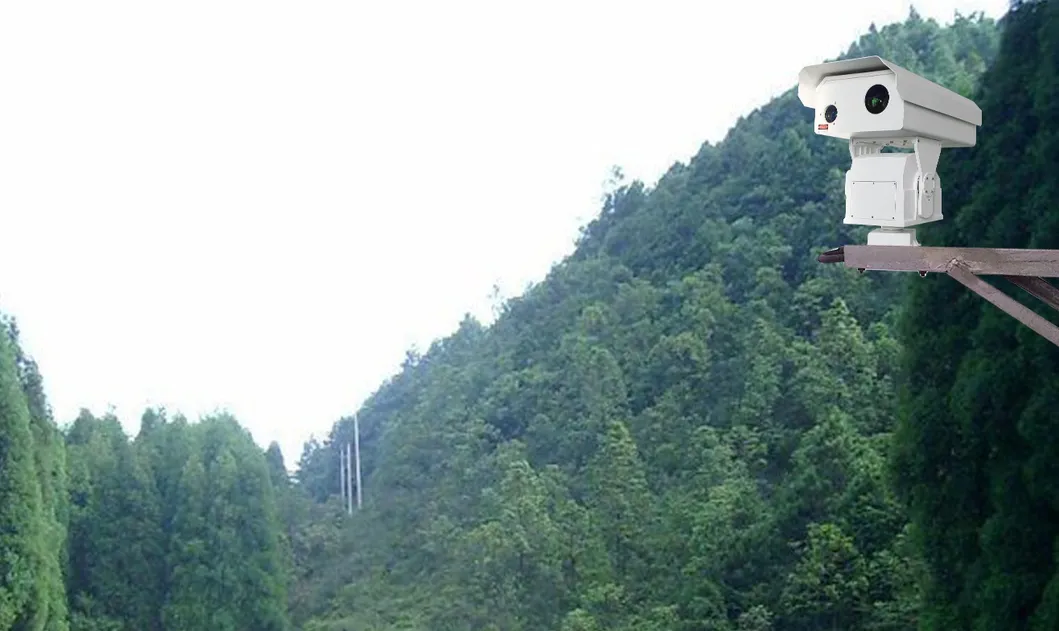

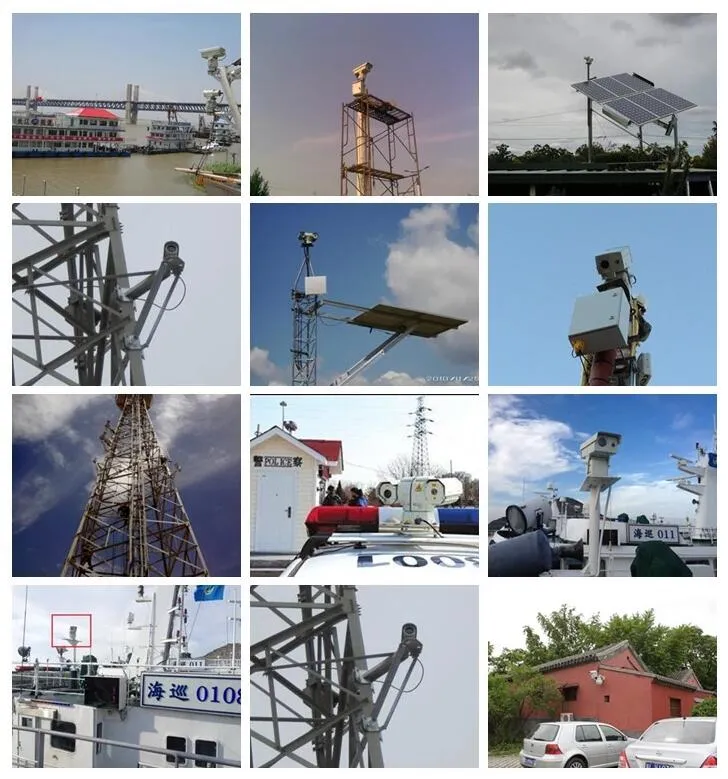

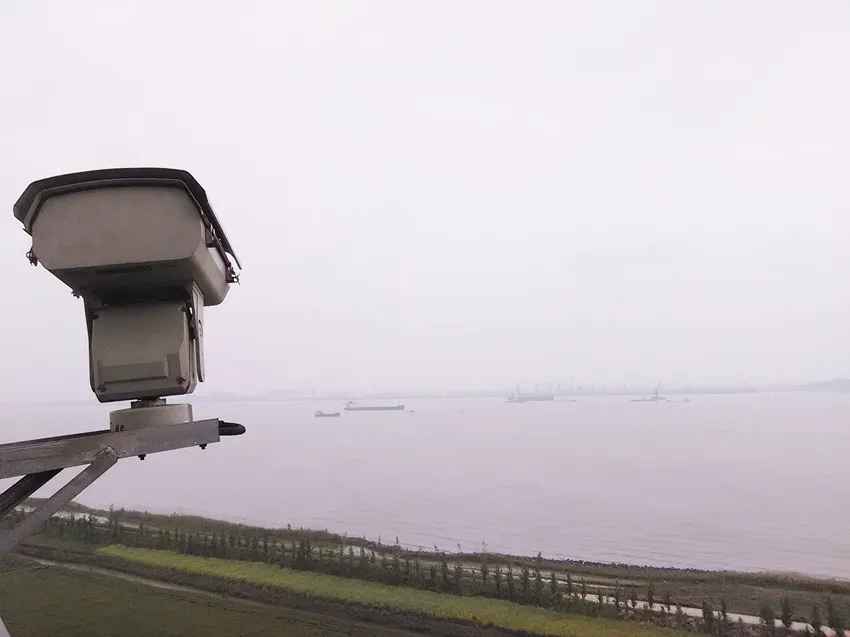

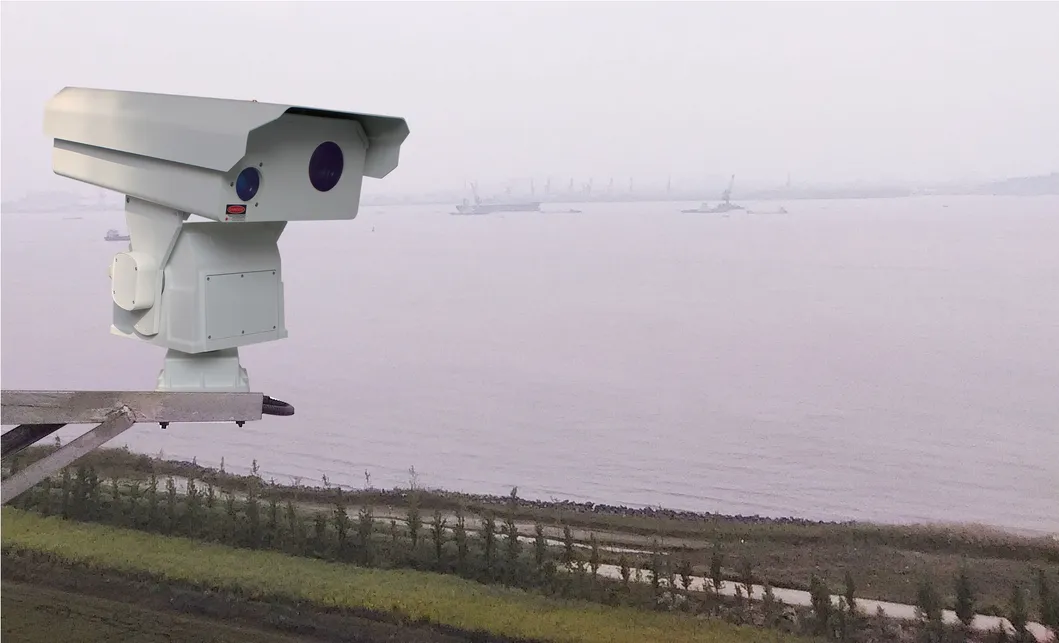

Application: Forest fire prevention, safe city, prison, warehouse, oil field oil depot, long pipeline, large factory, mining, freight yard, borderline, maritime fishery, ecological protection area, reservoir, military base.
Parameter:

Visible light infrared laser dual light telephoto fog HD PTZ camera
MODEL		SHJ-TX30-HD-L	SHJ-TX35-HD-L	SHJ-TX50-HD-L
IR Laser	Wave length	940±5nm
	Laser chip	Light power 10w	Light power 15 w	Light power 20 w
	Lighting angle	30°~1°	25°~0.3°	25°~0.3°
	Zoom speed	4s
	Lighting effective	Time integral homogenization technology, full-focus fill light uniform and delicate, completely no speckle
	Laser monitoring distance	1KM	2KM	3KM
Telephoto fog lens	Visible light monitoring distance	2KM	3KM	5KM
	Image	1/1.8"
	Interface	C
	Focal length	8-240mm	10-360mm	14-500mm
	Zoom	30x	36x	36x
	Aperature(F)	F1.7-F30	F1.9-F30	F2.9-F30
	Zoom function	Electric zoom
	Aperature function	Auto aperature(DC driving)
	Through fog	Trough fog image
HD Camera	Image sensor	1/1.8" Progressive Scan CMOS
	Min illumination	Color:0.002 Lux @(F1.2,AGC ON)White black:0.0002Lux @(F1.2,AGC ON)
	Lens interface	C/CS interface
	Auto aperature	DC driving
	Day/night	ICR Infrared filter type
	Image	1920 × 1080
	Image frame rate	50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720)
	Day/night	ICR Infrared filter automatic switching
	Image setting	Saturation, brightness, contrast, sharpness adjustable
	Through fog function	Support
	Special function	Wide dynamic light suppression / 3D digital noise reduction / backlight compensation / electronic shutter auto iris / slow shutter
Network transmission compression method	Video compression standard	H.265 / H.264 / MJPEG
	H.265 code	Main Profile
	H.264 code	BaseLine Profile / Main Profile / High Profile
	Compressed output bit rate	32 Kbps~16Mbps
	Storage function	Support Micro SD/SDHC/SDXC card(128G) broken network local storage,NAS(NFS,SMB/CIFS all support)
	Interface protocol	ONVIF,PSIA,CGI,ISAPI,GB28181
	Support protocol	TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
PTZ Parameter	PTZ load	Top load 22KG	Top load 35KG	Top load 50KG
	Pan manual control speed	0.1°/S -40°/S	0.1°/S -20°/S	0.1°/S -20°/S
	Tilt manual control speed	0.1°/S -15°/S	0.1°/S -10°/S	0.1°/S -10°/S
	Tilt angle	+40°~-75°	+40°~-45°	+40°~-45°
	Pan angle	360° contiously
	Preset	256 pcs preset position
	Cruise	8 channels
	Auto scanning	8 channels
	Automatic homing function	Support
	Patrol	4 channels
	Auxiliary switch	2 groups
	Control way	RS485 control, rotation angle return angle and angle control can be realized
General specification	Relative humidity	90%
	IP Grade	IP66
	Working temperature	-40 ºC - 55ºC
	Power supply	AC24V/DC24V
	Consumption	≤100W
