3km Outdoor Long Range Thermal Imaging and Infrared PTZ Camera
3km Outdoor Long Range Thermal Imaging and Infrared PTZ Camera 36X Zoom 75mm Thermal Imaging Lens 2.0MP Features: 2.0mp 1 / 1.8 "F1.6 CMOS ICR star day and night HD network cameraLarge diameter high-definition fog automatic zoom visible lens, DC drive, auto iris, through the fog, presetInfrared......
Send Inquiry
Product Description

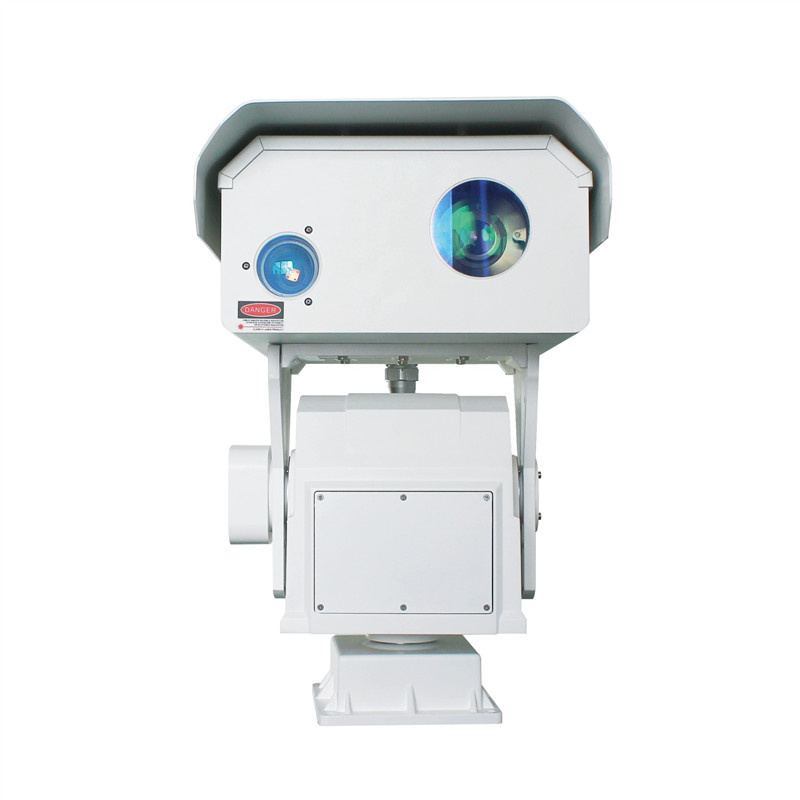

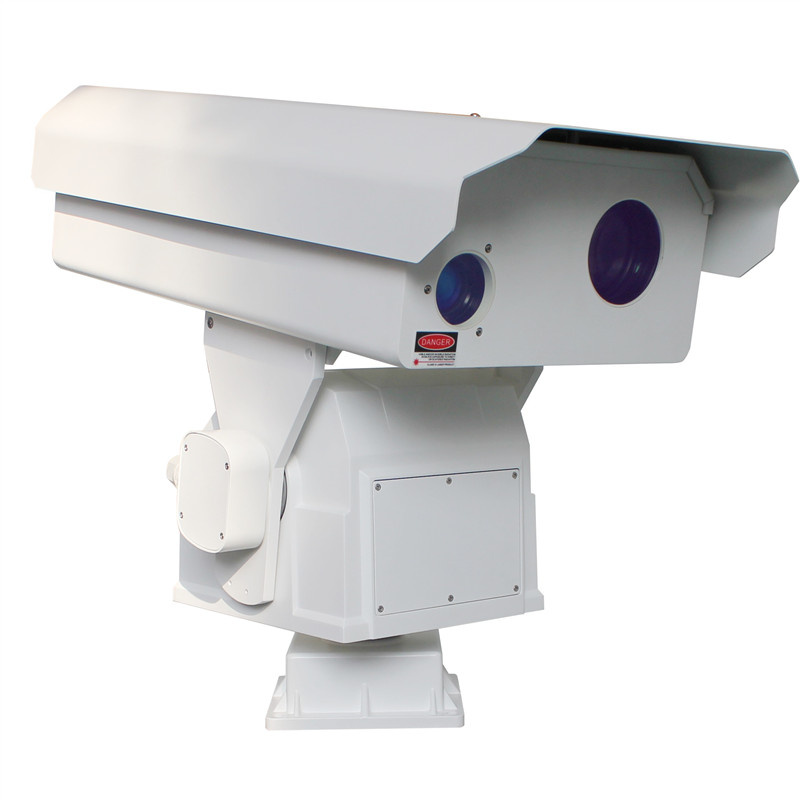

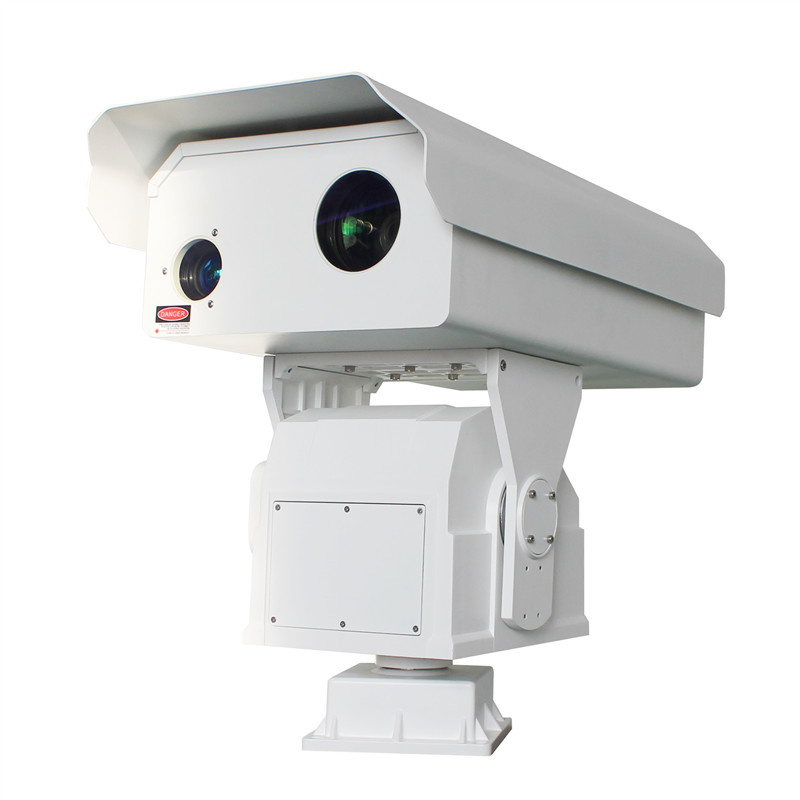

3km Outdoor Long Range Thermal Imaging and Infrared PTZ Camera 36X Zoom 75mm Thermal Imaging Lens 2.0MP
Features:
Application: Forest fire prevention, safe city, prison, warehouse, oil field oil depot, long pipeline, large factory, mining, freight yard, borderline, maritime fishery, ecological protection area, reservoir, military base.
Parameter:
Features:
- 2.0mp 1 / 1.8 "F1.6 CMOS ICR star day and night HD network camera
- Large diameter high-definition fog automatic zoom visible lens, DC drive, auto iris, through the fog, preset
- Infrared thermal imager is a kind of infrared radiation used to detect the target object, and through photoelectric conversion, electrical signal processing and other means, the target object temperature distribution image into video images of high-tech products
- Using the most advanced third-generation non-refrigerated vanadium oxide (VOx) infrared focal plane detector, 320 × 240 pixels
- PTZ adopts the design of large transmission ratio of turbine worm, metal structure, copper gear wheel, large torque, strong carrying capacity, high power self-locking ability after power failure
- PTZ adopts dynamic voltage drive technology, high load capacity, strong wind resistance, strong earthquake resistance, high stability, ultra low speed operation
- PTZ adopts super aluminum alloy shell, protection class IP66, professional structure design, professional wiper structure, high and low temperature test design, high temperature anti-ice and snow, to adapt to extreme weather.
- Advanced electromagnetic compatibility testing, the use of triple lightning protection technology
Application: Forest fire prevention, safe city, prison, warehouse, oil field oil depot, long pipeline, large factory, mining, freight yard, borderline, maritime fishery, ecological protection area, reservoir, military base.
Parameter:
| Visible light infrared thermal imaging dual light telephoto HD PTZ camera | |||||
| MODEL | SHJ-TX30-HD-T | SHJ-TX35-HD-T | SHJ-TX50-HD-T | ||
| Thermal imaging detector | Detector type | Uncooled focal plane microthermal type | |||
| Pixels | 384×288 | ||||
| Wave length/ Pixel pitch | 8-14um /25μm | ||||
| Zoom speed | 4s | ||||
| Focal length | 50mm | 75mm | 100mm | ||
| View angle | 11.0°×8.3° | 7.3°×5.5° | 5.5°×4.1° | ||
| Human detection | 1.5KM | 2.4Km | 3.4KM | ||
| Vehicle detection | 2.5KM | 3KM | 4.5KM | ||
| Human Identify | 0.5KM | 0.8KM | 1.1KM | ||
| Vehicle Identify | 1KM | 1.5KM | 2.5KM | ||
| Telephoto fog lens | Visible light distance | 2KM | 3KM | 5KM | |
| Image | 1/1.8" | ||||
| Interface | C | ||||
| Focal length | 8-240mm | 10-360mm | 14-500mm | ||
| Variable factor | 30x | 36x | 36x | ||
| Aperature(F) | F1.7-F30 | F1.9-F30 | F2.9-F30 | ||
| Focal zoom | Electric zoom | ||||
| Aperture function | Automatic iris (DC driving) | ||||
| Through fog | Through fog image processing | ||||
| HD Camera | Image sensor | 1/1.8" Progressive Scan CMOS | |||
| Min illumination | Color:0.002 Lux @(F1.2,AGC ON)White black:0.0002Lux @(F1.2,AGC ON) | ||||
| Lens interface | C/CS interface | ||||
| Automatic iris | DC driving | ||||
| Day/night | ICR IR filter | ||||
| Image | 1920 × 1080 | ||||
| Image frame rate | 50Hz: 25fps (1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps (1920 × 1080,1280 × 960,1280 × 720) | ||||
| Day/night | ICR Infrared filter automatic switching | ||||
| Image setting | Saturation, brightness, contrast, sharpness adjustable | ||||
| Through fog | Support | ||||
| Special function | Wide dynamic light suppression / 3D digital noise reduction / backlight compensation / electronic shutter auto iris / slow shutter | ||||
| Network transmission compression method | Video compression standard | H.265 / H.264 / MJPEG | |||
| H.265 code | Main Profile | ||||
| H.264 code | BaseLine Profile / Main Profile / High Profile | ||||
| Compressed output bit rate | 32 Kbps~16Mbps | ||||
| Storage | Support Micro SD/SDHC/SDXC card(128G) Broken network local storage,NAS(NFS,SMB/CIFS all support) | ||||
| Interface protocol | ONVIF,PSIA,CGI,ISAPI,GB28181 | ||||
| Support protocol | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | ||||
| PTZ parameter | PTZ load | Top load 22KG | Top load 35KG | Top load 50KG | |
| Pan manual control speed | 0.1°/S -40°/S | 0.1°/S -20°/S | 0.1°/S -20°/S | ||
| Tilt manual control speed | 0.1°/S -15°/S | 0.1°/S -10°/S | 0.1°/S -10°/S | ||
| Tilt angle | +40°~-75° | +40°~-45° | +40°~-45° | ||
| Pan angle | 360° contiously rotation | ||||
| Preset | 256 preset position | ||||
| Cruising | 8 channel | ||||
| Automatic scanning | 8 channel | ||||
| Automatic homing function | Support | ||||
| Cruise track | 4 channel | ||||
| Auxiliary switch | 2 groups | ||||
| Control way | RS485 control,Rotation angle return angle and angle control can be realized | ||||
| General specification | Relative humidity | 90% | |||
| Protect grade | IP66 | ||||
| Working temperature | -40 ºC - 55ºC | ||||
| Power supply | AC24V/DC24V | ||||
| Consumption | ≤100W | ||||
