3MP+1.3MP WDR Dual Lens Camera
3MP+1.3MP WDR Dual Lens CameraDescription:003-0420/002-0421 is a dual lens WDR camera module with 2048*1520 & 1280*960 resolution, the max wide dynamic range up to 100DB. (The WDR technology is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking,......
Send Inquiry
Product Description
3MP+1.3MP WDR Dual Lens Camera
Description:

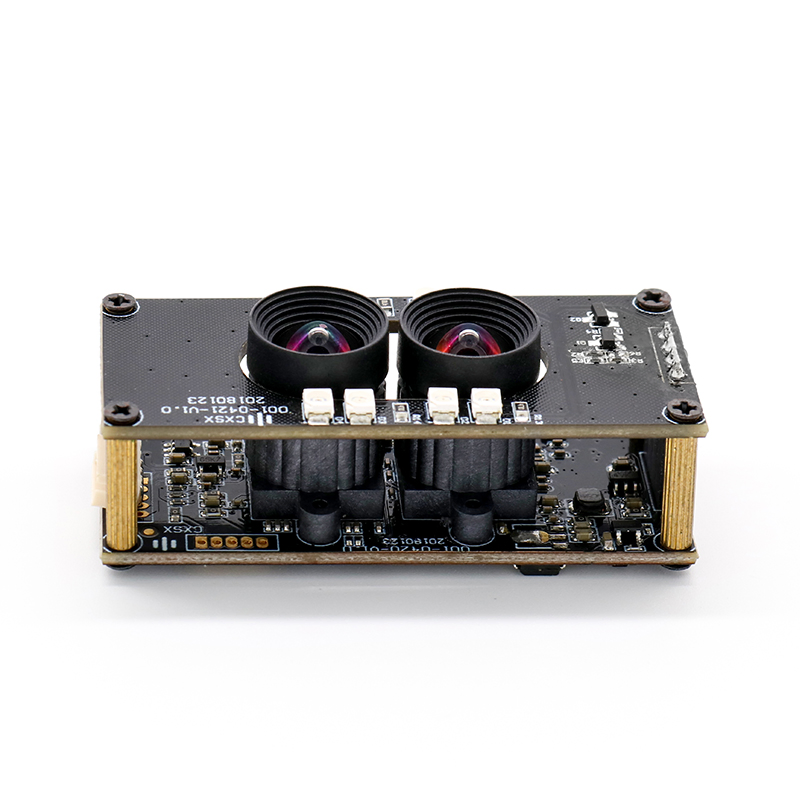

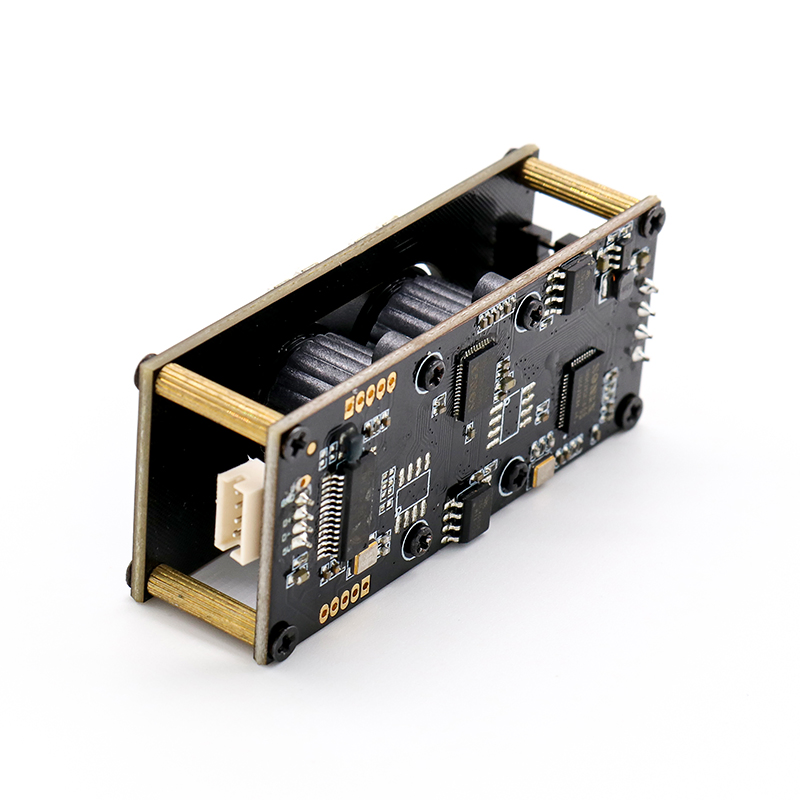

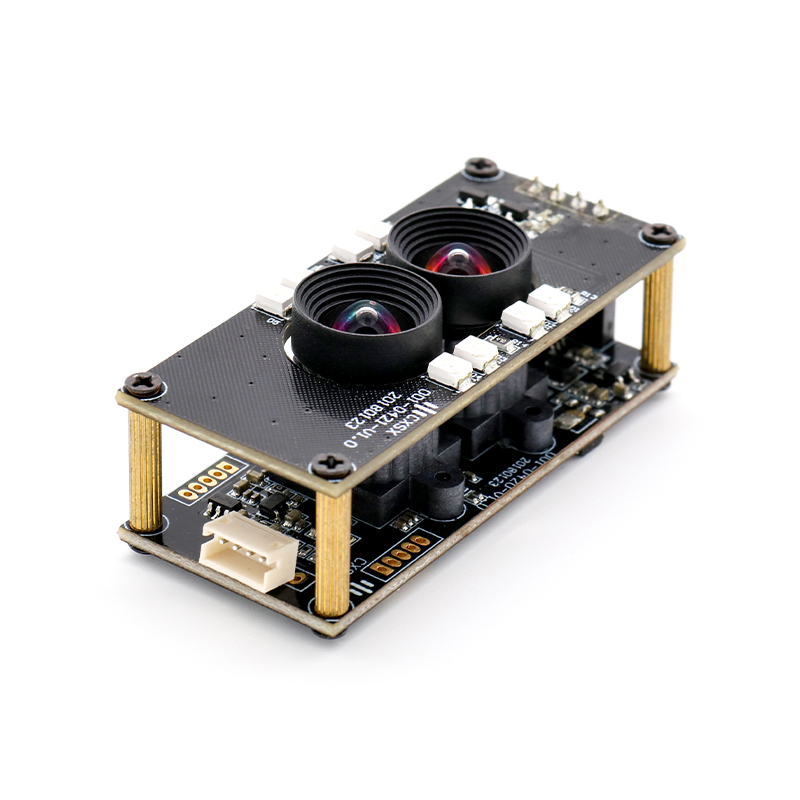

003-0420/002-0421 is a dual lens WDR camera module with 2048*1520 & 1280*960 resolution, the max wide dynamic range up to 100DB. (The WDR technology is applied for viewing the image smoothly under the condition of severe light contrast. Broadly speaking, it stands for the possible range of certain changing object or an area the minimum value and the maximum value spans that can be seen. WDR allows an imaging system to correct for the intense back light surrounding a subject and thus enhances the ability to distinguish features and shapes on the subject.)
Binocular camera can obtain depth range data without identifying the target, but the single lens camera must identifying the target first, that's why the dual lens cameras being used widely on some industrial like face recognition, intelligent traffic etc. Smaller error, and more accurate.
Specification:
| Items | Parameters | |||
| Type | SENSOR | SENSOR | ||
| SENSOR | AR0331 | AR0130 | ||
| Maximum Effective | 2480*1536 | 1280*960 | ||
| Lens Size | 1/3" | 1/3" | ||
| Pixels Size | 2*2μm | 2*2μm | ||
| Image Area | / | / | ||
| Output Parameters | Data Format | Resolution | Frame Rate | |
| YUY2/MJPG/H.264 | <=1080&720 | 30fps | ||
| Input Clock Frequency | / | / | ||
| Focusing | Fixed focus | Fixed focus | ||
| MAX S/N Ratio | 44DB | 39DB | ||
| Dynamic Range | 82DB | 100DB | ||
| Dark Current | / | / | ||
| Interface Type | USB2.0 | USB2.0 | ||
| Adjustable Parameter | Saturation,Contrast, Acutance,Tone, Clarity, Gamma, Gain, White balance,Exposure | |||
| Lens | FOV :D=88° | |||
| Sensor: 1/2.7" | ||||
| Optical Length :17.6MM | ||||
| Lens Construction:2G3P+IR | ||||
| Mount :M12*P0.5 | ||||
| Manufactor: / | ||||
| Model: 6192 | ||||
| IR | 850 60° | |||
| Power | USB BUS POWER | |||
| Voltage | DC 5V | |||
| Electric Current | 500mA | |||
| Main Chip | DSP/SENSOR/FLASH/HUB | |||
| AEC | support | |||
| AEB | support | |||
| AGC | support | |||
| Working Current | MAX 500mA | |||
| PCBA Size | 25*58mm | |||
| Storage Temperature | -20ºC to +70ºC | |||
| Working Temperature | 0ºC to 55ºC | |||
| Other | Dual SENSOR: black&white+color | |||
| System Compatibility | 1,WinXP/WIN7/WIN8/WIN10/Linux/Android/OS X | |||
Key Features:
1. High Resolution & WDR: 3MP+1.3MP HD of resolution, more clear image you get. The wide dynamic range up to 100DB.
2. Support H.264: Camera module with advanced H.264 encoding compresses a digital video file so that it only occupies one-twentieth the space of MPEG to deliver the same quality video. Enjoy stunning HD video with impressive video performance and faster transmission speed.
3. Plug and Play & UVC: Free drive 2 megapixel USB board module with USB2.0 cable, easy to set up, just plug & play, compatible with Windows XP/Vista/Win 7/8/10, Linux or OS with UVC, Mac and Android systems, also support OTG.
SPECS:
Camera
Sensor: AR0330 & AR0130
Sensor Size: 1/3" & 1/3"
Resolution: 2048*1520 & 1280*960
Output: MJPC/YUV
Frame Rate: 30fps
Wide Dynamic Range: 100DB&83.5DB
Lens
FOV: D=89°
TTL: 17.6mm
Construction: 2G3P
Mount: M12*P0.5mm
Power
Power Supply: DC 5V
Working Current: MAX 500mA
Physical
Operating Temp.: -4°F~158°F (-20°C~+70°C).
Dimension: 58*25*23mm
Applications
Access Control System
ID Detection
Face Recognition
LED Display etc.
Company Information:

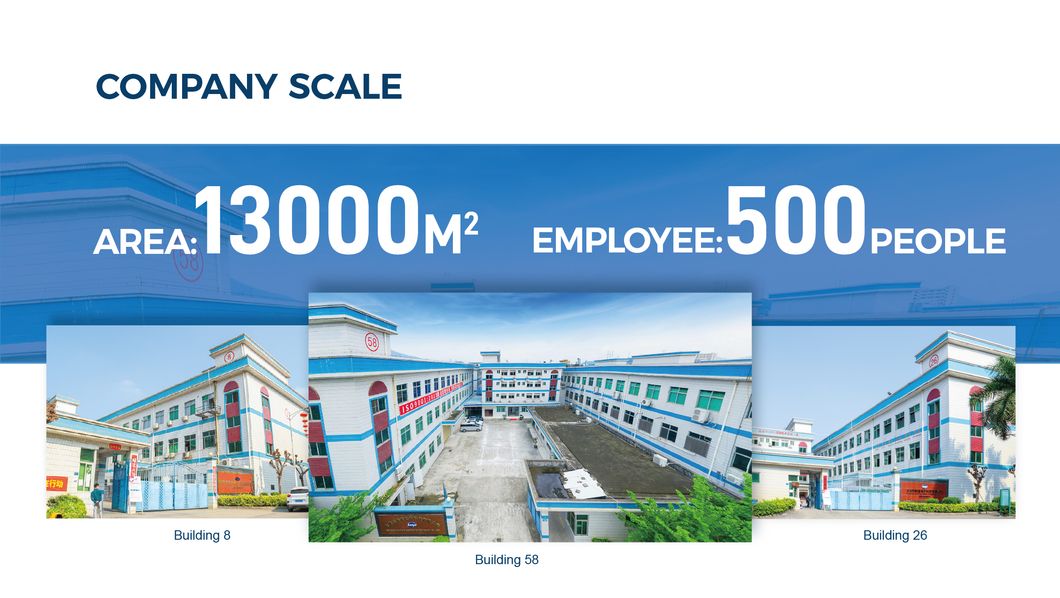

Shenzhen Chuangxinshixun Technology Co., Ltd, which was founded in 2014, is a manufacturer specialized in research, design and manufacture of audio and video electronic products. Located in Xintaiyang Industrial Park in Tangxia, Dongguan City, Guangdong,China. Hampo own buildings 58, 26 and 8 as production base, covering 13,000 square meters. Hampo has up to 500 employees.
Here are our main products: camera modules such as USB camera modules, MIPI camera modules and DVP camera modules; cameras such as PC camera and video conference camera; OID devices such as talking pen and smart pen. We have served many famous companies such as Midea and A4 tech, and many research institutes.

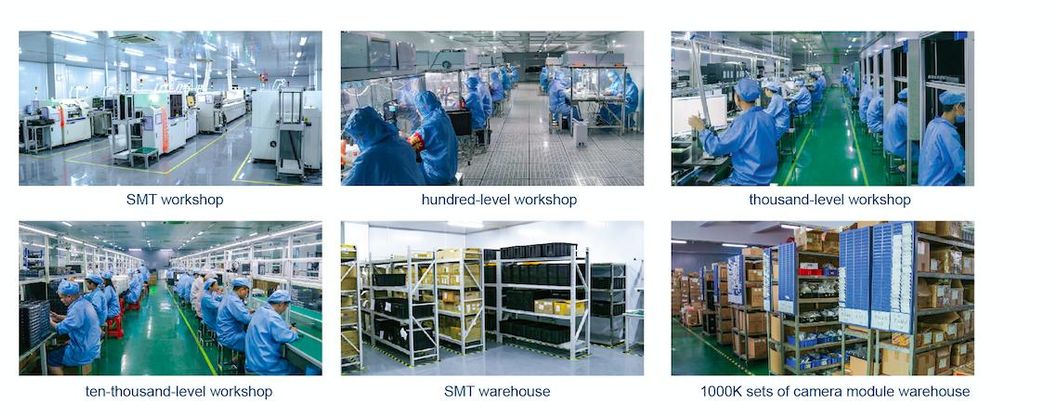

We fulfilled the progress from ID layout to structure and from electronic design to the whole process of SMT, focusing and assembly which thanks to the technical support of our parent company Shenzhen Zhongxin Chuangzhan Technology Co., Ltd, who won the title of National High-Tech Enterprise. At present, there are more than 20 staffs on R&D and engineering, who have been working in the imaging industry more than 10 years.
We passed the ISO quality management system certification, and has attracted a number of quality management personnel with experience in listed ompanies. Our QC team has more than 30 staffs, who established a complete quality control system from IQC, IPQC, FQC to OQC.
Through the joint efforts of all colleagues, our company has obtained more than 10 national patents in appearance design, software application, tooling and fixture development, etc.
