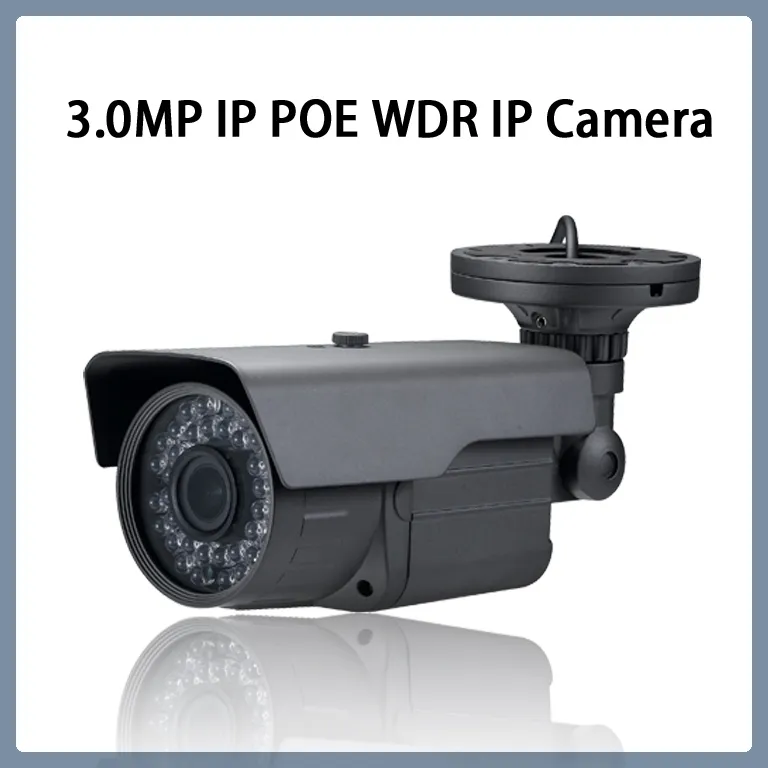

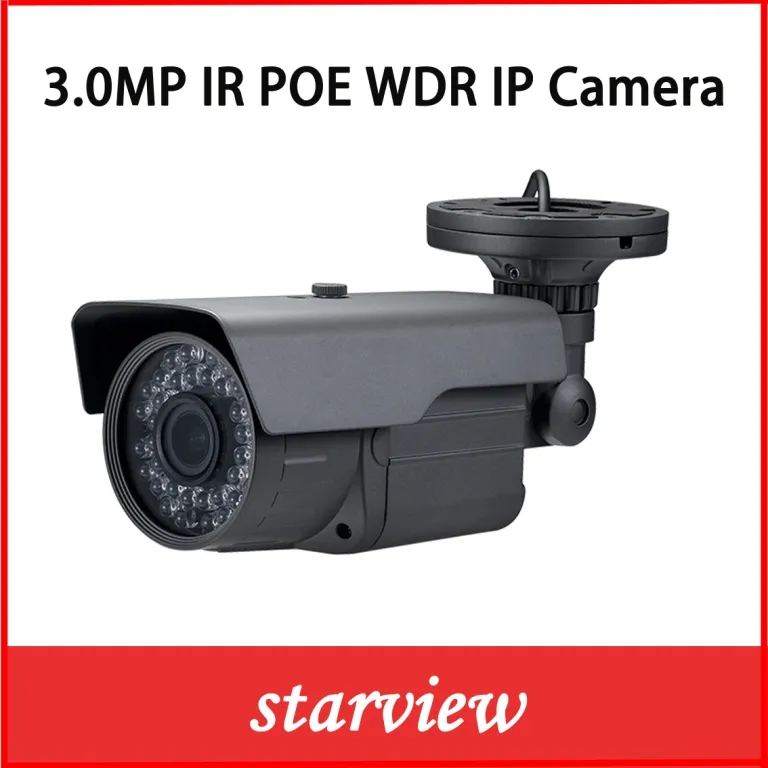

3MP WDR Bullet Water-Proof Security CCTV Network IP Camera
Key Features 1/3" 4MP Progressive Scan OV CMOS SensorAmbarella SOCH.264 main profile level 3Dual-stream encoding,Video Bit :32 Kbps~8Mbps2304*1296@20FPS;1920*1080@25/30FPS;1280*720@25/30FPSColor :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4,WDR Level adjustable(up to 128db)Day/Night IR-CUT......
Send Inquiry
Product Description
Key Features
1/3" 4MP Progressive Scan OV CMOS Sensor
Ambarella SOC
H.264 main profile level 3
Dual-stream encoding,Video Bit :32 Kbps~8Mbps
2304*1296@20FPS;1920*1080@25/30FPS;1280*720@25/30FPS
Color :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4,

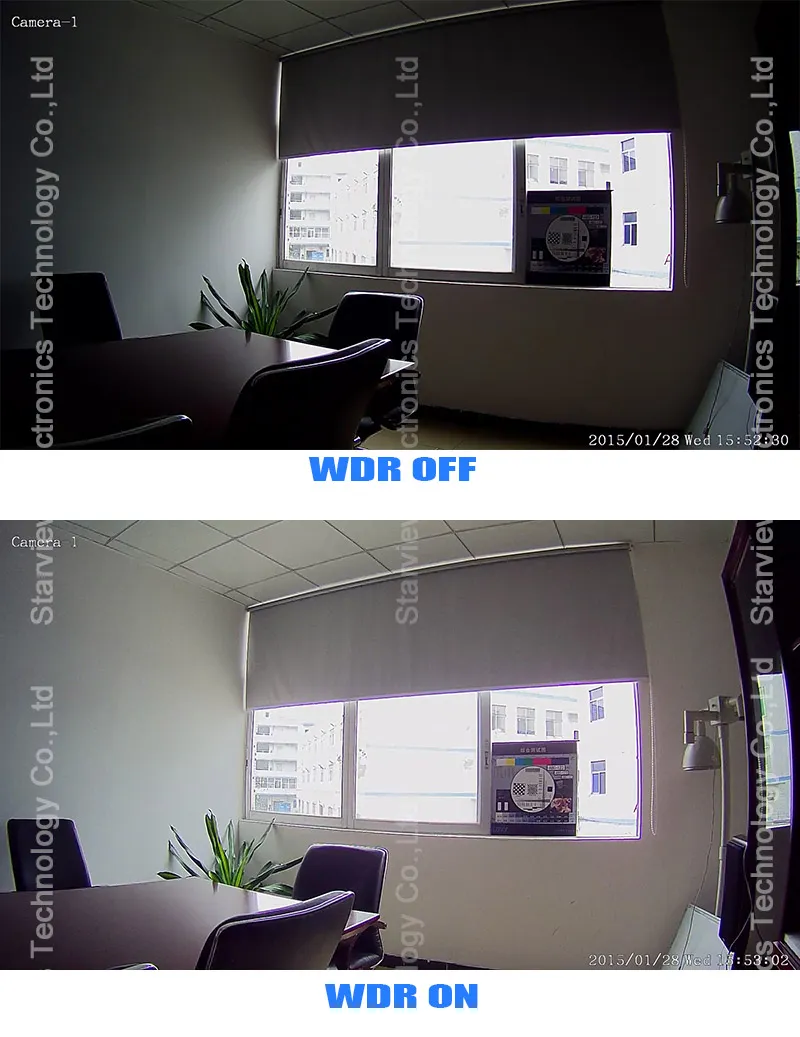

WDR Level adjustable(up to 128db)
Day/Night IR-CUT Auto Scwitch
Multiple network monitoring: Web viewer,CMS,Smart phone
Support Internet Explorer/Chrome/ Firefox /Opera
Compatible Onvif 2.4
POE support
Two-way audio,1ch audio in,1ch audio out
Support 1ch alarm input, 1BNC analog video output
2.8-12mm 3MP varifocal lens
72PCS,Ø5 IR LEDS, 50Meters Night vision distance
3-axis adjustment bracket
Water-proof IP 66
| Model | SVN-WA9300P |
| VIDEO | |
| Sensor | 1/3 " 4MP progressive scan OV CMOSSensor |
| DSP | Ambarella SOC |
| Pixels | Max 2304*1296 |
| Video Compression | H.264 / MJPEG-4 |
| Video Bit Rate | 32 Kbps~8Mbps adjustable,Support CBR/LBR |
| System | 60 / 50 Hz |
| Resolution | 2304*1296@20FPS ;1920*1080@25/30FPS;1280*720@25/30FPS |
| Day & Night | Auto with mechanical ICR |
| Min. Illumination | Color :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4, |
| IMAGING | |
| Image Settings | Brightness, saturation, sharpness, multi-level configurable |
| White Balance | Auto |
| Electronic Shutter | Auto / 1/10000s to 1/25s |
| BLC | AUTO |
| DNR | 3D - MCTF DNR |
| WDR | Level adjustable (up to 128db) |
| AUDIO | |
| Audio Compression | G.711 / G.726 |
| Audio compression rate | G.711(64Kbps) / MP2(16kHz 16bit 32kbps) |
| Audio Input / Output | 1 x in, 1 x out |
| SYSTEM INTEGRATION | |
| Sensor In / Alarm Out | 1 x in |
| Triggering Event | Video motion detection (multiple zones and sensitivity levels), audio detection (multi-sensitivity), schedule, I/O |
| Triggering Reaction | Snapshot, e-mail, FTP, alarm out |
| SDK | Available |
| NETWORK | |
| Protocols | TCP/IP, HTTP, UDP, FTP, ICMP, DHCP, PPPoE, DDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, SIP,Email,Alarm Server, IPv4, Onvif |
| Ethernet | 10/100 Base-T, auto sensing, RJ-45 |
| Wireless | IEEE 802.11 b/g/n compliant (external & optional adapter) |
| User Group | Password protection, multi-user permissions control |
| POE | Support |
| Compatible protocol | Compatible Onvif 2.4 |
| LOCAL STORAGE( Optional ) | |
| Storage | MicroSDslot, up to 32GB (Optional) |
| Format | JPEG, file name format configurable |
| Control | Playback by event types |
| REMOTE SURVEILLANCE | |
| Mobile Surveillance | Android, iPhone;iPhone/Android app |
| Web Surveillance | Internet Explorer/Chrome/ Firefox /Opera |
| CMS | Free VMP within 128 channels |
| GENERAL | |
| Unit Configuration | Reboot, factory default, date/time synchronization |
| Firmware | HTTP mode, remote update |
| Language | English |
| Power Supply | DC12V / POEIEEE802.3 |
| MECHANICAL | |
| Lens | 2.8-12mm varifocal lens |
| Casing | Outdoor/indoor, white/Gray |
| AdjustmentRange | 3-axis adjustment |
| IR-CUT | Dual ir cut filter |
| IR LED | 72PCS,Ø5 LEDS |
| Night vision distance | 50Meters |
| ENVIRONMENTAL | |
| Operating Tem. | -20°C~60°C |
