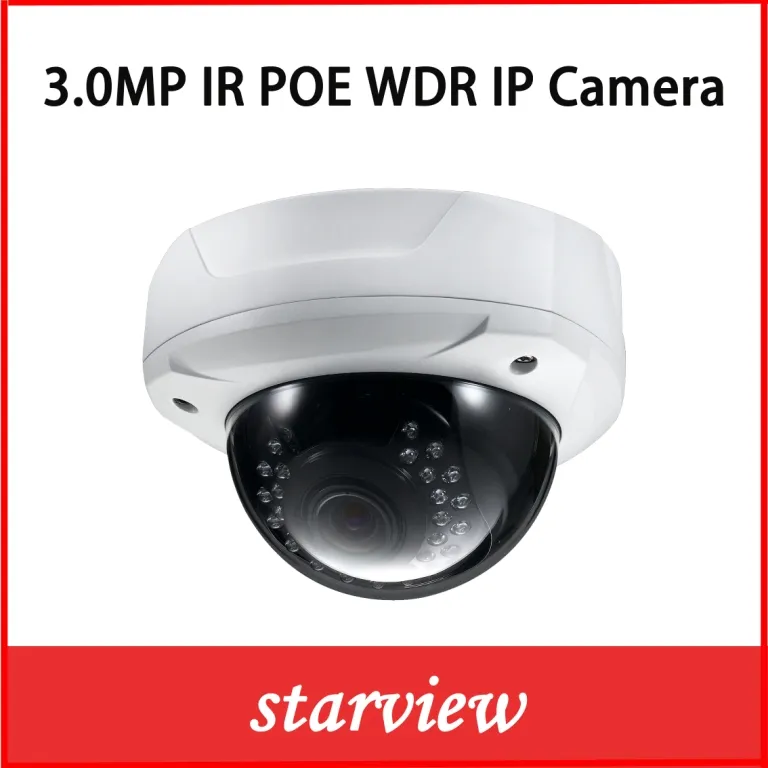

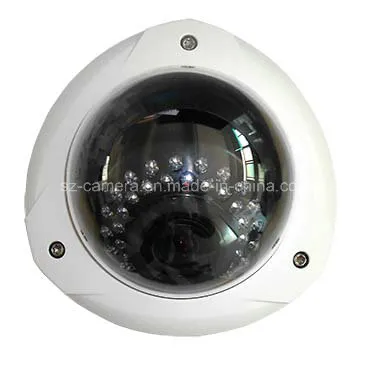

3MP WDR Dome Vandal-Proof Security CCTV Network IP Camera with Audio&Alarm
Key Features 1/3" 4MP Progressive Scan OV CMOS SensorAmbarella SOCH.264 main profile level 3Dual-stream encoding,Video Bit :32 Kbps~8Mbps2304*1296@20FPS;1920*1080@25/30FPS;1280*720@25/30FPSColor :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4,WDR Level adjustable(up to 128db)Day/Night IR-CUT......
Send Inquiry
Product Description
Key Features
1/3" 4MP Progressive Scan OV CMOS Sensor
Ambarella SOC
H.264 main profile level 3
Dual-stream encoding,Video Bit :32 Kbps~8Mbps
2304*1296@20FPS;1920*1080@25/30FPS;1280*720@25/30FPS
Color :0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4,
WDR Level adjustable(up to 128db)
Day/Night IR-CUT Auto Scwitch
Multiple network monitoring: Web viewer,CMS,Smart phone
Support Internet Explorer/Chrome/ Firefox /Opera
Onvif 2.4 support
POE support
Two-way audio,1ch audio in,1ch audio out
Support 1ch alarm input, 1BNC analog video output
2.8-12mm 3MP varifocal lens
30PCS,Ø5 IR LEDS, 25Meters Night vision distance
3-axis adjustment bracket
Vandal-proof 1K10
Technical Specification
Technical Specification
| Model | SVN-DA5300P-R |
| VIDEO | |
| Sensor | 1/3" 4MP Progressive Scan OV CMOS Sensor |
| DSP | Ambarella SOC |
| Pixels | Maximum:2304 * 1296 |
| Video Standard | H.264,dual streams supported(main stream and Sub - stream) |
| Stream | 32 Kbps~16Mbps adjustable |
| Video format | H.264 main profile level 3 |
| System | 60 / 50 Hz |
| Resolution | 2304 * 1296@20FPS;1920*1080@25/30FPS;1280*720@25/30FPS |
| Day & Night | Auto with mechanical ICR |
| Min. Illumination | Color : 0.1 Lux @ 30IRE, F1.4, B/W:0.05 Lux @ 30IRE, F1.4, |
| IMAGING | |
| Image Settings | Brightness, saturation, sharpness, multi-level configurable |
| White Balance | Auto |
| Electronic Shutter | 1/10000s to 1/25s |
| BLC | AUTO |
| DNR | 3D - MCTF DNR |

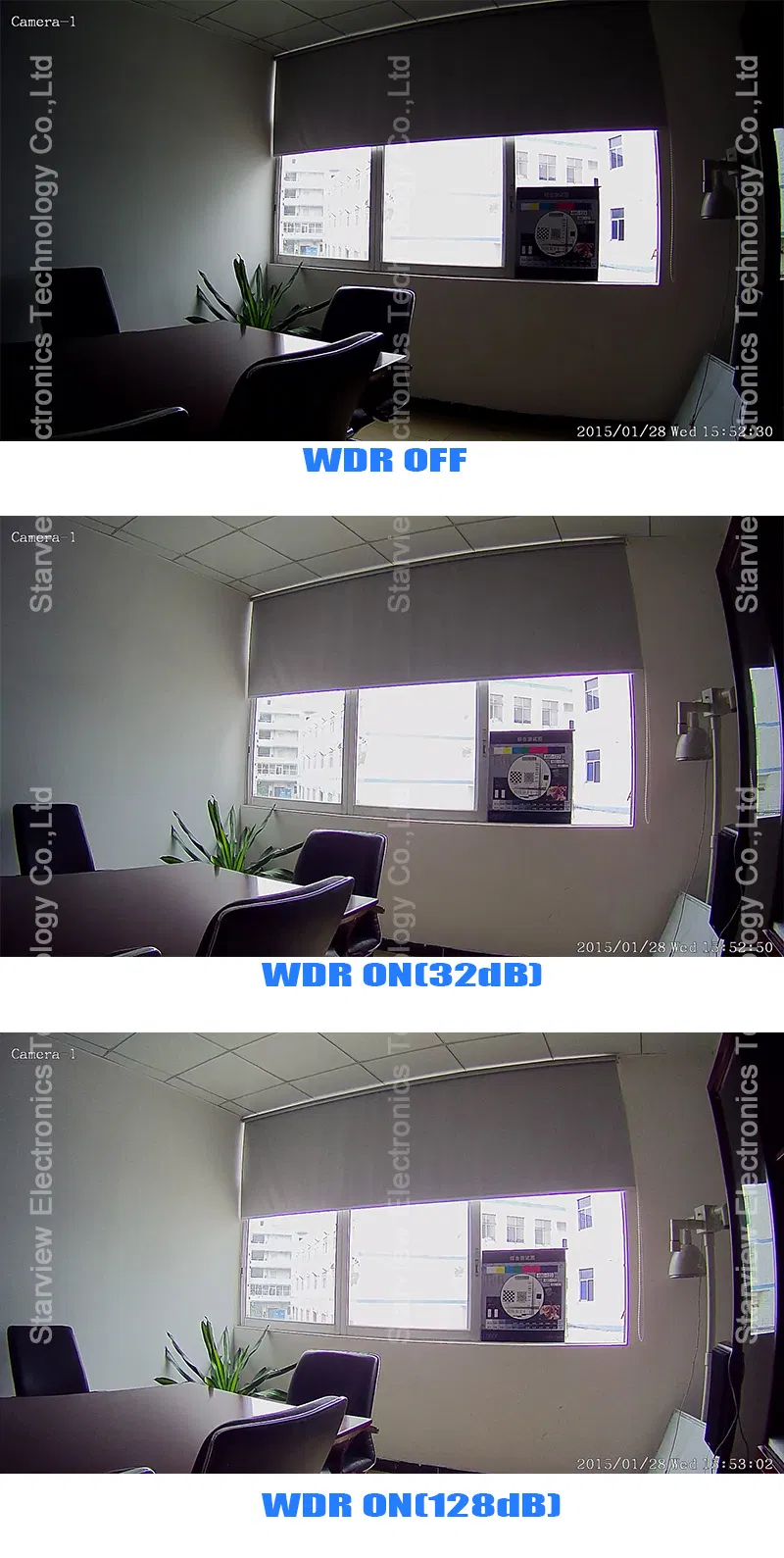

| WDR | Level adjustable(up to 128DB) |
| AUDIO(optional) | |
| Compression Format | G.711 / AAC / MP2 |
| Audio compression rate | G.711(64Kbps) / MP2(16kHz 16bit 32kbps) |
| Audio Input / Output | 1 x in, 1 x out |
| Alarm | |
| Sensor In / Alarm Out | 1 x in |
| Triggering Event | Video motion detection (multiple zones and sensitivity levels), audio detection (multi-sensitivity), schedule, I/O |
| Triggering Reaction | Snapshot, e-mail, FTP, alarm out |
| NETWORK | |
| Protocols | TCP/IP, HTTP, UDP, FTP, ICMP, ARP, DHCP, NTP, DDNS, DynDNS, UPnP, RTP, RTSP, RTCP, SMTP, IGMP, 3GPP, IPv4 |
| Ethernet | 10/100 Base-T, auto sensing, RJ-45 |
| Wireless | No |
| User Group | Password protection, multi-user permissions control |
| POE | POE IEEE802.3af |
| Compatible protocol | Onvif 2.4 |
| LOCAL STORAGE(Optional) | |
| Storage | MicroSD/SDHC slot, up to 32GB (Optional) |
| Format | JPEG, file name format configurable |
| Control | Playback by event types |
| REMOTE SURVEILLANCE | |
| Mobile Surveillance | Android, iPhone; exclusive iPhone/Android app |
| Web Surveillance | Internet Explorer |
| CMS | Free CMS ,Support max. 128 channels |
| GENERAL | |
| Unit Configuration | Reboot, factory default, date/time synchronization |
| Firmware | HTTP mode, remote update |
| Language | English |
| SDK | Available |
| Power supply | DC12V / POE IEEE802.3af |
| MECHANICAL | |
| Lens | 2.8-12mm 3MP vari-focal lens |
| Casing | Indoor |
| IR-CUT | Yes |
| IR LED | 30PCS,Ø5 LEDS |
| Night vision distance | 25Meters |
| Protect grades | Vandal-proof IK10 |
| ENVIRONMENTAL | |
| Operating Tem. | -20°C~60°C |
