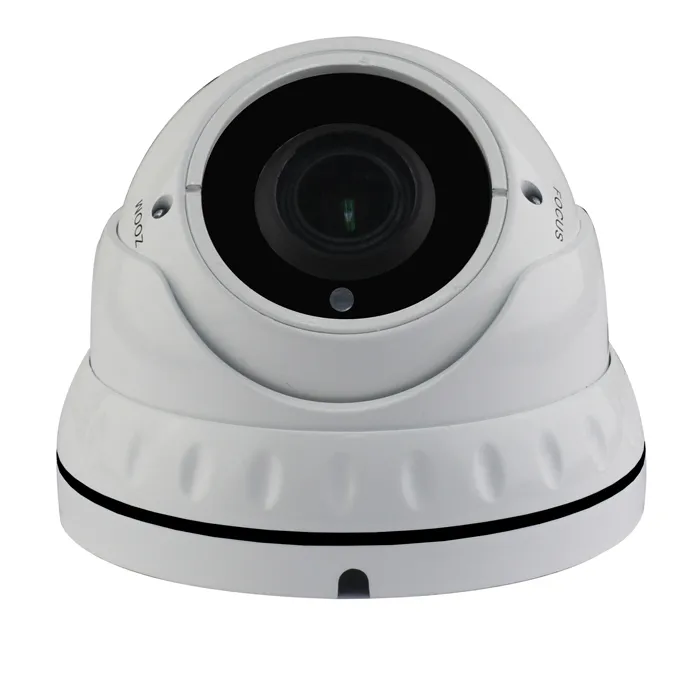

4" Metal IP Poe Hidden IR LED Manual Zoom Lens Network Security H. 265 Onvif IP66 Motion Detection Remote View Plug & Play IP Dome Camera
Features: 4'' Metal IR Dome IP CameraWater Resistance: IP65IR LED: ¢14μX24pcs, IR Range: 30MObscured glass, hidden IR LedVideo Output: 1 x RJ45 port, wifi OptionalSupport Onvif, Support Gmail/GOOGLE/QQ/EMAILPNP(Plug and Play), support smart phone & tabletsDeep Base(600g) add......
Send Inquiry
Product Description
Features:

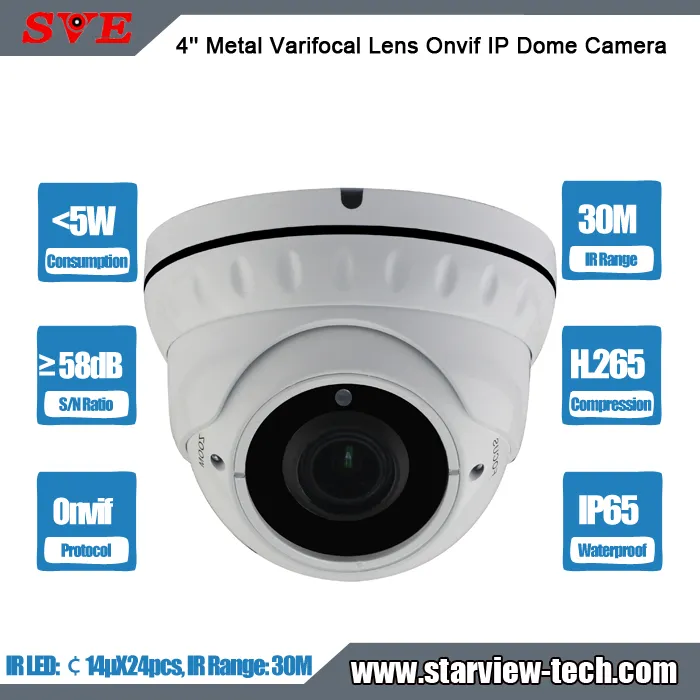

4'' Metal IR Dome IP Camera
Water Resistance: IP65
IR LED: ¢14μX24pcs, IR Range: 30M
Obscured glass, hidden IR Led
Video Output: 1 x RJ45 port, wifi Optional
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets

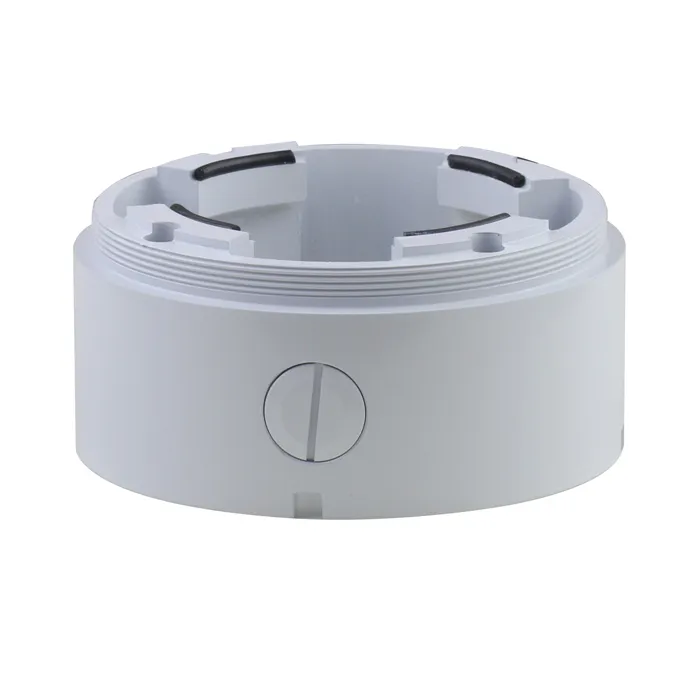

Deep Base(600g) add $4
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
24PCS Per Carton
Size: 131mm x 93mm
Weight: 820g
Specifications
4'' Metal IR Dome IP Camera
Water Resistance: IP65
IR LED: ¢14μX24pcs, IR Range: 30M
Obscured glass, hidden IR Led
Video Output: 1 x RJ45 port, wifi Optional
Support Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
Deep Base(600g) add $4
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10ºC~ +60ºC
24PCS Per Carton
Size: 131mm x 93mm
Weight: 820g
Specifications
| Model ID | SVN-WIBV20C | SVN-WIBV20X | SVN-WIBV20T | SVN-WIBV30C | SVN-WIBV30X | SVN-WIBV30T | SVN-WIBV50P | SVN-WIBV20CA | SVN-WIBV20A |
| Description | 4'' Metal IR Dome IP Camera, IR LED: ¢14μX24pcs, IR Range: 30M | ||||||||
| TV System | NTSC / PAL | ||||||||
| Video Output | 1 x RJ45 port | ||||||||
| Chipset Solution | 1/3" 2.0 MP CMOS Low illumination SC2235 + HI3516EV100 | 1/3" 2.0 MP CMOS Low illumination SONY IMX323+HI3516EV100 | 1/2.5" 2.0 MP CMOS Starlight Low illumination SONY IMX307 + HI3516EV100 | 1/2.5" 3.0 MP CMOS Low illumination SONY IMX323 + Hi3516CV300 | 1/2.5".0 MP CMOS Low illumination SONY IMX323 + Hi3516CV300 | 1/2.5" 3.0 MP CMOS Low illumination SONY IMX291 + Hi3516CV300 | 1/3" 5.0 MP CMOS Low illumination PS5239+ Hi3516DV100 | 1/2.5" 2.0 MP CMOS Low illumination SC2235 + Hi3516EV100 | 1/2.5"2.0 MPCMOS Low illumination SONY IMX323 + Hi3516C |
| Resolution | 1080P@20fps, 720P@25fps | 1080P@20fps, 720P@25fps | 1080P@25fps, 1080P@25fps | 3MP@25fps, 1080P@25fps | 3MP@25fps, 1080P@25fps | 3MP@25fps, 1080P@25fps | 5MP@15fps, 4MP@25fps | 1080P@20fps, 1080P@25fps | 1080P@25fps, 720P@25fps |
| Effective Pixels | 1920(H)×1080(V) | 1920(H)×1080(V) | 1920(H)×1080(V) | 2560(H)×1440(V) | 2560(H)×1440(V) | 2560(H)×1440(V) | 2592(H)×1944(V) | 1920(H)×1080(V) | 1920(H)×1080(V) |
| Minimum Illumination | 0.001Lux | ||||||||
| Lens | 3MP 2.8-12mm Manual Zoom Lens | 3MP 2.8-12mm Manual Zoom Lens | 3MP 2.8-12mm Manual Zoom Lens | 5MP 2.8-12mm Manual Zoom Lens | 5MP 2.8-12mm Manual Zoom Lens | 5MP 2.8-12mm Manual Zoom Lens | 5MP 2.8-12mm Manual Zoom Lens | 3MP 2.8-12mm 4X motorized zoom lens(Auto focus) | 3MP 2.8-12mm 4X motorized zoom lens(Auto focus) |
| Sync,System | Internal Synchronization | ||||||||
| Network | 1 RJ45 Ethernet interface, 10/100M adaptation | ||||||||
| Video Compression | H.265 | H.264+ | |||||||
| Protocol | Support Gmail/GOOGLE/QQ/EMAIL | ||||||||
| Onvif | Support Onvif | ||||||||
| S/N Ratio | ≥ 58dB | ||||||||
| POE | External PoE (Optional) | ||||||||
| OSD | YES | ||||||||
| WIFI | Optinal | ||||||||
| Power Source | DC 12V/2A | ||||||||
| Consumption | <5W | ||||||||
| Operating Enviroment | -10ºC~60ºC / 10% ~ 95%RH | ||||||||
| Working Humidity | ≤90% | ||||||||
| Size(mm) | 131mm x 93mm | ||||||||
| Weight(kg) | 0.82 kg | ||||||||
