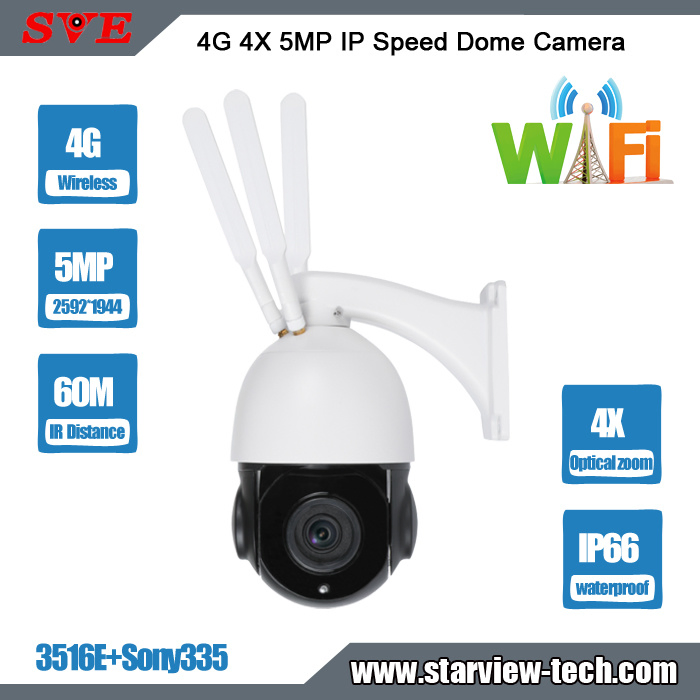

4 Inch 4X 5MP 4G Starlight WiFi IP Speed PTZ Dome Camera
Key FeaturesSupport 4G / 3G / 2G + Wi Fi wireless access4 inch Middle Speed Dome camera1/2.8" CMOS, 5.0 Megapixels, 5X optical zoomHD-IP digital interface output, 1944P high definition imageDNR (Digital Noise Reduction : 2D + 3D)Intelligent Motion DetectionONVIF V2.4 Conformance SupporCompatibl......
Send Inquiry
Product Description
Key Features

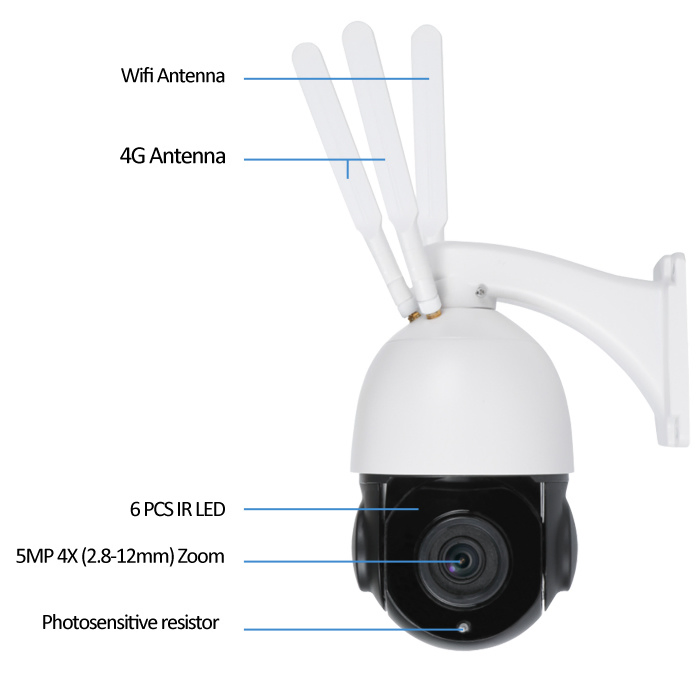

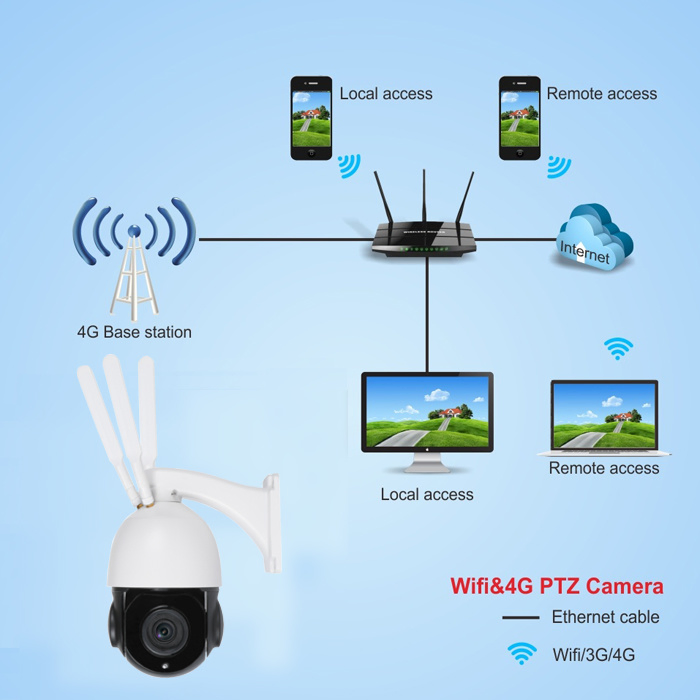

- Support 4G / 3G / 2G + Wi Fi wireless access
- 4 inch Middle Speed Dome camera
- 1/2.8" CMOS, 5.0 Megapixels, 5X optical zoom
- HD-IP digital interface output, 1944P high definition image
- DNR (Digital Noise Reduction : 2D + 3D)
- Intelligent Motion Detection
- ONVIF V2.4 Conformance Suppor
- Compatible With HIKVISION NVR And IVMS-4200(V2.02.03.03) Softwar
- PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
- Total Metal body construction, IP66 rate protection
- IR distance 60M
Technical parameters
| MODLE | SVN-4G-92AR-500-4X-Q |
| 4G | MDM9607/MDM9207 |
| Working frequency band | GSM/GPRS/EDGE 900M/1800M |
| CDMA/EVDO BC0 800M | |
| TD_SDCMA B34,B39 | |
| UMTS/WCDMA B1 B5 B8 | |
| LTE-FDD B1 B3 B5 B7 B8 B20 | |
| LTE-TDD B38 B39 B40 B41 | |
| Wireless rate | GPRS:Max 85.6Kpbs(DL)/Max 85.6Kpbs(UL) |
| CDMA/EVDO:Max 3.1Mpbs(DL)/Max 1.8Mpbs(UL) | |
| WCDMA/DC-HSPA+:Max 42Mbps(DL)/Max 5.76Mbps(UL) | |
| TD-SCDMA:Max 4.2Mbps(DL)/Max 2.2bps(UL) | |
| LTE-FDD:non-CA cat4 Max 150Mbps(DL)/Max 50Mbps(UL) | |
| LTE-TDD:non-CA cat4 Max 130Mbps(DL)/Max 35Mbps(UL) | |
| Wifi | 802.11b/g/n |
| WiFi frequency band | 2412MHz----2472MHz |
| Sensor | 1/2.9" progressive 3516E+ SONY335 |
| Video Compression | H.265 Main Profile / H.264 High profile / M-JPEG |
| Effective pixels | 1944P(2592X1944) |
| Total pixels | 5.0 Megapixels |
| Output Pixel | 2592*1944@30fps1920*1080@30fps1280*720@60fps1280*720@50fps |
| Lens | 20Xoptical zoom f=2.8~ 12mm |
| Iris | F1.4 |
| FOV | 23° -115° |
| Min. illumination | Color: 0.01 Lux,B/W: 0 Lux |
| D/N | IR-CUT |
| BLC | Auto |
| WB | Auto |
| S/N Ratio | ≥50dB(AGC OFF) |
| TF Card | Support |
| Audio frequency | Optional |
| Audio compression | G711, PCM |
| Communications Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP, RTSP, ARP, DDNS, DNS, HTTPS, P2P |
| Compatibility | IE, CMS, HCMS,HIKVISION,UC ONVIF |
| Mobile View(optional) | Support Windows, Symbian, iPhone platform smartphone |
| P2P | Anfroid IOS |
| Preset Points | 128 |
| Pattern Scan | 1 groups |
| Guard Tours | 8 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Tilt Range | 0~90°(Auto Flip) |
| Pan Range | 360° continued rotation |
| Horizontal speed | Level keying speed:0.1 ° ~ 45 ° / s, |
| Vertical Speed | Vertical keying speed: 0.1 ° ~ 45° / s, |
| Pan and Tilt position display | Support |
| Auto Control IR LED | PWM |
| Support ambient light detection | IR illumination on 1-15 grades selectable; |
| LED | Φ42 6pcs |
| IR distance | up to 60 meters |
| Humidity | ≤95% Non Condensing |
| Power | DC12V ≤3A |
| Consumption | < 20W |
| Operating temperature | Indoor: 0°~ +40° Outdoor: -40°~ +60° |
| Lightning Protection | Transient voltage 3000V |
| Interface | 1 channel network interface, power input |

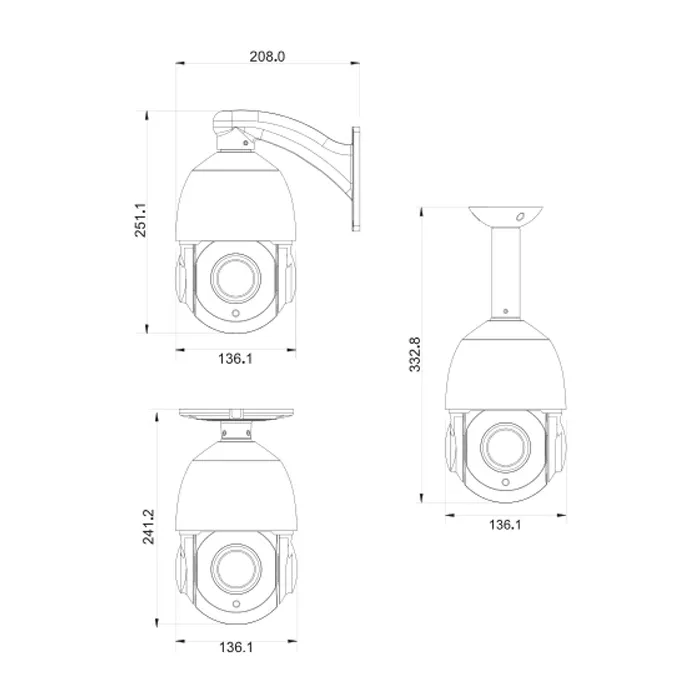

| Size/Weight | W205mm*D205mm*H190mm, 2.0KG |
| Related validation | IP66,CE,FCC,RoHs |
