4CH WiFi NVR Kit 720p 1080P 3.0MP Optional, Smart Home Wireless WiFi Security Camera Kits, Waterproof IP Camera Complete Sets CCTV Surveillance Camera System
4CH WIFI NVR Kit 720p 1080p 3.0MP optional, Smart home Wireless WiFi Security Camera Kits, Waterproof IP Camera Complete Sets CCTV Surveillance Camera SystemComplete kit including: 1pc *4chs 720P wifi nvr ......
Send Inquiry
Product Description
4CH WIFI NVR Kit 720p 1080p 3.0MP optional, Smart home Wireless WiFi Security Camera Kits, Waterproof IP Camera Complete Sets CCTV Surveillance Camera System

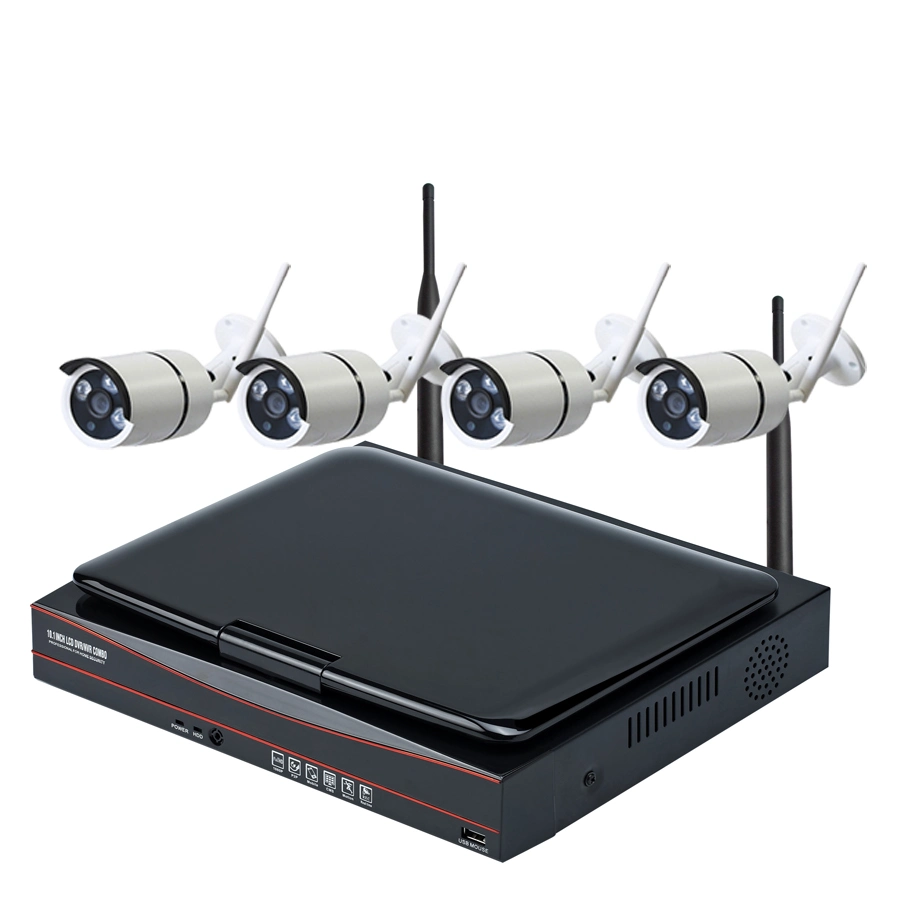

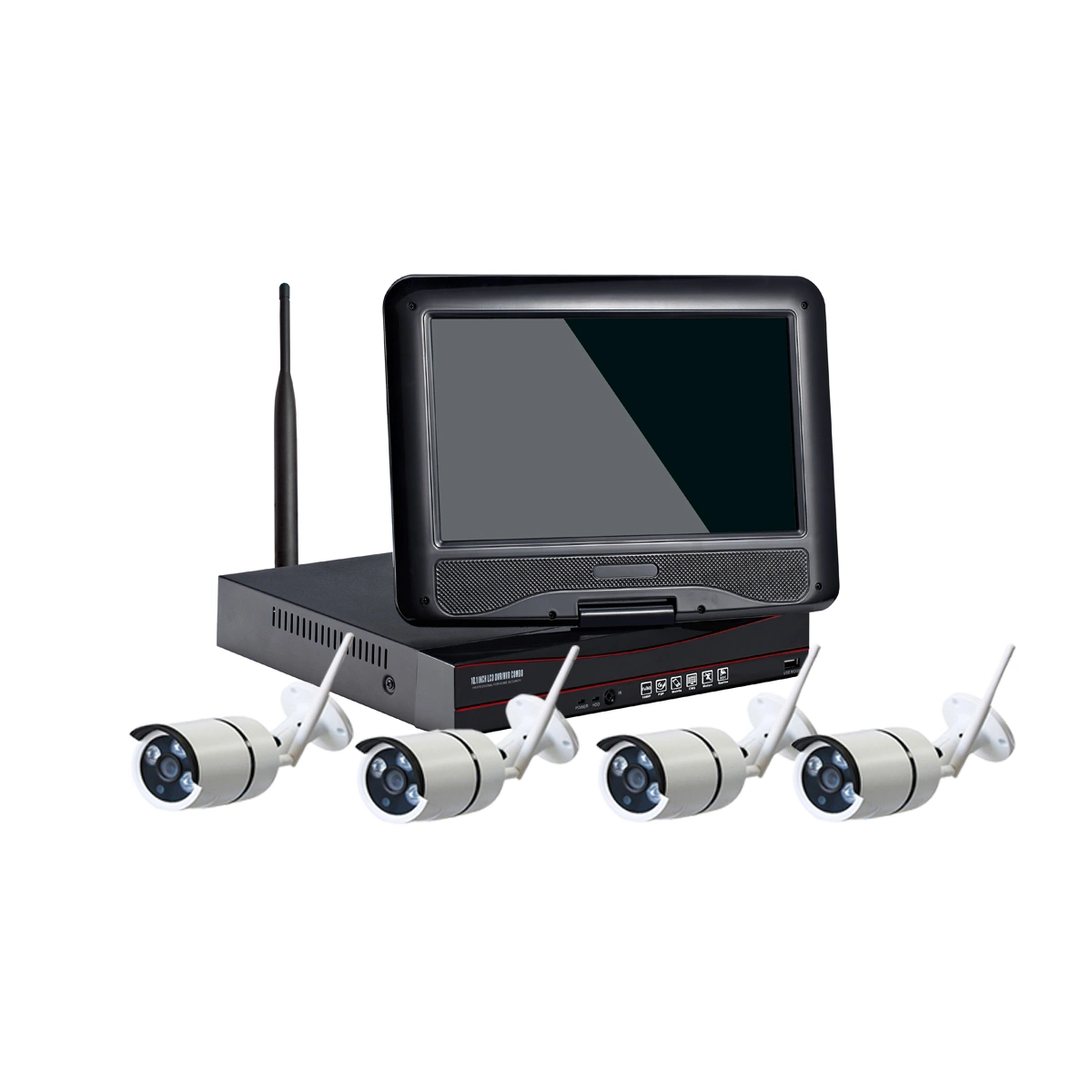

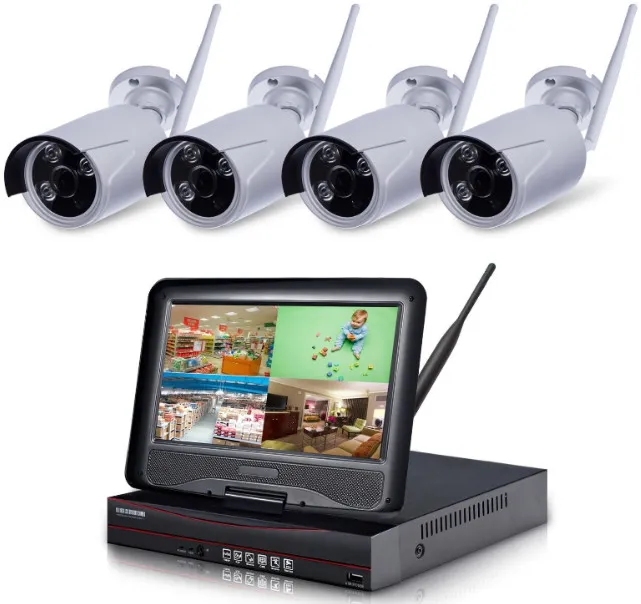

Complete kit including:
1pc *4chs 720P wifi nvr with monitor;

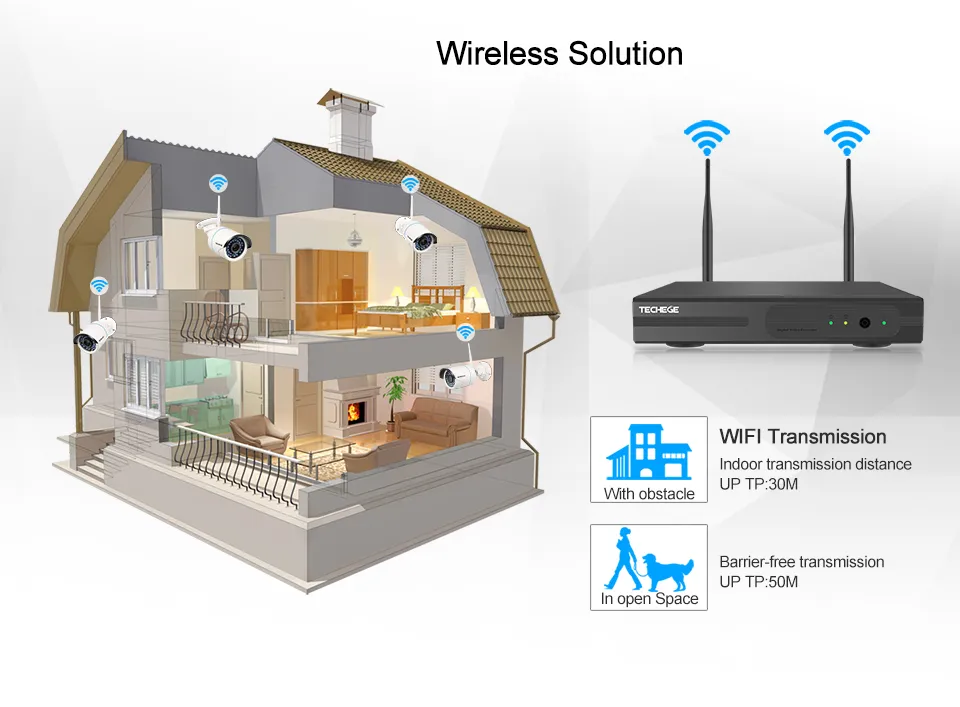

4pcs *outdoor 30m WFI 1.0Megapixel/1.3Megapixel IR waterproof IP cameras
4pcs *12v1a power
Complete kit including:
1pc *4chs 720P wifi nvr with monitor;
4pcs *outdoor 30m WFI 1.0Megapixel/1.3Megapixel IR waterproof IP cameras
4pcs *12v1a power
Main Feature of 4CH Wireless Camera Kits with 10.1"Screen:
*Build in 10.1inch standard definition LCD Screen (resolution: 10241*768), LCD screen can support 320 degree rotate;

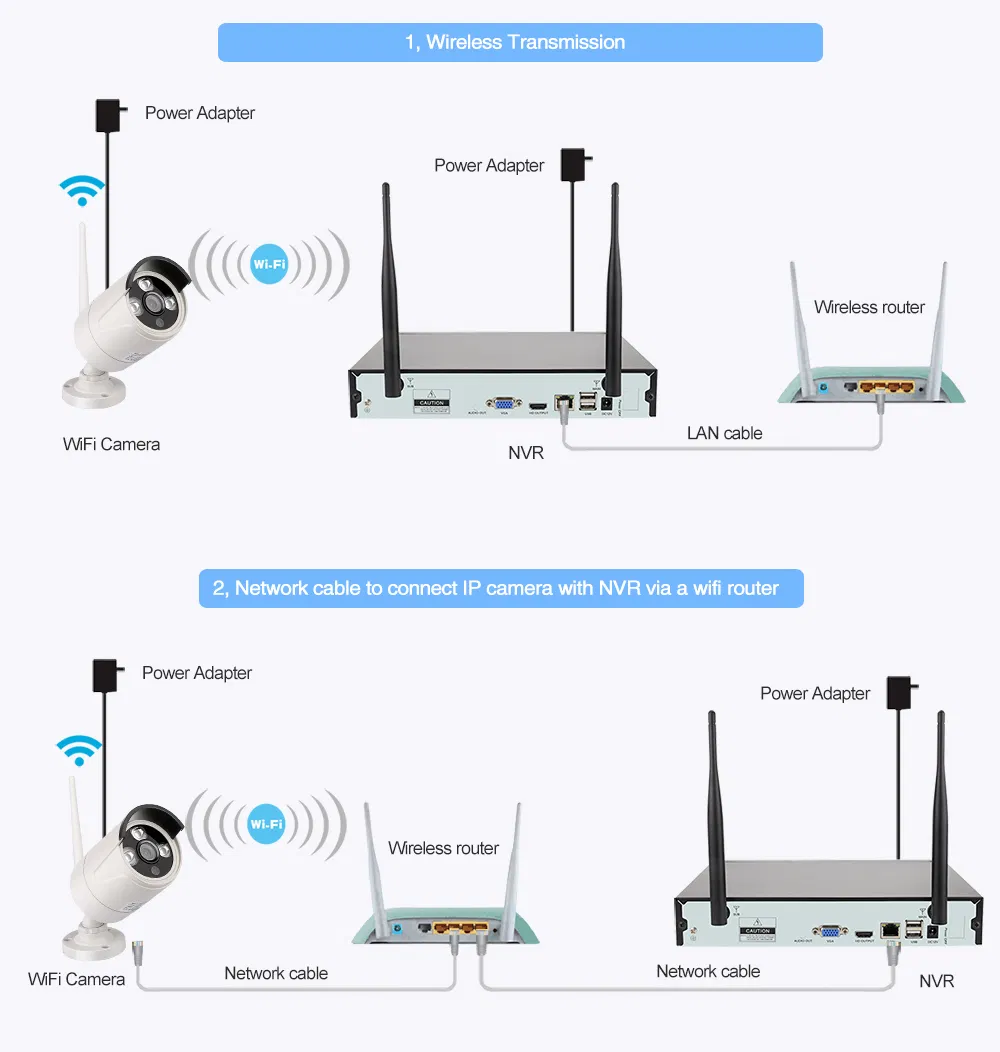

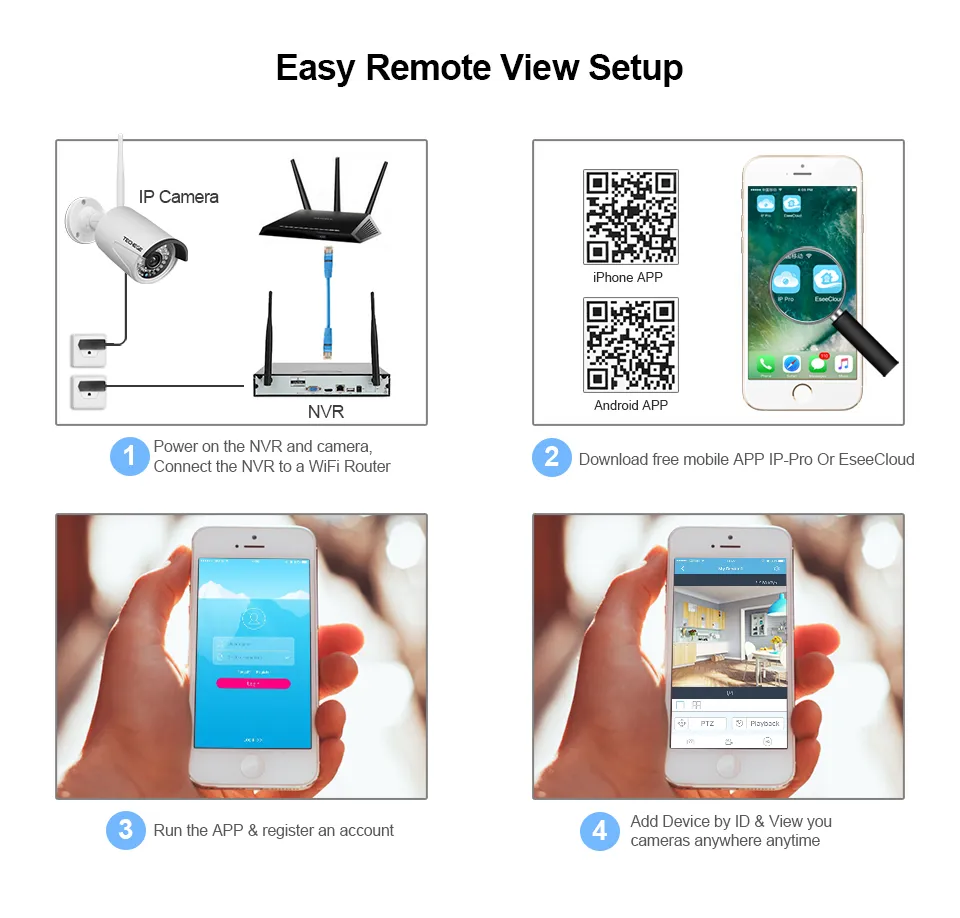

*One Step on the Internet: With eseecloud service, easy to achieve a variety of network penetrations one step to remote monitoring, getting rid of various complicated networksettings, easy and simple to operate;

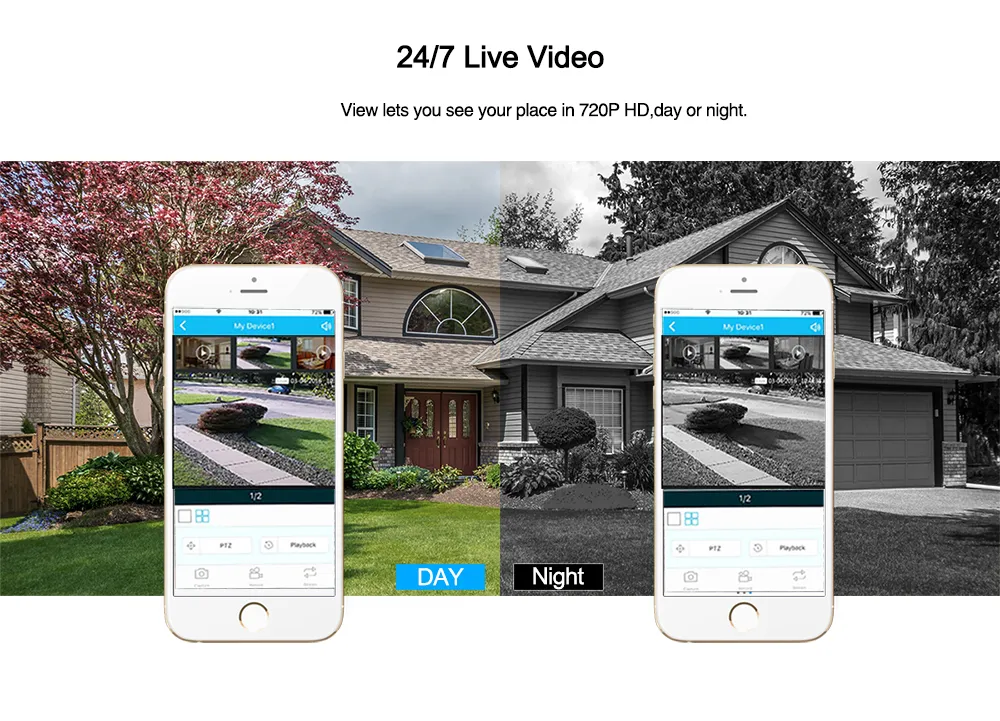

*Mobile monitor: Support various mobile monitoring(iPhone, Android);
Display: Support HDMI HD output;
Compression algorithm ideal: H.264 High Profile compression algorithm;
Datasheet of the 4CH WIFI NVR KITS:
*Build in 10.1inch standard definition LCD Screen (resolution: 10241*768), LCD screen can support 320 degree rotate;
*One Step on the Internet: With eseecloud service, easy to achieve a variety of network penetrations one step to remote monitoring, getting rid of various complicated networksettings, easy and simple to operate;
*Mobile monitor: Support various mobile monitoring(iPhone, Android);
Display: Support HDMI HD output;
Compression algorithm ideal: H.264 High Profile compression algorithm;
Datasheet of the 4CH WIFI NVR KITS:
| Wireless nvr | 4CH | |
| Network Video | 4CH | |
| Video input | 4ch 720P/1080P/ 3.0MP | |
| AV (audio/ video) output | HDMI output | 1ch,resolution:1024x768,1366x768,1440x900,1920x1080p, 2304*1296 |
| VGA output | 1ch,resolution:1024x768,1366x768,1440x900,1920x1080p, 2304*1296 | |
| AV CODEC Specification | Video Resolution | D1/720P/960P |
| synch-playback | 4CH | |
| Video Control | Video/Capture mode | Maual,Time,Motion,Alarm |
| Playback mode | Real time,Routine,Event | |
| Backup | USB backup | |

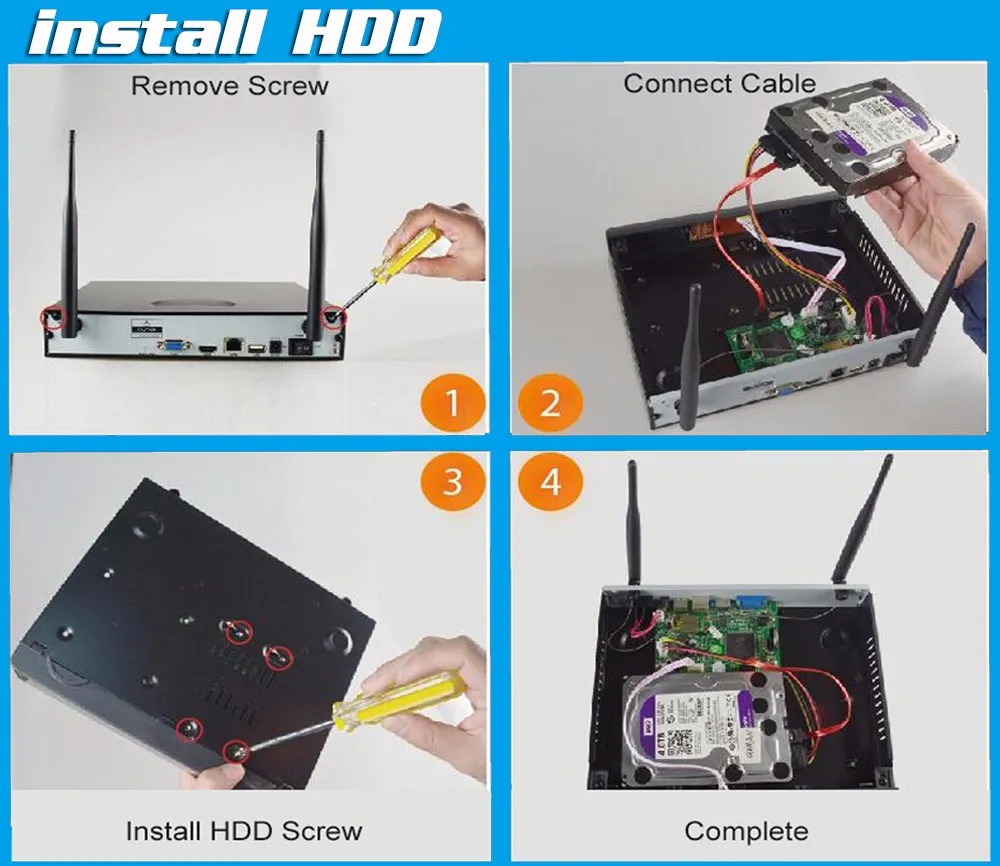

| Hard Disk | Type | 1*SATA interface |
| Max Capacity | 4 TB at most for each | |
| External Interface | Network Interface | 1 adaptable RJ45 10M/100M, 1 WIFI interface |
| USB Interface | 2 USB 2.0 | |
| Network Control | Protocol | UPnP (play&plug)/SMTP (email survice)/ PPPoE (dial-up) |
| DHCP (Automatically obtain an IP address), etc… | ||
| Others | Power Supply | DC12V3A |
| Power Consumption (W) | ≤5W(Without HDD) | |
| Operate Temperature (°C) | -10ºC~+55ºC | |
| Working Humidity (%) RH | 10%~90% | |
| Model | 720P CAMERA | 960P CAMERA | 1080P CAMERA |
| Sensor | 1/4" Progressive Scan Sensor | 1/3" Progressive Scan Sensor | 1/3" Progressive Scan Sensor |
| S/N Ratio | > 39.1 dB | > 39.1 dB | > 39.1 dB |
| Resolution | 1280 x 720 16 : 9 | 1280 x 960 4 : 3 | 1920 x 1080 16 : 9 |
| Minimum illumination | Color: 0.1 Lux B/W: 0.01 Lux | Color: 0.1 Lux B/W: 0.01 Lux | Color: 0.1 Lux B/W: 0.01 Lux |
| Lens | 4/6mm | 4/6mm | 4/6mm |
| OSD | Date Time & Title | Date Time & Title | Date Time & Title |
| Day & Night | Auto / Color / BW | Auto / Color / BW | Auto / Color / BW |
| 3D-DNR | Auto | Auto | Auto |
| Mirror/Flip | On / Off | On / Off | On / Off |
| Privacy Regional Shelter | 4 Zone Selectable | 4 Zone Selectable | 4 Zone Selectable |
| smart stream | Dual-stream: | Dual-stream: | Dual-stream: |
| 1280x720@15fps | 1280x960@15fps | 1920x1080@15fps | |
| 640x360@15fps | 640x360@15fps | 640x480@15fps | |
| Power | DC12V-1A | DC12V-1A | DC12V-1A |
| Power consumption | ≤6W | ≤6W | ≤6W |
| Port | RJ45 / WIFI 802.11b/g/n | RJ45 / WIFI 802.11b/g/n | RJ45 / WIFI 802.11b/g/n |
| Audio | Audio tail line output (Optional) | Audio tail line output (Optional) | Audio tail line output (Optional) |
| working temperature/ humidity | -10ºC to +50ºC / 30% to 80% RH | -10ºC to +50ºC / 30% to 80% RH | -10ºC to +50ºC / 30% to 80% RH |
| Storage temperature/humidity | -20ºC to +60ºC / 20% to 90% RH | -20ºC to +60ºC / 20% to 90% RH | -20ºC to +60ºC / 20% to 90% RH |
