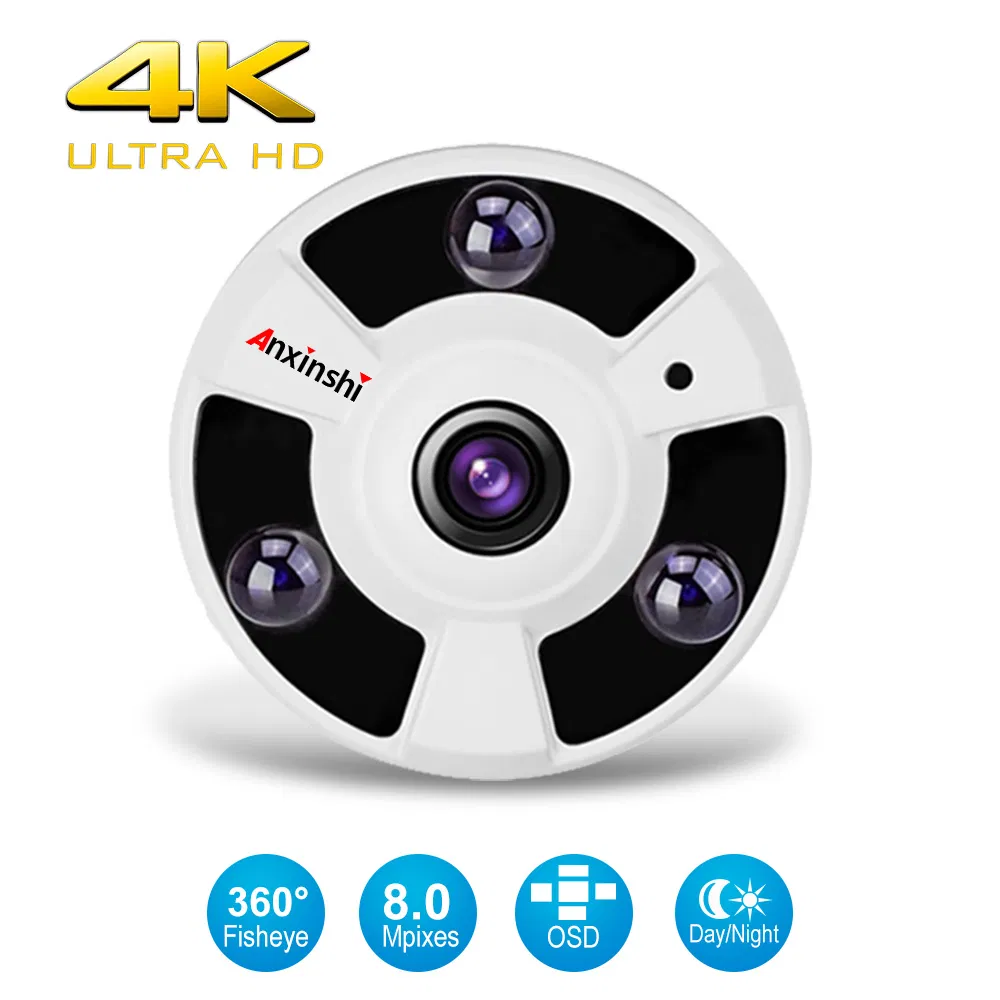

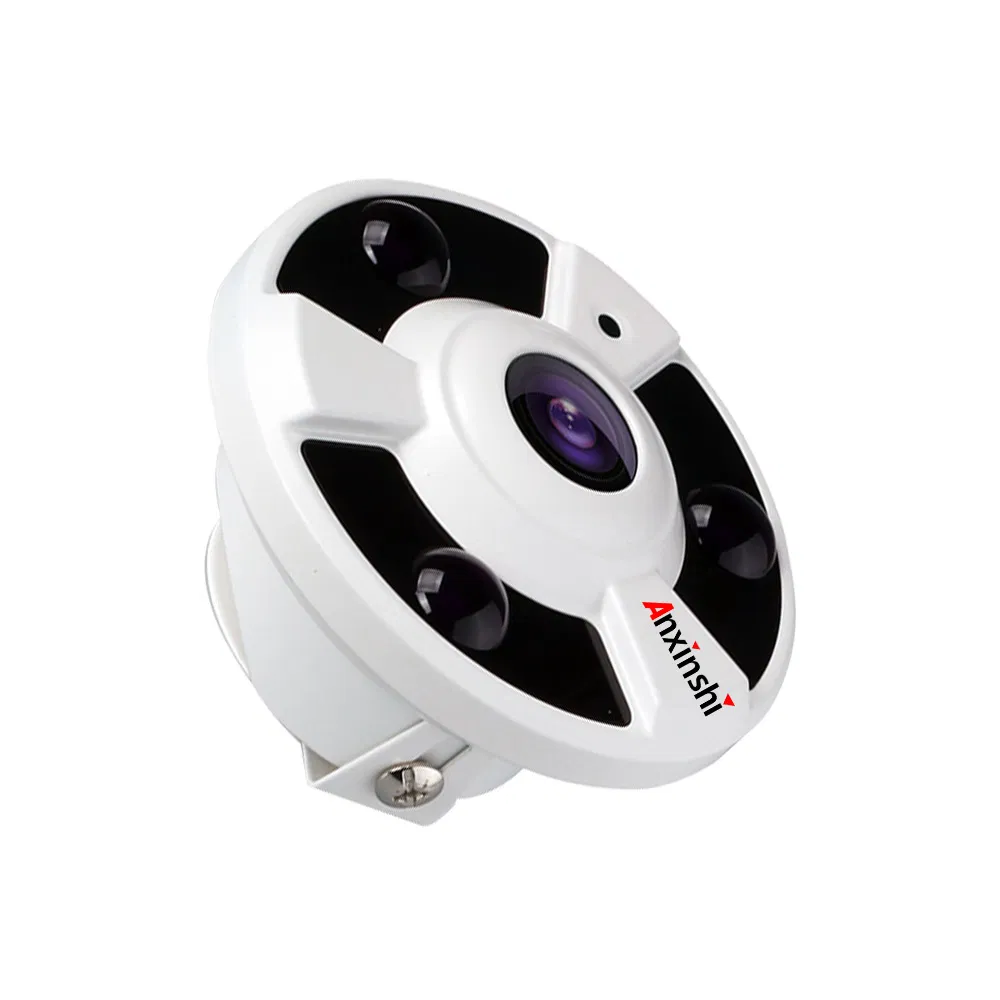

China 4K Panoramic 360 Degree Fisheye 4 in 1 IP CCTV Camera

Product Description

Key Features:
1.Adopt Analog HD technology
2. Support 6 output modes , Full HD 8MP AHD /TVI/CVI/CVBS output
3.1/1.8" 8.0MP Progressive Scan CMOS
4.Min illumination color 0.001 Lux, 0 Lux with IR
5.Day/Night(ICR)& DNR&AWB&AGC&BLC
6.Support the OSD menu control, support UTC function

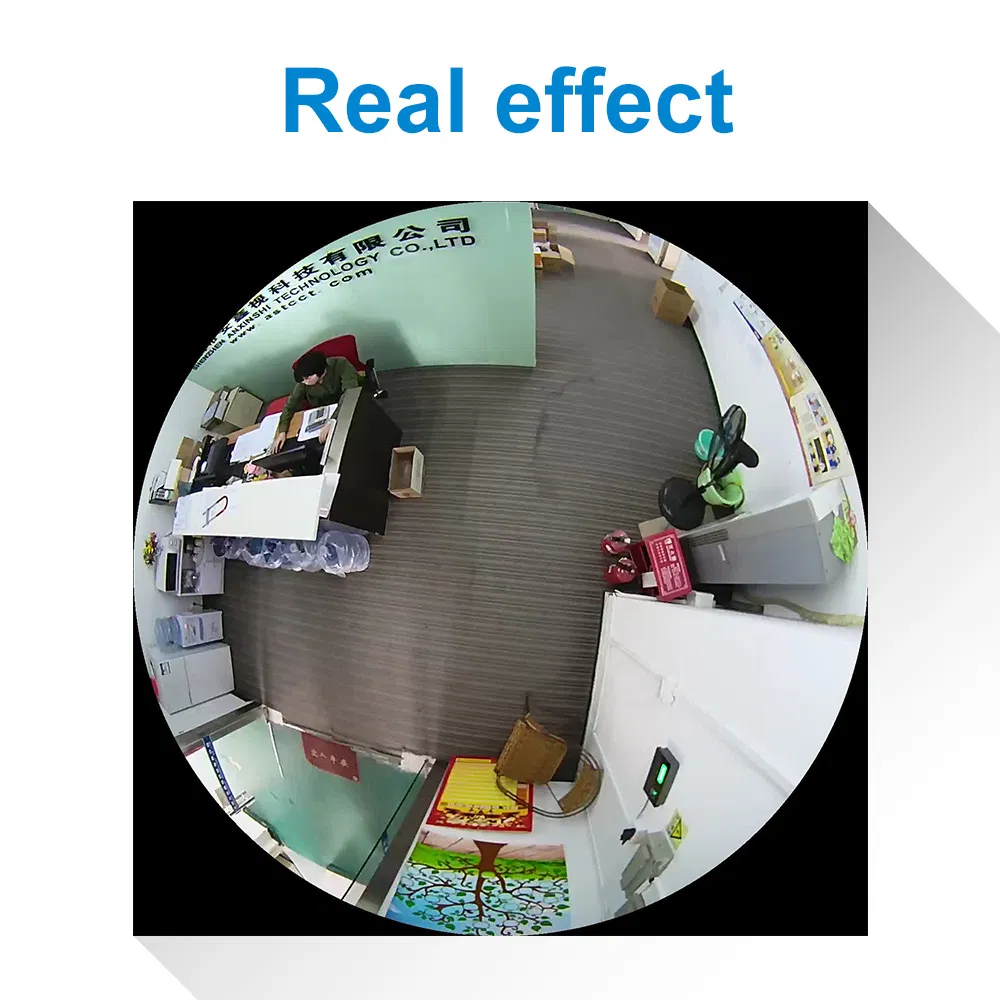

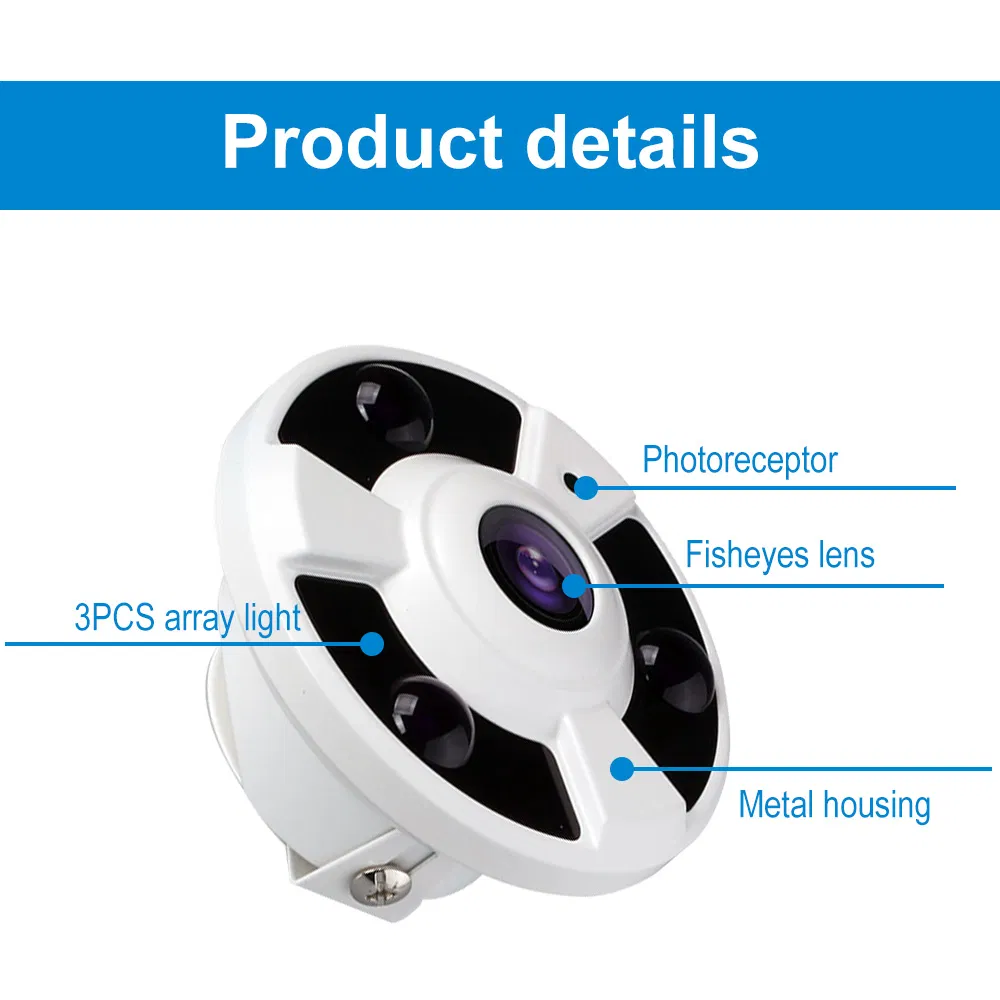

7.1.55mm Fisheye Lens
8.3pcs array IR LEDs, up to 20m IR distance
9.metal housing

Form parameters
Mode	Name and Description	4K 8.0MP AHD /TVI/CVI/CVBS High Definition IR Fisheye Camera
Mode	Name and Description	ASHD20-D25-81
Camera	Media Processor	Fullhan 8556 + OV OS08A10
	Image Sensor	1/1.8" 8.0MP Progressive Scan CMOS
	Effective Pixels	3096(H) × 2202(V)
	Video Frame Rate	1440P (30/15fps)
	Signal System	PAL/NTSC
	Min. Illumination	0.01 Lux @(F1.2,AGC ON), 0 Lux with IR
	Shutter Time	AUTO/ 1/50(1/60)-1/60,000sec
	Lens	8MP 1.55mm Fisheye lens
	Lens Mount	M12 Mount
	Day& Night	Auto,dual IR-cut filter
	IR Distance	20m(3pcs Array IR LEDs)
	S/N Ratio	>42dB

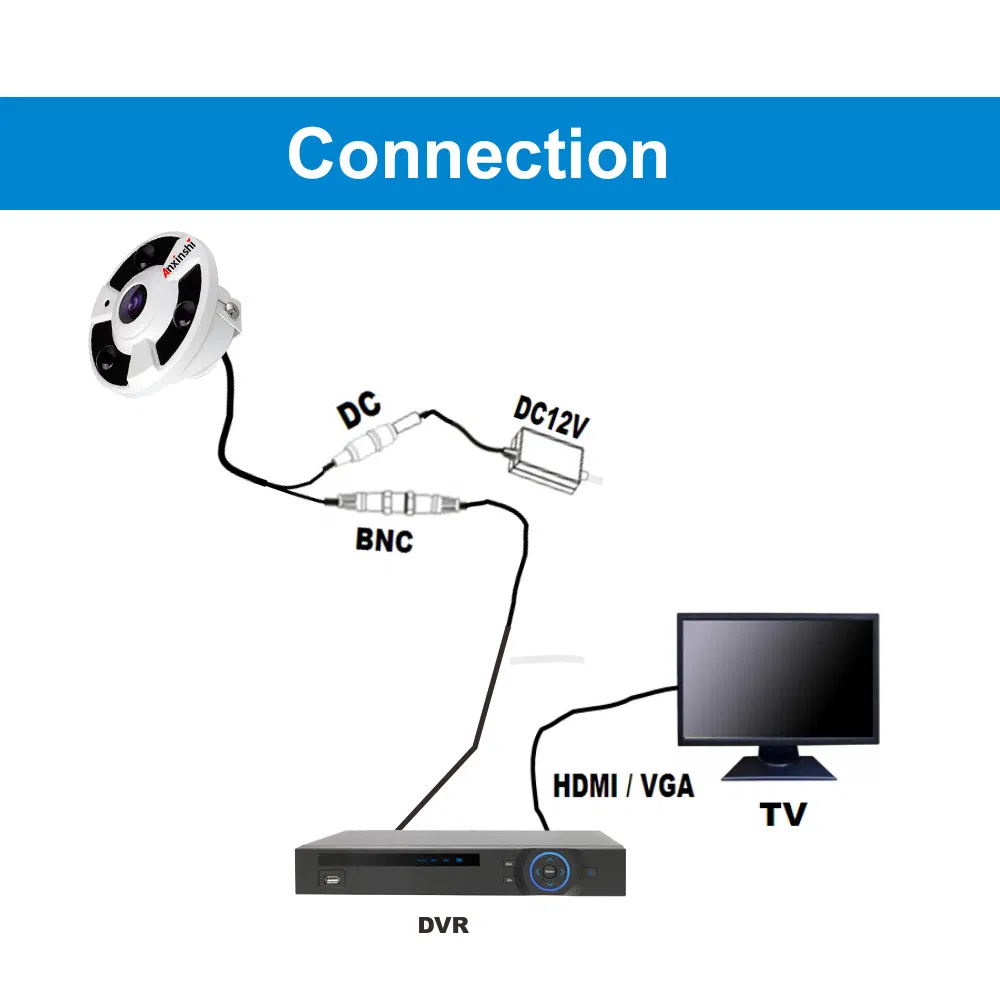

	Video Output	AHD(1440P@15FPS / 1080P / 720P)/ CVI (1440P@30FPS / 1080P / 720P)/ TVI (1440P@15FPS / 1080P / 720P)/ CVBS(960H)
	SDI Output	HD-SDI (1080P/720P) / EX-SDI(1440P)
	Synchronization	Internal Synchronization
Menu	Auto Gain	0-20 steps
	Sensor-UP	Off/X2/X4/X8/X16/X32
	BLC	Off/BLC
	HLC	Off/HLC
	White Balance	Auto/Auto ext/Preset/Manual
	D-WDR	Off/Low/Middle/High; WDR SNR: 120Db
	Noise Reduction	Off/Low/Middle/High
	Private Mask	Support (16 Zones)
	Motion Detection	Support
	Language	Chinese/English
	Function	AWB, BLC , Mirror,D-WDR
General Parameters	Power Supply	DC12V
	Operation Temperature	-20ºC - +50ºC
	Operation Humidity	Less than 95%RH(no condensation)

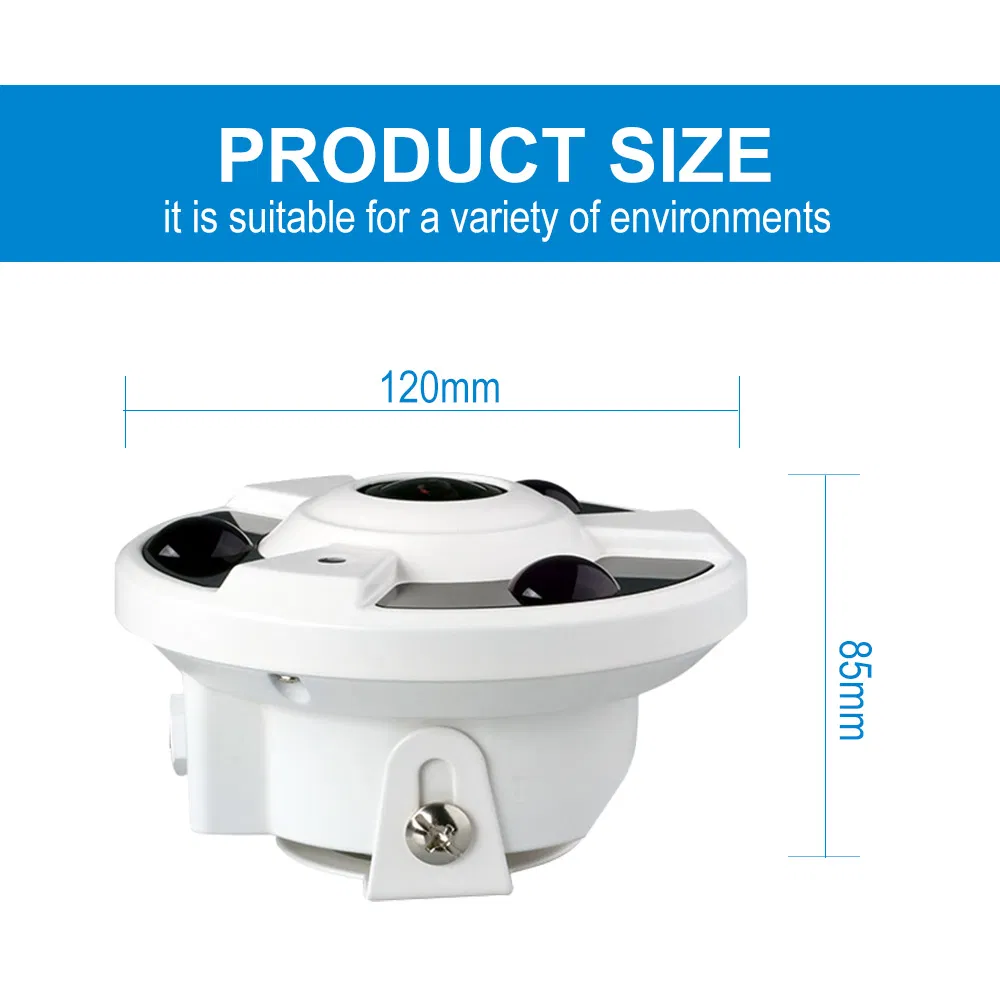

	Dimension	120×75mm
	Weight	0.33Kg
