Product Description

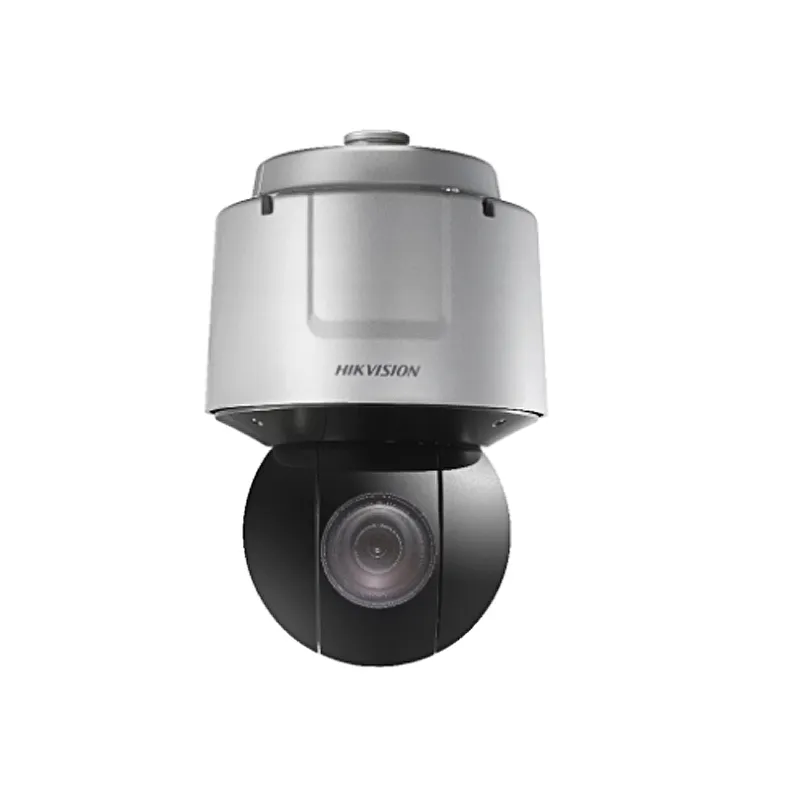

4k ptz camera DS-2DF6A825X-AEL 8mp 25x speed dome vandal proof outdoor ptz ip camera hikvision
----------------------------------------------------------------------------------------------------------------------------------------
The main products include the CCTV camera, PTZ Camera,Stand alone DVR, DVR Card,Ip Camera and accessories.

We are also Hikvision all series poducts supplier, We can provide Original English version Hikvision products, Hikvision neutral version products, also Hikvision OEM / ODM Hikvision products .

What's your Product Specification

6-inch 4K 25X Powered by DarkFighter Network Speed Dome

High quality imaging with 8 MP resolution
Excellent low-light performance via DarkFighter technology
25x optical zoom provides close up views over expansive areas
Intelligent functions based on deep learning
Water and dust resistant (IP67) and vandal proof (IK10).

4K PTZ Camera Ds-2df6a825X-Ael 8MP 25X Speed Dome Vandal Proof Outdoor PTZ IP Camera Hikvision

Lens
FOVHorizontal field of view: 56.1° to 3.0° (wide-tele),Vertical field of view: 33.4° to 1.7° (wide-tele),Diagonal field of view: 62.9° to 3.4° (wide-tele)
Zoom SpeedApprox. 6.4 s (optical lens, wide-tele)
Working Distance10 mm to 1500 mm (wide-tele)
Aperture RangeF1.5 to F4.0
Focal Length7.5 mm to 187.5 mm, 25× optical zoom

Image EnhancementHLC/BLC/3D DNR/Optical Defog/EIS/Regional Exposure/Regional Focus
Sub-Stream50Hz: 25fps (704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (704 × 480, 640 × 480, 352 × 240)
Max. Resolution4096 × 2160
Main Stream50Hz: 25fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (4096 × 2160, 3840 × 2160, 3072 × 1728, 2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720)
Third Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)

Network
Network StorageBuilt-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB; NAS (NFS, SMB/ CIFS), ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
APIOpen-ended, support ONVIF, ISAPI, and CGI, support HIKVISION SDK and Third-Party Management Platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. ,3 levels: Administrator, Operator and User
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.

Interface
BNC1.0 V [p-p]/75 Ω, NTSC (or PAL) composite, BNC
Alarm Output2-ch alarm output
Alarm Input7-ch alarm input
Audio Input1-ch audio input, 2 to 2.4 V[p-p], 1 KΩ ± 10%
Audio Output1-ch audio output, line level, impedance: 600 Ω
Network Interface1 RJ45 10 M/100 M Ethernet Interface, Hi-PoE
RS-485Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive

Compression Standard
H.264+Yes
H.265+Yes
H.264 TypeBaseline Profile/Main Profile/High Profile
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264,Sub-Stream: H.265/H.264/MJPEG,Third Stream: H.265/H.264/MJPEG
H.265 TypeMain Profile
Video Bitrate32 Kbps to 16384 Kbps
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bitrate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
SVCSupport

Camera Module
Image Sensor2/3" progressive scan CMOS
Min. IlluminationColor: 0.005 Lux @(F1.5, AGC ON),B/W: 0.0005 Lux @(F1.5, AGC ON)
White BalanceAuto/Manual/ATW (Auto-tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp
GainAuto/Manual
Shutter Time1/1 s to 1/30,000 s
Day & NightIR Cut Filter
Digital Zoom16×
Privacy Mask24 programmable polygon privacy masks
Focus ModeAuto/Semi-automatic/Manual
WDRDigital WDR
Rapid FocusYes

PTZ
Movement Range (Pan)360° endless
Pan SpeedConfigurable, from 0.1°/s to 350°/s, preset speed: 540°/s
Movement Range (Tilt)From -20° to 90° (auto flip)
Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proportional ZoomYes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-Off MemoryYes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D PositioningYes
PTZ Status DisplayON/OFF
Preset FreezingYes
Scheduled TaskPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan/Dome Reboot/Dome Adjust/Aux Output

Smart Features
Smart TrackingManual Tracking, Auto Tracking (support tracking specified target types such as human and vehicle), Event Tracking
Smart RecordANR (Automatic Network Replenishment), Dual-VCA
ROIEight fixed region for each stream
Perimeter ProtectionIntrusion, Line Crossing, Region Entrance, Region Exiting,Support alarm triggering by specified target types (human and vehicle),Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
Event DetectionUnattended Baggage Detection, Object Removal Detection, Face Detection, Audio Exception Detection

General
MaterialAluminum alloy
DimensionsΦ 231.1 mm × 355.6 mm (Φ 9.10" × 14")
WeightApprox. 6 kg (13.23 lb)
Protection LevelIP67 Standard, IK10, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Power24 VAC (max. 60 W, including max.10 W for heater) , Hi-PoE (max. 50 W, including max.10 W for heater)
Working TemperatureTemperature: -40°C to 70°C (-40°F to 158°F)
Working HumidityHumidity: ≤ 90%
