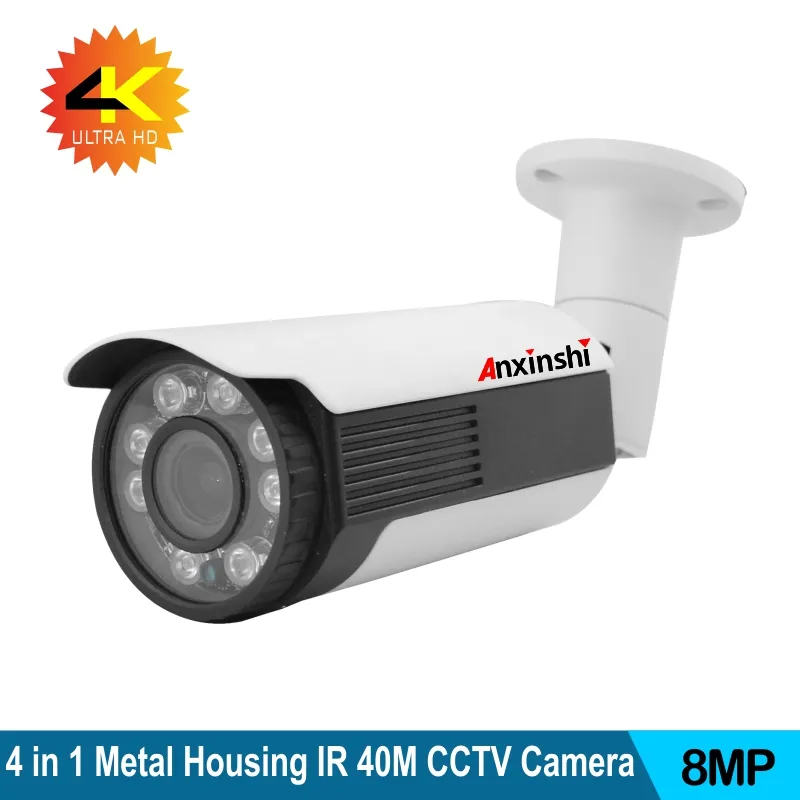

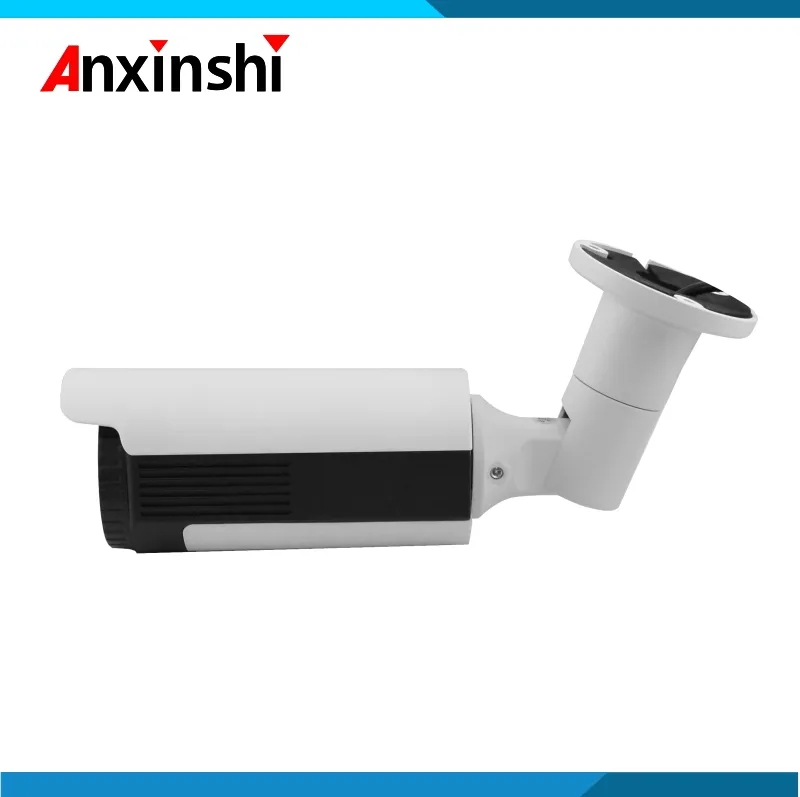

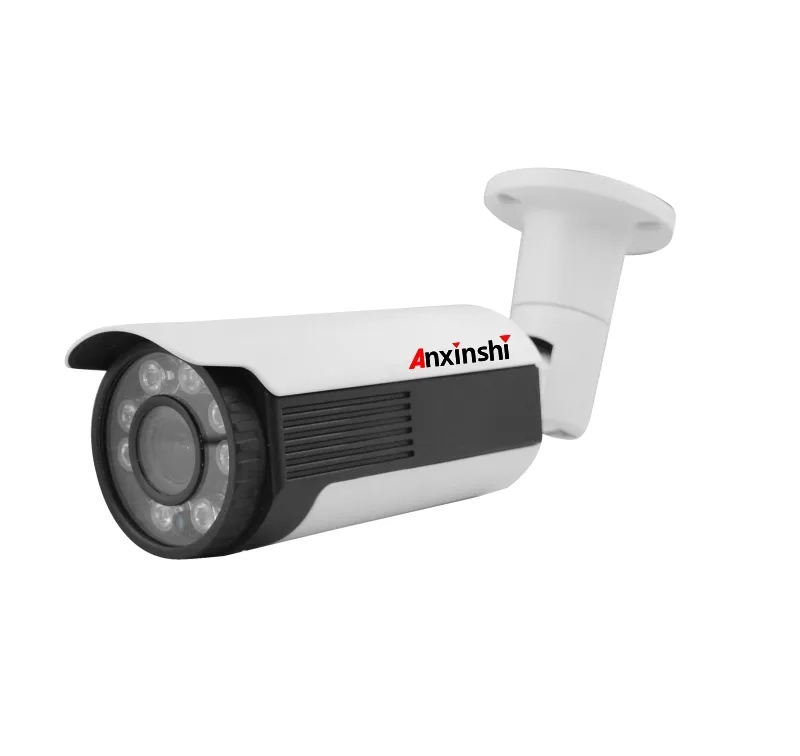

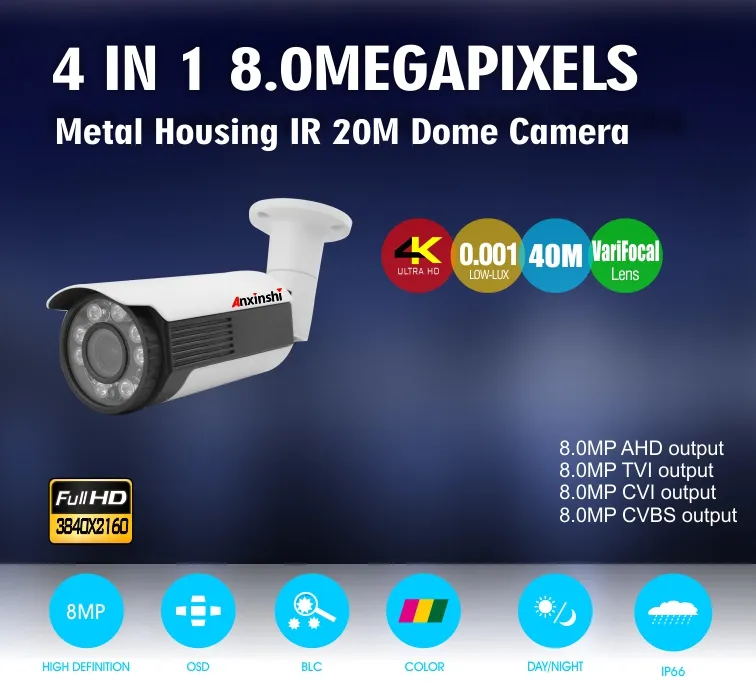

4K Vari Focal 3.6-11mm Ahd/Tvi/Cvi Output Mini Dome Camera
4K Vari Focal 3.6-11mm AHD/TVI/CVI Output mini Dome CameraProduct DescriptionKey Features:1.Adopt Analog HD technology2. Support 4 output modes , Full HD 5MP TVI/AHD/CVI video output or CVBS output3.1/2" 8.0MP Progressive Scan CMOS4.Min illumination color 0.1 Lux, 0 Lux with IR5.Day/Night(ICR)&......
Send Inquiry
Product Description
Product Description
Key Features:
1.Adopt Analog HD technology
2. Support 4 output modes , Full HD 5MP TVI/AHD/CVI video output or CVBS output
3.1/2" 8.0MP Progressive Scan CMOS
4.Min illumination color 0.1 Lux, 0 Lux with IR
5.Day/Night(ICR)& DNR&AWB&AGC&BLC
6.Support the OSD menu control, support UTC function
7.3.6-11mm Vari Focal Lens
8.8pcs Array IR LEDs, up to 40m IR distance

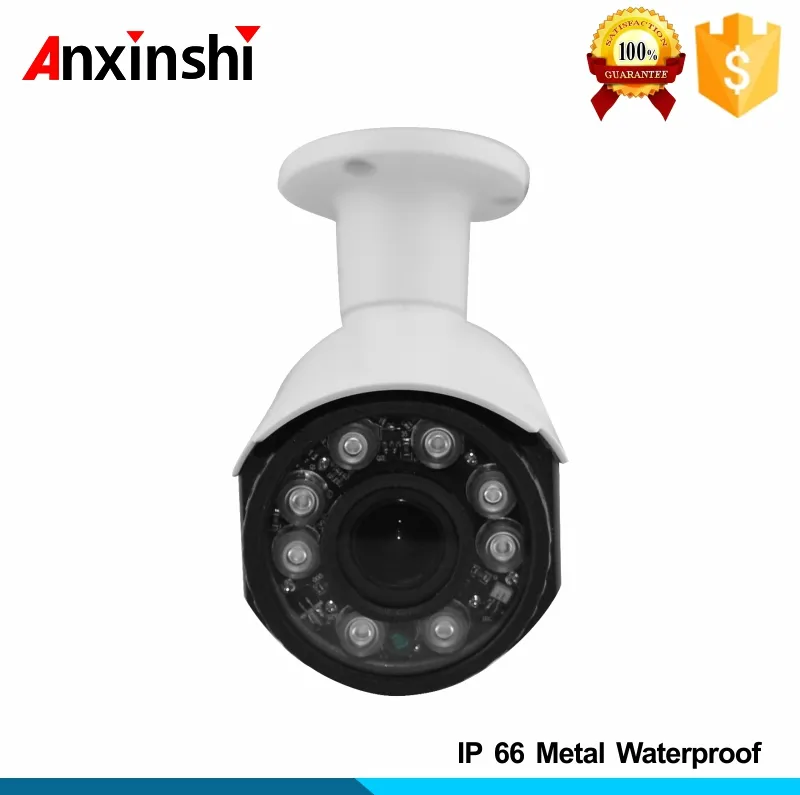

9.metal housing 10.IP66 rating
| Form parameters | ||
| Mode | Name and Description | 8MP 4K 4 In 1 High Definition IR Bullet Camera |
| ASHD40-B47-81 | ||
| Camera | Media Processor | Fullhan 8556 + OV OS08A10 |
| Image Sensor | 1/2.0" 8.0MP Progressive Scan CMOS | |
| Effective Pixels | 2688 (H) × 1944 (V) | |
| Video Frame Rate | 26880×1944@12fps;2688×1944@15fps; | |
| Signal System | PAL/NTSC | |
| Min. Illumination | 0.1 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | AUTO/ 1/50(1/60)-1/10,000sec | |
| Lens | 3.6-11mm Vari Focal Lens | |
| Lens Mount | Φ14 Mount | |
| Day& Night | Auto,dual IR-cut filter | |
| IR Distance | 40m(8pcs Array IR LEDs) | |
| S/N Ratio | >41dB | |
| Video Output | 1 channel, TVI /AHD (5MP) / CVI (4MP) / CVBS (960H) | |
| Synchronization | Internal Synchronization | |
| Menu | Auto Gain | Low/Middle/High |
| BLC | BLC/HSBLC/OFF | |
| White Balance | AWB/ATW/Indoor/Outdoor/Manual | |
| D-WDR | ON/OFF | |
| Noise Reduction | 2D/3D | |
| Private Mask | Support | |
| Motion Detection | Support | |
| Language | Chinese/English/Italian/Polish/Portuguese | |
| Function | AWB, BLC , Mirror,D-WDR | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20ºC - +50ºC | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Dimension | 295(L)×76(W)×74(H) mm | |
| Weight | 0.65Kg | |
FAQ:
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
