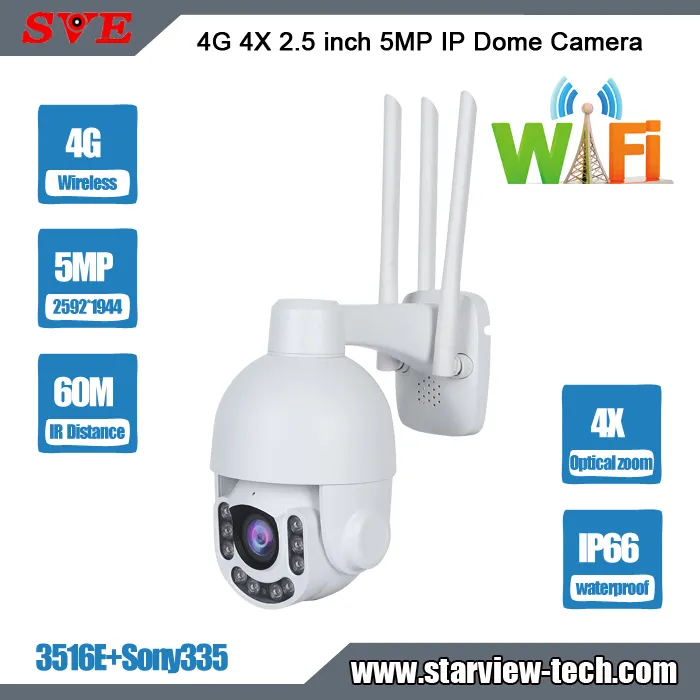

4X 5MP 4G Starlight 2.5 Inch WiFi IP Speed Dome Camera
Key FeaturesSupport 4G / 3G / 2G + Wi Fi wireless access2.5 inch Middle Speed Dome camera1/2.9" CMOS, 5.0 Megapixels, 4X optical zoomHD-IP digital interface output, 1944P high definition imageDNR (Digital Noise Reduction : 2D + 3D)Intelligent Motion DetectionONVIF V2.4 Conformance SupporCompati......
Send Inquiry
Product Description
Key Features

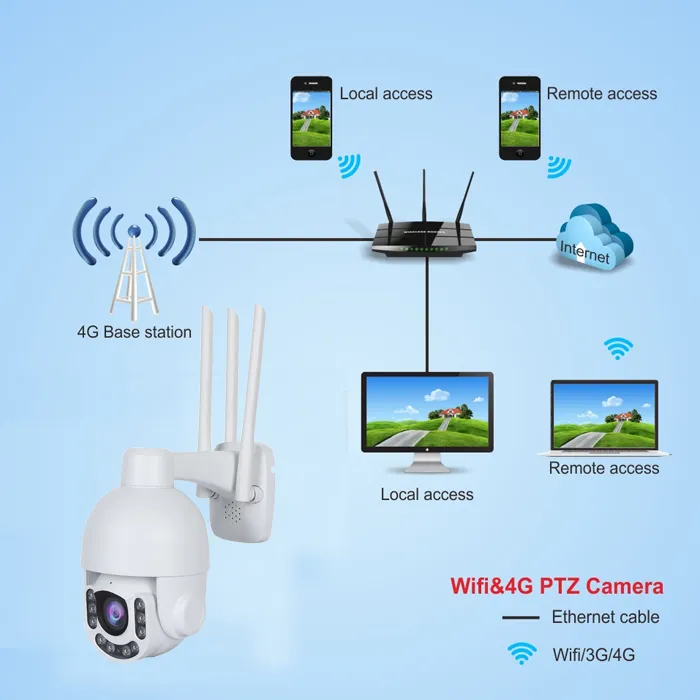

- Support 4G / 3G / 2G + Wi Fi wireless access
- 2.5 inch Middle Speed Dome camera
- 1/2.9" CMOS, 5.0 Megapixels, 4X optical zoom
- HD-IP digital interface output, 1944P high definition image
- DNR (Digital Noise Reduction : 2D + 3D)
- Intelligent Motion Detection
- ONVIF V2.4 Conformance Suppor
- Compatible With HIKVISION NVR And IVMS-4200(V2.02.03.03) Softwar
- PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
- Total Metal body construction, IP66 rate protection
- IR distance 60M
Technical parameters
| MODLE | SVN-4G-07AR-500-4X |
| 4G | MDM9607/MDM9207 |
| Working frequency band | GSM/GPRS/EDGE 900M/1800M |
| CDMA/EVDO BC0 800M | |
| TD_SDCMA B34,B39 | |
| UMTS/WCDMA B1 B5 B8 | |
| LTE-FDD B1 B3 B5 B7 B8 B20 | |
| LTE-TDD B38 B39 B40 B41 | |
| Wireless rate | GPRS:Max 85.6Kpbs(DL)/Max 85.6Kpbs(UL) |
| CDMA/EVDO:Max 3.1Mpbs(DL)/Max 1.8Mpbs(UL) | |
| WCDMA/DC-HSPA+:Max 42Mbps(DL)/Max 5.76Mbps(UL) | |
| TD-SCDMA:Max 4.2Mbps(DL)/Max 2.2bps(UL) | |
| LTE-FDD:non-CA cat4 Max 150Mbps(DL)/Max 50Mbps(UL) | |
| LTE-TDD:non-CA cat4 Max 130Mbps(DL)/Max 35Mbps(UL) | |
| Wifi | 802.11b/g/n |
| WiFi frequency band | 2412MHz----2472MHz |
| Camera | |
| Image Sensor | 1/2.8 5.0Megapixels Sony IMX335 CMOS |
| Effective Pixels | 5.0 Mpixes |
| Min. Illumination | Color: 0.01Lux@(F1.6, AGC ON) B/W:0.Lux |
| Zoom | 4X , f=2.8mm~12mm, D/N( ICR-Cut) |
| Day/Night | Day / Night / External contro/IR Cut Filter |
| SNR | >=50dB(AGC OFF) |
| WDR | Super WDR >=120dB |
| AGC | Auto / Manual |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| Digital noise Reduction | DNR,3DNR |
| Shutter speed | 1/1-1/10,000s |
| Network | |
| Video Compression | H.265 H.264 Main Profile/M-JPEG |
| Streams | 3 streams |
| Frame Rate | Main stream:25920*1944, 1-25(30)fps; 1280*720, 1-25(30)fps |
| Sub-stream:480*640, 1-25(30)fps; 480 *360 1-25(30fps352*288, 1-25(30)fps; 176*144, 1-25(30)fps. | |
| MJPEG:1920*1080, 1280*720, Close | |
| Bitrate | CBR/VBR, bitrate96k~6M bps variable |
| Audio Compression | G711-PCM |
| P2P | Android/IOS |
| Protocols | TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP |
| Motion detect | Support |
| Onvif | Onvif 2.4 |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector |
| Mini SD Card | Up to 128GB(Optional) |
| Dome Features | |
| CPU Type | 32 bit ARM CPU |
| Address | 0~128(soft address and hard address) |
| Pan Range | 0°~355°, Horizontal |
| Tilt Range | 0°~100°, Vertifcal |
| Manual pan speed | 0.1~30º/S |
| Manual tilt speed | 0.1~30º/S |
| Preset points | 128 |
| Other function | 8 Tour, Intelligent Three dimensional Scan, 8Pattern group ,Operation recall, Manual continued Auto Scan |
| General | |
| Work temperature | External -10ºC~50ºC |
| Work Humidity | 0%~90% (Non condensing) |
| Power | DC12V2A |
| WEIGHT | 1000g |
