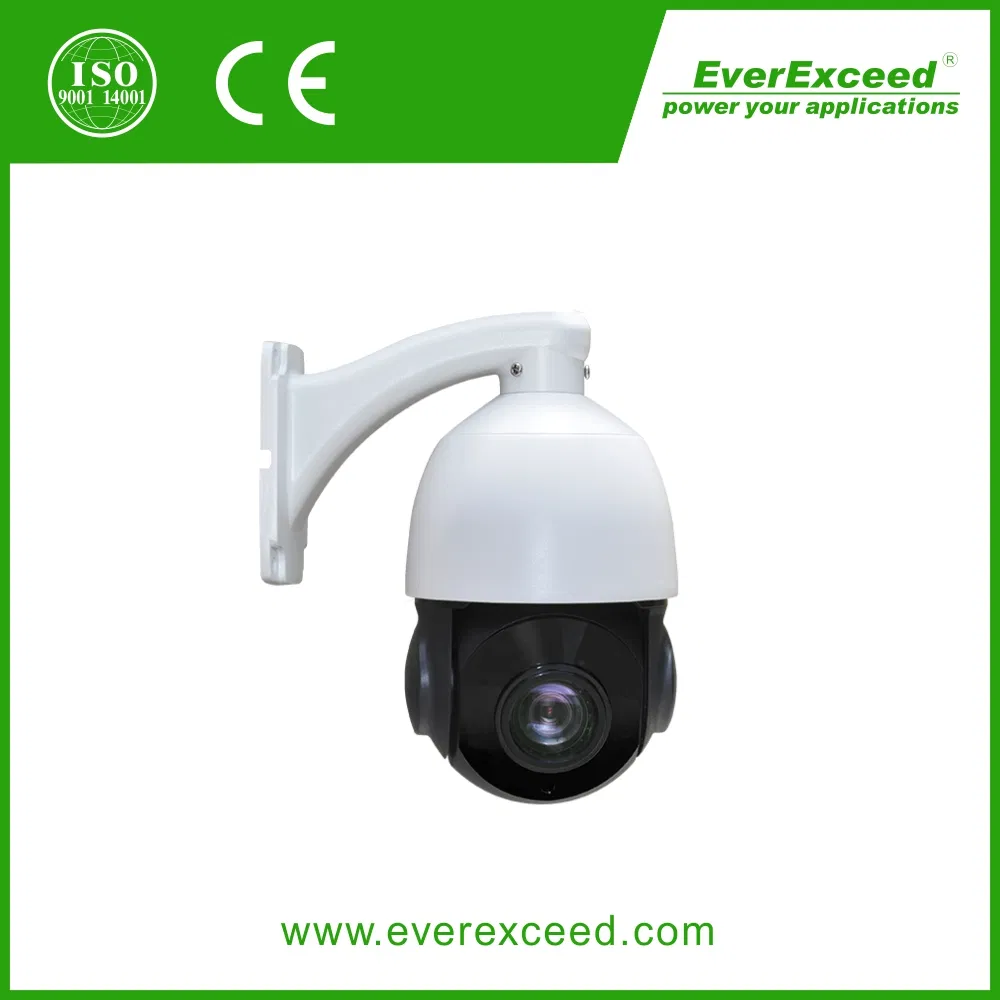

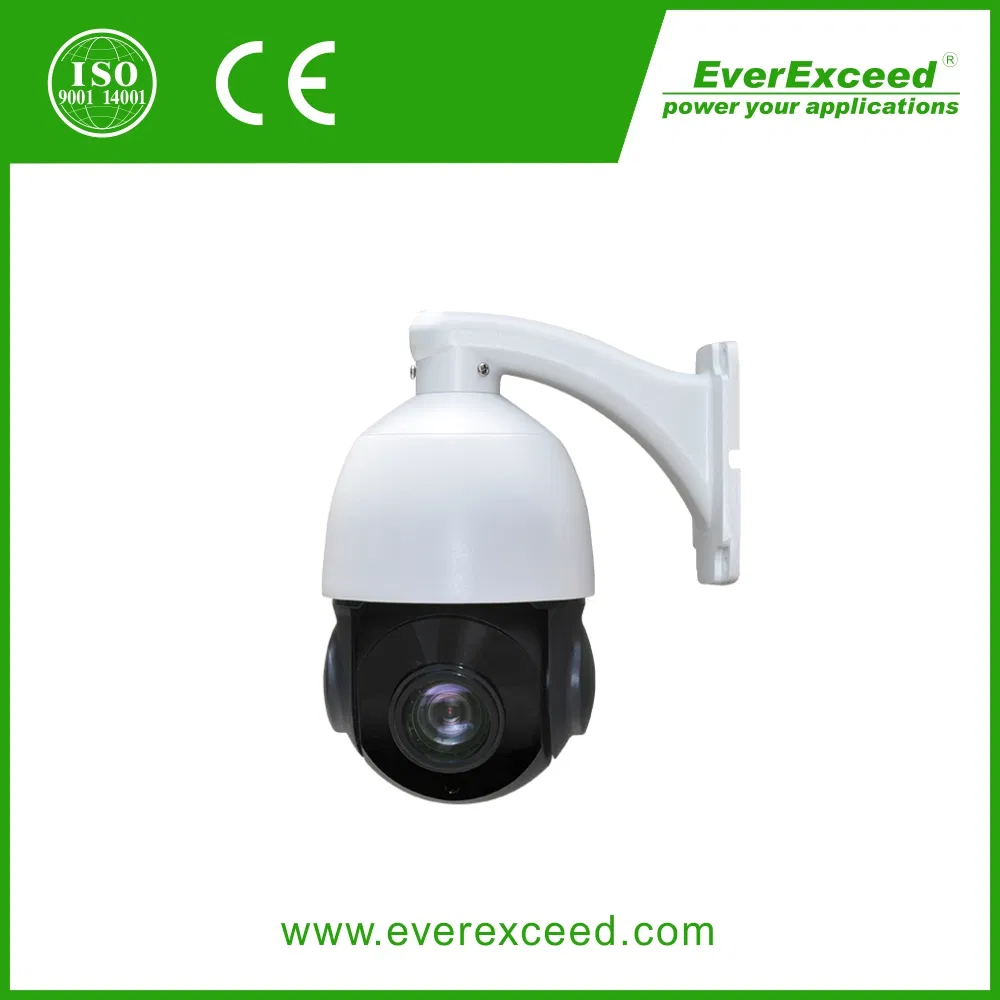

5.0 Megapixels Network HD IR High Speed PTZ Camera
5.0 Megapixels Network HD IR High Speed PTZ CameraFeatures: Adopt 8 pcs infrared light, IR distance up to 120m. Horizontal rotation 360 ° continuous rotation, Vertical 0 ° -90 °, Support automatic flip, no monitoring blind spot. Pan speed max 200°/s, tilt speed max 7......
Send Inquiry
Product Description
5.0 Megapixels Network HD IR High Speed PTZ Camera
Features:
• Adopt 8 pcs infrared light, IR distance up to 120m.
• Pan speed 0.6°/s~200°/s, tilt speed 0.8°/s~75°/s,
• Support 220 preset;8 patrols, each patrol can contain up to 32 presets;4 patterns, can totally record up to 10 minus;support AB scan , regional limit;
• Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
• Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on).
Technical Specifications:
How to order from us?
Notice: For more detail information,please feel free to contact us!
Features:
• Adopt 8 pcs infrared light, IR distance up to 120m.

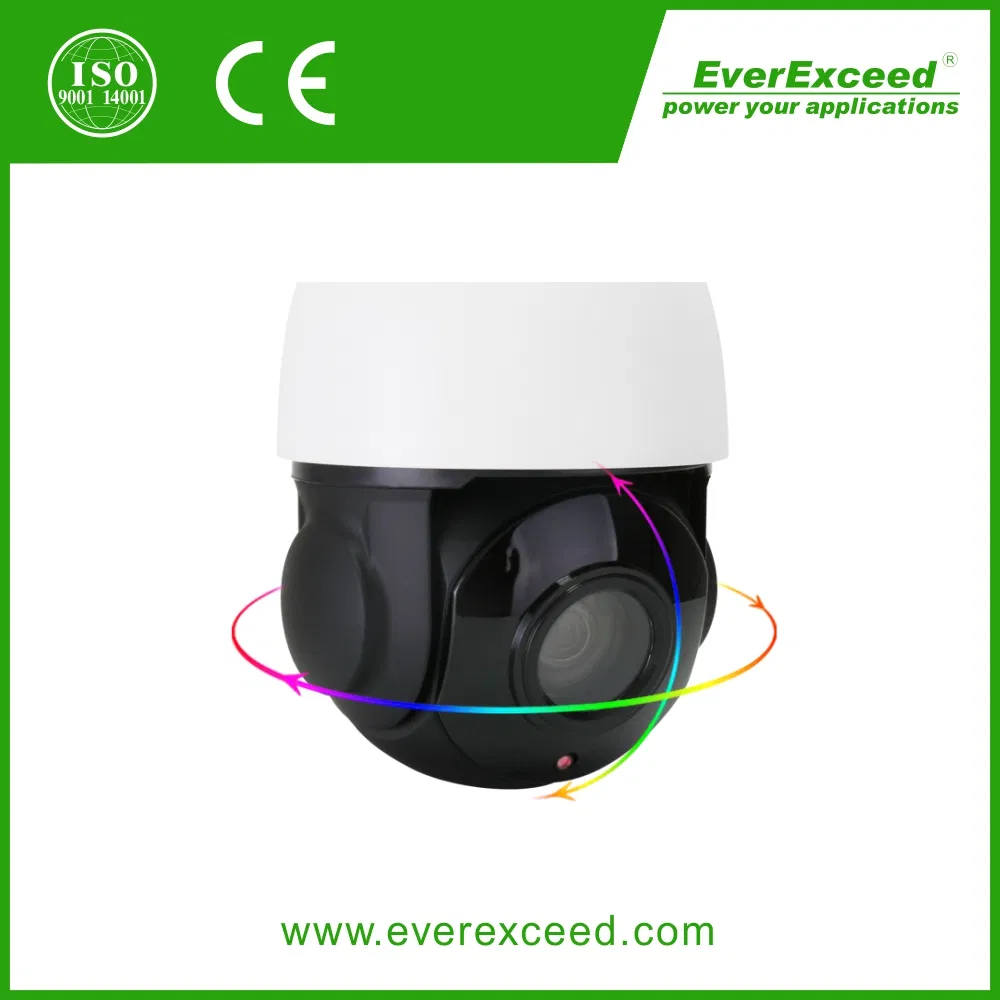

• Horizontal rotation 360 ° continuous rotation, Vertical 0 ° -90 °,
• Support automatic flip, no monitoring blind spot.
• Pan speed max 200°/s, tilt speed max 75°/s• Pan speed 0.6°/s~200°/s, tilt speed 0.8°/s~75°/s,
• Support 220 preset;8 patrols, each patrol can contain up to 32 presets;4 patterns, can totally record up to 10 minus;support AB scan , regional limit;
• Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
• Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on).
Technical Specifications:
| General paramerers | Infrared distance | 60 meters | ||
| Horizontal range and speed | Horizontal 360° continuous rotation, speed 0.6°~ 200° | |||
| Vertical range and speed! | 0~90°,Support automatic rollover,speed 3.5°~30°/s | |||
| Speed of hand control | High, medium, low three adjustable. | |||
| Movement parameters | Videoparameters | Model Name | YXN-IPC-P180208 | YXN-IPC-P180509 |
| The resolution of the | 1920*1080@30fps | 1/2.5" 5.0M 5521 CMOS | ||
| The sensor | 1/2.9" 2.0M SONY323 CMOS | 2592*1944 22fps | ||
| Low illumination | color:0.1Lux,black-white:0.01Lux, | |||
| Electronic shutter | 1/2~1/20,000 seconds,Support slow shutter | |||
| The lens parameters | The focal length | 4.8~86.4mm,18x optical zoom | ||
| Viewing Angle | 67.2°~2.32 °(Wide-Tele) | |||
| aperture | F1.2~F1.9 | |||
| The exposure mode | Program(Customizable shutter range),The shutter mode | |||
| function | The white balance | Automatic, indoor, outdoor, sodium lamp mode, manual. | ||
| Image image | Horizontal/vertical/horizontal + vertical/close. | |||
| Digital noise reduction | Support DNR,3DNR | |||
| Gain control | Automatic/manual | |||
| Wide dynamic | Supports the digital wide dynamic, ≥70dB | |||
| Day and night conversion | | automatic ICR filter color black, fixed black and white.,Fixed color, external control. | |||
| Privacy protection | Support 3D privacy area, open/close (the same screen can set up 4 privacy areas) | |||
| More stream | supports dual coding.,Three-yard flow | |||
| Audio function | NO | |||
| External alarm function | NO | |||
| Network protocol | TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,802.1X,P2P | |||
| interface | The network interface | 10/100M Ethernet, RJ45 interface, | ||
| Power supply and control interface. | DC 12V/2A(Optional POE power supply standard IEEE 802.3at),RS485 | |||
| other | Power consumption | 20W(MAX) | ||
| Working temperature and humidity | -30ºC~+60ºC,≤90%RH | |||
| Protection grade | TVS3000V lightning protection, surge prevention, anti-rush wave; Outdoor ball: IP66 | |||
| Packing size(mm) | 280*280*225 | |||
| The weight of the(Kg) | 4KG(With movement) | |||
| Standard accessories | Power*1 SHCS*1 Wall bracket*1 Electronic file manual*1 | |||
How to order from us?
1. Please confirm the model numbers and quantities that you would like to purchase to our sales person, please feel free to contact via whatsapp/ wechat / skype or email to us.
2. We will send you a Proforma Invoice to the total cost of mentioned goods and other relevant charges including shipping cost once you confirm the order.
3. After you arrange the payment and send us your bank slip/ PayPal slip, we will put your order down to the production, and let you know the ready date in 2 days.
4. When the goods are finished, we will send them by air express, or by sea, or other available shipping methods appointed by customers, and let you know the tracking number and estimated time of arrival.
MOQ:
1. For the sample order, the MOQ is flexible
2. From the second order, the MOQ is 10-20pcs (Depends on models)
3. OEM MOQ is also depends on models and requirements
Payment Terms:
T/T, Western Union, PayPal
1. Under T/T, there will be USD30.00 bank charge for each individual remittance.
2. We can put customers' orders down to production once we get the bank slip copy.
3. If the order amount is more than 15, 000USD, partial payment is acceptable. 50% prepaid deposit to start the production, payment balance before shipment.
Lead Time:
1. Sample order can be delivered from our company within 7 working days.
2. Bulk order can be delivered from our factory in 20 working days or so.
Shipping:
FEDEX, DHL, TNT, UPS, Air Freight, Ocean Shipping.
OEM/ODM Service:
1 If the total order quantities are above 300pcs, we can silk-screen print customer's logo on the products, and put customer's model numbers in the labels and boxes by free of charge.
2. We accept ODM projects, and welcome your customized requirements!
Warranty Policy:
We provide 1 years warranty for CCTV cameras after the shipment date. Any product proves defective under normal usage, excluded improper use, shipping accident and human fault. We will repair or replace it by free of charge.
Q: Why do you choose us?
1) Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2) OEM&ODM Service: OEM to help customers to promote their own brands. OEM Logo service provided free of charge if quantity reached 300pcs.
3) Considerate service: keep customers notified the order's information including production, shipping, etc information timely and do our best to help saving the purchasing cost.
4) Customer-based management policy: We avoid the overpaid or underpaid shipping cost & always suggest suitable and cost effective solution.
5) Technical support. Before and after sales
6) Package: Standard Carton, packed nicely to protect the cameras during the shipping, so that you receive the products in good condition.
Notice: For more detail information,please feel free to contact us!Related Category
