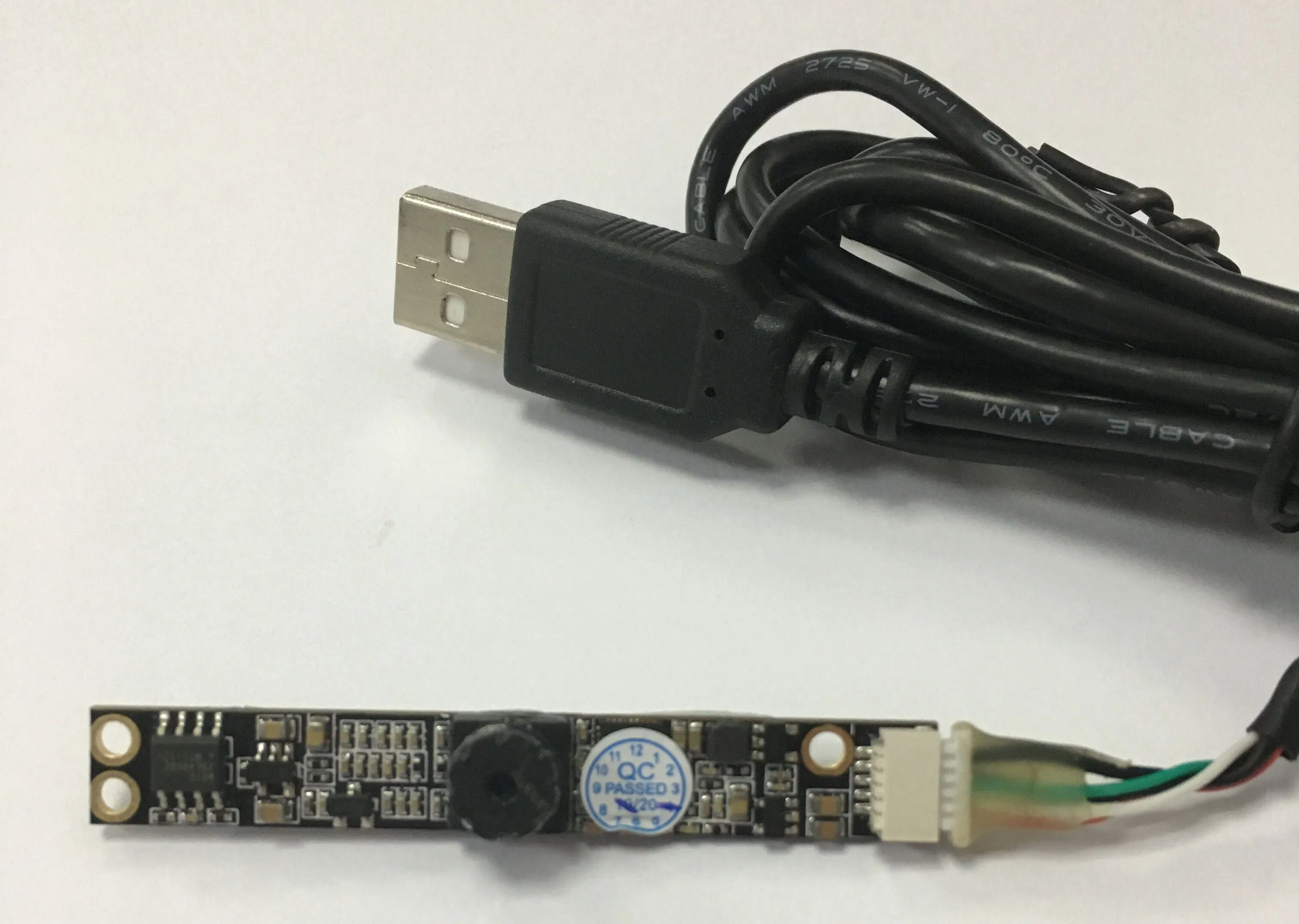

China 5.0megapixels Mini USB Camera Module Support UVC

Product Description

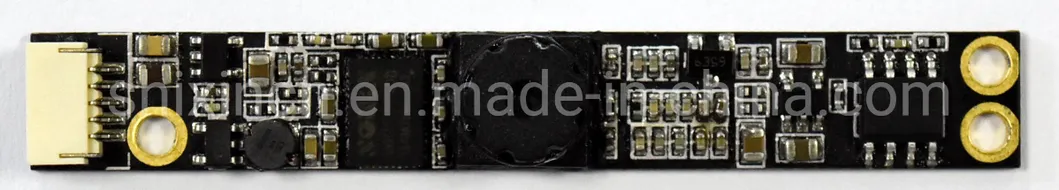

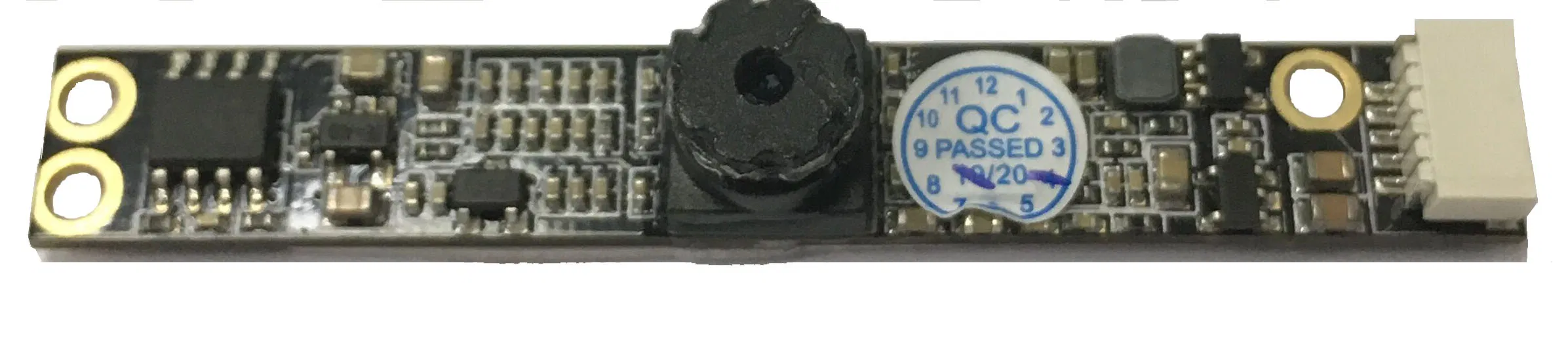

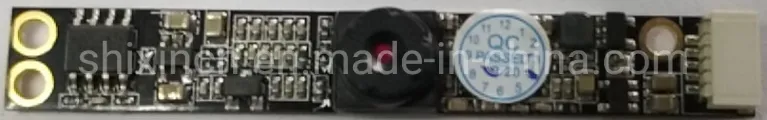

5.0 Megapxiels HD USB 2.0 Imaging Board Camera (SX-6500G)

*Wide VGA-2Megapixels: Large field of view, smaller defect detection and improved precition
*universal computer support and user friendly plug and play intergration
*eliminates costly frame grabber and simplifies cabling
*snapshot shutter provides crisp images of moving objects

Specifications:

Module NO.	SX-6500G

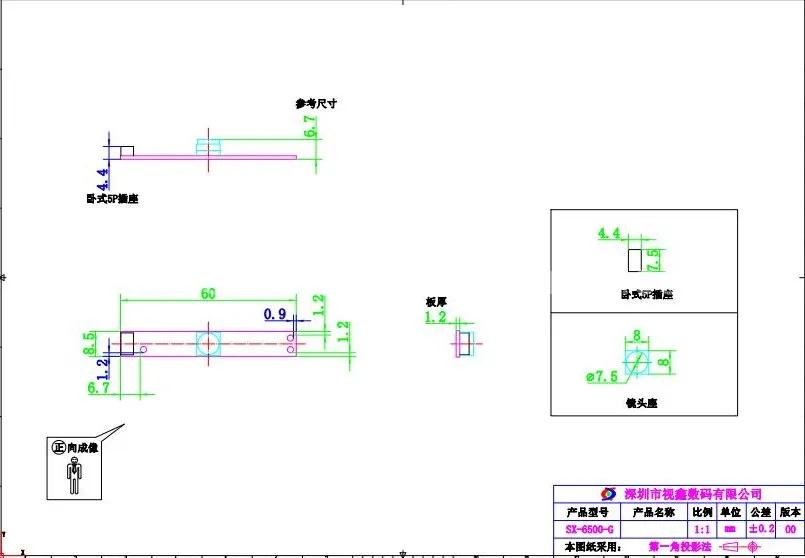

Module Size	60mm8.5mm6.7mm
Temperature (Operation)	-20°C to 70°C
Temperature (Stable Image)	0°C to 50°C
Assembly technique	SMT (ROSH)
Focus	Fix
Resolution	2592*1944
PCB printing ink	BLACK
interface	USB 2.0
Power	USB BUS power
Power consumption	400mW
Operating system request	Win 2000,Win XP,Win 7,Win 8 Linux2.6.20 above ver.
Pixel Size	1.4µm*1.4µm
Maximum Image Transfer Rate	10 fps for 5-megapixel;
S/N Ratio	36dB
Dynamic Range	72dB
AGC/AEC/Whiter balance	Auto
Output Formats	YUV/MJPG
Lens Construction	M7

5.0megapixels Mini USB Camera Module Support UVC

Thanks for utilizing our USB ATM Camera, with wide angle lens, board lens and pinhole lens optional, computer controllable.

System requirement: WinXP, Win7, Win8, Win VISTA, Win10, and Linux.

Support WDM, VFW, TWAIN, UVC protocol.
