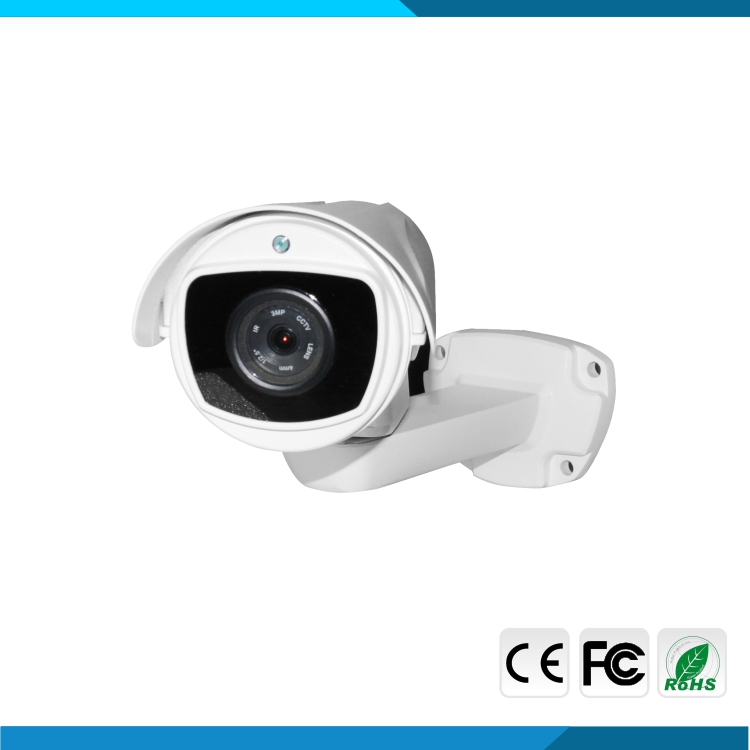

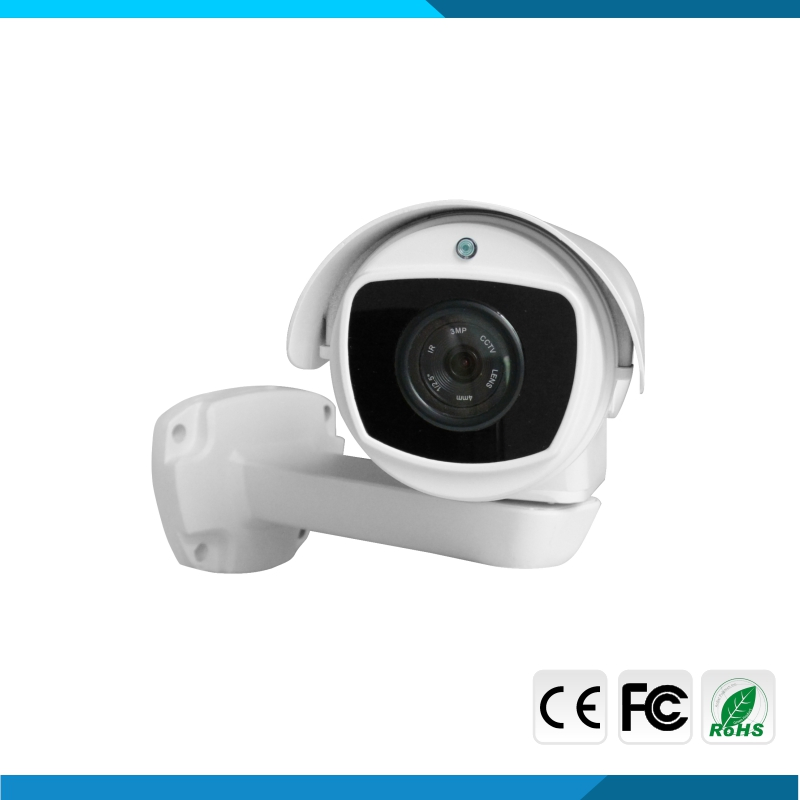

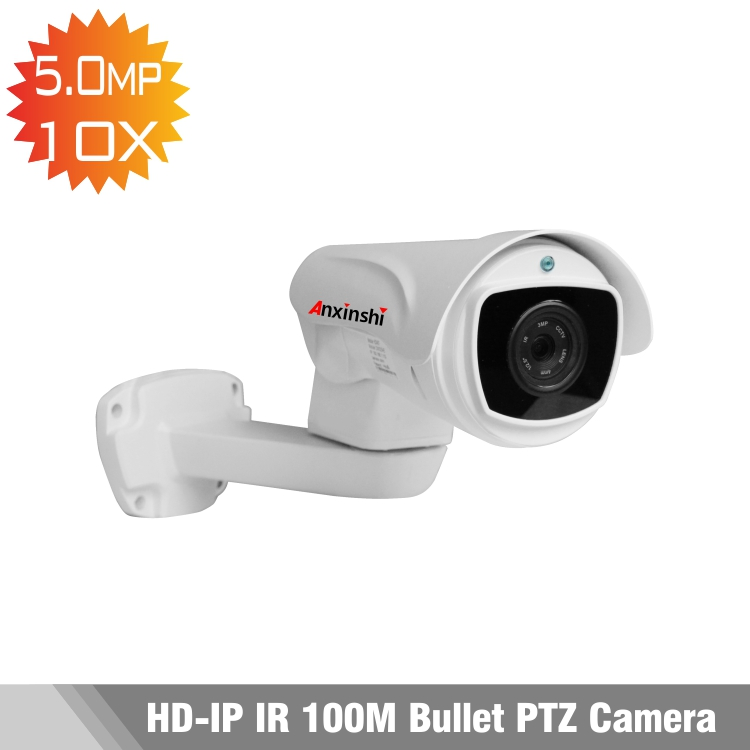

5.0mpixes 10X Laser IR 100m IP Bullet Camera
Camera; 1.1/3" 5.0M Pixel AR5521 CMOS, HI3516D + AR55212.10x, f=(5.1mm~50mm), , D/N( ICR-Cut)DWDR , Color: 0.1lux, B/W:0.01lux.3.5.0MP available4.True Day/Night, 3D DNR, Digital WDR5.Backlight compensation, and auto gain control (AGC)Network Features; 1.Main Stream;2592x1944@15fps 2304x1296......
Send Inquiry
Product Description
Camera;
1.1/3" 5.0M Pixel AR5521 CMOS, HI3516D + AR5521
2.10x, f=(5.1mm~50mm), , D/N( ICR-Cut)
DWDR , Color: 0.1lux, B/W:0.01lux.
3.5.0MP available
4.True Day/Night, 3D DNR, Digital WDR
5.Backlight compensation, and auto gain control (AGC)
Network Features;
1.Main Stream;2592x1944@15fps 2304x1296@30fps.
2592x1520@22fps
2.Support the P2P or Android, IOS
3.Support Onvif2.4
4.H.264 main profile & M-JPEG Triple-streams Encoding , Three Simultaneous video streams
5.Standard SDK, CGI, easily to be integrated with other digital systems
6.Support a variety of network protocol such as TCP/IP/ HTTP/ NTP/ IGMP/ DHCP/ UDP/ SMTP/ RTP/ RTSP/ ARP /DDNS /DNS/ P2P
7.Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform
PTZ Features;
1. 0-220°continuous pan rotation speed up to 35°/s
2. UP -45° ~Down 40° tilt rotation speed up to 25°/s
3. 220 presets, 3 groups tour
4. Quickly Installation Structure

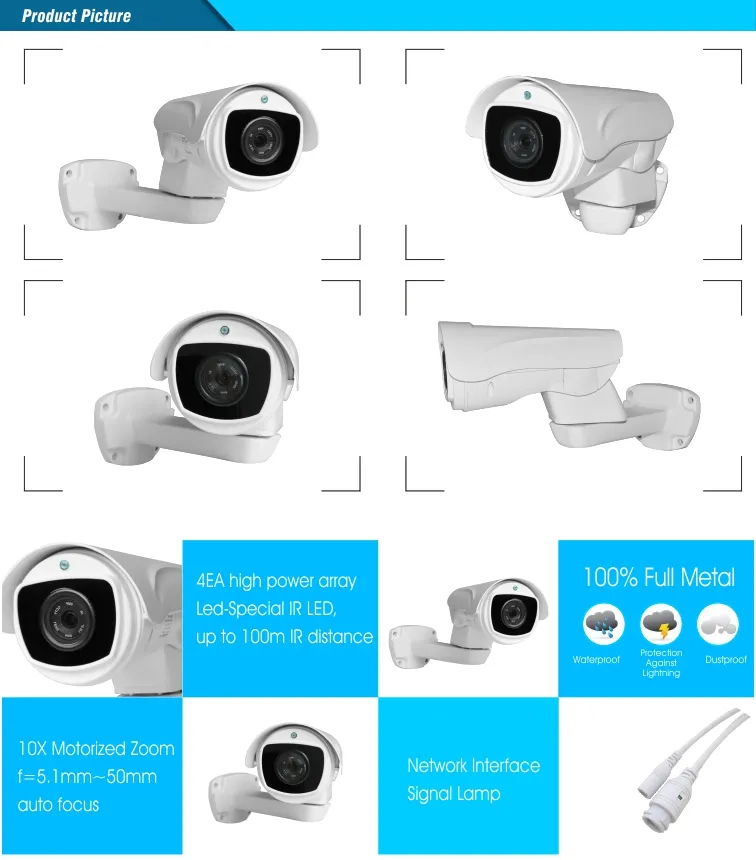

5.4 PCS Array 42Mil IR+2 PCS Laser LED, up to 100m IR distance
| Mode | Name and Description | 10X Zoom 5.0MP Color IP PTZ Bullet Camera |
| ASIH401-010-050 | ||
| Camera | Image Sensor | 1/3" 5.0M Pixel AR5521 CMOS, HI3516D + AR5521 |
| Effective Pixels | 5.0 Mpixes | |
| Min. Illumination | Color; 0.05Lux@(F1.6, AGC ON) ; 0.01Lux@(F1.6, AGC ON) | |
| Zoom | 10x, f=(5.1mm~50mm), , D/N( ICR-Cut) DWDR , Color: 0.1lux, B/W:0.01lux. | |
| Day/Night | Day / Night / External control(IR Cut Filter),IR 80M | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | Digital WDR≥70dB | |
| AGC | Auto / Manual | |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| Digital noise Reduction | DNR, 3DNR | |
| Network | Video Compression | H.265/H.264 Main Profile/M-JPEG |
| Max Image Size | 2592x1944@15fps / 2304x1296@30fps. / 2592x1520@22fps | |
| Streams | Triple streams | |
| Frame Rate | Main stream: | |
| 2592x1944@15fps / 2304x1296@30fps. / 2592x1520@22fps | ||
| Sub-stream: | ||
| 480*640, 1-25(30)fps; 480 *360 1-25(30fps 352*288, 1-25(30)fps; 176*144, 1-25(30)fps | ||
| MJPEG: | ||
| 1920*1080, 1280*720, Close | ||
| Bitrate | CBR/VBR, bitrate; 32Kbps~10Mbps variable | |
| Audio Compression | G711, PCM | |
| P2P | Android / IOS | |
| Protocols | TCP/IP,HTTP, NTP,IGMP, DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,P2P | |
| Motion detect | Support | |
| Onvif | Onvif 2.4 | |
| PTZ | CPU Type | 32 bit ARM CPU |
| Pan Range | 0° ~220° | |
| Tilt Range | UP -45° ~Down 40° | |
| Manual Control Speed | 25°/s | |
| Preset points | 220 | |
| Tour | 3 | |
| AB scan range | Any point in range:-45º~40º and 0º~200º | |
| AB scan speed | 1-9 grades | |
| Intelligent power off real time memory | automatic save functions setting , automatic wake up tour function | |
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |
| POE | Support optional | |
| General Parameters | Power Supply | DC12V/PoE 25W |
| Operation Temperature | -40ºC~+60ºC | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |
| Lightning Protection | Transient voltage 6000V | |
| Consumption | ≤15W |
