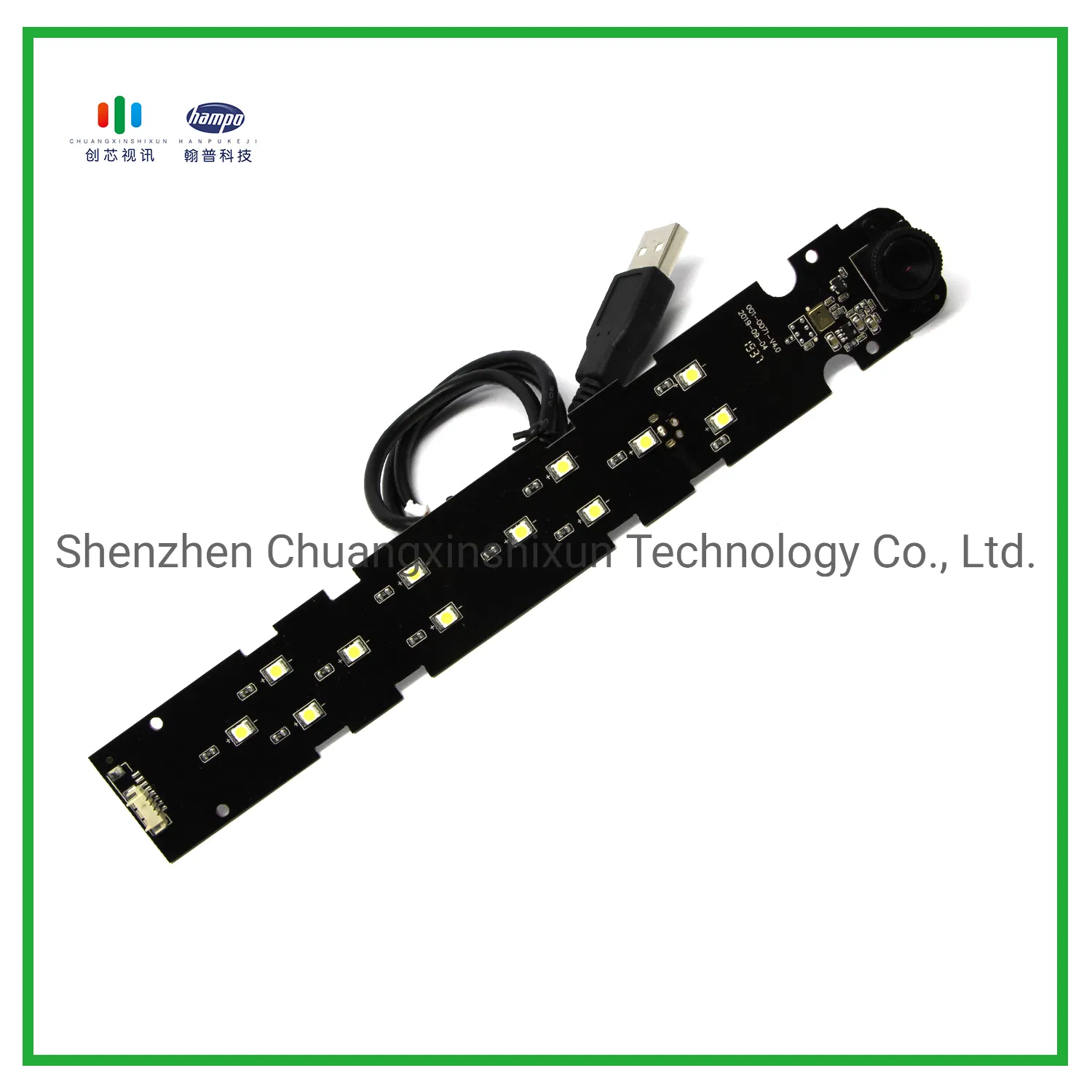

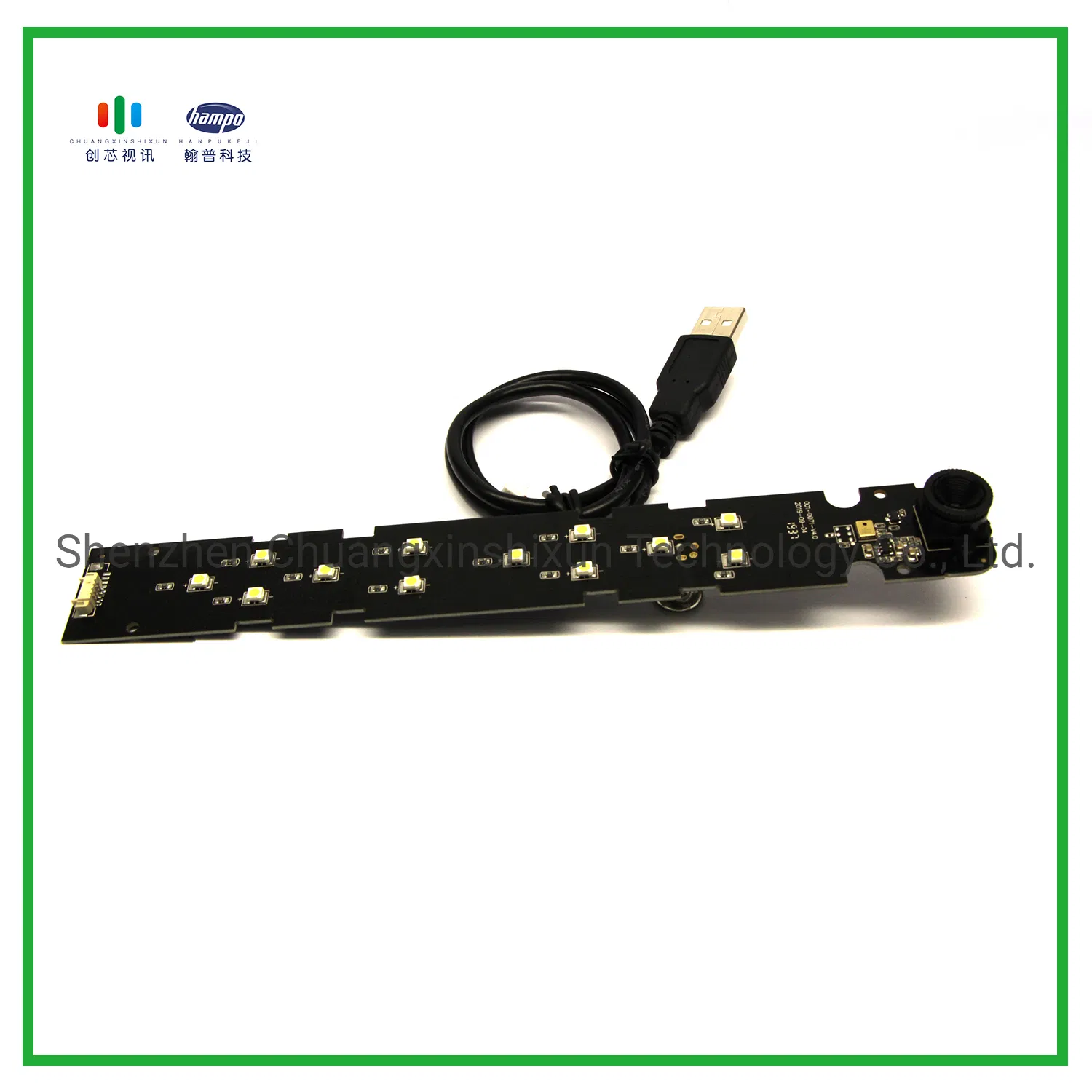

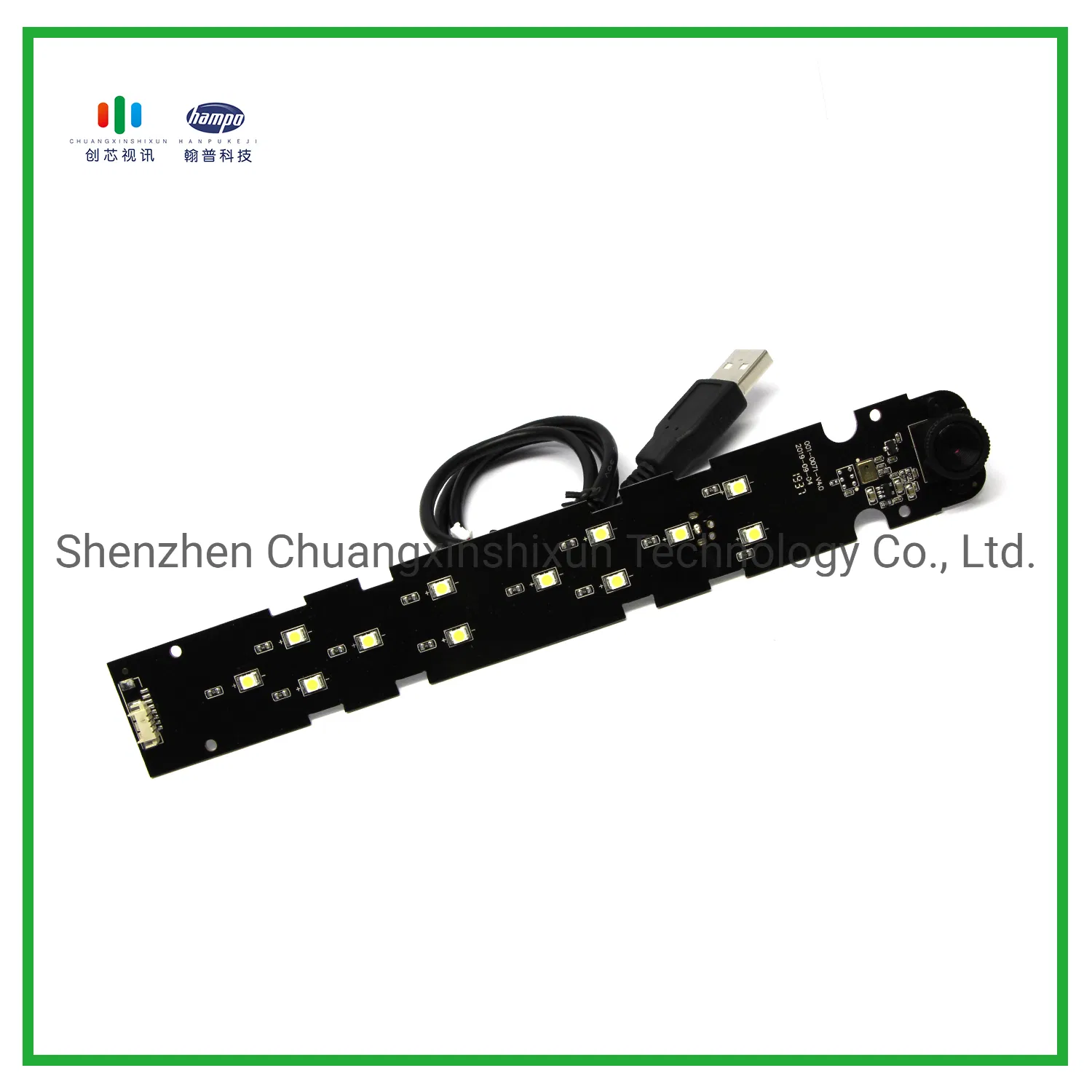

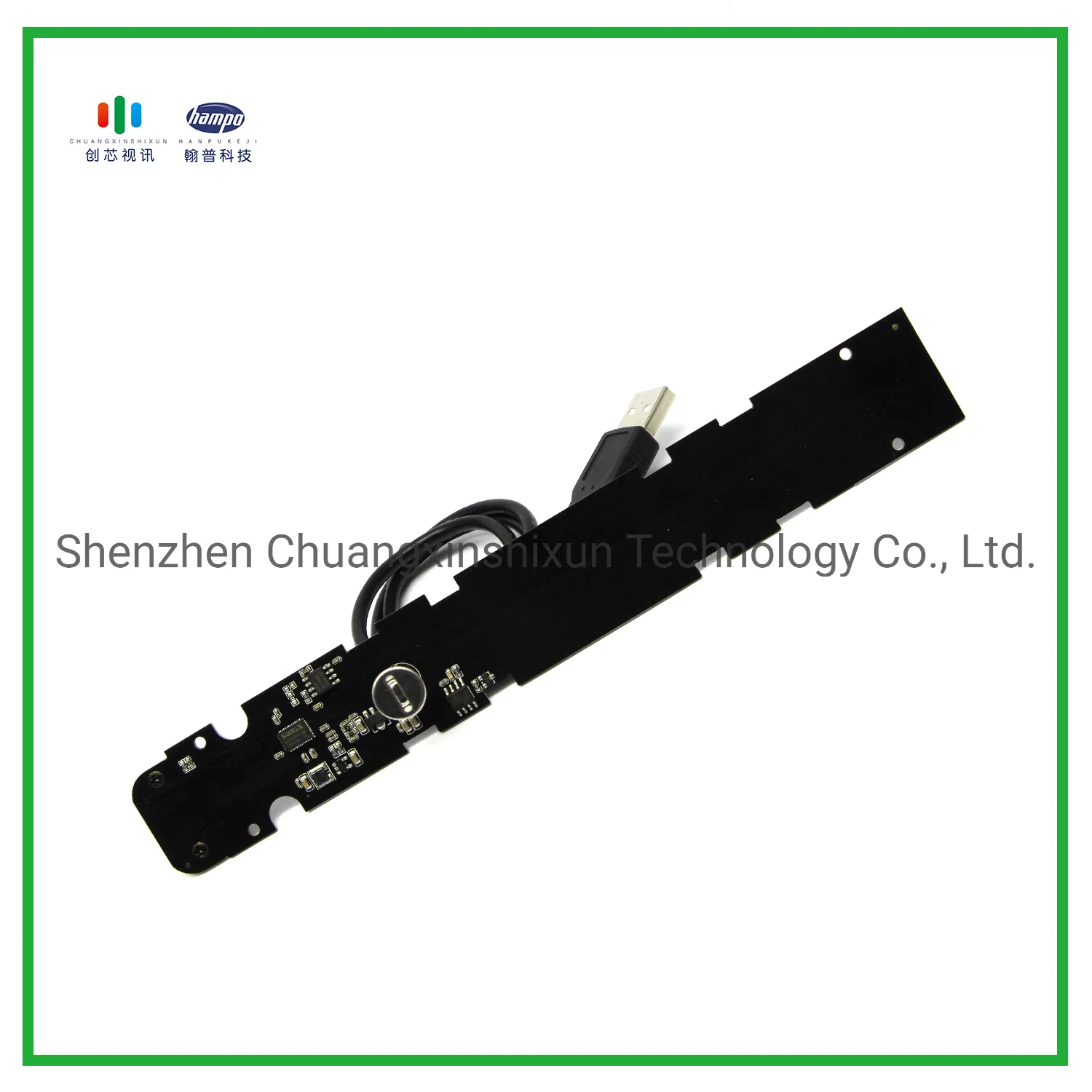

5 Mega CMOS USB Camera Module
5 Mega Cmos USB Camera Module1. 1/4 inch OV5648 Cmos Camera Module2. 5 megapixel with speed 30fps USB camera3. Full HD realtime USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.4. USB Camera Module with 69 degree5. 60*9mm mini micro USB board camera Specification:ItemsPar......
Send Inquiry
Product Description
5 Mega Cmos USB Camera Module
1. 1/4 inch OV5648 Cmos Camera Module

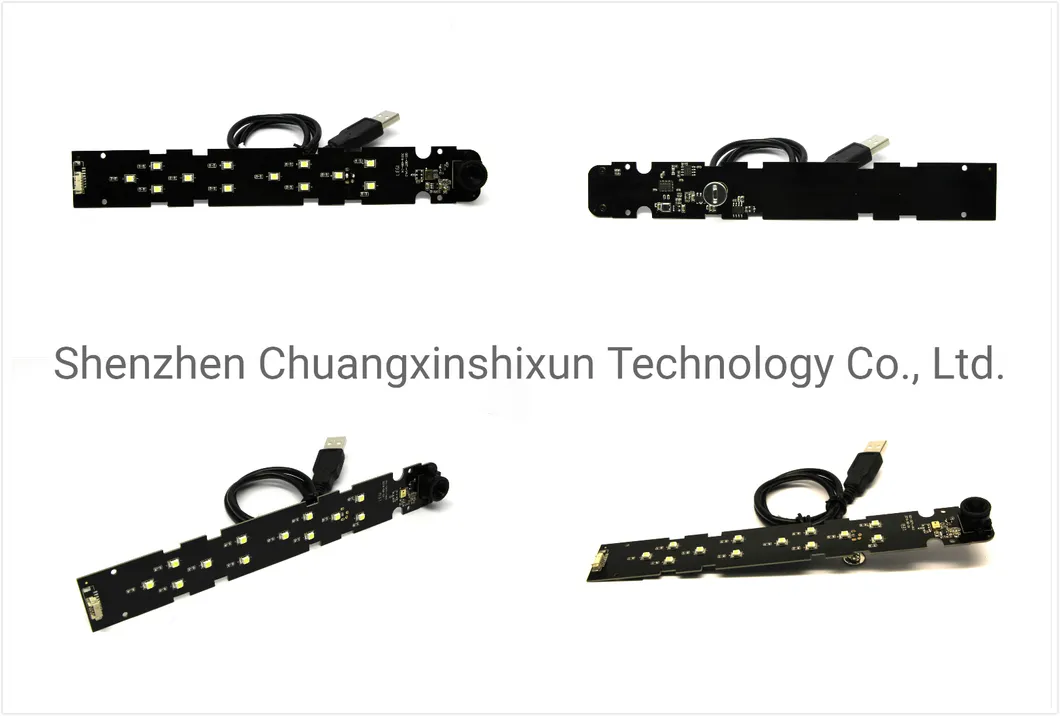

Pictures Display:

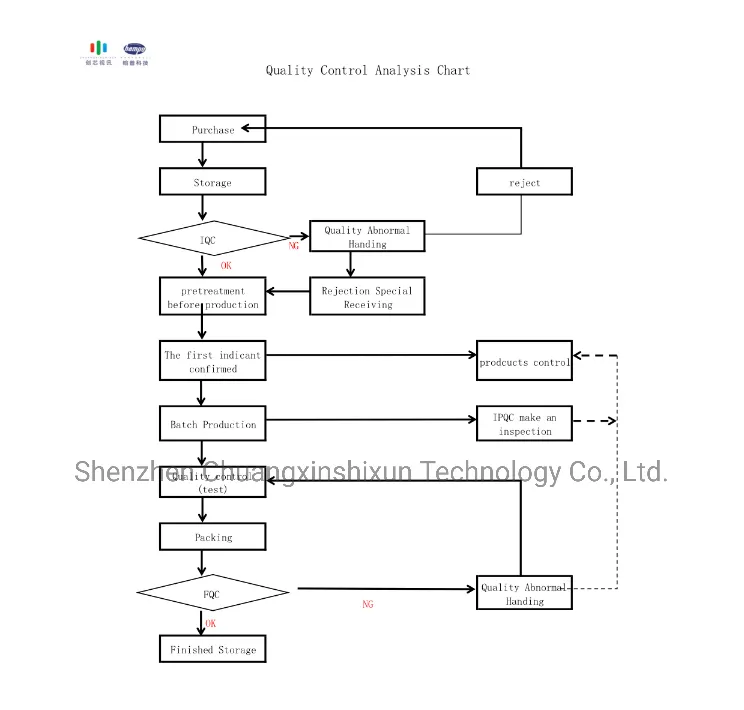

Quality Control:
Company Information:
1. 1/4 inch OV5648 Cmos Camera Module
2. 5 megapixel with speed 30fps USB camera
3. Full HD realtime USB webcam with UVC, support Windows, Linux, Mac with UVC and Android system.
4. USB Camera Module with 69 degree
5. 60*9mm mini micro USB board camera
Specification:
| Items | Parameters |
| SENSOR | OmmniVision-OV5648 |
| Lens Size | 1/4" |
| Maximum Pixels | 2592 x 1944 |
| Maximum Effective Resolution | MJPG/YUY2 |
| Data Format | 1.4 µm x 1.4 µm |
| Pixel Size | 67 dB @ 8x gain |
| Dynamic Range | FOV :D= 69° V=42° H=52° |
| Optical length :10.1±0.3 | |
| lens construction:/ | |
| mount :M11*P0.5 | |
| Lens | Fixed focus |
| Focusing | 30fps |
| Frame Rate | Saturation,Contrast, Acutance,White balance,Exposure |
| Auto Control | High quality digital MIC, single or dual channel is optional |
| Audio | DC 5V |
| Voltage | MAX 250mA |
| Working Current | USB2.0 |
| USB Connector | -20ºC to +70ºC |
| Storage Temperature | Change with environmental temperature |
| Working Temperature | 1,Windows XP(SP2,SP3),Vista ,7,8,10 |
| 2,Linux or OS with UVC driver |
