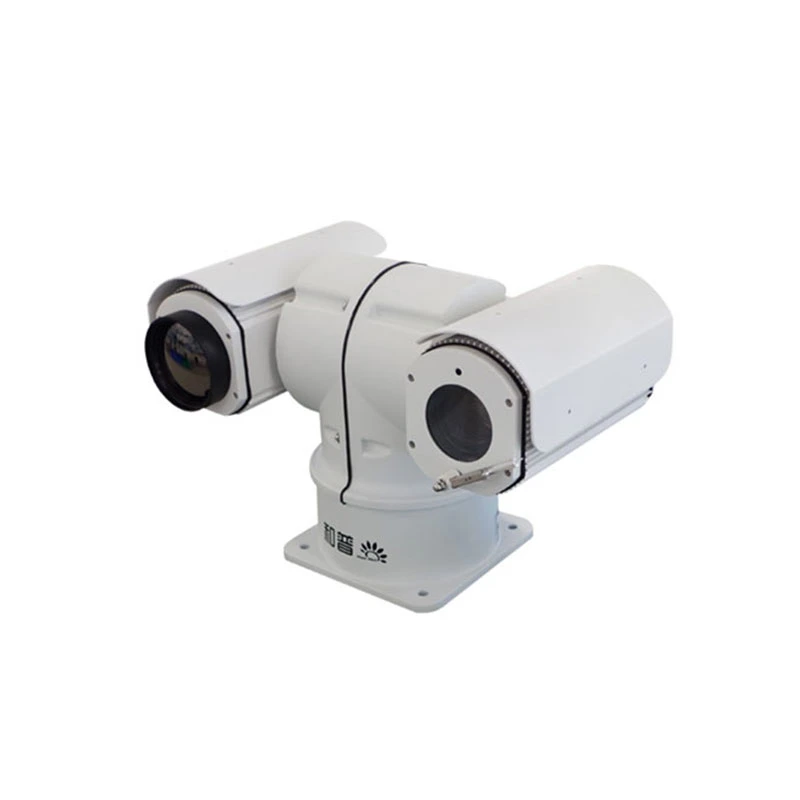

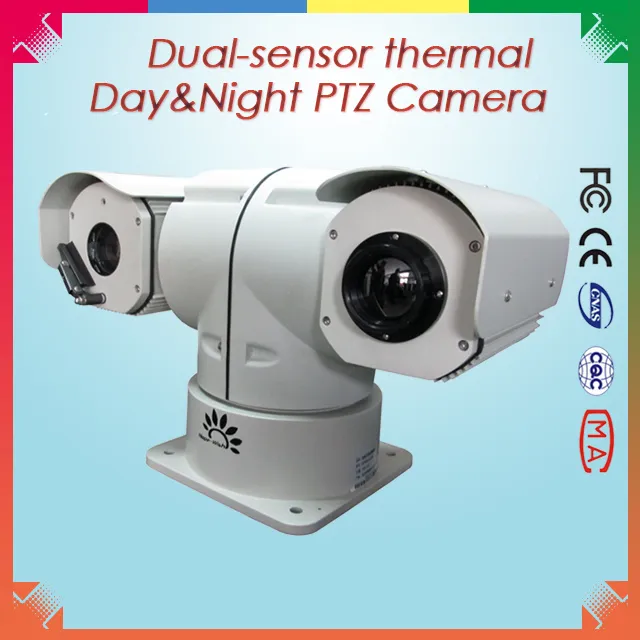

5km Dual Sensor Hybrid IR Thermal and Daylight Camera
1, Introduction As a high-end intelligent surveillance camera, BTVC Series T Shape Bi-spectrum Thermal Camera is a combination of thermal camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit. This series of camera features......
Send Inquiry
Product Description
1, Introduction
As a high-end intelligent surveillance camera, BTVC Series T Shape Bi-spectrum Thermal Camera is a combination of thermal camera, visible CCD, precise actuating and gearing unit, digital decoder, high-performance image processing unit and control unit. This series of camera features compact design and accurate positioning. With such functions as preseting and patroling, the camera leaves no blind spot undetected.
2, Application

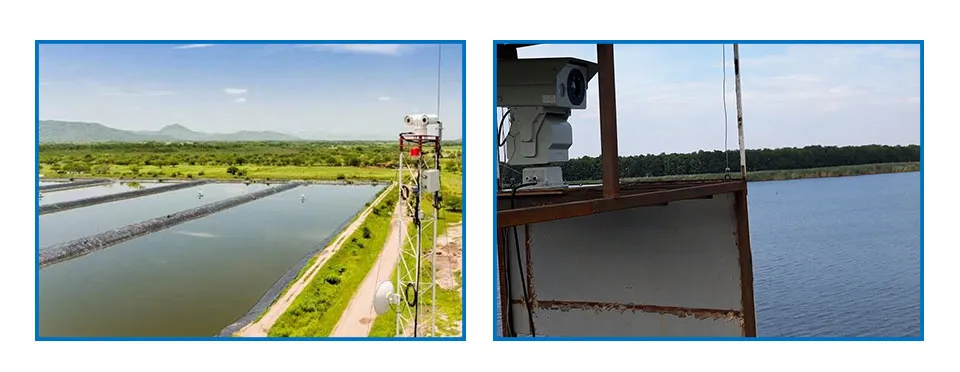

Safe city, civilian rescue, vehicle-mounted monitoring, oilfield, river and lake, express way, railway, harbor airport etc.
3, Features

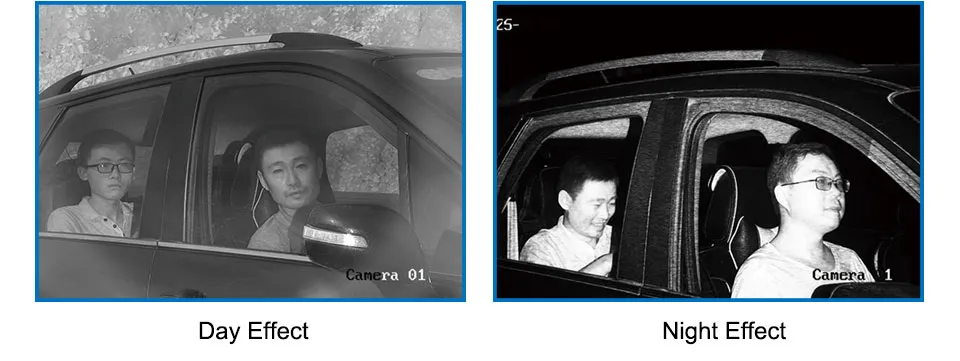

24-hour real time surveillance is ensured with both thermal and visible camera;50mk thermal sensitivity and SDE digital image enhancement produces clearer image under foggy and rainy days;
Anti-lighting, anti-wave, capability to withstand 3000V instantaneous current;
Aluminum alloy housing, excellent heat dissipation, IP65 ingress protection;
| Model | BTVC4102-0437-S | BTVC4105-0437-S |
| Detection | Vehicle: 1700m Human: 720m | Vehicle: 4200m Human: 1640m |
| Identification | Vehicle: 420m Human: 180m | Vehicle: 1200m Human: 470m |
| Thermal sensor | 336*256, UFPA, 7-14um spectral response, 50mk NETD | |
| Thermal lens | 20mm F1.0 | 50mm F1.0 |
| FOV | 15.5°×11.6° | 6.5×4.8° |
| Visible | 440,000 pixels, auto color to B/W at 0.01LUX | |
| Lens | 3.5mm-129.5mm, 37X, motorized zoom, auto focus | |
| Pan | 0° to 360° continuous | |
| Tilt | -90°~+90° | |
| Pan speed | 0°~100°/s | |
| Tilt speed | 0°~60°/s | |
| Preset | 128 | |
| Scan | 3(user can set the starting and end point; adjustable scanning speed; ) | |
| Path | 6(16 points for each path, adjustable duration on each point) | |
| Pattern | 3(approx. 2 minutes for each pattern) | |
| Menu | Chinese/English | |
| Auto homing | Homing time(1-99mins), homing action(preset/scanning/path/pattern) | |
| Protocol | Pelco-D/P and other mainstream protocols | |
| Baud rate | 2400/4800/9600/19200bps | |
| Heating/defrosting/Wiper | Available | |
| Ingress protection | IP66 | |
| Working temp. | -35~55ºC | |
| Power supply | AC24V/2.5A | |
| Weight | 7kg | |
