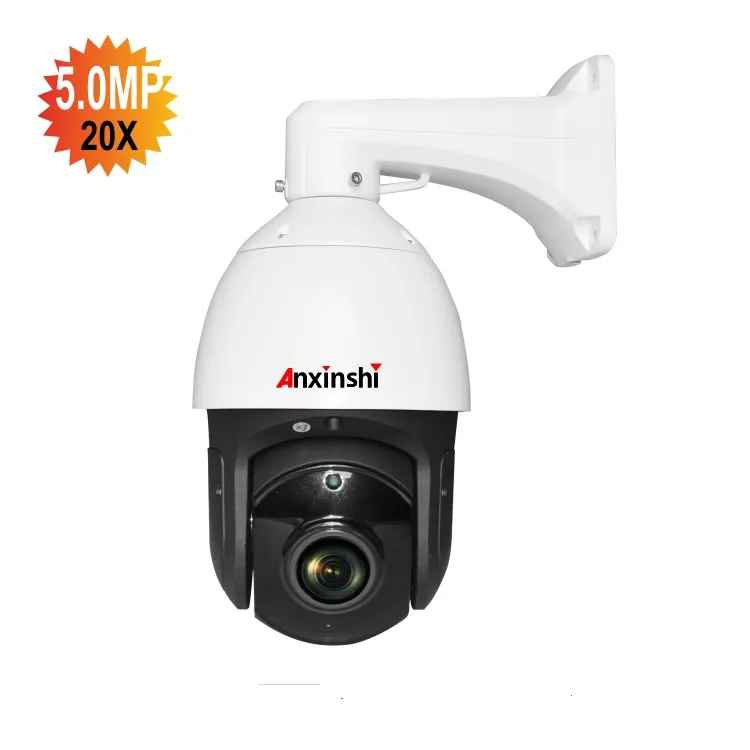

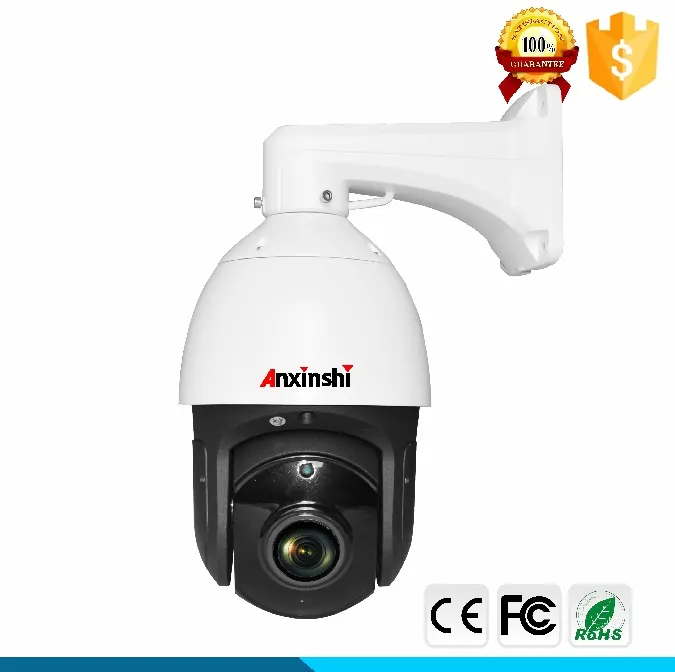

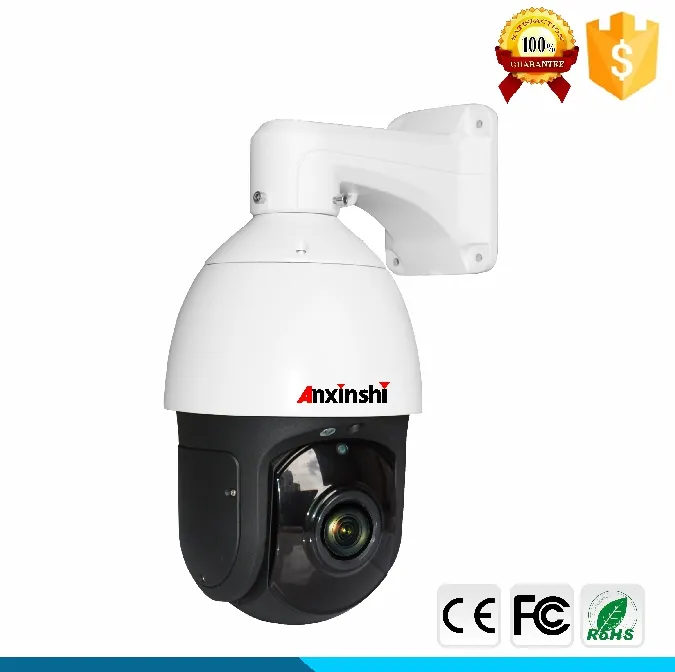

5MP 20X Night Vision 300m Auto Tracking PTZ Camera
Camera:HD 5.0Mpixes1/3" CMOS Sensor, 20x, f=4.7mm~84.6mm, D/N( ICR-Cut), DWDR , Color: 0.05lux, B/W:0.01lux.Dome Features:1. Auto tracking moving target according to movment ; 1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption 2. Im......
Send Inquiry
Product Description
Camera:
HD 5.0Mpixes
1/3" CMOS Sensor, 20x, f=4.7mm~84.6mm, D/N( ICR-Cut), DWDR , Color: 0.05lux, B/W:0.01lux.
Dome Features:
1. Auto tracking moving target according to movment ;
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. Imported array IR LED, auto adjust zoom according to different distance
3. IR range 150M
4. With digital temperature controlling system protecting IR LED
5. 360 degree continued rotation, manual pan speed 0~240°/S, manual tilt speed 0~120°/S, preset speed 400°/S.
6.AHD output /TVI output / CVI output / CVBS output / D1 / AHD720P / AHD960H / AHD1080P / AHD 3.0MP / AHD 4.0MP / AHD 5.0MP output
7. 5 tours, DC12V
| Form parameters | ||
| Mode | Name and Description | ASHD698T-020-52 HD IR Auto Tracking High Speed Dome Camera |
| ASHD698T-020-52 Outdoor | ||
| Camera | Camera Name | AS-AH020 (20X D/N)) |
| Image Sensor | 1/3" CMOS (NVP2477+05A10) | |
| Effective Pixels | 5.0 Mpixes | |
| Horizontal Resolution | 2592*1944 | |
| Min. Illumination | 0.05Lux :Color/0.01 Lux:B/W | |
| Zoom | 20X, f=4.7mm~84.6mm F1.6(W)~2.7(T) | |
| Day/Night | AUTO/COLOR/BW | |
| SNR | ≥50dB(AGC OFF) | |
| WDR | DWDR | |
| White Balance | Auto/Indoor/Outdoor/Manual | |
| Electronic shutter | 1/30s~1/10,000s | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Luminary | Array Φ20 6pcs | |
| Night vision distance | 300M | |
| Lamp control | Auto, Manual, by Zoom | |
| Address | 0~255(soft address and hard address) | |
| Pan Range | 360° continued rotation | |
| Tilt Range | 0~90°(Auto Flip) | |
| Manual pan speed | 0~240º/S | |
| Manual tilt speed | 0~120°/S | |
| Preset speed | 400°/S | |
| Actual preset Accuracy | ±0.10° | |
| Preset points | 255 | |
| Operation OSD language | Chinese /English | |
| OSD Display | dome menu & camera menu adjustment | |
| Home position | Return to preset/scan/pattern/ if there is no command in the specified period. | |
| Operation recall | recall operation zone | |
| Tour | 5 | |
| Communication Protocol | Pelco D, Pelco P | |
| Intelligent Three dimensional Scan | Auto Pan & Tilt &Zoom /Manual | |
| Pattern group | 3Programmable(Pan/Tilt/Zoom ) | |
| Speed adaption | Speed slows down automatically when zoom in | |
| Intelligent power off real time memory | automatic save functions setting ,automatic wake up tour function | |
| Camera Menu operation | support the operation of camera set up | |
| Manual continued Auto Scan | Non-limited position of manual continued Auto scan | |
| General | Work temperature | External-35ºC~55ºC |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | DC12V±10%; 5A | |
| Consumption | <50W | |

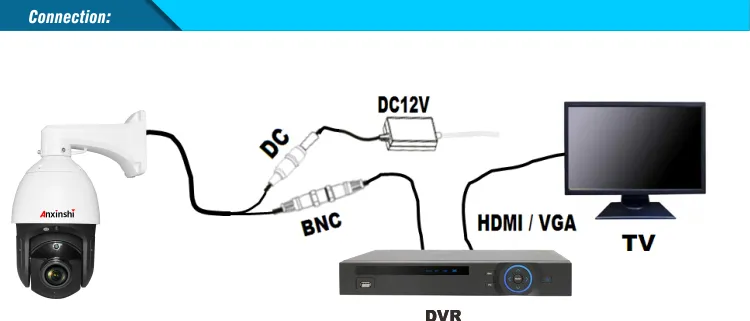

| Communication | RS-485 | |
| Video Output | AHD output /TVI output / CVI output / CVBS output / D1 / AHD720P / AHD960H / AHD1080P / AHD 3.0MP / AHD 4.0MP / AHD 5.0MP output | |
| Connection | BNC | |
