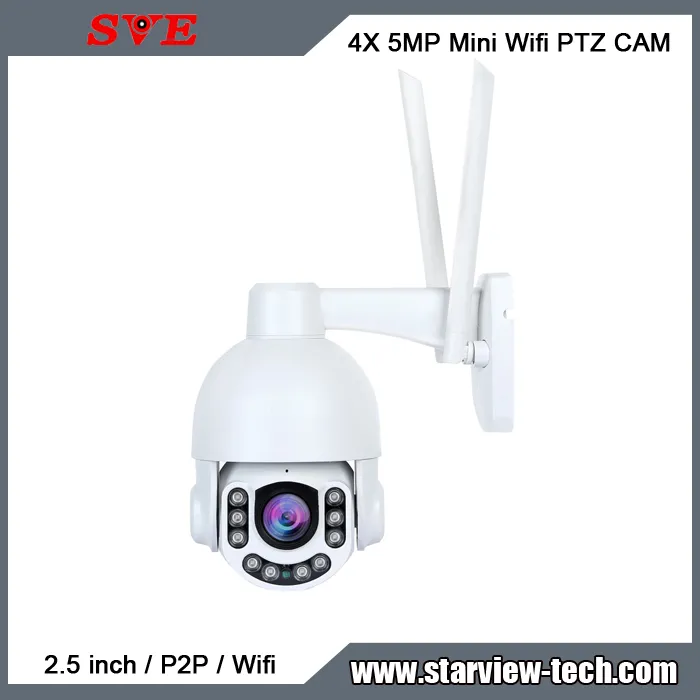

5MP 4X HD 2.5 Inch WiFi IP Speed PTZ Dome Camera
product overviewCamera: 1. 1/2.8 5.0Megapixels Sony IMX335 Sensor 2. 4 X optical zoom, auto focus 3. 5.0MP 4. True Day/Night, 3D DNR 5. Backlight compensation, and auto gain control (AGC) Network Features: 1. Main Stream: (2592*1944)30fps 2. Support the P2P or Android, IOS 3. Support Onvif2.4 4. H.2......
Send Inquiry
Product Description
product overview
Camera:
1. 1/2.8 5.0Megapixels Sony IMX335 Sensor
2. 4 X optical zoom, auto focus
3. 5.0MP
4. True Day/Night, 3D DNR
5. Backlight compensation, and auto gain control (AGC)
Network Features:
1. Main Stream: (2592*1944)30fps
2. Support the P2P or Android, IOS
3. Support Onvif2.4
4. H.265 H.264 main profile & M-JPEG Dual-stream
5. Standard SDK,CGI,easily to be integrated with other digital systems
6. Support P2P plug and play;
7. Support IE, Google, Firefox browser

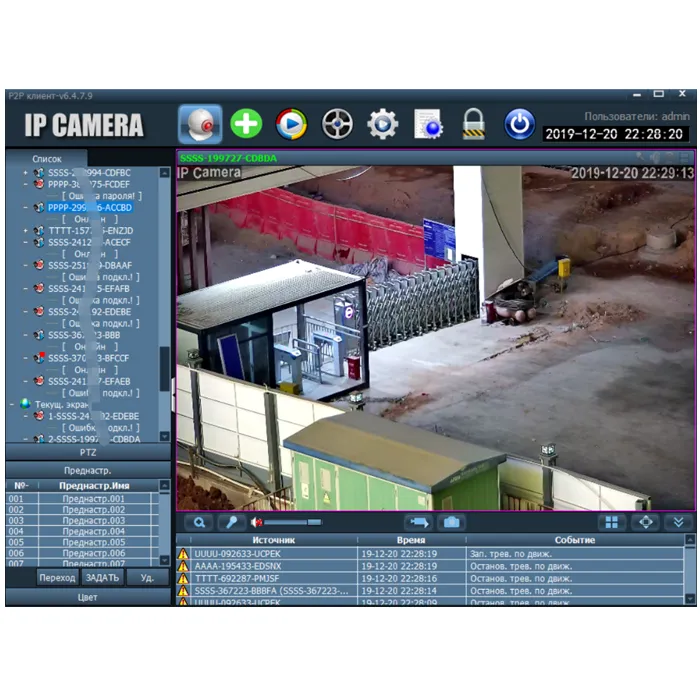

8. Support PC client to download SD card video

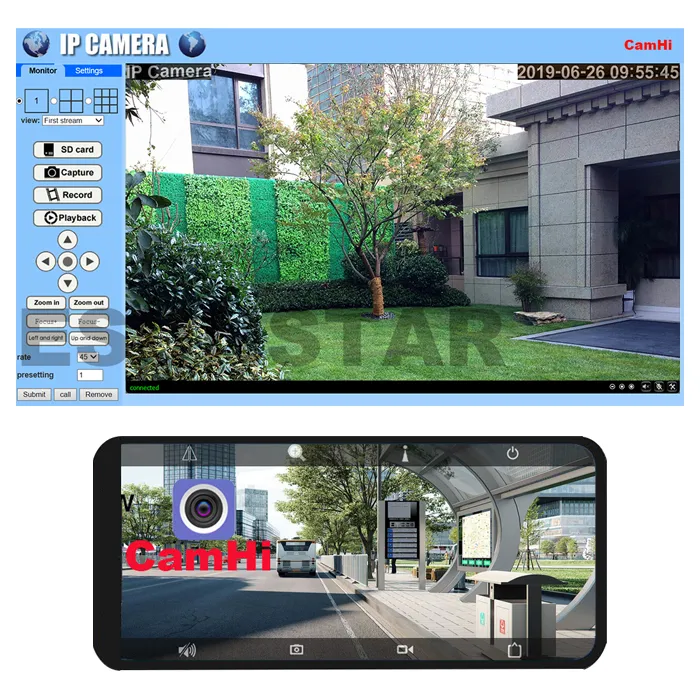

9. Support mobile phone download and playback SD card recording
10. Supput :Onvif/PSIA/RTSP/CGI/API/GB28181
11. Support motion detection (area, sensitivity can be set) alarm function
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. With 10 EA array Led, IR distance 60M
3. 355 degree continued rotation, manual pan speed 0.1~30/S, manual tilt speed 0.1~30/S, preset speed 128 PCS.
SPECIFICATION
Camera:
1. 1/2.8 5.0Megapixels Sony IMX335 Sensor
2. 4 X optical zoom, auto focus
3. 5.0MP
4. True Day/Night, 3D DNR
5. Backlight compensation, and auto gain control (AGC)
Network Features:
1. Main Stream: (2592*1944)30fps
2. Support the P2P or Android, IOS
3. Support Onvif2.4
4. H.265 H.264 main profile & M-JPEG Dual-stream
5. Standard SDK,CGI,easily to be integrated with other digital systems
6. Support P2P plug and play;
7. Support IE, Google, Firefox browser
8. Support PC client to download SD card video
9. Support mobile phone download and playback SD card recording
10. Supput :Onvif/PSIA/RTSP/CGI/API/GB28181
11. Support motion detection (area, sensitivity can be set) alarm function
Dome Features:
1. NEW 32 bit processor, with soft ID, more storage space, higher speed, better performance, lower consumption
2. With 10 EA array Led, IR distance 60M
3. 355 degree continued rotation, manual pan speed 0.1~30/S, manual tilt speed 0.1~30/S, preset speed 128 PCS.
SPECIFICATION
| Mode | Name and Description | SVN-WIFI07AR-500-4X-Q |
| Camera | Image Sensor | 1/2.8 5.0Megapixels Sony IMX335 CMOS |
| Effective Pixels | 5.0 Mpixes | |
| Min. Illumination | ColorLº0.01Lux@(F1.6, AGC ON) B/W: 0.Lux | |
| Zoom | 4X , f=2.8mm~12mm, D/N( ICR-Cut) | |
| Day/Night | Day / Night / External control£¨IR Cut Filter£© | |
| SNR | >=50dB(AGC OFF) | |
| WDR | Super WDR >=120dB | |
| AGC | Auto / Manual | |
| White balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| Digital noise Reduction | DNR,3DNR | |
| Shutter speed | 1/1-1/10,000s | |
| Network | Video Compression | H.265 H.264 Main Profile/M-JPEG |
| Streams | 3 streams | |
| Frame Rate | Main stream: | |
| 2560*1920, 1-25(30)fps; 1920*1080, 1-25(30)fps | ||
| Sub-stream: | ||
| 480*640, 1-25(30)fps; 480 *360 1-25(30fps | ||
| 352*288, 1-25(30)fps; 176*144, 1-25(30)fps | ||
| MJPEG: | ||
| 1920*1080, 1280*720, Close | ||
| Bitrate | CBR/VBR, bitrate£º96k~6M bps variable | |
| Audio Compression | G711¬PCM | |
| P2P | Android¡¢IOS | |
| Protocols | TCP/IP, HTTP, DHCP, DDNS, RTP,RTSP, PPPOE ,SMTP, NTP, UPNP | |
| Motion detect | Support | |
| Onvif | Onvif 2.4 | |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
| Mini SD Card | Up to 128GB(Optional) | |
| Dome Features | CPU Type | 32 bit ARM CPU |
| Address | 0~128(soft address and hard address) | |
| Pan Range | 0°~355°, Horizontal | |
| Tilt Range | 0°~100°, Vertifcal | |
| Manual pan speed | 0.1~30º/S | |
| Manual tilt speed | 0.1~30º/S | |
| Preset points | 128 | |
| Other function | 8 Tour, Intelligent Three dimensional Scan, 8Pattern group ,Operation recall, Manual continued Auto Scan | |
| General | Work temperature | External -10ºC~50ºC |
| Work Humidity | 0%~90% (Non condensing) | |
| Power | Power | |
| WEIGHT | 1000g |
