China 5MP CCTV Mini Waterproof WiFi PTZ Poe Dome IP Camera

Product Description

Features:

1. System Function

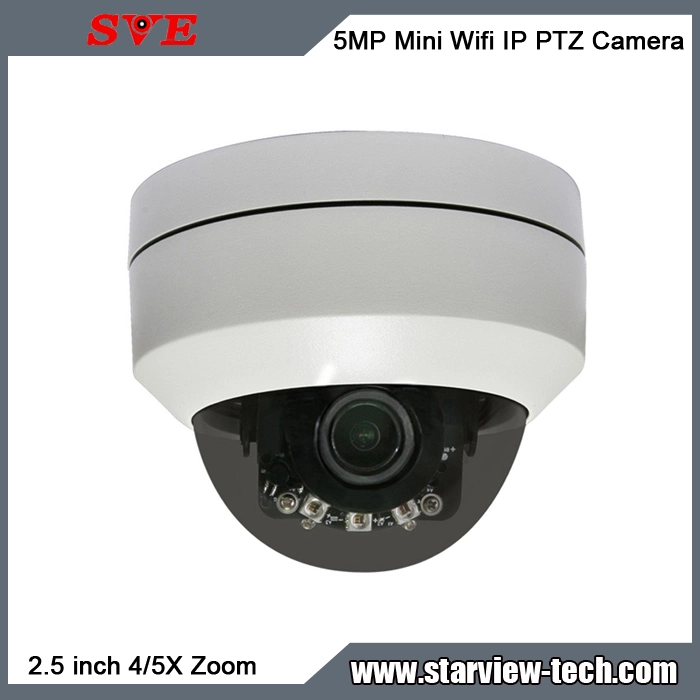

2.5 inch Mini speed dome, beautiful appearance;Friendly quick install structure design,easier building.
Adopt high-performance sensor, H.265 compression format,resolution achieve 2688*1520.
Support ONVIF protocol.
Support English IE interface and operation tips function, user friendly interface.
3 class lightning proof,support for lightning protection, anti surge, anti surge.
Protection grade: IP66.

2. Infrared function

2pcs Array Led,IR Distance 20-30M,minimum Illumination:0 Lux
The constant current circuit design,Infrared ages can be reach 30 thousand hours.

3. IP Zoom camera function

Adopt high-performance Hisilicon platform, stable and reliable performance.
Effective pixels 5.0 million pixels (5MP),2592*1944.
Support auto iris,auto focus, AWB and BLC.
Support digital WDR function.
Support Audio function,AAC/G.711 compression,support audio-video synchronization (Optional)
4mm/3x(2.8-8mm)/5x(2.7-13.5mm) optical zoom (optional).

4. IP Network function

Support Ethernet remote control
You can view real-time image and control PTZ rotation through IE browser,PC Client softwar,and NVR.
Support two levels of user rights management, support for authorized users and passwords, support HTTPS encryption and network access control.
Support H.265/H.264 compression format,dual stream output.
WEB configure, real time recording transmission and playback, Free client software supported,SDK for customer software development.
Support multi-protocols:IPv4,HTTP,HTTPS,Qos,FTP,SMTP,UPnP,SNMP, DNS,DDNS,NTP,RTSP,RTP,TCP/IP,DHCP,PPPoE

5. PTZ Control Function

Horizontal rotation 355°, tilt rotation 90°,control speed 70°/s
28 presets position,5 patrol tracking routes, residence time can be set.
1 parttern,1 left and right scan,1 auto level scan, Idle running functions.
Support power off memory function, When the camera is powered down, it will automatically resume the running state or position before the power is cut off.

Specification:

Model Number	SVN-MDW2550RD(B)
Camera
Image Sensor	1/3" CMOS
Effective Pixels	5.0MP pixels,2592*1944,H.265/H.264
Focal Length	4mm/3x(2.8-8mm)/5x(2.7-13.5mm) optical zoom option
Min. Illumination	Color: 0.05Lux@(F1.6, AGC ON), B/W: 0.01Lux@(F1.6, AGC ON),0Lux with IR
White Balance	Auto/Manual
AGC	Auto/Manual
Focus Mode	Auto/Manual/SemiAuto
Day & Night	IR Cut Filter,Auto,Color,B/w
DNR	Low/Middle/High/Off
Back light Compensation	ON/OFF
DWDR	Support, on/off
Video format	5MP/15fps,4MP/20fps,3MP/25fps optional
S/N Ratio	>=50dB
Pan/Tilt
Pan / Tilt Range	Pan: 355° Continuous Rotation; Tilt: 0° ~ 90°
Rotationt Speed	Rotation Speed: 0.5-70° /s
Proportional Zoom	support
Number of Preset	128
PTZ functionl	1 patrols,1 left and right scan,1 auto level scan
Idle running functions	Yes
Power off memory function	Yes
IP Network function
Net Interface	RJ45 Ethernet interface,Support 10M/100M
Image Compression	H.265/H.264
Dual Rate	5MP+D1
Audio(optiona)	AAC/G.711 compression
Network Protocols	IPv4, HTTP, HTTPS, Qos, FTP, SMTP, UPnP, SNMP, DNS,DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE
Client	Support
ONVIF	support Onvif Protocol
Business Function	Support WEB, real-time video transmission; and motion detection
IR Function
IR Lamp	2 High power array infrared LED
IR Distance	20-30M
Infrared LED on	Auto
General
Protocols	Pelco-P, Pelco-D, self-adaptive
Working Temperature	-20°C~60°C
Humidity	≤90%, Non- condensing
Waterproof grade	IP66

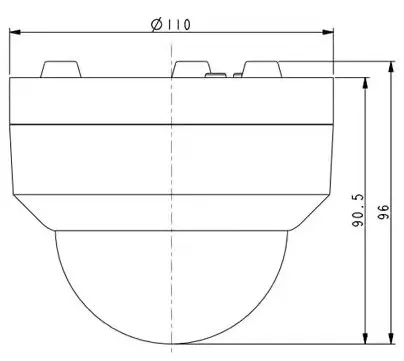

Package Dimension	132x132x115mm
Weight (approx.)	650g

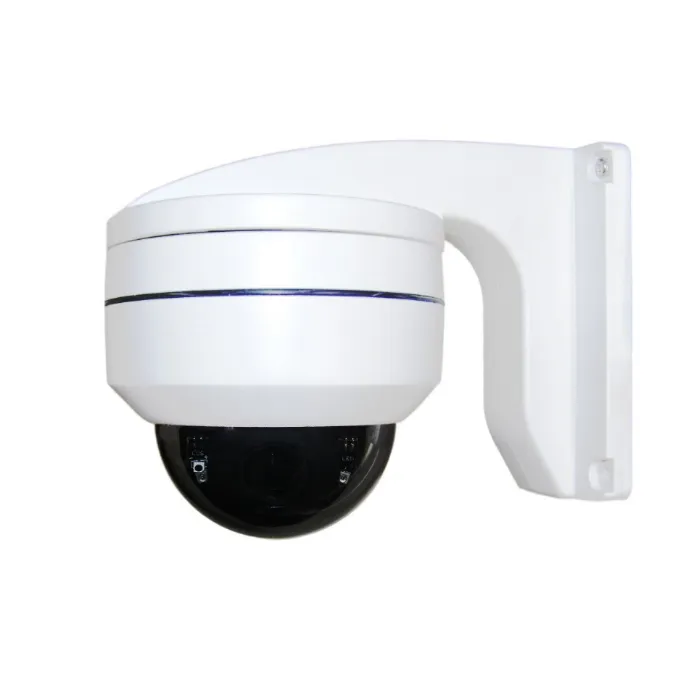

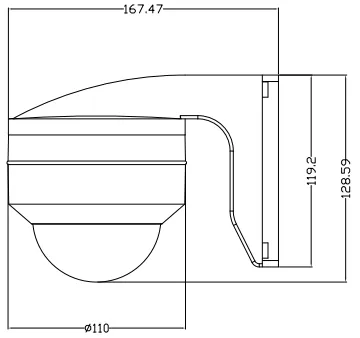

Mount Option	Ceiling mount,Wall mount
Power	DC12V/1A (±10%), ≤10W
Accessories	Installation manual , accessories bag
